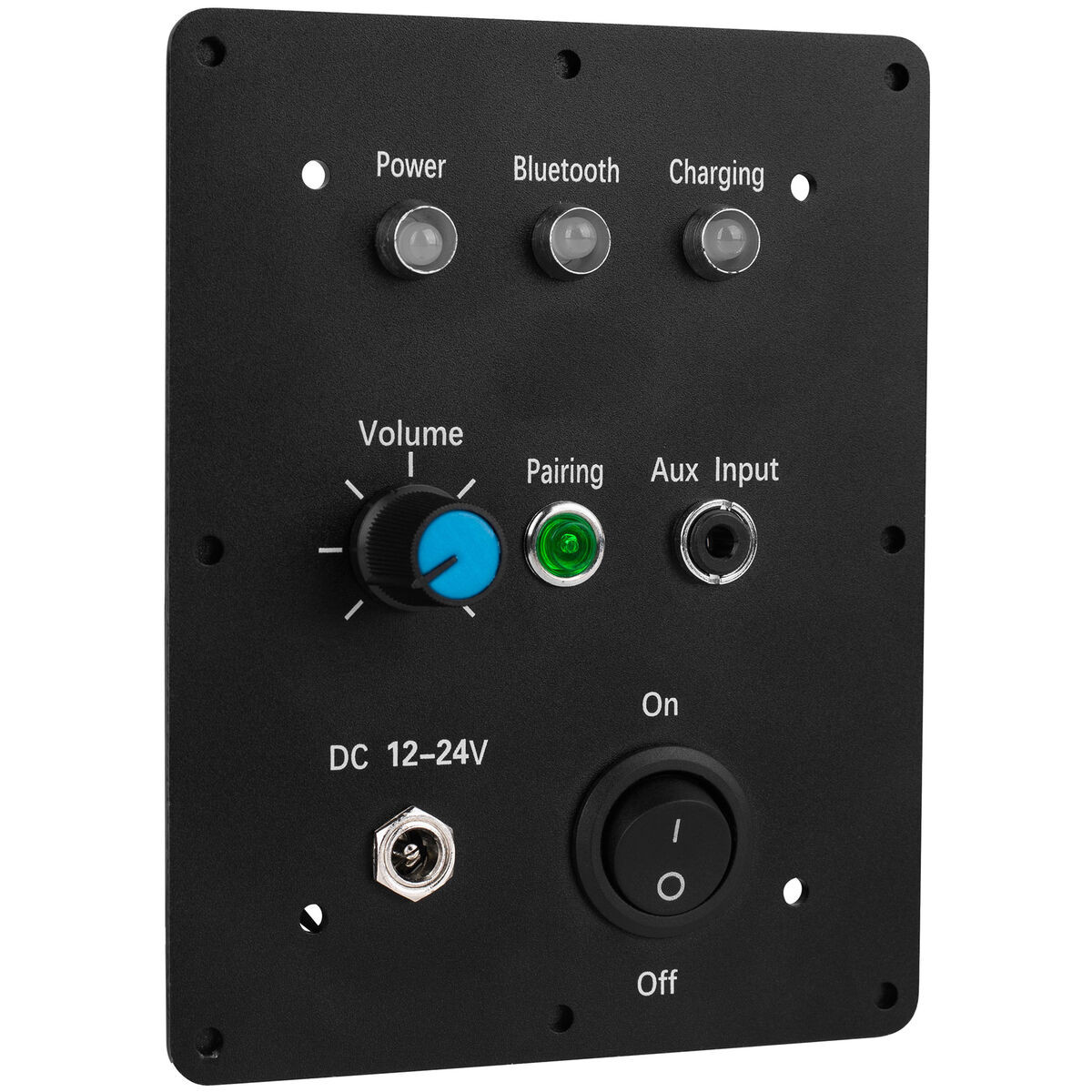

Dayton Audio KAB-PMV3 Panel Mount for Most KAB Boards with Function, LED, and Install Kit
Add a professional finish to your Dayton Audio KAB amp board projects with this KAB panel accessory kit. Key Features Silk screen labels identify each function for ease of use and a professional finish Predrilled holes save time mounting each component Standoffs attach the KAB board to the KAB panel for one piece installation Gasket tape and wood screws for a secure fit Included components plug directly into the board without soldering 5052 sheet aluminum and SUS304 stainless steel standoff for long lasting performance Give your Dayton Audio KAB sound projects a professional finish with the KAB-PMV3 Panel Mount Kit. It includes the function and LED light kit needed to get your KAB amp board ready for power. It also includes a DC coax 2.1 x 5.5 mm power jack, a rocker switch, standoffs, gasket tape and mounting screws to help complete the project. Each component plugs directly in the board without having to solder. Predrilled holes make installation a breeze with silk screen white labels to identify each components location and function. The standoffs hold the panel and the KAB board firmly together for one piece mounting. Gasket tape and screws securely mount the panel to your project. Note: Pairing switch doesn't hook up to the KAB-215 series. Parts Description Specification Qty Panel Black metal 4.75" H x 3.76" W x 0.09" D (120 x 95 x 2.3 mm) with screw hole spacing 4.37" and 3.39" (111 x 86 mm) apart for mounting 1 Screws Black for front of standoff M3 x 6 mm 4 Screws Silver for rear of standoff M3 x 6 mm 4 Standoffs Silver M3 x 60 mm 4 Screws Black wood screws for mounting M3 x 16 mm 8 LEDs Red, green, and blue with metal socket and cables 5 mm with 20" (500 mm) leads 3 Potentiometer Volume control, knob, and cable 1K ohm with 20" (500 mm) leads 1 Push button switch Push button and cable for Bluetooth pairing SPST momentary N.O. with 20" (500 mm) leads 1 Stereo phone Jack Aux input and cable 3-conductor 3.5 mm with 20" (500 mm) leads 1 DC coax jack DC input and cable 2.1 x 5.5 mm with 20" (500 mm) leads 1 Rocker Switch On-Off switch and cable SPST with 20" (500 mm) leads 1 Gasket tape Gasket tape for underneath the outer diameter of the panel 4.61" L x 0.39" W (117 x 10 mm) 2 Gasket tape Gasket tape for underneath the outer diameter of the panel 3.47" L x 0.39" W (88 x 10 mm) 2

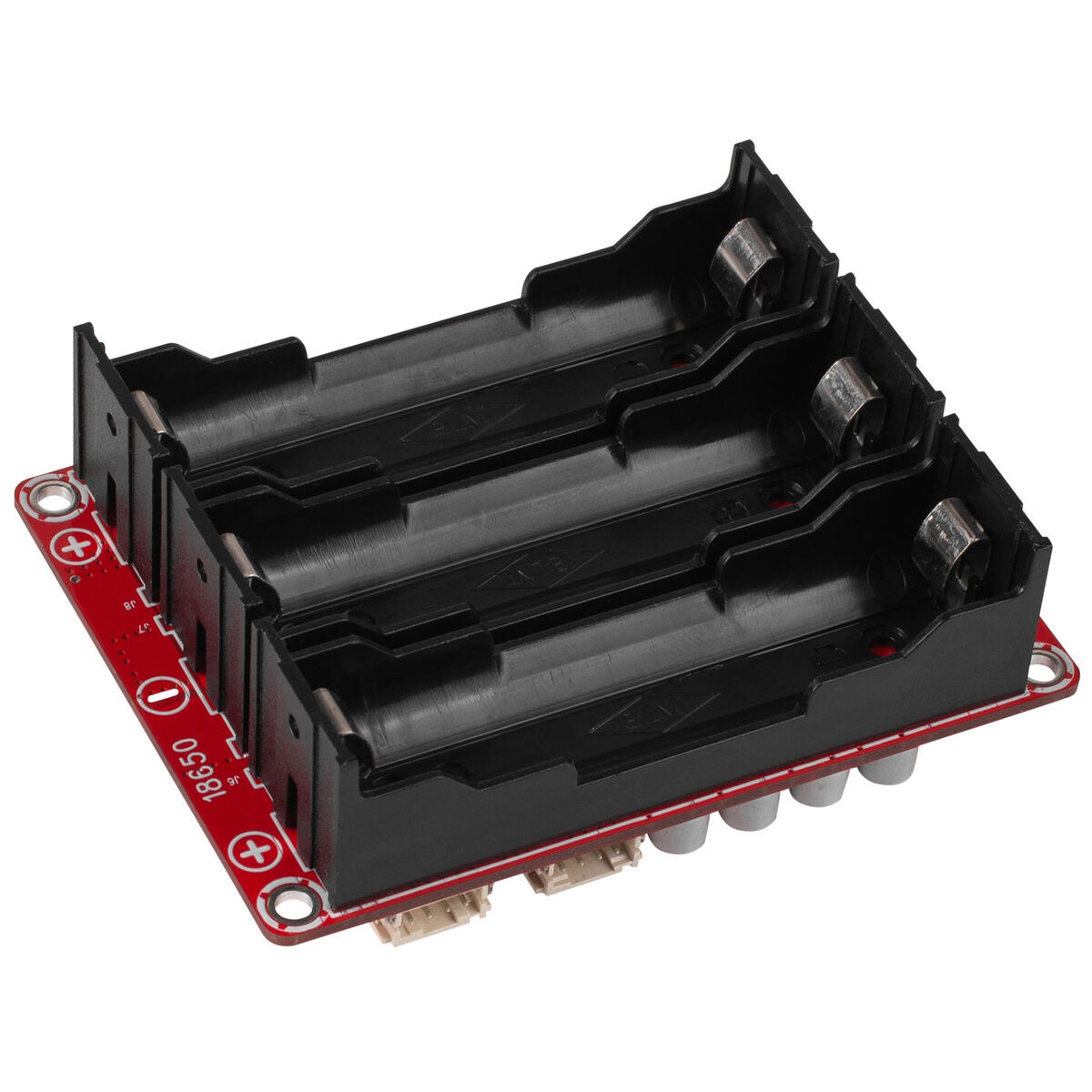

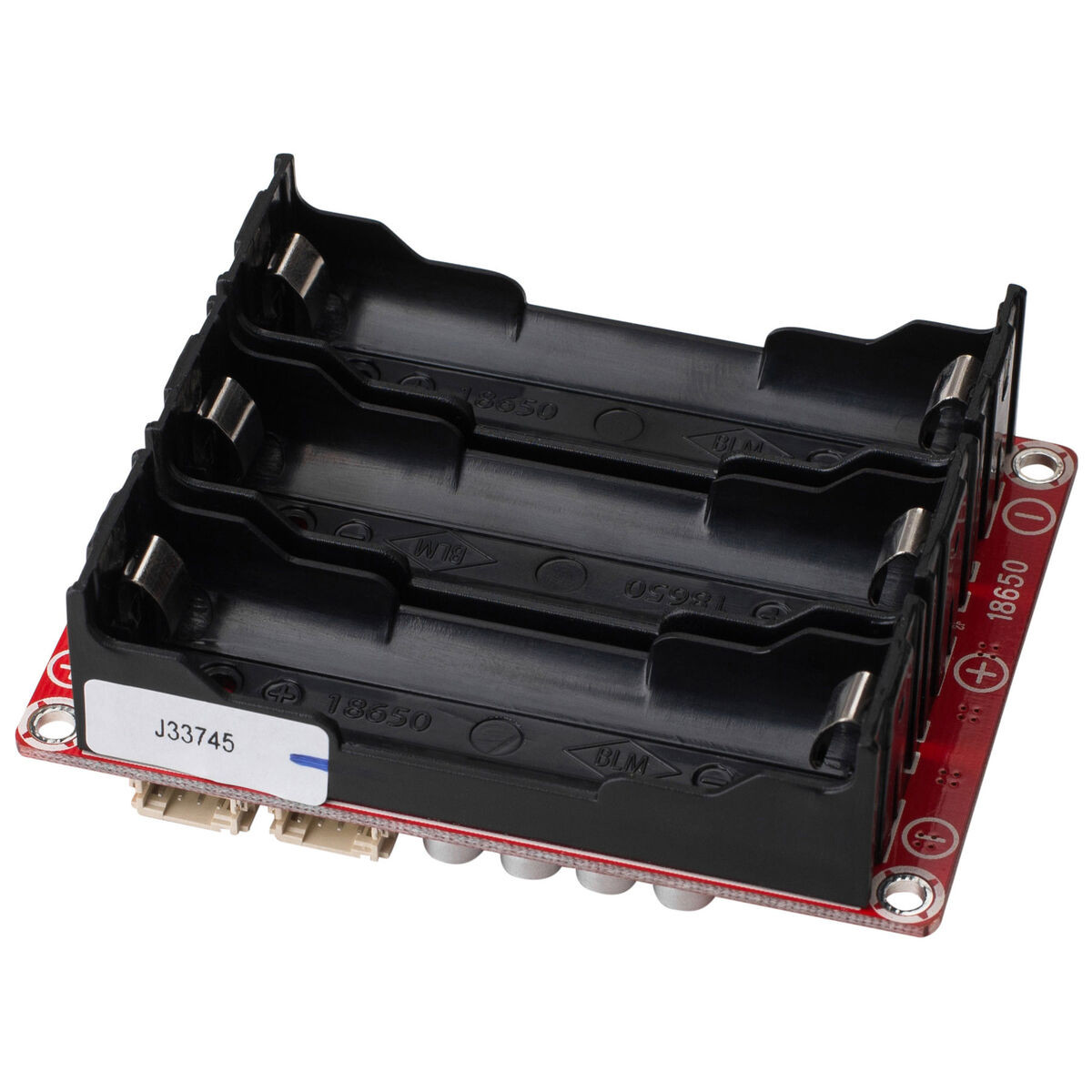

Dayton Audio KAB-BE 18650 Battery Extension Board for Bluetooth Amplifier Boards
Lithium battery power is your best option when building high power portable sound projects. Connect and charge three 18650 lithium batteries to your KAB board using the Dayton Audio KAB-BE. Enjoy prolonged listening with this advanced power option. Key Features Under/over voltage protection prevents over charging the batteries Voltage balancing keeps the sound playing even if one of the batteries is weaker than the others Holds three 18650 Li-Ion batteries (sold separately) Built-in 8" 4-conductor cable plugs directly into KAB Bluetooth amp boards The Dayton Audio KAB-BE Li-Ion battery charging board holds three 18650 batteries (sold separately). This charging board has built in under/over voltage protection circuits for safe charging and battery longevity. It balances different voltages between batteries in case one battery discharges faster than the other ones. A 19 VDC, 1-5A power adapter works best for charging batteries contained in this board. Additional boards can be sequenced together to provide longer playing time. Please note: When removing batteries from the KAB-BE, the charging adapter must be plugged in momentarily after the new batteries have been inserted. Failing to do so will prevent the amp board from powering up. Specifications: • Included cable: 8" 4-conductor • Board dimensions: 2.68" H x 3.61" L x 1.15" W.
Dayton Audio KAB-FC Functional Cables Package for Bluetooth Amplifier Boards

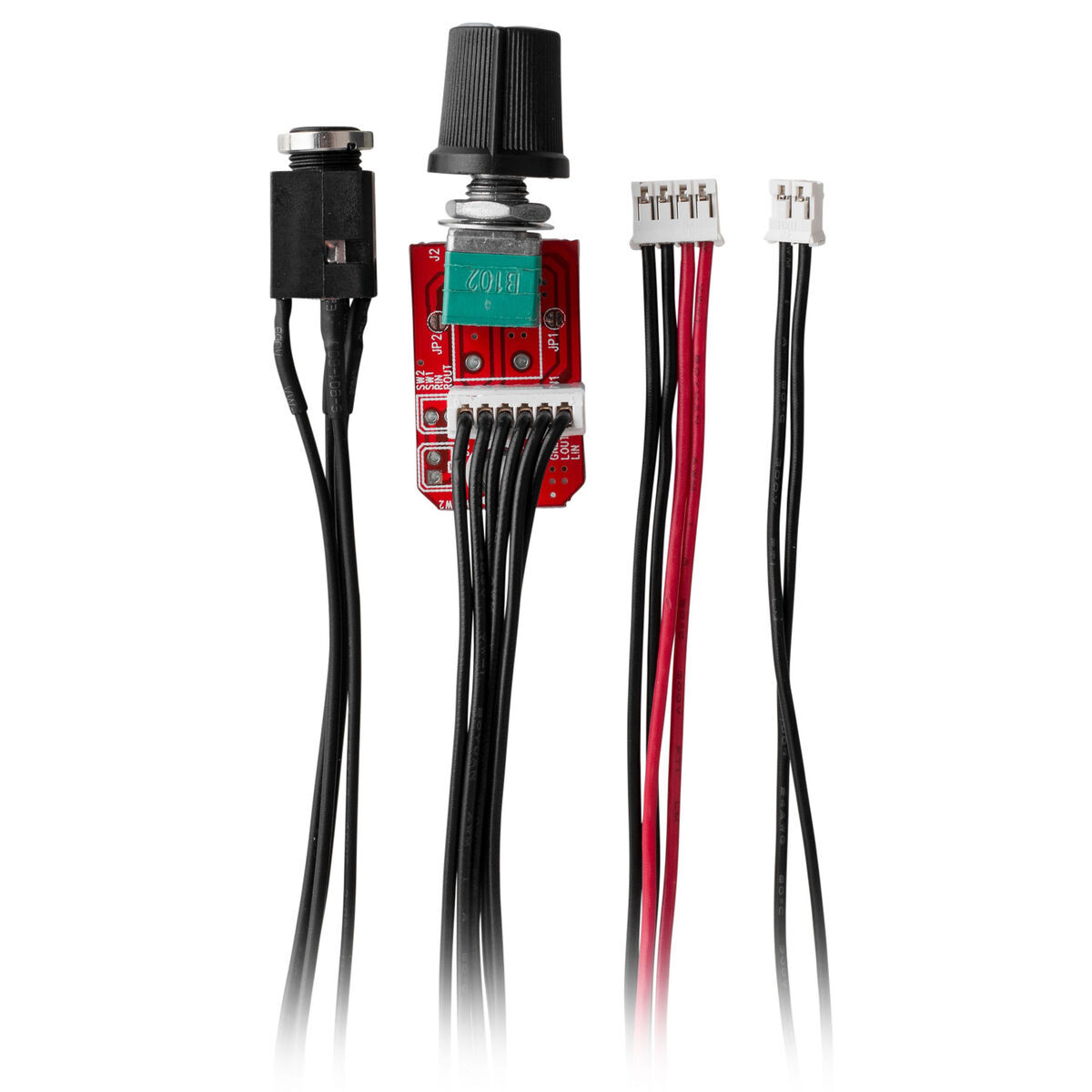

These four 20" function cables offer additional options for customizing Dayton Audio KAB Bluetooth amp board sound projects. Key Features 3.5 mm AUX-in cable with jack provides a way to play music with non-Bluetooth devices External volume control with cable and knob to keep the sound under control Battery cable for true portable projects On/off power cable for optional power switch Use the KAB-FC cables to customize any Dayton Audio KAB project. This four-cable kit comes equipped with Molex Mini Fit Jr connectors for easy termination to the board, and each cable is 20" in length. The AUX-in cable with 3.5 mm jack feeds music from any analog source directly to the Dayton Audio KAB boards, enabling audio play from almost any non-Bluetooth source. The volume control with cable and knob lets you manually control sound levels, and mounts into a 0.3" hole. The volume control without knob is 0.24" (6 mm) in diameter. The battery cable is for portable projects where AC or 12 VDC car power are not available. Multiple types of rechargeable batteries work with this cable and the board will charge the batteries when using an adapter with 15 - 24 VDC. Output wattage of the power adapter should never exceed 30 watts, as there is no under/over charging protection built in to the KAB boards. Using the on/off power cable and SPST switch cuts power to the entire board, but still provides power to the connected batteries for charging.
Dayton Audio DSPB-EC Expansion Cables for KAB and DSPB Connection

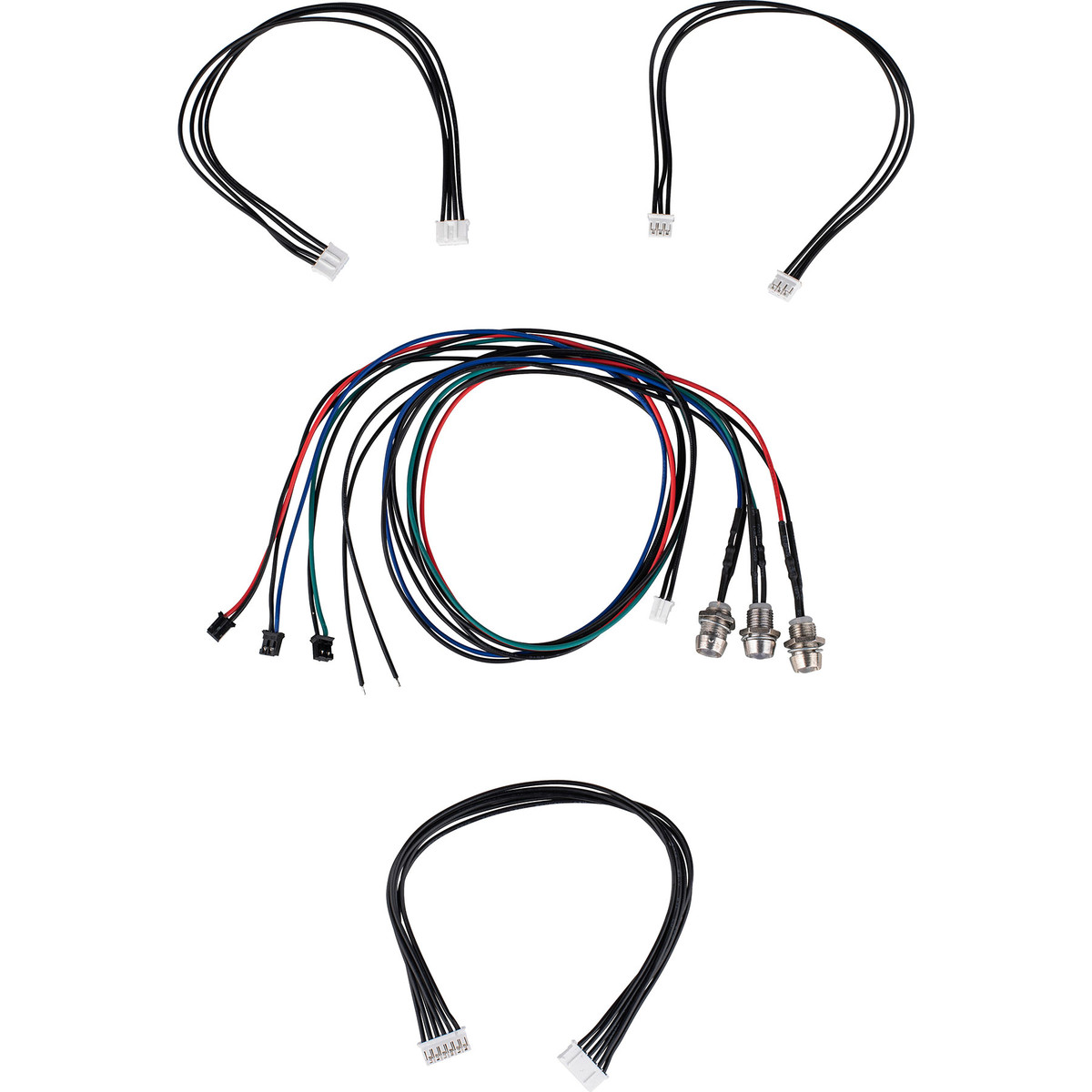

Use the DSPB-EC cable kit to customize any Dayton Audio DSPB project. Each wire harness comes equipped with mini connectors for easy termination to the board. Key Features LED lights, with 20" wiring harness, add external status indicators for KAB amplifier boards Quickly connects DSPB amplifier boards to KAB-230v3 and KAB-250v3 amplifier boards without soldering 6-pin and 3-pin cables keep the boards working together 4-pin battery cable eliminates an additional Dayton Audio battery charger/holder If you want to combine the DSPB amplifier boards to the KAB-230v3 or KAB-250v3 you must use the DSPB-EC cable kit. The 6-pin cable enables the two boards to increase or decrease master volume together while the 3-pin cable controls standby status with one switch. The battery cable plugs into the extra 4-pin port on the Dayton Audio battery boards to eliminate an extra battery holder/charger. The three LED lights add the convenience of external indicators for Bluetooth, power, and charge status.
Dayton Audio DSPB-K DSP Kernel Board
The Dayton Audio DSPB-K DSP preamp adds powerful DSP processing to any amplifier or project! It’s preconfigured to adjust high/low pass filters and gain settings with the onboard potentiometers, but unlock its full potential by combining it with the Dayton Audio ICP1 (sold separately). Explore almost limitless possibilities of precise EQ, filters, bass processing, time alignment and so much more with the SigmaStudio development tool. All of this potential comes in a package smaller than most passive crossover circuits, even when combined with the DSPB-KE (sold separately), which adds all of the RCA and 3.5mm connections appropriate for making a 2.1 system. Key Features Extremely popular Analog Devices' ADAU1701 processor is built in for advanced DSP processing in a tiny package Four potentiometers built-in to adjust the gain and high/low pass filters for your satellite and subwoofer channels right out of the box Almost endless customization when combined with a Dayton Audio ICP1 (sold separately) and SigmaStudio 5-year Dayton Audio warranty Add the Dayton Audio DSPB-K between your input source and amplifier to add powerful DSP processing to your next speaker project! Thanks to the built-in Analog Devices ADAU1701 processor, this preamp is capable of filters, precise EQ, bass enhancement, time alignment and so much more that isn’t feasible with passive crossover components. Get quick access to filter and gain settings with the built-in potentiometers out of the box, but unlock the full potential of the DSPB-K by combining it with the Dayton Audio DSPB-ICP1 (sold separately), allowing it to be programmed with SigmaStudio and your Windows PC. Just make sure the switch on the DSPB-K is set to program mode, and the switch on the DSPB- ICP1 is set to USB. Check out the attached user manual and example SigmaStudio projects for more details about the capabilities of the entire DSPB series! Integrated DSP Chip Create nearly limitless possibilities of EQ, crossover, bass enhancement, time alignment and more thanks to the ADAU1701 DSP chip built into the DSPB-K kernel board. Optional Programing Interface Board Add the DSPB-ICP1 to unlock the full potential of the DSP built onto your DSPB-K! When connected to a Windows PC, the DSPB-ICP1 allows you to program your DSPB-K with the Analog Devices SigmaStudio development tool, allowing for practically endless DSP customization including precise EQ, filters, bass enhancement, time alignment, and more that is practically impossible with passive crossovers. Optional DSPB-KE Connects it to an Amplifier The DSPB-KE is a perfect match for the DSPB-K to quickly create a 2.1 system! The DSPB-KE includes standoffs and a 10-wire jumper cable to integrate these two boards into a diminutive package, adding to the DSPB-K the appropriate RCA and 3.5mm connections for a 2.1 system without the need for soldering or a custom solution. Specifications: • Dimensions: 1.97" W x 1.97" D x 0.5" H (50 x 50 x 12.7 mm) • Four mounting holes: 0.11" Dia. (2.8 mm), 1.77" (45 mm) apart to center • Power input: 5 VDC • Power input jack: Micro USB.
Dayton Audio KAB-INT Interface Extension Board for Bluetooth Amplifier Boards

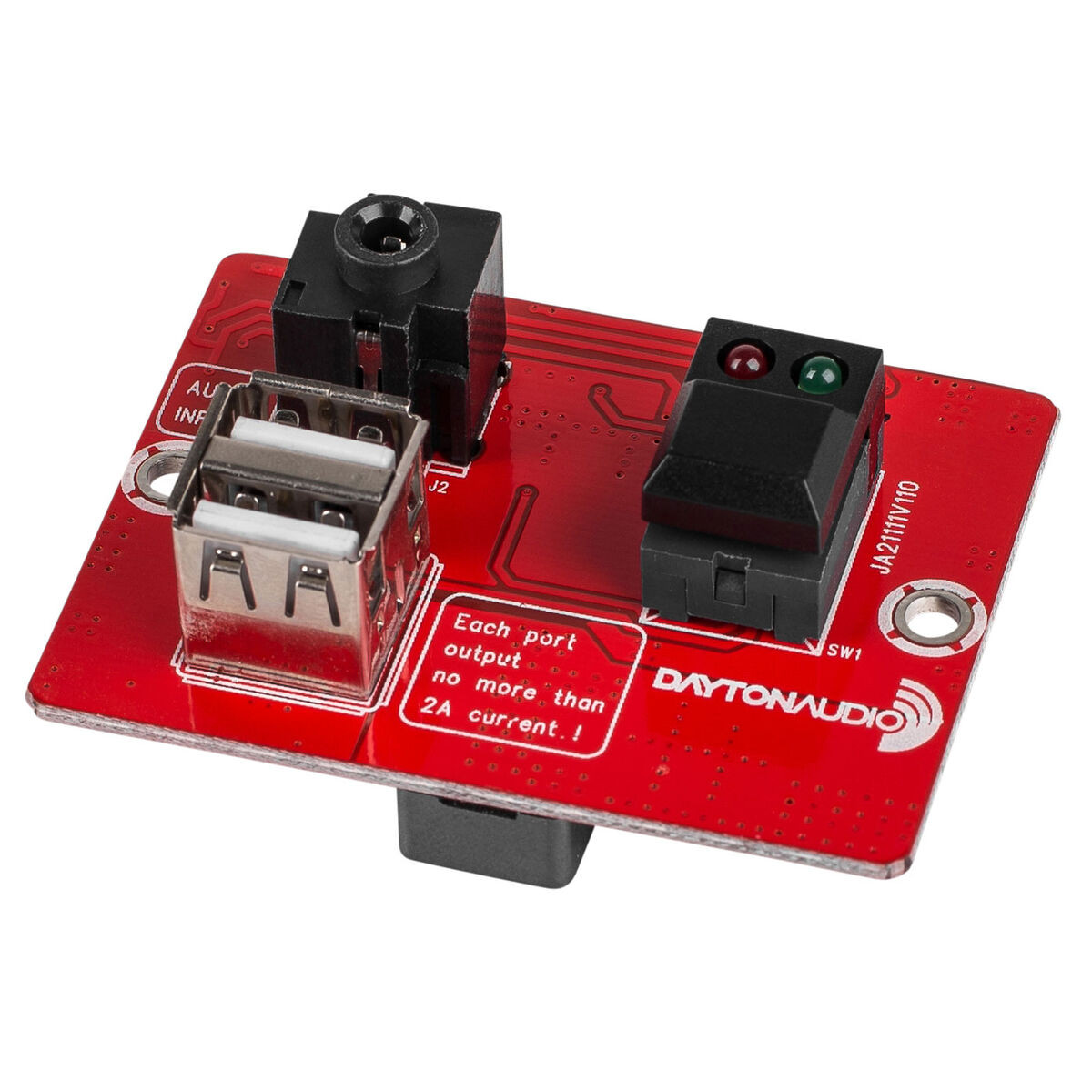

KAB-INT interface extension board puts the finishing touches on your Dayton Audio Bluetooth amp board project by conveniently adding a power switch, stereo 3.5 AUX in jack, and two USB ports for charging external devices. Key Features Adds many features with one simple connection Push button on/off switch puts amp in standby mode to save power Two USB ports have 2A combined charging capability for your media devices AUX-in 3.5 mm jack for connecting amp to non-Bluetooth sources Includes 19" interconnect cable for quick hook up Ground noise isolation eliminates unwanted sounds Two LED status indicators; red and green The Dayton Audio KAB-INT provides a simple plug and play solution for custom applications. This interface board provides a 3.5 mm AUX-in jack, two USB A female ports for charging external devices, a momentary pushbutton switch that controls the standby function, and LED indicators for power and charging status. With the included 10-pin 20" cable, the interface extension board easily plugs directly into the KAB boards. Note: The interface extension board is not designed to work with the KAB-215 Bluetooth 2 x 15W amp board. Specifications: • Board dimensions: 1.8" H x 2.4" L x 1" W including components • Mounting holes: 0.14" Dia. • Distance between mounting holes: 2.11" • USB port dimensions: 0.58" L x 0.61" H x 0.55" W • AUX jack hole: 0.3" Dia. x 0.55 W" • Switch dimensions: 0.5" L x 0.7" H x 0.55" W.
Dayton Audio KAB-LED Red/Green/Blue LED Package for Bluetooth Amplifier Boards

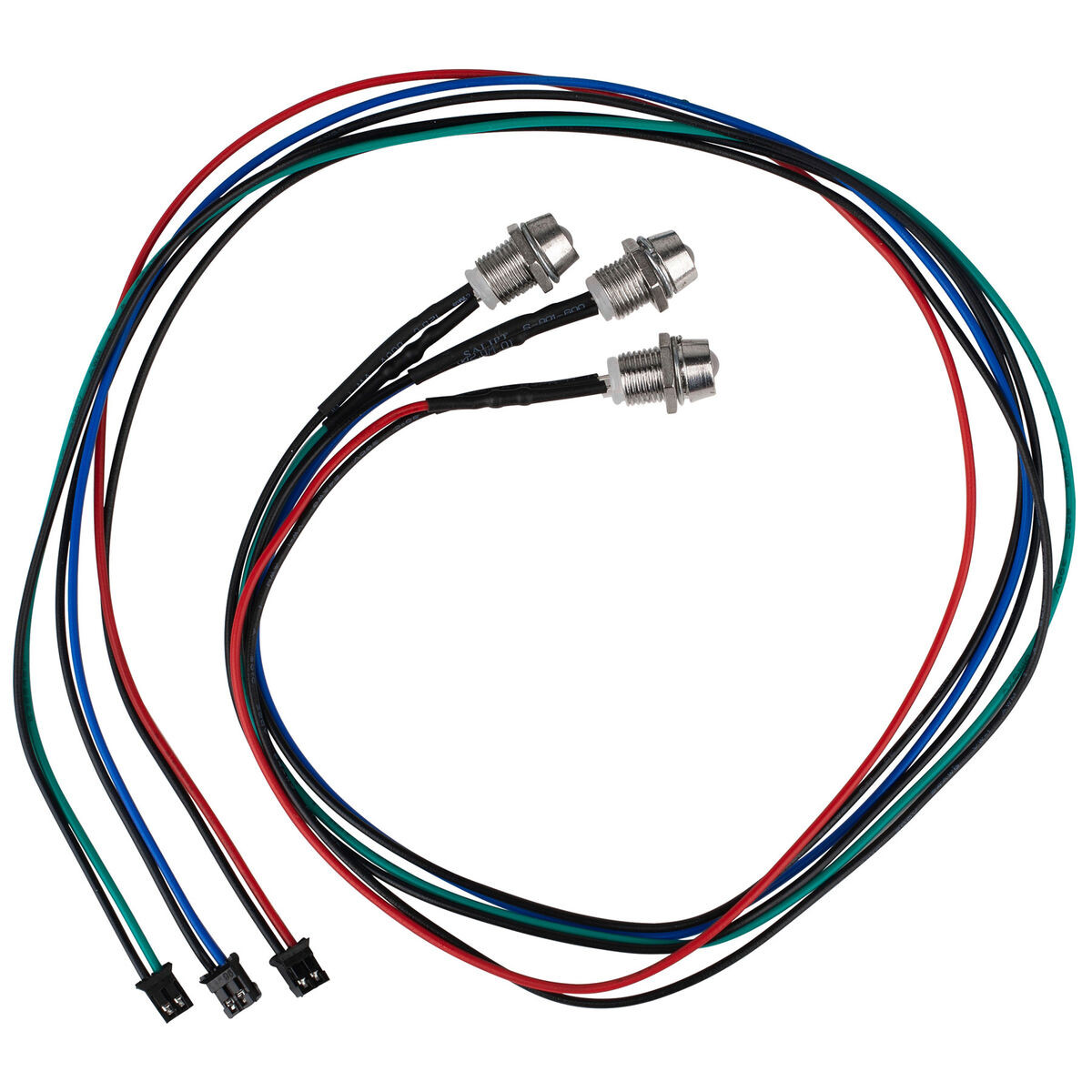

Three LED light status cables let you know what's going on with KAB boards since the board is concealed inside your project. Key Features 20" leads with 2-conductor connectors plug directly in the board for quick installation Three different LED colors identify status of KAB board functions Package includes one each LED; blue, red, and green LEDs remain clear when not in use The KAB-LED light cable kit includes three different status LEDs that are clear when not in use, but when lit they are blue, red, and green. Plug the blue LED into the Bluetooth LED socket, the red LED into the LED power socket, and the green into the charging LED status socket.
Dayton Audio LBB-3 3 x 18650 Lithium Battery Charger Board / Module 12V with Charge Protection
Lithium battery power is your best option when building high power portable sound projects. This battery holder charges three 18650 Li-Ion batteries when used with a 15 to 24 VDC power supply (sold separately). Enjoy prolonged listening with this 12 VDC advanced power option. Key Features Works with any 15 VDC to 24 VDC 2.1 x 5.5 mm tip + power adapter (sold separately) Powers 12 VDC projects while charging Built-in over/under charge protection Includes 8" 12 VDC output cable with 4-conductor plug for additional devices Quick release DC input and output terminals Dayton Audio's LBB-3 compact battery holder board delivers high current portable power to small amplifiers, 50W amp boards, or other 12 VDC projects by combining the voltage from three 18650 Li-Ion batteries (sold separately). It's small enough to fit inside a portable speaker and has multiple 12 VDC outputs to power an amp, tone control, Bluetooth, and other preamp component boards. Enjoy the extended listening time you get from Li-Ion batteries on a single charge. 18650 Li-Ion batteries come in a variety of amperages, and to get the longest playtime from a 50W amplifier or amp board use at least 2600mAh batteries. There is no need to remove the batteries from the holder because the Dayton Audio LBB-3 has a built-in charge circuit. Just plug in a power supply and the over/under charge circuit prevents correctly installed batteries from overcharging and fully discharging, shortening their life. The LBB-3 battery board needs a 15 to 24 VDC power supply (sold separately) to start the charging process and to start its output power. This enables you to listen to music while the batteries are charging with this amazing battery holder. To view charging and battery status press the push button on the battery board, or use Dayton Audio's LLB-LEDpush button and LED kit (sold separately) to view status externally. If you remove a battery, the power supply must be plugged into the holder for the battery board to start working again when the battery or batteries are reinstalled. The polarity of the batteries must match the polarity of the battery holder to prevent damage. Note: The Dayton Audio LBB-3 is an independent battery holder board and it's design is not for Dayton Audio KAB boards. Use Dayton Audio battery board KAB-BE with Dayton Audio KAB Bluetooth amp boards. Specifications: • Output voltage: 12 VDC • Input voltage required: 15 to 24 VDC at least 2A recommended • DC coax jack size: 2.1 x 5.5 mm center (+) polarity • Batteries: Three x 18650 Li-Ion (sold separately) • Dimensions: 3.61" W x 2.72" D x 1.34" H (92 x 69 x 34 mm).
Dayton Audio LBB-LED Red/Green LED with Switch Package for LBB-3 18650 Battery Board
Dayton Audio LBB-LED Red/Green LED with Switch Pack for LBB-3 18650 Battery Board. The Dayton Audio LLB LED kit is great for projects that use the Dayton Audio LBB-3 battery mount. It allows you to check the charge and battery status when the battery holder board is inside a project.
Dayton Audio KAB-60M 1x60W Class D Audio Amplifier Board with Bluetooth 4.0
The Dayton Audio KAB-60M Bluetooth Amplifier Board makes it quick and easy to add audio to your project, speaker build, point-of-purchase display, kiosk, or any location where music or sound enhances the experience. With a mono output of 60 watts, there is plenty of power to drive a small subwoofer or midsized speaker project, yet the board is small enough to integrate into nearly any project. Key Features Efficient 1 x 60 watts of power from the TPA3118 amp chip Bluetooth 4.0 with aptX built directly into board – no need for a separate module U.FL IPX coaxial connector for internal or external Bluetooth antenna (internal antenna included) and a Bluetooth pairing reset switch Separate ports for powering by battery or direct DC input from a power adapter Optional Accessories expand functionality and more 5 year Dayton Audio Warranty High Quality Audio Performance The Dayton Audio KAB-60M Bluetooth Amplifier Board delivers high quality sound without drawing a lot power. This is due to the highly efficient TPA3118 Class D amplifier chip. The TPA3118 operates at 90% efficiency, thus eliminating the need for a heat sink and reducing its overall size. Its high efficiency becomes a major advantage when powering from batteries as it prolongs the playtime of a single charge. Its ultra-low distortion and pop-free performance make this hi-fi amplifier board an integral asset in any quality audio build. Integrated Bluetooth Unlike other amplifier boards, the Dayton Audio KAB-60M includes a built-in Bluetooth 4.0 module with aptX. The advantage of Bluetooth 4.0 is its low power consumption which prolongs the playtime of battery powered builds. The streaming audio quality rivals that of CDs thanks to the addition of the aptX codec by CSR. Designed and built for Bluetooth demonstration purposes, this fully functioning module provides a turn-key approach to Bluetooth certification for consumer goods. If the application of this board is for the hobbyist or industrial purposes then nothing is required to enjoy the full convenience of pairing and streaming high quality Bluetooth audio. The KAB-60M is also CE and FCC ready for certification purposes. Easy Installation Included with the KAB-60M are two wire harnesses: one for DC power and the other for connecting your speaker or speakers. For many users, these cables are all that is needed to complete a project. Since they have Molex Mini Fit Jr connectors to speed-up installation and create a confident connection, there is no need to solder or troubleshoot loose and unstable contacts. Dayton Audio also offers a variety of accessories with robust features to make installation even easier. Find out more about optional accessories below. This amp board also includes an external antenna which must be used for maximum Bluetooth range and a Bluetooth pairing button which when short pressed resests the Bluetooth pairing. Make sure you don't long press Bluetooth pairing button. This will disable the Bluetooth chip and you must power cycle the amp board to reactivate it. Endless Applications Due to the overall audio performance and built-in Bluetooth, this amp board has almost endless application possibilities. From hobbyists and DIYers to manufacturers and installation organizations this Bluetooth amp board has immense flexibility. For orders greater than 20 units, custom OEM Bluetooth pairing names are available -- email [email protected] for more details. Even if you bypass the Bluetooth feature, this amplifier board integrates easily into any job because of its array of included and optional wiring harnesses. Extreme Low Standby Power The Dayton Audio KAB-60M will remain powered up to 7 days in standby mode even while Bluetooth is enabled. This standby time is approximately 4x longer than the competition due to the use of a high efficiency DC/DC converter which minimizes power consumption thanks to the employment of a micro controller as the PMU (Power Management Unit). Multiple Power Paths The Dayton Audio KAB-60M features numerous power options for creative, wireless sound projects. This flexibility eliminates limitations often caused by most other amp boards. Therefore, your design can be cord restricted or truly portable. For portable applications, there is an optional function cable kit (KAB-FC) which permits the connection of rechargeable batteries to power the board. NiMH, lead acid, or NiCad batteries will recharge straight from the board using a 15~24 VDC, 1A power supply. Use extreme caution because the Bluetooth amp board does not provide under/over charge protection and the connected power adapter cannot have an output greater than 30 watts. Eight AA alkaline batteries can also power this board, but do not connect the recharging feature for this type of use. The best rechargeable battery option makes use a separate interconnect board from Dayton Audio (KAB-BE) which holds three 18650 Li-Ion batteries. This portable power source is highly recommended since this add-on battery holder board does provide under/over voltage protection. A 19 VDC, 1-5A power supply is your best choice for charging the expansion board. (15 VDC Min required and 24 VDC Max) Package Includes One Dayton Audio KAB-60M Bluetooth Amplifier Board One 2-conductor power cable 20" One speaker cable 20" One peel-n-stick Airgain™ internal Bluetooth antenna with 5" (127 mm) cable One Bluetooth pairing reset push button switch with cable 20" Specifications: Power output (w/ 19 VDC power supply): 1 x 60W @ 8 ohms SNR: 89.3 dB THD: 0.07% @ 8 ohms, 10W, 1 kHz Frequency response: 22 to 22,000 Hz (±3 dB) Impedance: 4-8 ohms Bluetooth range: 30 ft. Recommended power supply: 12 to 24 VDC, 4A Recommended recharging power supply (NiMH, lead acid, or NiCad) 15 to 24 VDC, 1A Recommended recharging power supply (Li-Ion) 19 VDC, 1-5A Board mounting holes center to center spacing: 3.32" x 2.4" (84 x 61 mm) Hole diameter: 0.14" (3.5 mm) Dimensions: 3.6" L x 2.7" W x 0.9" H

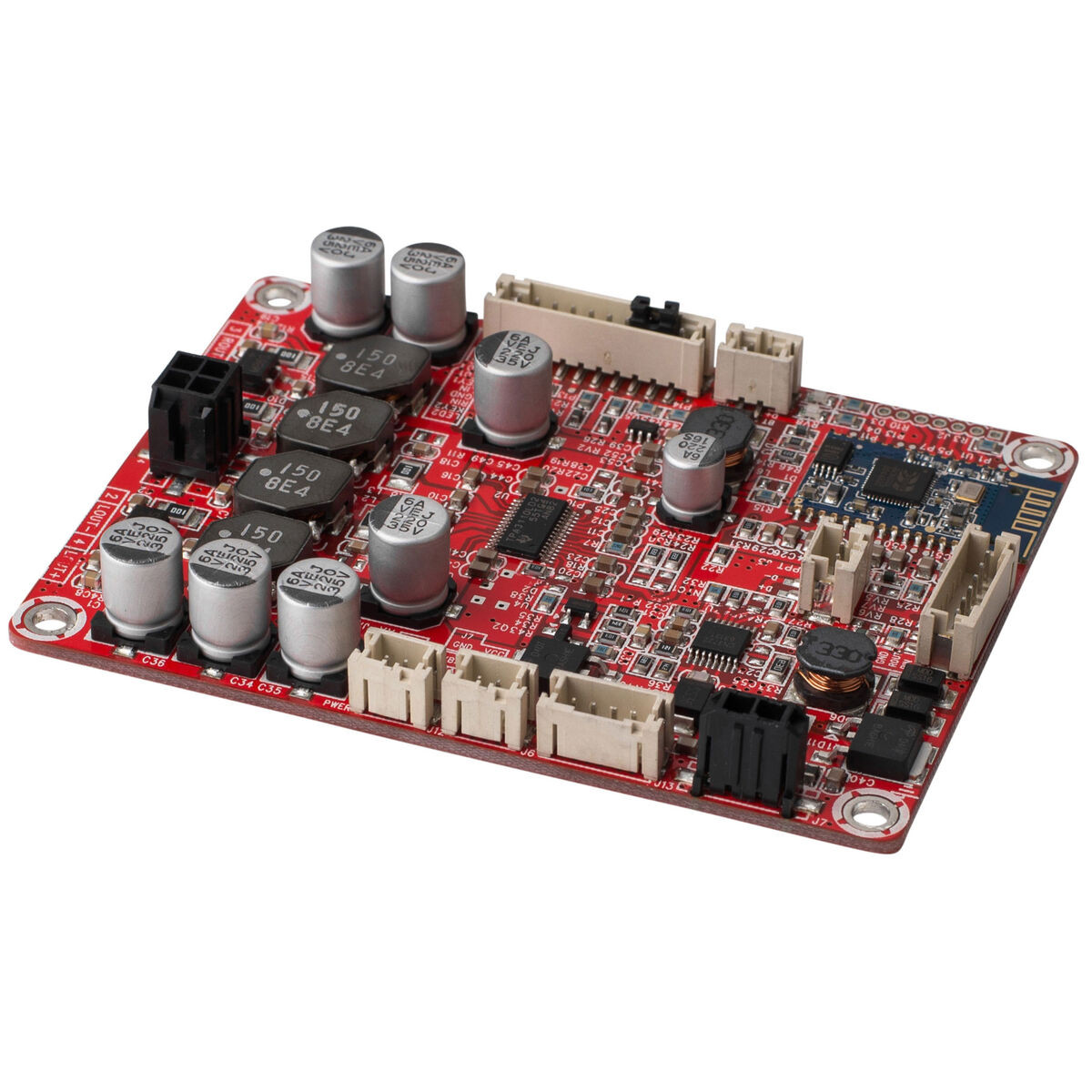

Dayton Audio KAB-100M 1x100W Class D Audio Amplifier Board with Bluetooth 4.0
The Dayton Audio KAB-100M Bluetooth Amplifier Board makes it quick and easy to add audio to your project, speaker build, point-of-purchase display, kiosk, or any location where music or sound enhances the experience. With an output of 1 x 100 watts, there is plenty of power to drive a small subwoofer or midsized speaker project, yet the board is small enough to integrate into nearly any project. Key Features Efficient 1 x 100 watts of power from the TPA3116 amp chip Bluetooth 4.0 with aptX built directly into board – no need for a separate module U.FL IPX coaxial connector for internal or external Bluetooth antenna (internal antenna included) and a Bluetooth pairing reset switch Wire harnesses make installation quick and simple with no soldering required – includes power and speaker cables Optional Accessories expand functionality and more 5 year Dayton Audio Warranty High Quality Audio Performance The Dayton Audio KAB-100M Bluetooth Amplifier Board delivers high quality sound without drawing a lot power. This is due to the highly efficient TPA3116 Class D amplifier chip. The TPA3116 operates at 90% efficiency. The added heat sink mitigates any issues that may arise from excess heat. Its high efficiency becomes a major advantage when powering from batteries as it prolongs the playtime of a single charge. Its ultra-low distortion and pop-free performance make this hi-fi amplifier board an integral asset in any quality audio build. Integrated Bluetooth Unlike other amplifier boards, the Dayton Audio KAB-100M includes a built-in Bluetooth 4.0 module with aptX. The advantage of Bluetooth 4.0 is its low power consumption which prolongs the playtime of battery powered builds. The streaming audio quality rivals that of CDs thanks to the addition of the aptX codec by CSR. Designed and built for Bluetooth demonstration purposes, this fully functioning module provides a turn-key approach to Bluetooth certification for consumer goods. If the application of this board is for the hobbyist or industrial purposes then nothing is required to enjoy the full convenience of pairing and streaming high quality Bluetooth audio. The KAB-100M is also CE and FCC ready for certification purposes. Easy Installation Included with the KAB-100M are two wire harnesses: one for DC power and the other for connecting to stereo speakers. For many users, these cables are all that is needed to complete a project. Since they have Molex Mini Fit Jr connectors to speed-up installation and create confident a connection, there is no need to solder or troubleshoot loose and unstable contacts. Dayton Audio also offers a variety of accessories with robust features to make installation even easier. Find out more about optional accessories below. This amp board also includes an external antenna which must be used for maximum Bluetooth range and a Bluetooth pairing button which when short pressed resests the Bluetooth pairing. Make sure you don't long press Bluetooth pairing button. This will disable the Bluetooth chip and you must power cycle the amp board to reactivate it. Endless Applications Due to the overall audio performance and built-in Bluetooth, this amp board has almost endless application possibilities. From hobbyists and DIYers to manufacturers and installation organizations this Bluetooth amp board has immense flexibility. For orders greater than 20 units, custom OEM Bluetooth pairing names are available -- email [email protected] for more details. Even if you bypass the Bluetooth feature, this amplifier board integrates easily into any job because of its array of included and optional wiring harnesses. Extreme Low Standby Power The Dayton Audio KAB-100M will remain powered up to 7 days in standby mode even while Bluetooth is enabled. This standby time is approximately 4x longer than the competition due to the use of a high efficiency DC/DC converter which minimizes power consumption thanks to the employment of a micro controller as the PMU (Power Management Unit). Multiple Power Paths The Dayton Audio KAB100M features numerous power options for creative, wireless sound projects. This flexibility eliminates limitations often caused by most other amp boards. Therefore, your design can be cord restricted or truly portable. For portable applications, there is an optional function cable kit (KAB-FC) which permits the connection of rechargeable batteries to power the board. NiMH, lead acid, or NiCad batteries will recharge straight from the board using a 15~24 VDC, 1A power supply. Use extreme caution because the Bluetooth amp board does not provide under/over charge protection and the connected power adapter cannot have an output greater than 30 watts. Solar charging is also an option; this application requires solar batteries with float (open) voltage with 16.5 to 21.5 VDC, and 20 to 100 watt panel. Eight AA alkaline batteries can also power this board, but do not connect the recharging feature for this type of use. The best rechargeable battery option makes use a separate interconnect board from Dayton Audio (KAB-BE) which holds three 18650 Li-Ion batteries. This portable power source is highly recommended since this add-on battery holder board does provide under/over voltage protection. A 19 VDC, 1-5A power supply is your best choice for charging the expansion board. (15 VDC Min required and 24 VDC Max) Package Includes: One Dayton Audio KAB-100M Bluetooth Amplifier Board One 2-conductor power cable 20" One speaker cable 20" One peel-n-stick Airgain™ internal Bluetooth antenna with 5" (127 mm) cable One Bluetooth pairing reset push button switch with cable 20" Specifications: Power output (w/ 24 VDC power supply): 1 x 100W @ 2 ohms SNR: 92 dB THD: 0.02% @ 2 ohms, 10W, 1 kHz Frequency response: 22 to 22,000 Hz (±3 dB) Impedance: 2-8 ohms Bluetooth range: 30 ft. Recommended power supply: 12 to 24 VDC, 4A Recommended recharging power supply (NiMH, lead acid, or NiCad) 15 to 24 VDC, 1A Recommended recharging power supply (Li-Ion) 19 VDC, 1-5A Board mounting holes center to center spacing: 3.32" x 2.4" (84 x 61 mm) Hole diameter: 0.14" (3.5 mm) Dimensions: 3.6" L x 2.7" W x 0.9" H

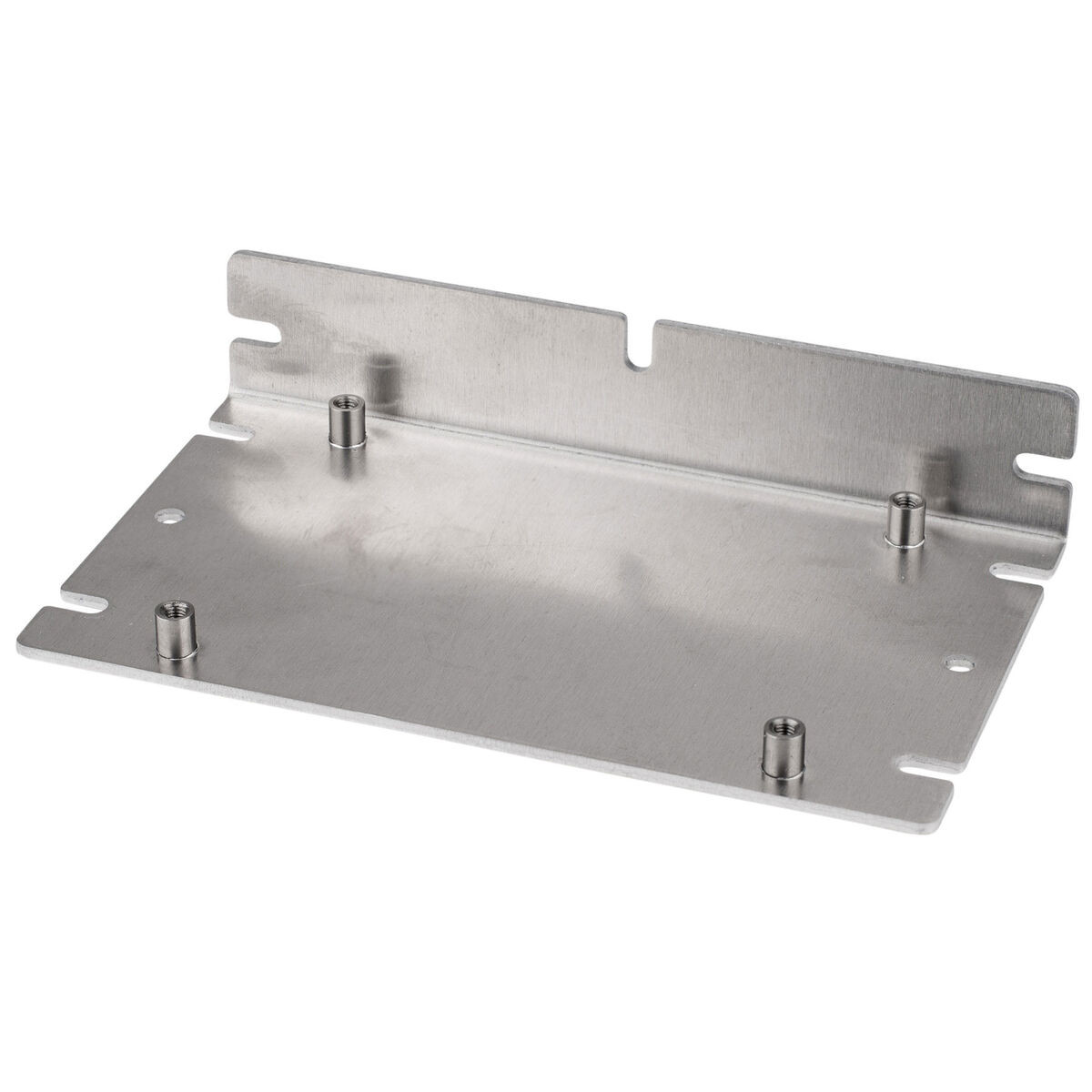

Dayton Audio KAB-AB L-type Aluminum Bracket for Bluetooth Amplifier Boards
The KAB-AB L-type aluminum bracket is ready to protect and mount any Dayton Audio KAB Bluetooth amp board. Key Features Heavy duty aluminum bracket will not crack or bend Four permanently mounted standoffs ready for quick installation Four included security screws mount the board to the bracket Seven precut slots in the aluminum for horizontal or vertical mounting It can be quite difficult to install the audio amplifier board into tight spaces such as portable sound applications. To securely mount the KAB boards and improve space efficiency Dayton Audio offers the KAB-AB; an L-type aluminum bracket. This aluminum bracket supports vertical and horizontal mounting configurations to satisfy different installation requirements. With four M 3 screw lock standoffs, this amplifier board installs easily on the bracket with four included security screws. Two M 3 holes and seven slots give you the versatility to mount the L-type bracket to your project as needed. Dimensions: 5" L x 3" W x 1" H.
