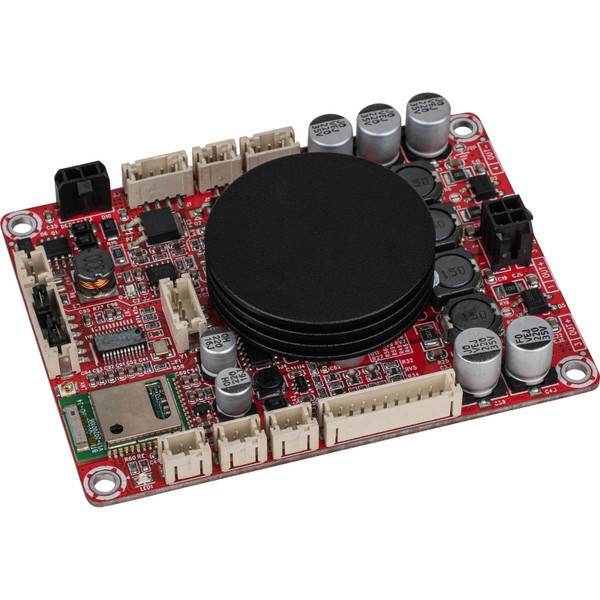

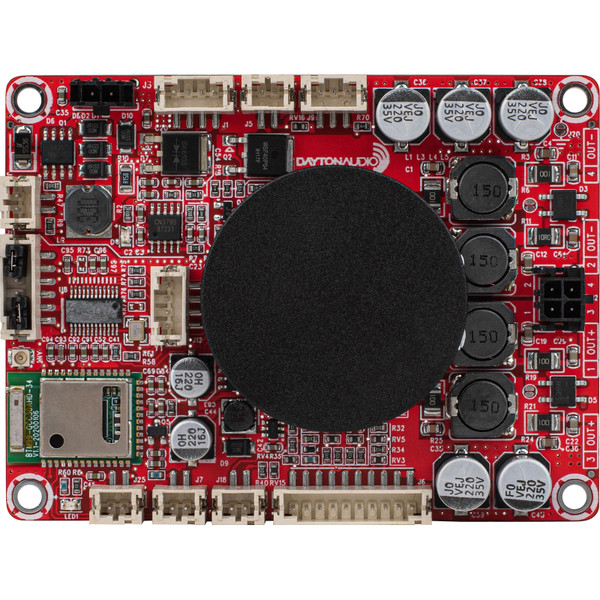

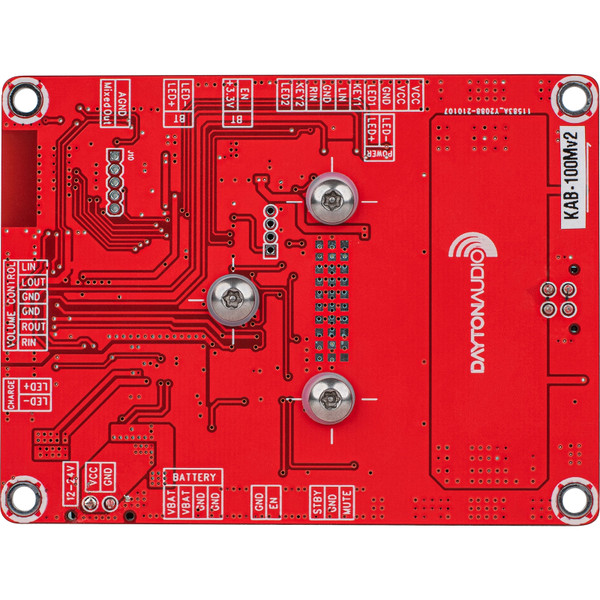

Dayton Audio KAB-100Mv2 1 x 100W Class D Audio Amplifier Board with aptX HD Bluetooth 5.0

With the Dayton Audio KAB-100Mv2 Bluetooth Amplifier Board, you can quickly and easily provide audio to your project, speaker build, sales display, kiosk, or any other place where music or sound enhances the experience. With an output power of 1 x 100 watts, there is more than enough power to drive stereo speakers, yet the board is small enough to be integrated into almost any project.

Key Features

• Efficient performance of 1 x 100 watts through the TPA3116 amplifier chip
• Bluetooth 5.0 with aptX HD directly integrated on the board - no separate module required
• Programmable sound adjustment with the free KABX software via the KPX programming board (sold separately)
• Plug-N-Play JST-PH and Molex Mini-Fit Jr wiring harnesses enable quick and easy installation - including power cable, Bluetooth reset button, and speaker cable
• Separate connections for battery operation or direct DC supply via a power adapter
• Optional accessories extend functionality and more

Simple use of Bluetooth 5.0 and amplification

With the Dayton Audio KAB-100Mv2 Bluetooth Amplifier Board, you can enhance your project, your speaker build,
Your sales display, your kiosk, or any other place where music or sound enhances the experience,
quickly and easily with audio. With an output power of 1 x 100 watts, it is more than enough
Power available to drive stereo speakers, yet the board is small enough to fit in
almost every project to be integrated.

High-quality audio performance

Das Dayton Audio KAB-100Mv2 Bluetooth Amplifier Board delivers high sound quality without consuming much power.
consume. This is due to the highly efficient TPA3116 Class D amplifier chip. The TPA3116
works with an efficiency of 90%, so no heat sink is required and the overall size
reduces. Its high efficiency is a great advantage when operated with batteries, as
er extend the playtime with a single charge. The extremely low distortion and the crack-free
Leistung make this HiFi amplifier board an indispensable component of any high-quality
Audio system.

Integrated Bluetooth

In contrast to other amplifier boards, the Dayton Audio KAB-100Mv2 features an integrated
Qualcomm Bluetooth 5.0 module with aptX HD and DSP programming option with KPX board (sold separately).
The advantage of Bluetooth 5.0 is the low power consumption, which extends the playtime of battery-powered
Devices extended. The streaming audio quality is comparable to that of CDs, as the Bluetooth chip
aptX, aptX HD, aptX LL, SBC and AAC supported. The high reception sensitivity with an RF power
from up to 9 dBm and -90 dBm and the integrated antenna ensure a stable wireless connection up to
to 15 m. The integrated connector for an external antenna allows the installation of the KAB card in a
Metall housing with an external antenna (sold separately). This fully functional module was
for Bluetooth demonstration purposes developed and built, providing a turnkey approach for
the Bluetooth certification of consumer goods. Whether this card is for the hobbyist or for industrial
purposes, nothing is required to enjoy the full comfort of coupling and streaming of
Bluetooth audio in high quality. The KAB-100Mv2 is also CE and FCC
certifiable.

Simple Installation

Due to the overall audio performance and the integrated Bluetooth with DSP programming option, this
Amplifier board with almost unlimited application possibilities. The KAB-100Mv2 includes two
Kabelbäume enthalten: one for DC power supply and the other for connection to
Stereo speakers. For many users, these cables are all they need for a project. Since they
about additional on-board connectors with wiring harnesses (sold separately) to facilitate installation
to accelerate and establish secure connections, eliminating the need for soldering or
Troubleshooting loose and unstable connections. Dayton Audio also offers a range of accessories
mit robusten Funktionen an, die die Installation noch einfacher machen. Learn more about below
optional accessories.

Infinite application possibilities

Due to the overall audio performance and the built-in Bluetooth function with DSP programming, this amplifier board offers virtually unlimited application possibilities. From hobbyists and DIY enthusiasts to manufacturers and installation companies, this Bluetooth amplifier board provides immense flexibility. For orders of more than 20 pieces, custom OEM Bluetooth pairing names are available - send an email to [email protected] for more information. Even if you bypass the Bluetooth function, this amplifier board can be easily integrated into any task thanks to the numerous included and optional wiring harnesses. Examples of applications include:

Extremely low standby power

The Dayton Audio KAB-100Mv2 can be operated in standby mode for up to 7 days, even when Bluetooth
activated. This standby time is about 4x longer than the competition, as a highly efficient DC/DC-
Wandler is used, which reduces power consumption thanks to the use of a microcontroller as a PMU
(Power Management Unit) minimized.

Das Dayton Audio KAB-100Mv2 offers numerous power supply options for creative, wireless
Sound projects. This flexibility eliminates the limitations that most other amplifier boards
bring with them. Therefore, your design can be both wired and truly portable.

Für portable applications, there is an optional function cable kit (KAB-FC) that allows the connection of
rechargeable batteries to power the board. NiMH, lead-acid, or NiCad batteries
can be charged directly via the board with a 15~24 VDC, 1A power supply. Be
extremely cautious, as the Bluetooth amp board does not provide protection against undercharging or overcharging and the
angeschlossene Stromadapter nicht mehr als 30 Watt Leistung hat.

Solarcharging is also an option; for this application, solar batteries with a
Maintenance voltage of 16.5 to 21.5 VDC and a 20 to 100-watt panel required. Eight AA-
Alkaline batteries can also power this card, but for this type of use, only
the charging function cannot be connected.

Mehrere Strompfade

Die beste Option für wiederaufladbare Batterien ist eine separate Verbindungsplatine von Dayton Audio
(KAB-BE), which can accommodate three 18650 Li-Ion batteries. This portable power source is very
recommended, as this additional battery holder board provides protection against under- and overvoltage
offers. A 19 VDC, 1-5A power supply is the best choice for charging the expansion card. (At least 15 VDC
and a maximum of 24 VDC required).

Package includes

• A Dayton Audio KAB-100Mv2 Bluetooth Amplifier Board
• A 2-wire power cable (20")
• A 4-core speaker cable (20")
• A push button switch to reset Bluetooth pairing with cable (20")
