Dayton Audio DC130B-8
Skip image gallery
Picture similar to product
Product number:
295-304
Manufacturer:
Dayton Audio
Length:
6.61 mm
Width:
2.6 mm
Height:
8.26 mm
Weight:
1.03 kg
Available stock:
2
Min. order quantity:
1

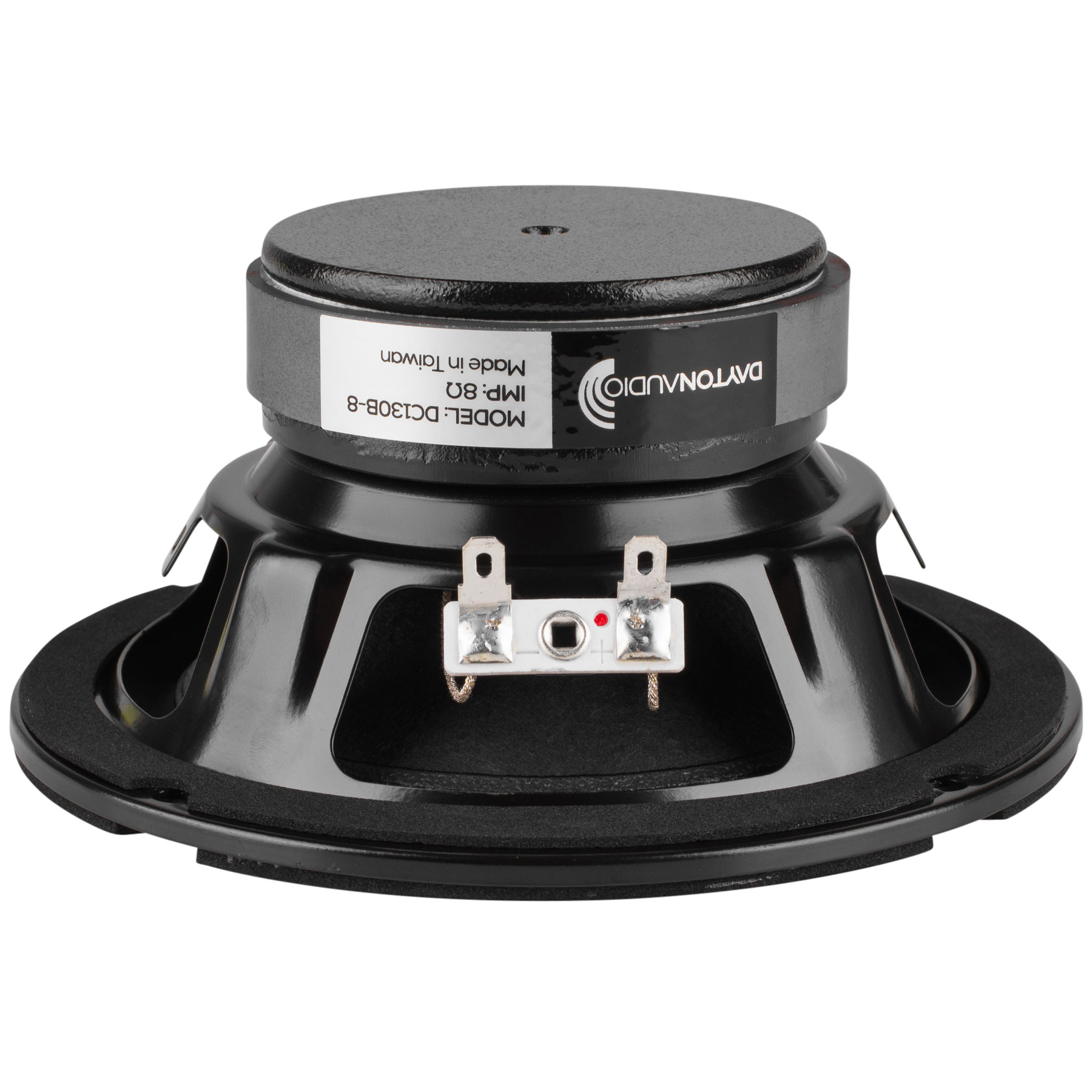

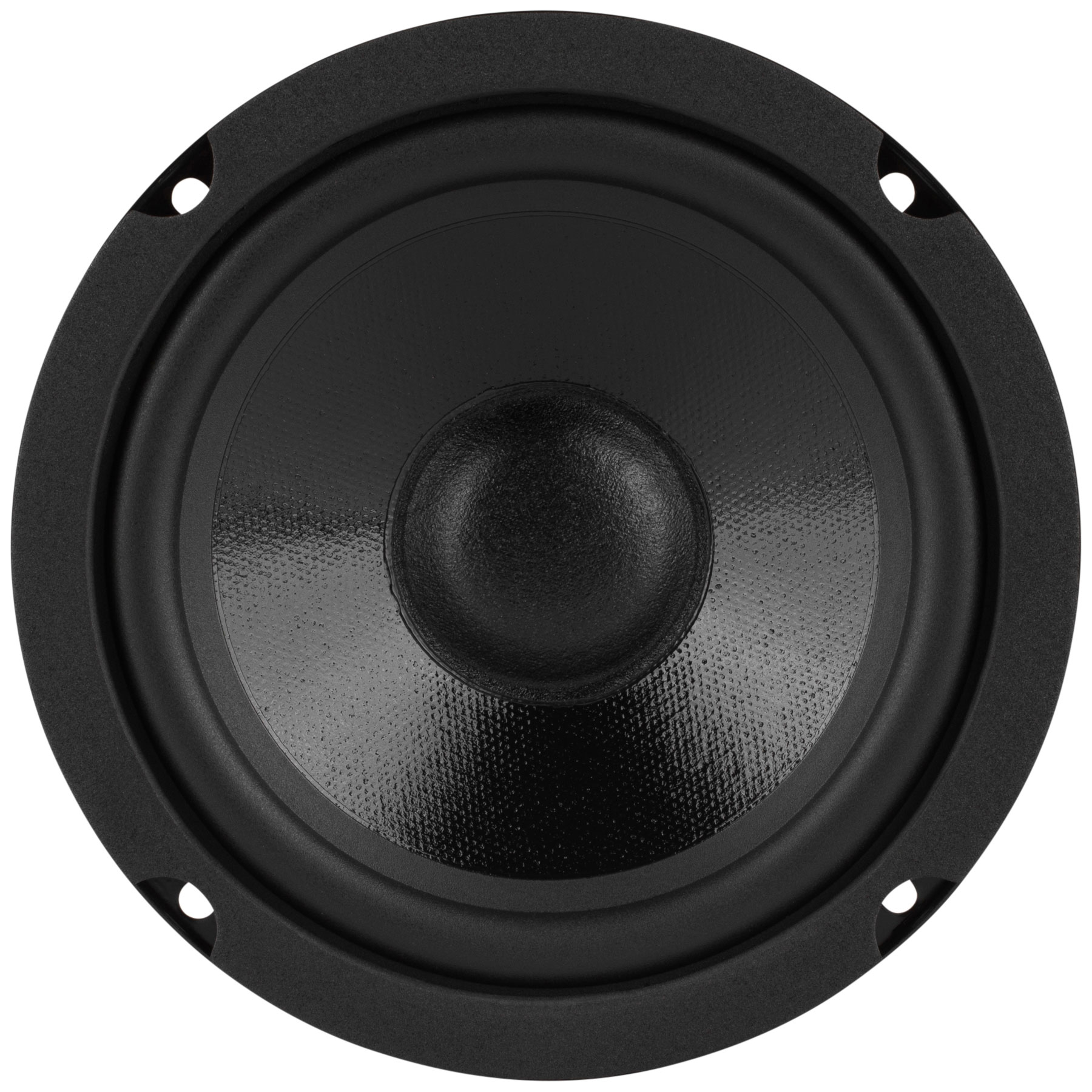

Dayton Audio DC130B-8 5-1/4" Classic Woofer Speaker
Dayton Audio's DC130B-8 5-1/4" Classic Series woofer is perfect for compact 2-way designs as well as use in multiples or transmission lines.
Key Features
- Sturdy, easy-to-countersink round steel frame
- Coated paper cone provides smooth response and reduced cone breakup
- Aluminum voice coil former for high power handling
- Large diameter flat spider and good Xmax for clean bass
- Suitable for sealed or vented enclosures
Dayton Audio DC130B-8 5-1/4" Classic Woofer Speaker
One of the main design goals at Dayton Audio is to create loudspeakers that can achieve high levels of performance at reasonable prices. The Dayton Audio DC130B-8 5-1/4" woofer is a great example of this approach. It features a non-pressed treated paper cone, rubber half-roll surround, ASV voice coil, coated cloth dust cap, and excellent low frequency response.
Properties
| Artikel-Nr.: | 295-304 |
|---|---|
| Außenmaß: | 145mm |
| Bohrlochanzahl: | 4 |
| DC Resistance (Re): | 5,7 Ohm |
| EAN: | 844632093975 |
| Eff. Membranfläche (Sd): | 91,6cm² |
| Effektive Bewegte Masse (Mms): | 9,1g |
| Einbautiefe: | 67,8 mm |
| Einbauöffnung: | 119,9 mm |
| Einheit: | Stück |
| Elektrische Güte (Qes): | 0,48 |
| Frequenzbereich: | 50 bis 5,000Hz |
| Gesamtgüte (Qts): | 0,38 |
| Impedanz (Z): | 8 Ohm |
| Korbmaterial: | Stahl |
| Kraftfaktor (BL): | 5,94T·m |
| Lineare Auslenkung (Xmax): | 2,5mm |
| Magnet: | Ferrit |
| Marke: | Dayton Audio |
| Mechanische Güte (Qms): | 1,85 |
| Membranmaterial: | beschichtetes Papier |
| Modell: | DC130B-8 |
| Nachgiebigkeit (Cms): | 1,01mm/N |
| Nennbelastbarkeit: | 40 Watt |
| Resonanzfrequenz (fs): | 52,5Hz |
| Schwingspulendurchmesser: | 25,4 mm |
| Schwingspulenind. (Le): | 0,77mH |
| Schwingspulenkörper: | Aluminium |
| Schwingspulenmaterial: | Kupfer |
| Sensitivität: | 89,1dB 2,83V/1m |
| Sickenmaterial: | Gummi |
| Äquivalentvolumen (Vas): | 12,176 l |
Data according to manufacturer. Errors and changes reserved.
