Home Cinema R2 Lautsprecher-Bausatz
Skip image gallery
Picture similar to product
Product number:
B3110
Manufacturer:
variant
Weight:
0.001 kg
Available stock:
2
Min. order quantity:
1

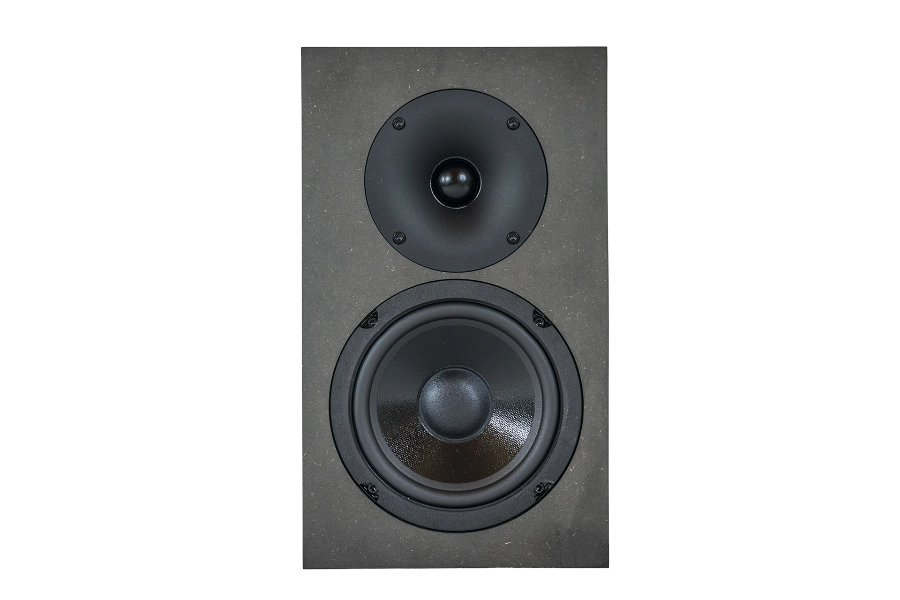

Home Cinema R2 Speaker Kit
Home Cinema R2
2-Way Compact Speaker Closed
Assembly:
Dayton Audio, DC130B-8, ND25FW-4, Frequency Crossover Components Mundorf Hi-Quality:
Properties:
Small dynamic speaker in closed design. For home cinema, desk, and HiFi sub-
Sat system suitable. Its optional crossover for effort installation allows it to be space-saving
directly on the wall, where it delivers excellent performance as a rear in surround systems.

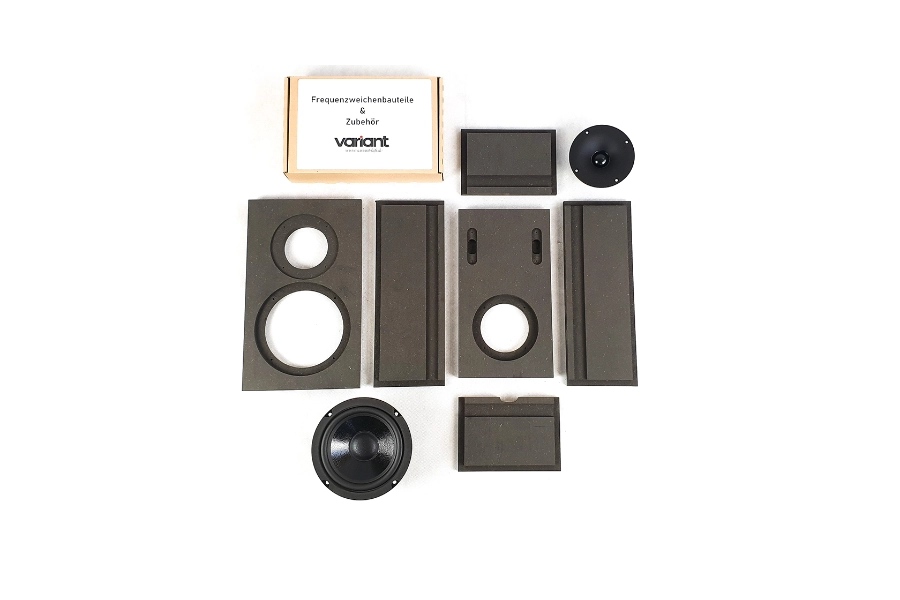

Scope of delivery:
- Screws
- Chassis
- Terminal
- Cable (Inside)
- Insulation fleece

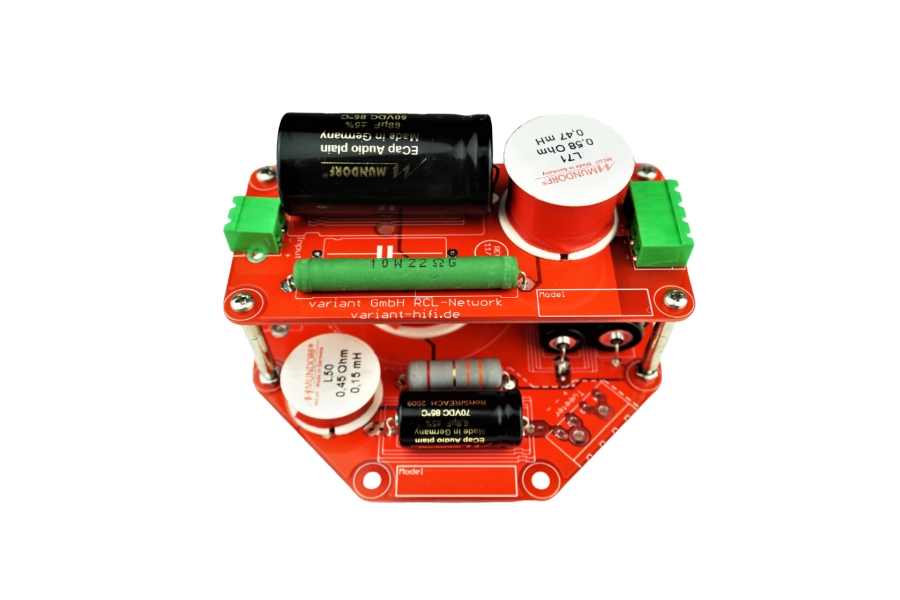

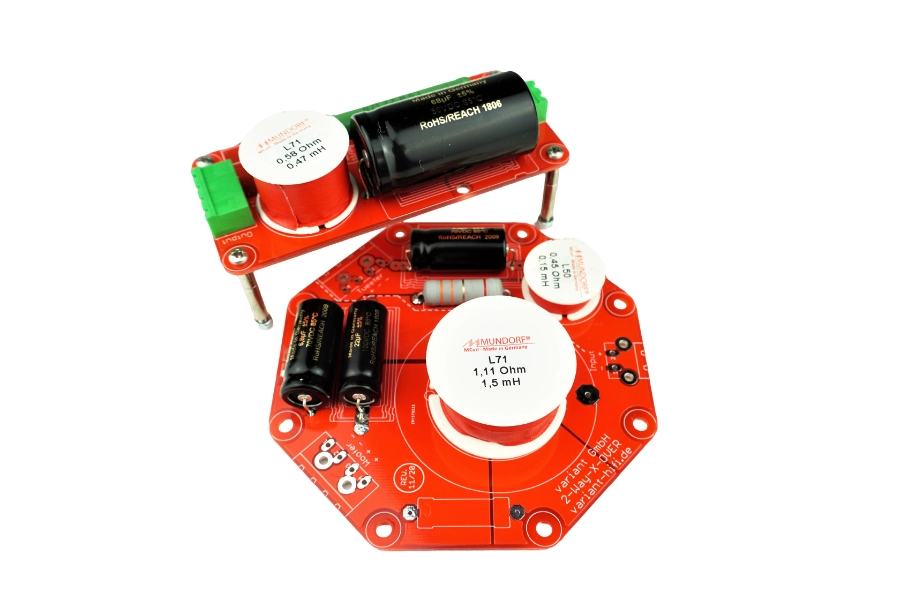

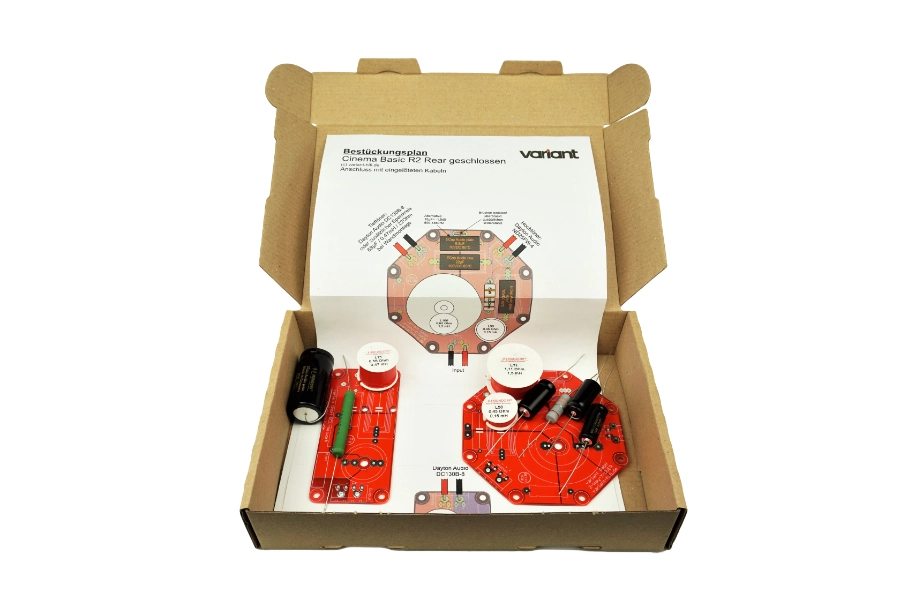

- Crossover Components (Loose)
Properties
| Breite: | 177mm |
|---|---|
| Frequenzumfang: | 90-21000Hz |
| Funktion: | 2 Wege |
| Funktionsprinzip: | Geschlossen |
| Gesamtimpedanz: | 8 Ohm (nom.) |
| Höhe: | 300 mm |
| SPL: | 87dB |
| Serie: | Home Cinema |
| Tiefe: | 120mm |
Data according to manufacturer. Errors and changes reserved.
Skip product gallery
Accessory Items
Only 10 available
Dayton Audio ND25FW-4
€17.95*
Dayton Audio ND25FW-4 1” Soft Dome Neodynium Tweeter with Waveguide 4 Ohm
Dayton Audio has added a waveguide faceplate to the popular ND25 soft dome to create the ND25FW-4 tweeter. The waveguide faceplate controls dispersion to minimize ceiling and wall reflections, which in turn leads to an increase in efficiency across most of the passband.
Key Features
Waveguide loaded 1" treated silk dome
Waveguide provides controlled directivity and higher efficiency
Low Fs of 1,350 Hz can accommodate crossovers as low as 2,500 Hz
Includes foam gasket to ensure a good seal to your enclosure
High-strength neodymium motor with heatsink and ferrofluid cooling
Standard 104 mm diameter faceplate for easy integration into many existing systems
Dayton Audio ND25FW-4 1" Soft Dome Neodymium Tweeter with Waveguide 4 Ohm
The Dayton Audio ND25FW-4 tweeter features a unique integrated round waveguide faceplate that provides a controlled directivity transition at high frequencies, reducing the effect of room reflections on the speaker's tonal balance. Unlike conventional flat-faceplate dome tweeters whose directivity does not match the midwoofer driver near the crossover frequency, the ND25FW-4's waveguide is curved to maintain consistent directivity at the transition. The waveguide also acts as a low-compression horn, lowering distortion.
Waveguide-loaded dome tweeters are embraced within the industry for providing directivity control and mild horn loading without the negative effects of compression loading such as impulse smear and throat distortion where high levels are not needed. The waveguide profile used in the ND25FW-4 provides a minimum dispersion angle of about 90 degrees, and maintains directivity control to about 2,000 Hz, but the round waveguide will install easily into the same 104 mm standard tweeter cutout used commonly by dome tweeters with larger ferrite motors.
Specifications: • Power handling: 20 watts RMS/40 watts max • VCdia: 1" • Le: 0.04 mH • Impedance: 4 ohms • Re: 3.2 ohms • Frequency response: 2,500-20,000 Hz • Fs: 1350 Hz • SPL: 91 dB 1W/1m • Dimensions: Overall diameter: 4.09", Cutout diameter: 2.875", Depth: 1.57".

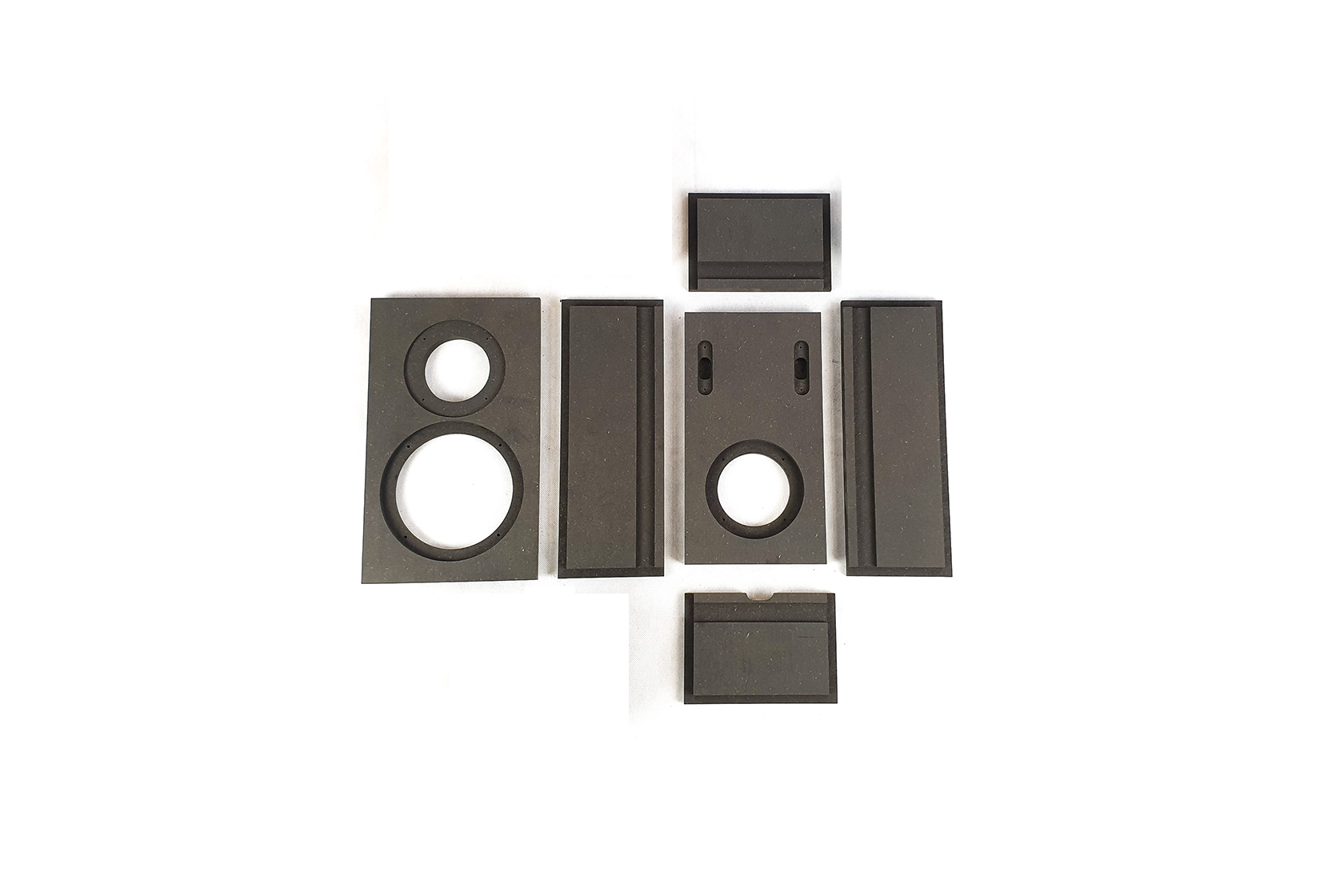

Home Cinema R2 Gehäuse-Bausatz
From
€8.00*
Home Cinema R2 Case KitHome Cinema R2 Case Kit
Suitable for assembly:Home Cinema R2 Speaker Kit
Exterior dimensions:
Width: 177 mm
Height: 300 mm
Depth: 120 mm
About the CaseThe enclosures are specially developed and manufactured for the speaker kits developed by variant GmbH. Variant also manufactures enclosures according to specifications for the kits of our distribution products and other sources such as trade magazines or private projects.
Descriptions can be found in the selection legend next to the product images.
Grundlegend sind MDF raw, through-dyed MDF black, and primed MDF, in the thicknesses 10, 12,16, 19, 22 and larger intended for the case kits.
Auf Wunsch fertigen wir in unserer eigenen Großschreinerei auch in anderen Materialien wie, Multiplex,Solid wood panels, real wood (if suitable), and similar.
The housing kits are manufactured using miter or rebate and joint techniques during the CNC manufacturing process.manufactured to align the plates precisely. In many case kits, struts andBraces. They provide superior rigidity without compromising the performance and energy of the speakers toimpair.
All that remains to be done is to finish it to match your decor or to paint it to create aunique music furniture your own.
Attention please note and for change requests please in the comment field or by email change requestsaddress:
In all our enclosure kits, unless otherwise mentioned, terminal cutouts for our terminalT105 on the back of the housing, prefabricated!
All housing kits (not glued or painted) are without rounded edges or chamfers!
Fasings or roundings are only made on fully assembled housings.
Only 2 available
Dayton Audio DC130B-8
€31.45*
Dayton Audio DC130B-8 5-1/4" Classic Woofer Speaker
Dayton Audio's DC130B-8 5-1/4" Classic Series woofer is perfect for compact 2-way designs as well as use in multiples or transmission lines.
Key Features
Sturdy, easy-to-countersink round steel frame
Coated paper cone provides smooth response and reduced cone breakup
Aluminum voice coil former for high power handling
Large diameter flat spider and good Xmax for clean bass
Suitable for sealed or vented enclosures
Dayton Audio DC130B-8 5-1/4" Classic Woofer Speaker
One of the main design goals at Dayton Audio is to create loudspeakers that can achieve high levels of performance at reasonable prices. The Dayton Audio DC130B-8 5-1/4" woofer is a great example of this approach. It features a non-pressed treated paper cone, rubber half-roll surround, ASV voice coil, coated cloth dust cap, and excellent low frequency response.
