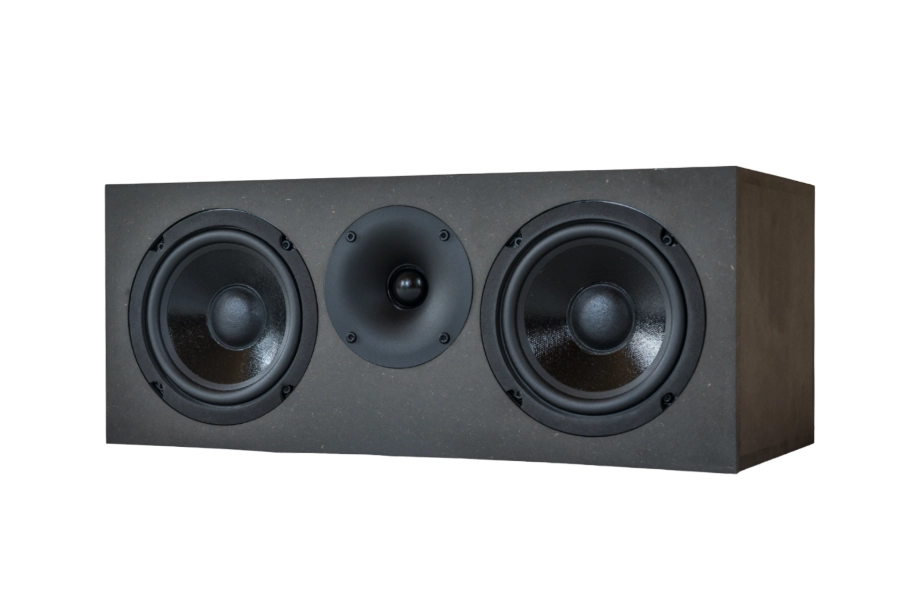

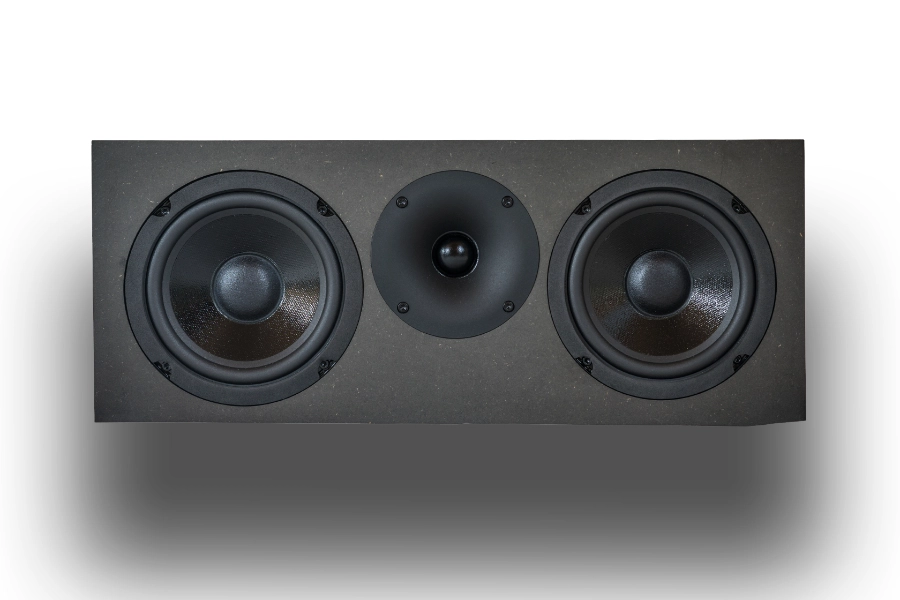

Home Cinema C1 Lautsprecher-Bausatz

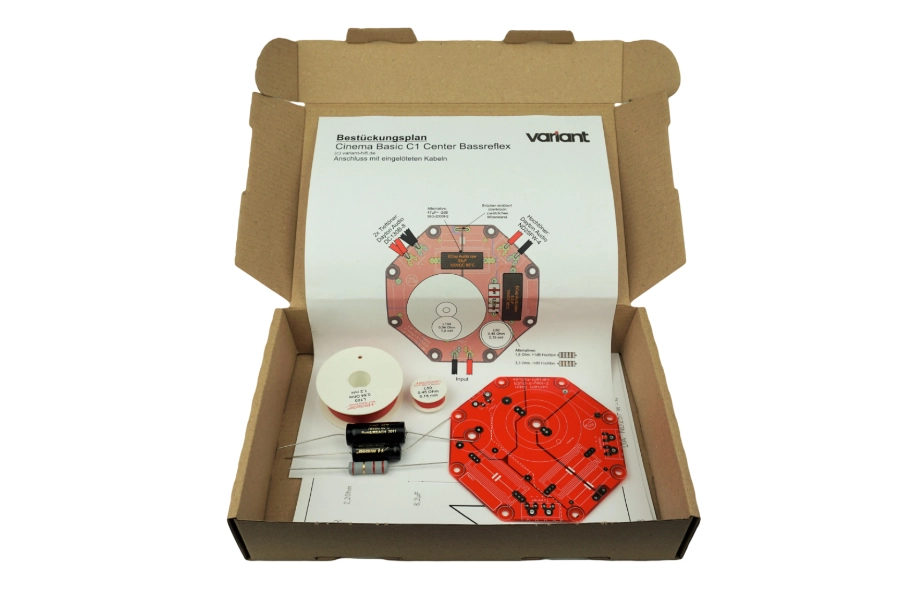

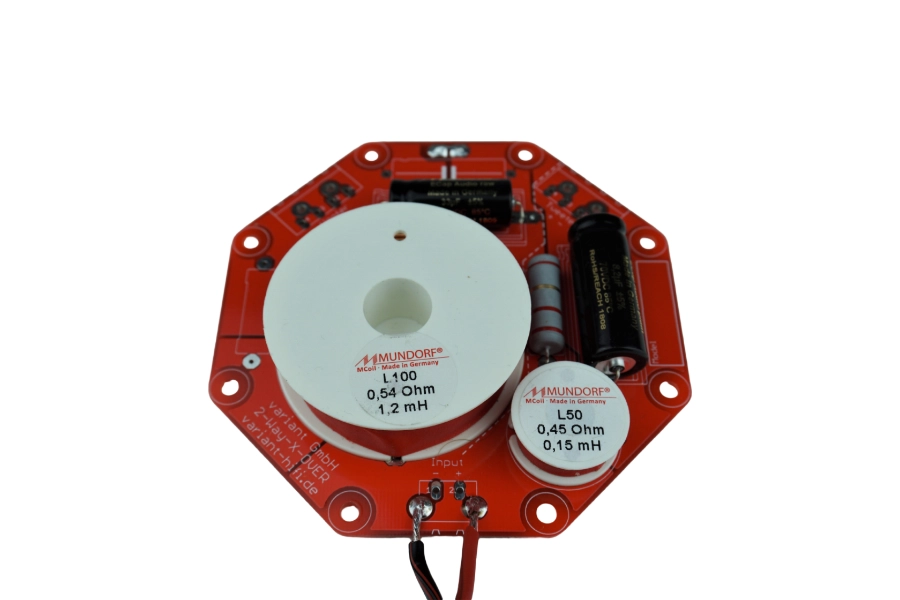

Circuit board for Cinema Basic R1 R2 C1 C2

Dayton Audio ND25FW-4 1” Soft Dome Neodynium Tweeter with Waveguide 4 Ohm Dayton Audio has added a waveguide faceplate to the popular ND25 soft dome to create the ND25FW-4 tweeter. The waveguide faceplate controls dispersion to minimize ceiling and wall reflections, which in turn leads to an increase in efficiency across most of the passband. Key Features Waveguide loaded 1" treated silk dome Waveguide provides controlled directivity and higher efficiency Low Fs of 1,350 Hz can accommodate crossovers as low as 2,500 Hz Includes foam gasket to ensure a good seal to your enclosure High-strength neodymium motor with heatsink and ferrofluid cooling Standard 104 mm diameter faceplate for easy integration into many existing systems Dayton Audio ND25FW-4 1" Soft Dome Neodymium Tweeter with Waveguide 4 Ohm The Dayton Audio ND25FW-4 tweeter features a unique integrated round waveguide faceplate that provides a controlled directivity transition at high frequencies, reducing the effect of room reflections on the speaker's tonal balance. Unlike conventional flat-faceplate dome tweeters whose directivity does not match the midwoofer driver near the crossover frequency, the ND25FW-4's waveguide is curved to maintain consistent directivity at the transition. The waveguide also acts as a low-compression horn, lowering distortion. Waveguide-loaded dome tweeters are embraced within the industry for providing directivity control and mild horn loading without the negative effects of compression loading such as impulse smear and throat distortion where high levels are not needed. The waveguide profile used in the ND25FW-4 provides a minimum dispersion angle of about 90 degrees, and maintains directivity control to about 2,000 Hz, but the round waveguide will install easily into the same 104 mm standard tweeter cutout used commonly by dome tweeters with larger ferrite motors. Specifications: • Power handling: 20 watts RMS/40 watts max • VCdia: 1" • Le: 0.04 mH • Impedance: 4 ohms • Re: 3.2 ohms • Frequency response: 2,500-20,000 Hz • Fs: 1350 Hz • SPL: 91 dB 1W/1m • Dimensions: Overall diameter: 4.09", Cutout diameter: 2.875", Depth: 1.57".

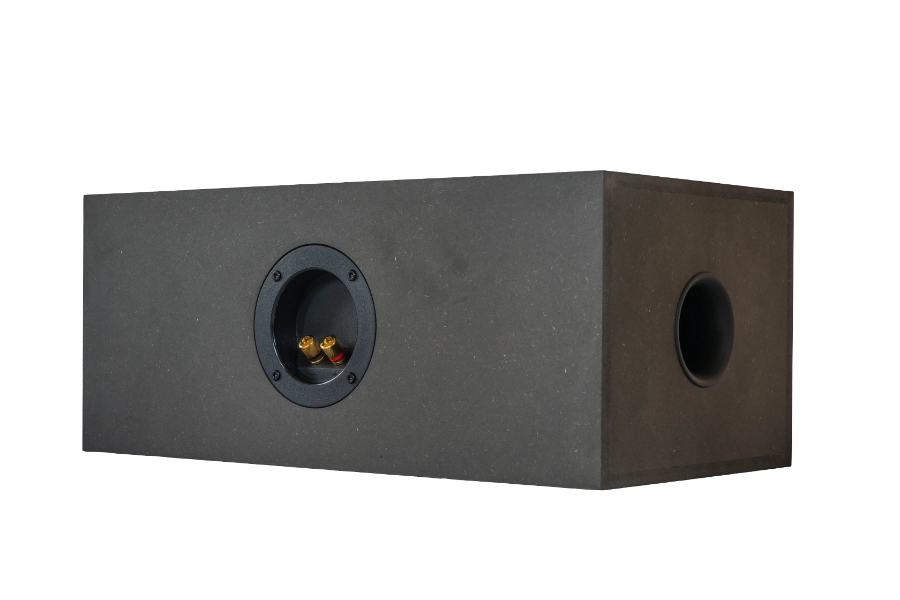

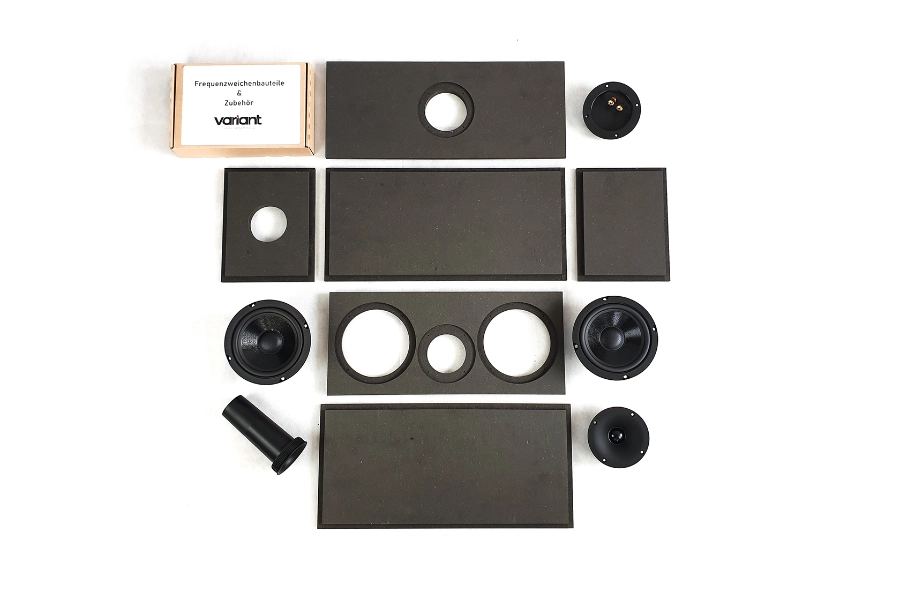

Home Cinema C1 Case KitHome Cinema C1 Enclosure Kit Suitable for assembly:Home Cinema C1 Speaker Kit External dimensions: Width: 420 mm (Standing version 183mm) Height: 183 mm (Standing version 420 mm) Depth: 211 mm (Standing version 211mm) About the CaseThe enclosures are specially developed and manufactured for the speaker kits developed by variant GmbH. Variant also manufactures enclosures according to specifications for the kits of our distribution products and other sources such as trade magazines or private projects. Details can be found in the selection legend next to the product images. Grundlegend sind raw MDF, through-dyed black MDF, and primed MDF, in thicknesses of 10, 12,16, 19, 22 and larger intended for the housing kits. Auf Wunsch fertigen wir in unserer eigenen Großschreinerei auch in anderen Materialien wie, Multiplex,Laminated solid wood, real wood (if suitable), and similar. The housing kits are mitered or use rabbet and joint techniques during the CNC manufacturing processmanufactured to precisely align the plates. In many case kits, struts andBraces. They provide superior stiffness without compromising the performance and energy of the speakers toaffect. Everything that remains to be done is to finish it to match your decor or to paint it to aunique music furniture your own. Attention please note and for change requests please use the comment field or email change requestsaddress: In all our enclosure kits, unless otherwise mentioned, terminal cutouts for our terminalT105 on the back of the housing, prefabricated! All housing kits (not glued or painted) are without rounded edges or chamfers! Fasings or rounds are only made on fully assembled housings.

Dayton Audio DC130B-8 5-1/4" Classic Woofer Speaker Dayton Audio's DC130B-8 5-1/4" Classic Series woofer is perfect for compact 2-way designs as well as use in multiples or transmission lines. Key Features Sturdy, easy-to-countersink round steel frame Coated paper cone provides smooth response and reduced cone breakup Aluminum voice coil former for high power handling Large diameter flat spider and good Xmax for clean bass Suitable for sealed or vented enclosures Dayton Audio DC130B-8 5-1/4" Classic Woofer Speaker One of the main design goals at Dayton Audio is to create loudspeakers that can achieve high levels of performance at reasonable prices. The Dayton Audio DC130B-8 5-1/4" woofer is a great example of this approach. It features a non-pressed treated paper cone, rubber half-roll surround, ASV voice coil, coated cloth dust cap, and excellent low frequency response.
