Home Cinema C2 Lautsprecherbausatz

€143.08*

Prices incl. VAT plus shipping costs

Product number: B3107

Manufacturer: variant

Weight: 0.001 kg

Available stock: 1

Min. order quantity: 1

Home Cinema C2 Speaker Kit

Home Cinema C2

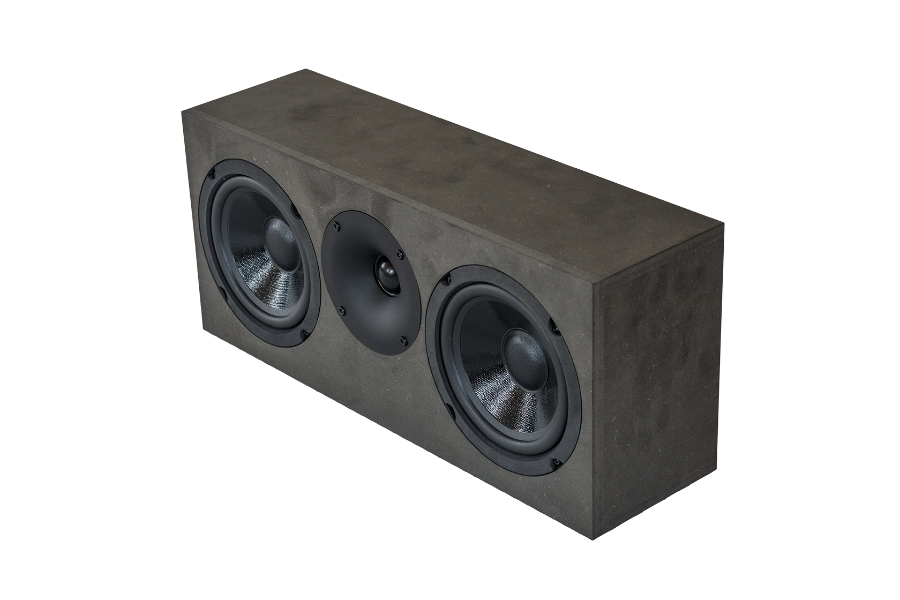

2-Way Closed Center Speaker

Assembly:

Dayton Audio, 2x DC130B-8, ND25FW-4; Frequency Crossover Components Mundorf Hi-Quality

Properties:

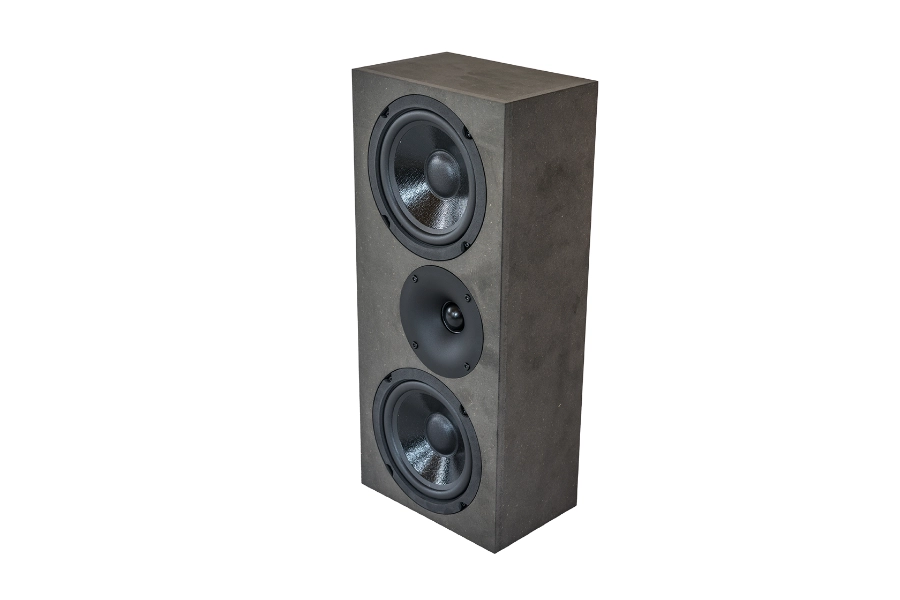

Main and center speakers for horizontal or vertical application. Two 13cm mid-woofers
with paper membrane in classic TMT arrangement. Horn (waveguide) loaded tweeter with fabric membrane
25mm for silky highs and clear dynamic treble.

The Home Cinema series is an expandable system with identical main speaker components,
important for identical sound from all directions in multi-channel systems. Their different
Ausführungen sind optimiert für freistehende Aufstellung, Wandnähe oder On-Wall Montage. HiFi-Stereo und
Mehrkanal-Anwendungen können mit dieser Lautsprecherfamilie nach Belieben und Platzverhältnissen
combined. The price and the extensive variants, from a pure kit of individual parts,
prefabricated, soldered crossovers and precision-cut MDF panels to the finished
aufgebauten und lackierten Lautsprecherboxen is simply sensational. The special

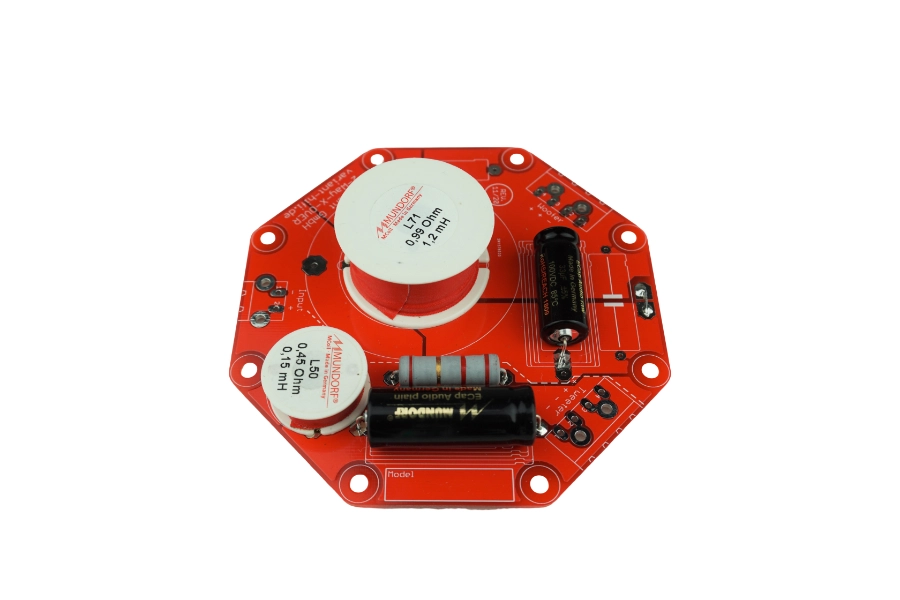

Crossover circuit boards with pictorial descriptions and the assembly videos found on the homepage
and illustrated assembly instructions make it possible for even complete beginners to successfully build their own. The variant
Home Cinema Series offers an affordable entry with top sound quality in an incredible
extensive expansion and selection options.

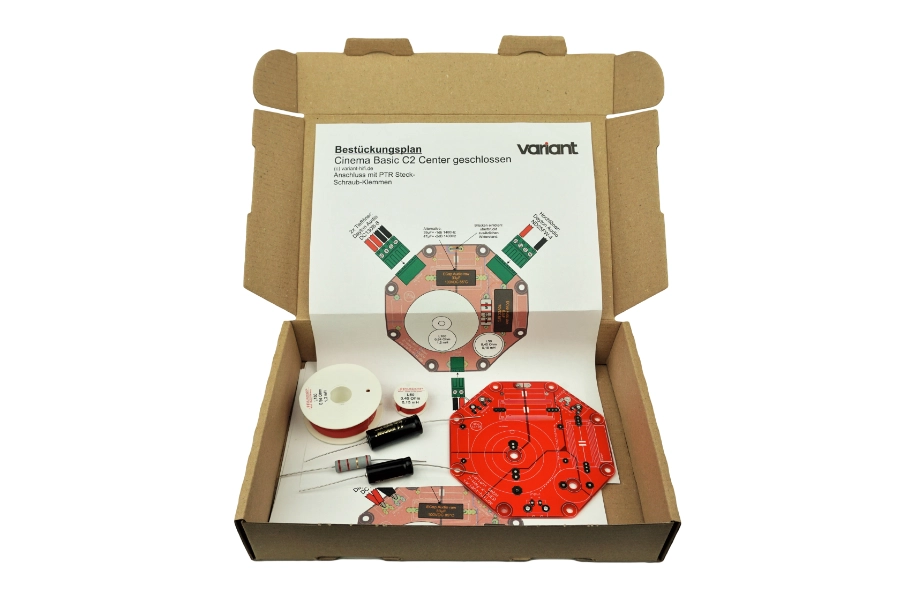

Scope of delivery:

Screws
Chassis
Terminal
Cable (Interior)
Insulation fleece
Crossover Components (Loose)

Properties

Breite:	420mm
Frequenzumfang:	90-21000Hz
Funktion:	2 Wege
Funktionsprinzip:	Geschlossen
Gesamtimpedanz:	4 Ohm
Höhe:	183 mm
SPL:	88dB
Serie:	Home Cinema
Tiefe:	120mm

Data according to manufacturer. Errors and changes reserved.

Manufacturer "variant"

Related links of the manufacturer

Manufacturer website

Accessory Items

Circuit board Cinema 2 ways

Circuit board for Cinema Basic R1 R2 C1 C2

€14.00*

Only 10 available

Dayton Audio ND25FW-4

Dayton Audio ND25FW-4 1” Soft Dome Neodynium Tweeter with Waveguide 4 Ohm Dayton Audio has added a waveguide faceplate to the popular ND25 soft dome to create the ND25FW-4 tweeter. The waveguide faceplate controls dispersion to minimize ceiling and wall reflections, which in turn leads to an increase in efficiency across most of the passband. Key Features Waveguide loaded 1" treated silk dome Waveguide provides controlled directivity and higher efficiency Low Fs of 1,350 Hz can accommodate crossovers as low as 2,500 Hz Includes foam gasket to ensure a good seal to your enclosure High-strength neodymium motor with heatsink and ferrofluid cooling Standard 104 mm diameter faceplate for easy integration into many existing systems Dayton Audio ND25FW-4 1" Soft Dome Neodymium Tweeter with Waveguide 4 Ohm The Dayton Audio ND25FW-4 tweeter features a unique integrated round waveguide faceplate that provides a controlled directivity transition at high frequencies, reducing the effect of room reflections on the speaker's tonal balance. Unlike conventional flat-faceplate dome tweeters whose directivity does not match the midwoofer driver near the crossover frequency, the ND25FW-4's waveguide is curved to maintain consistent directivity at the transition. The waveguide also acts as a low-compression horn, lowering distortion. Waveguide-loaded dome tweeters are embraced within the industry for providing directivity control and mild horn loading without the negative effects of compression loading such as impulse smear and throat distortion where high levels are not needed. The waveguide profile used in the ND25FW-4 provides a minimum dispersion angle of about 90 degrees, and maintains directivity control to about 2,000 Hz, but the round waveguide will install easily into the same 104 mm standard tweeter cutout used commonly by dome tweeters with larger ferrite motors. Specifications: • Power handling: 20 watts RMS/40 watts max • VCdia: 1" • Le: 0.04 mH • Impedance: 4 ohms • Re: 3.2 ohms • Frequency response: 2,500-20,000 Hz • Fs: 1350 Hz • SPL: 91 dB 1W/1m • Dimensions: Overall diameter: 4.09", Cutout diameter: 2.875", Depth: 1.57".

€17.95*

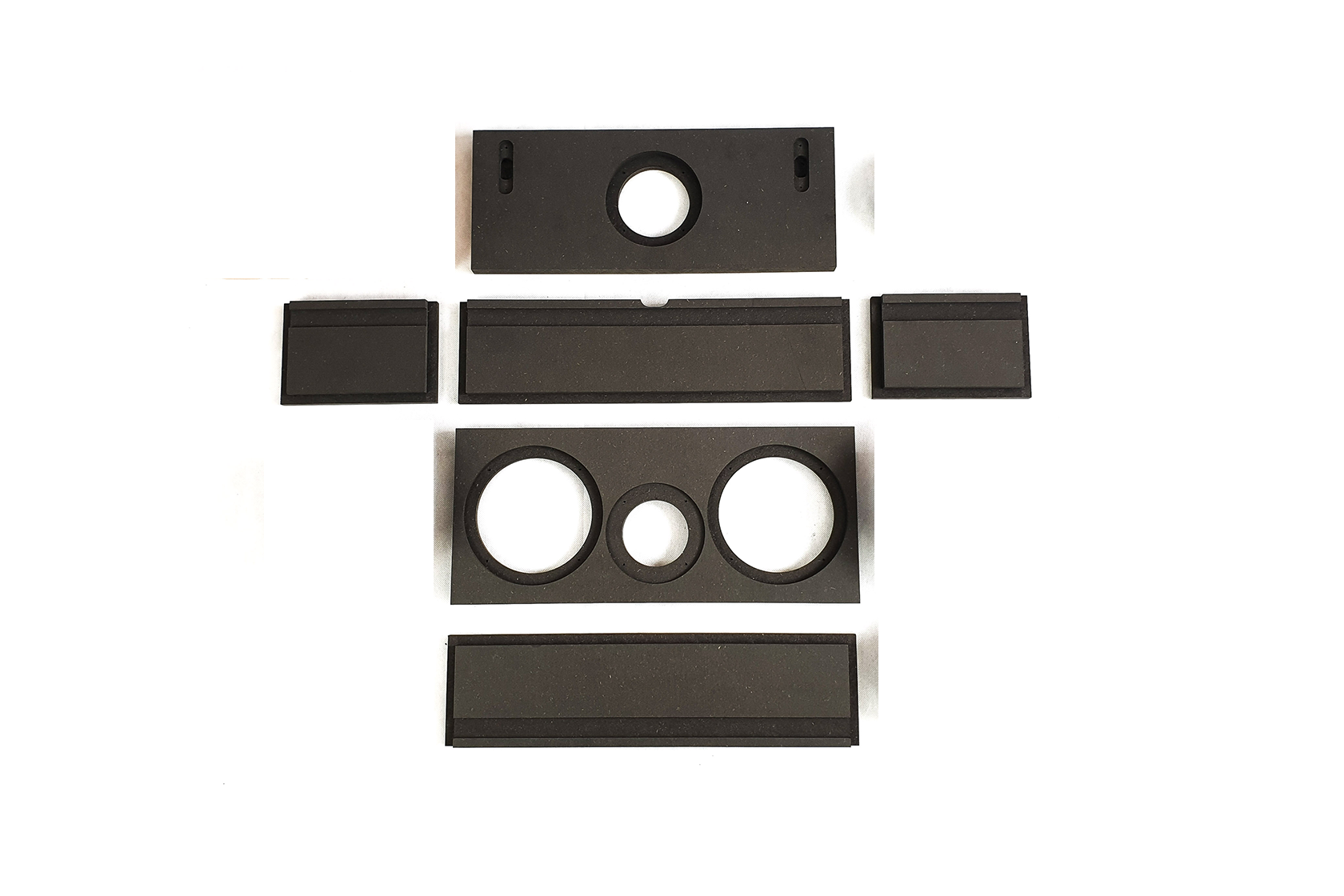

Home Cinema C2 Gehäuse-Bausatz
