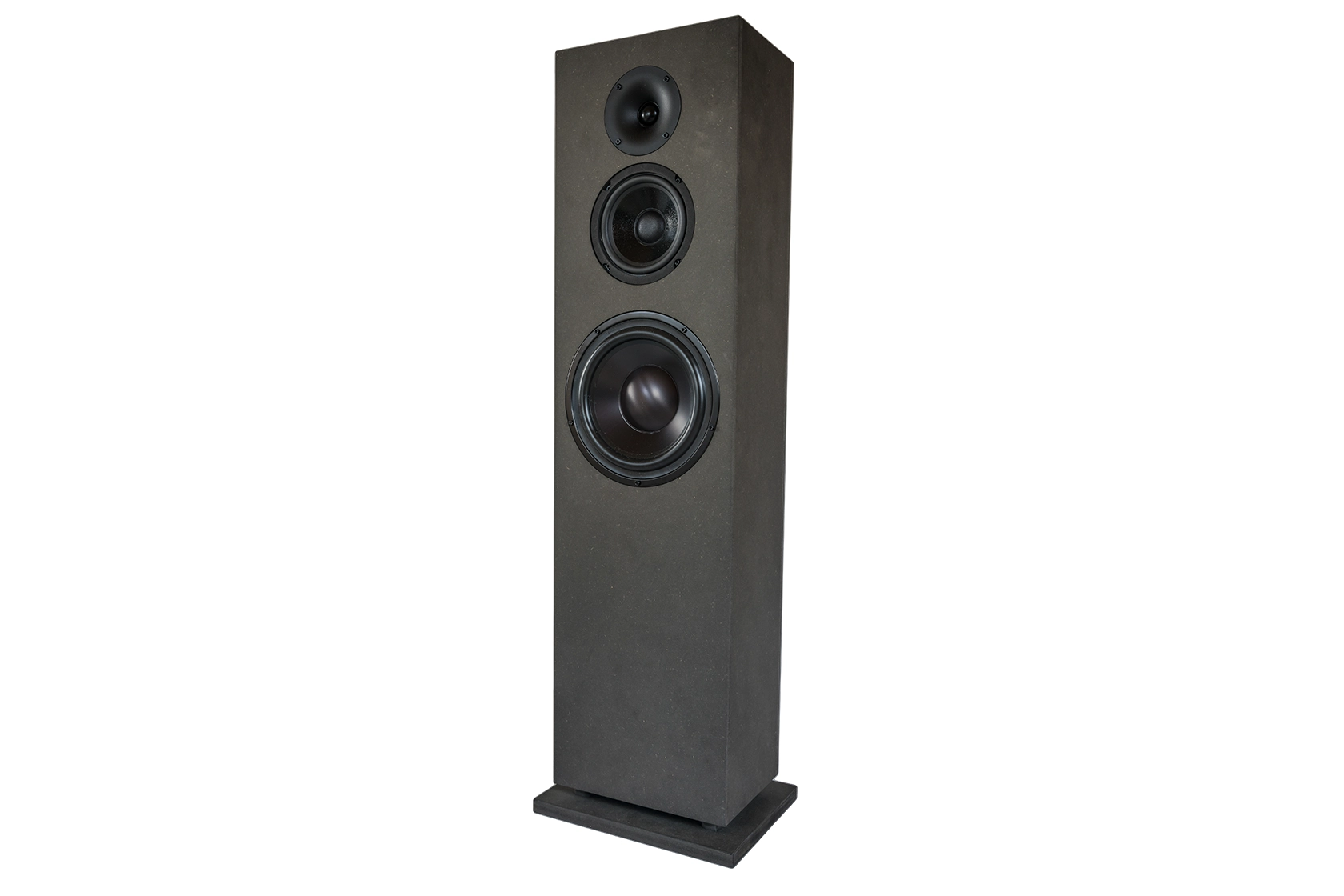

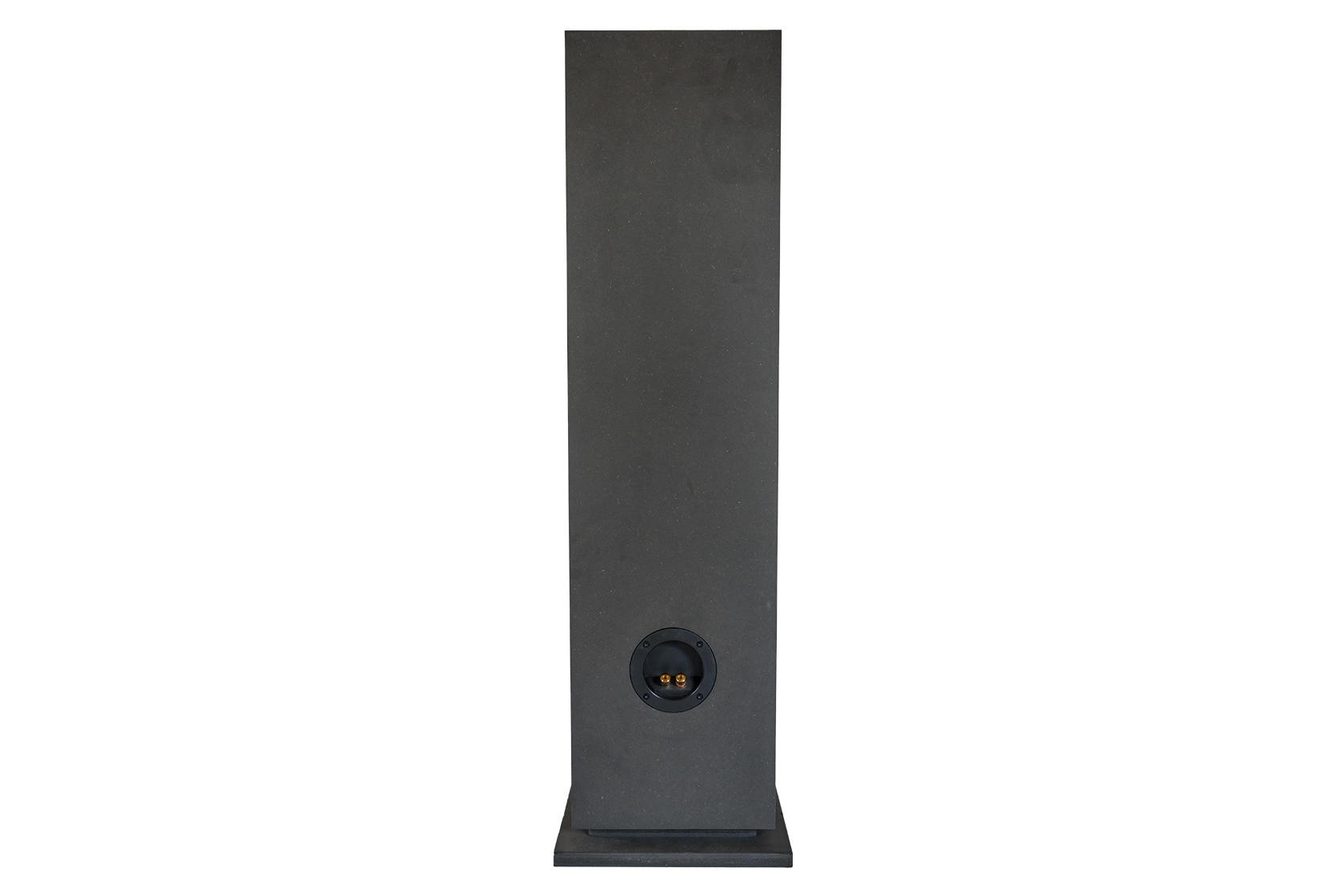

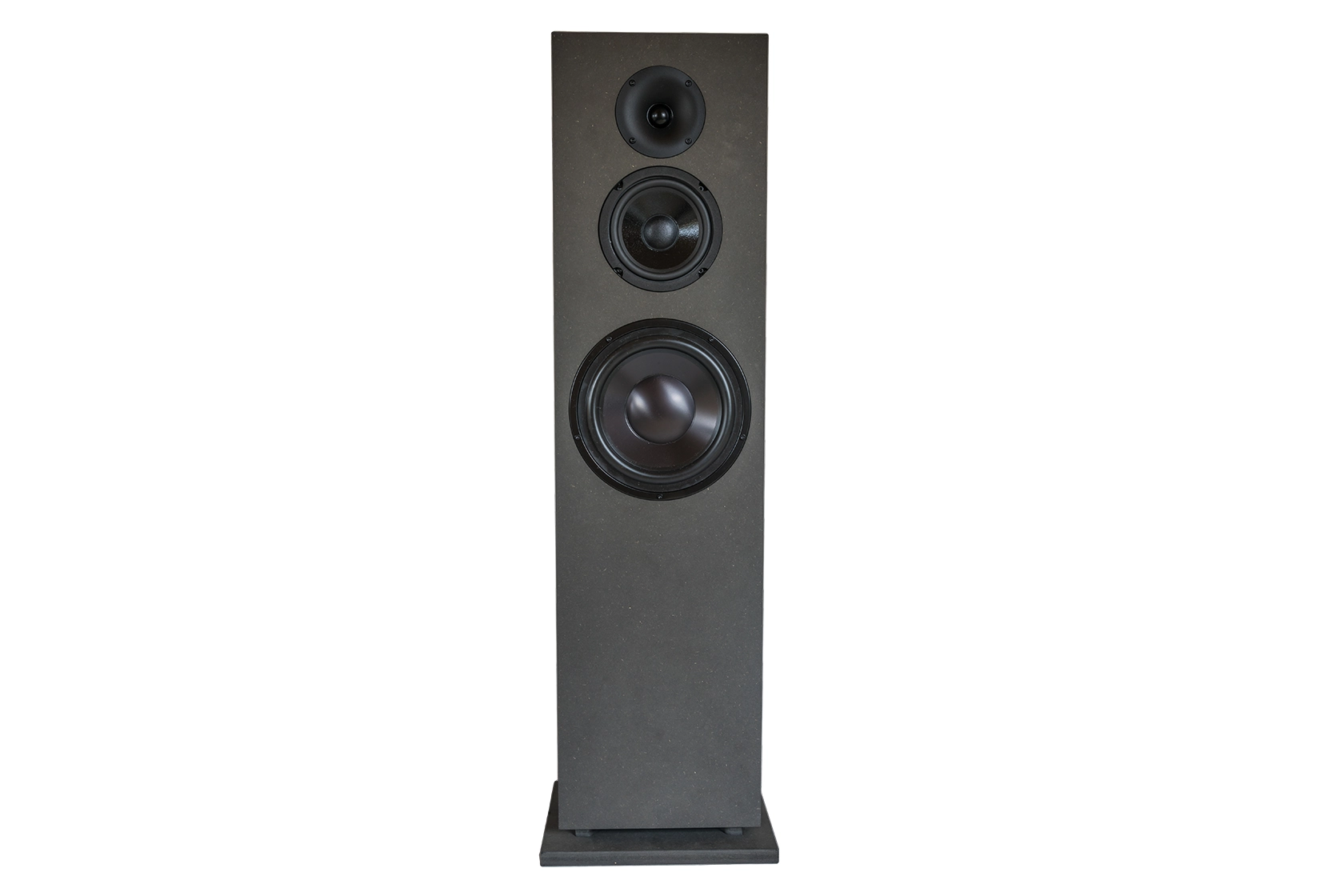

Home Cinema F1 Lautsprecherbausatz

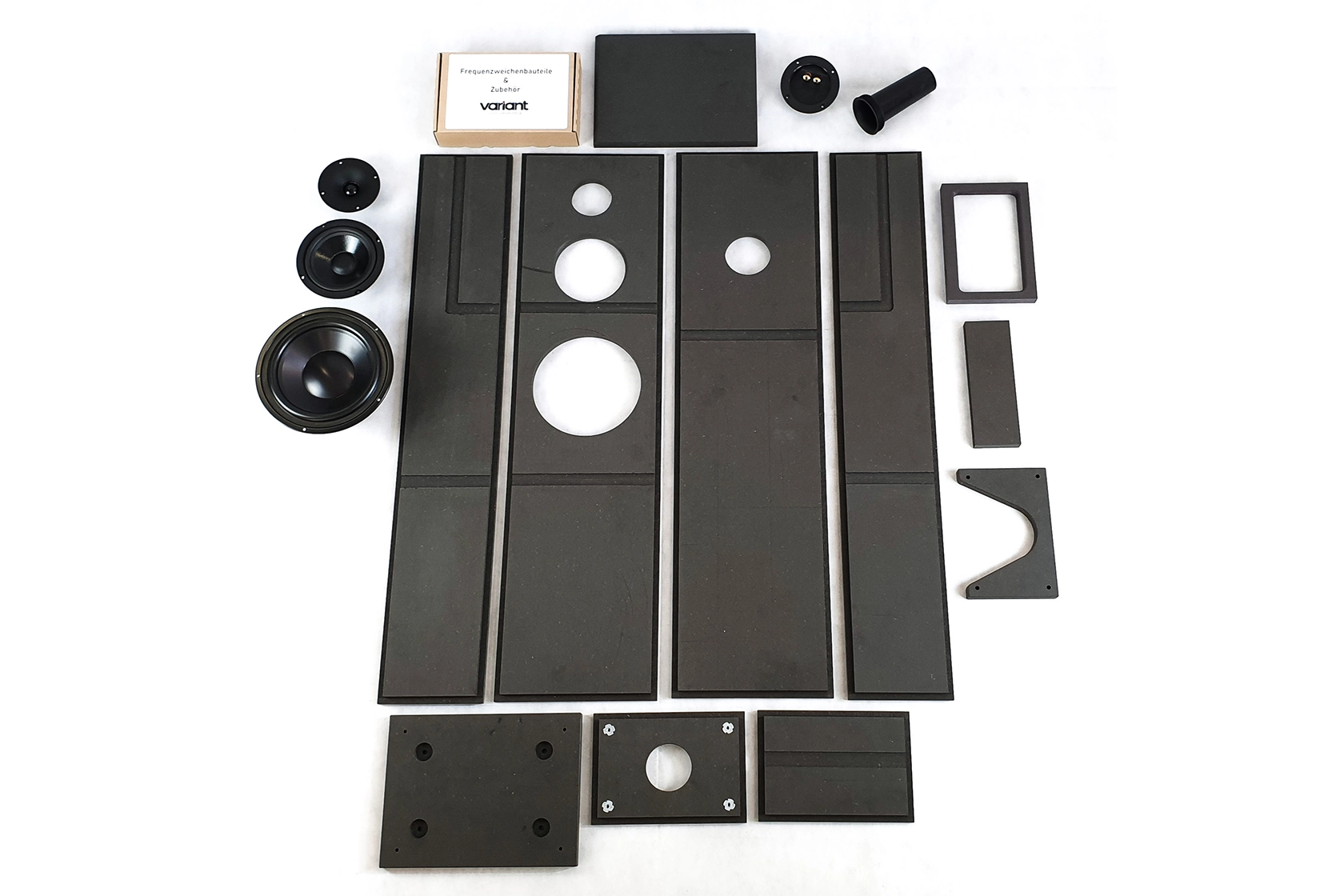

Home Cinema F1 Case KitHome Cinema F1 Enclosure Kit Suitable for assembly:Home Cinema F1 Speaker Kit Exterior dimensions: Width: 250 mm Height: 988 mm Depth: 180 mm Sockelplatte W 290mm D 220mm About the CaseThe enclosures are specially developed and manufactured for the speaker kits developed by variant GmbH. Variant also manufactures enclosures according to specifications for the kits of our distribution products and other sources such as magazines or private projects. Details can be found in the selection legend next to the product images. Fundamentally, raw MDF, black through-dyed MDF, and primed MDF, in the thicknesses 10, 12,16, 19, 22 and larger intended for the case kits. On request, we also manufacture in our own large joinery using other materials such as multiplex,Solid wood panels, real wood (if suitable), and similar. The housing kits are manufactured using miter or rebate and joint techniques during the CNC manufacturing process.manufactured to align the plates precisely. In many case kits, struts andBraces. They provide superior rigidity without compromising the performance and energy of the speakers toaffect. Everything that remains to be done is to refine it to match your decor or to paint it to aunique music furniture your own. Attention please note and for change requests please use the comment field or email change requestsaddress: In all our enclosure kits, unless otherwise mentioned, terminal cutouts for our terminalT105 on the back of the housing, prefabricated! All housing kits (not glued or painted) are without rounded edges or chamfers! Fasings or roundings are only made on fully assembled housings.

Dayton Audio DC130B-8 5-1/4" Classic Woofer Speaker Dayton Audio's DC130B-8 5-1/4" Classic Series woofer is perfect for compact 2-way designs as well as use in multiples or transmission lines. Key Features Sturdy, easy-to-countersink round steel frame Coated paper cone provides smooth response and reduced cone breakup Aluminum voice coil former for high power handling Large diameter flat spider and good Xmax for clean bass Suitable for sealed or vented enclosures Dayton Audio DC130B-8 5-1/4" Classic Woofer Speaker One of the main design goals at Dayton Audio is to create loudspeakers that can achieve high levels of performance at reasonable prices. The Dayton Audio DC130B-8 5-1/4" woofer is a great example of this approach. It features a non-pressed treated paper cone, rubber half-roll surround, ASV voice coil, coated cloth dust cap, and excellent low frequency response.

Dayton Audio ND25FW-4 1” Soft Dome Neodynium Tweeter with Waveguide 4 Ohm Dayton Audio has added a waveguide faceplate to the popular ND25 soft dome to create the ND25FW-4 tweeter. The waveguide faceplate controls dispersion to minimize ceiling and wall reflections, which in turn leads to an increase in efficiency across most of the passband. Key Features Waveguide loaded 1" treated silk dome Waveguide provides controlled directivity and higher efficiency Low Fs of 1,350 Hz can accommodate crossovers as low as 2,500 Hz Includes foam gasket to ensure a good seal to your enclosure High-strength neodymium motor with heatsink and ferrofluid cooling Standard 104 mm diameter faceplate for easy integration into many existing systems Dayton Audio ND25FW-4 1" Soft Dome Neodymium Tweeter with Waveguide 4 Ohm The Dayton Audio ND25FW-4 tweeter features a unique integrated round waveguide faceplate that provides a controlled directivity transition at high frequencies, reducing the effect of room reflections on the speaker's tonal balance. Unlike conventional flat-faceplate dome tweeters whose directivity does not match the midwoofer driver near the crossover frequency, the ND25FW-4's waveguide is curved to maintain consistent directivity at the transition. The waveguide also acts as a low-compression horn, lowering distortion. Waveguide-loaded dome tweeters are embraced within the industry for providing directivity control and mild horn loading without the negative effects of compression loading such as impulse smear and throat distortion where high levels are not needed. The waveguide profile used in the ND25FW-4 provides a minimum dispersion angle of about 90 degrees, and maintains directivity control to about 2,000 Hz, but the round waveguide will install easily into the same 104 mm standard tweeter cutout used commonly by dome tweeters with larger ferrite motors. Specifications: • Power handling: 20 watts RMS/40 watts max • VCdia: 1" • Le: 0.04 mH • Impedance: 4 ohms • Re: 3.2 ohms • Frequency response: 2,500-20,000 Hz • Fs: 1350 Hz • SPL: 91 dB 1W/1m • Dimensions: Overall diameter: 4.09", Cutout diameter: 2.875", Depth: 1.57".

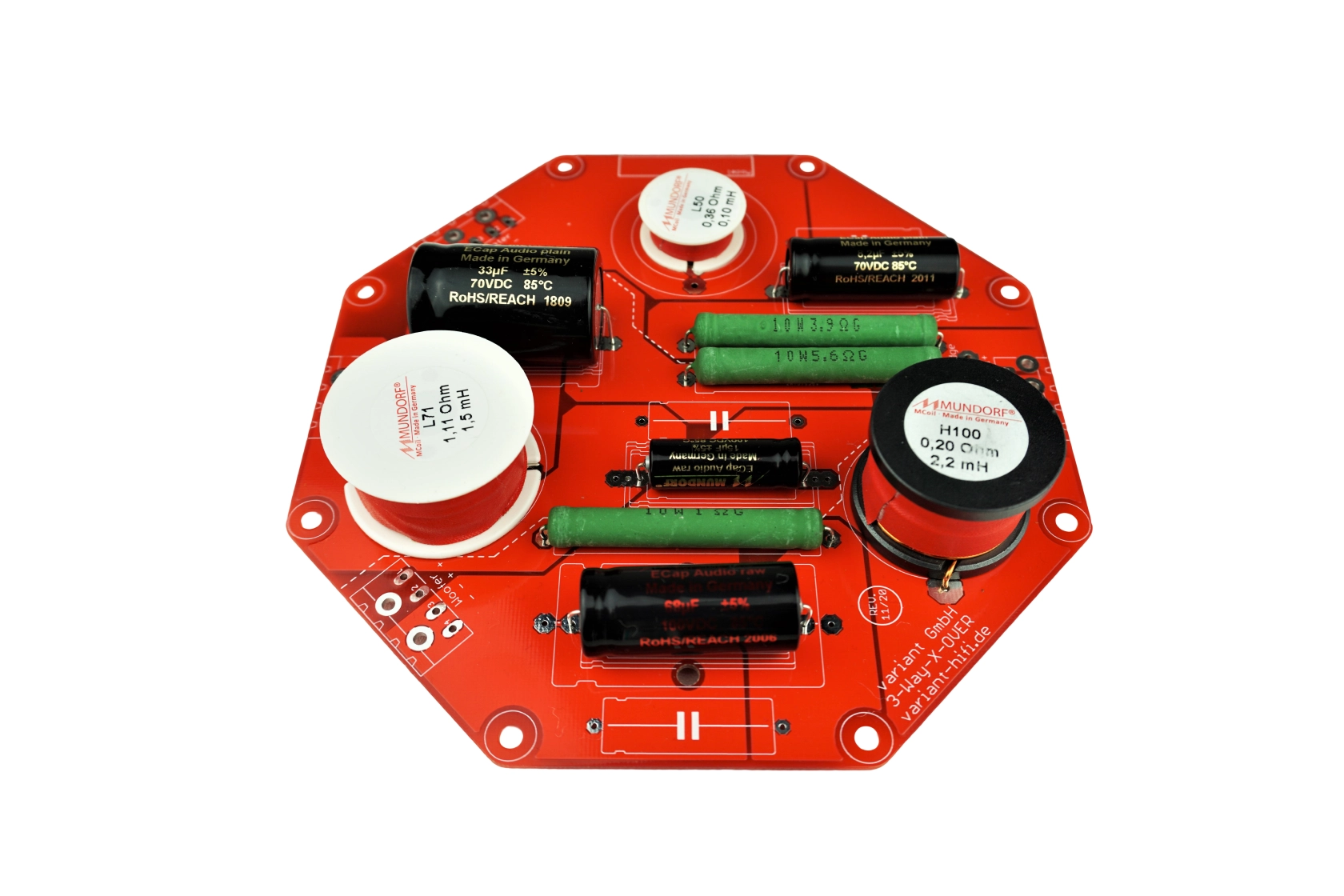

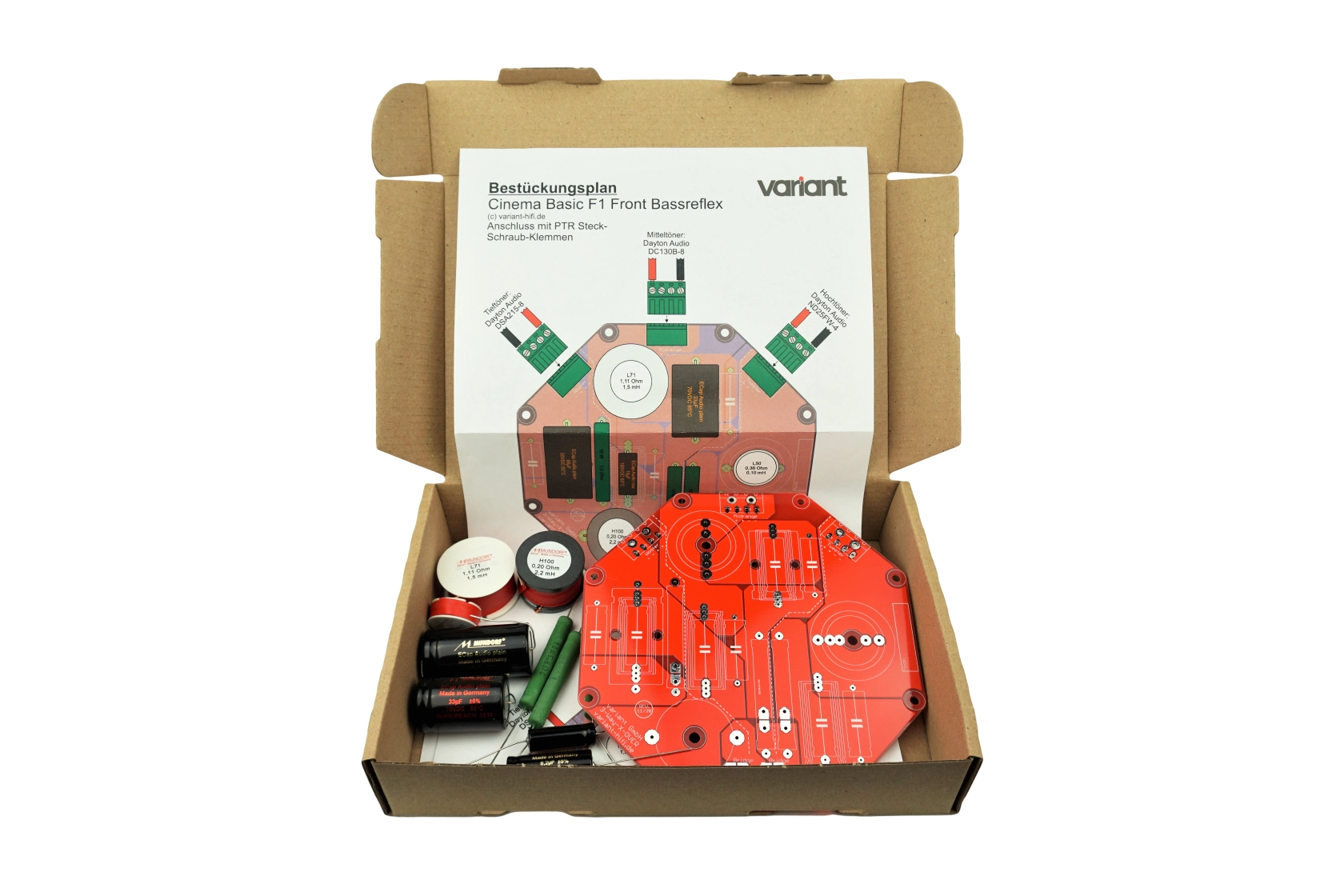

Circuit board for Cinema Basic R1 R2 C1 C2

Dayton Audio DSA215-8 8" Designer Series Aluminum Cone Woofer Dayton Audio's Designer Series DSA215-8 8" woofer combines smooth response, excellent bass performance, and a stylish visual presentation. Key Features Cosmetic frame with low profile lip, designed for front mounting—no countersinking required! Low distortion motor system with copper shorting ring Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction Smooth frequency response and linear roll-off simplify filter design Vented pole piece for minimized power compression and maximized reliability Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators Generous Xmax capability encourages use of moderate bass boost to tailor the response Dayton Audio DSA215-8 8" Designer Series Aluminum Cone Woofer The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies — without exceeding Xmax. These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.
