Dayton Audio RS100-4
Dayton Audio RS100-4 4” Reference Full-Range Driver 4 Ohm The Dayton Audio RS100-4 4" driver is a sleek and durable unit that never compromises on sound quality. The compact size and exceptional performance make it an ideal choice for building portable DIY speakers. It is perfect for replacing the speaker of your audio systems at home or in your car. Key Features Full-range capability allows reproduction of low to high frequency range as much as possible Low-distortion motor system for clear and crisp sound Long-excursion motor and low-loss rubber surround ensures incredible bass performance Heavy-duty 6-hole cast aluminum frame for exceptional durability Great for building compact DIY speakers Sophisticated design for a rich visual appeal Ideal replacement for RS100S-8 4" reference shielded full-range driver Dayton Audio RS100-4 4" Reference Full-Range Driver 4 Ohm Versatile and powerful, the Dayton Audio RS100-4 4" Reference Full-Range Driver 4 is ideal for your DIY speaker or as a replacement for your existing speaker. Its low-distortion motor system delivers amazing sound with exceptional clarity. Long-excursion characteristics and low-loss rubber surround offer powerful and deep bass performance. The woofer features anodized aluminium cone and heavy-duty cast aluminum frame for rigidity, solid aluminum phase plug for high-frequency response and gold terminals for better connectivity offering you quality sound performance.
Dayton Audio RS150-4 6" Reference Woofer 4 Ohm
The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Woofer features a black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminum phase plug, and gold terminals. Key Features 4 ohm impedance is perfect for series pairs in MTMs and center channel speakers Excellent car audio midrange/midbass High-end low-distortion motor with two shorting paths to reduce inductance The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing a low-distortion motor system with two short-circuit paths and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofer features a black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminum phase plug, and gold terminals.
Dayton Audio RSS315HFA-8
Dayton Audio RSS315HFA-8 12” Reference HF Subwoofer 8 Ohm Dayton Audio's Reference Series RSS315HFA-8 12" subwoofer utilizes the same low-distortion design as the rest of the series, but provides an 8 ohm alternative for increased connection and impedance-loading options. Key Features Extensively vented motor eliminates power compression and allows quiet excursion Lighter-weight black anodized aluminum cone minimizes moving mass 2-layer coil for reduced back EMF Triple shorting-ring motor for ultra-low distortion Optimized for large enclosures Highest quality materials throughout for long-lasting performance Dayton Audio RSS315HFA-8 12" Reference HF Subwoofer 8 Ohm The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of the RSS315HFA-8 12" driver is ultra-low-distortion. Second, third, and intermodulation distortion are kept extremely low by utilizing three magnetic short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look. Choose this High Fidelity (HF) version for home speaker systems when your priority is clean, low bass and you are not restricted by cabinet size.
Dayton Audio RSS390HF-4
Dayton Audio RSS390HF-4 15” Reference HF Subwoofer 4 Ohm Engineered to provide high-volume, low-distortion bass in larger rooms and other highly demanding applications, the Dayton Audio RSS390HF-4 15" Reference Series subwoofer speaker offers the perfect combination of high definition sound quality and low frequency impact. Key Features Extensively vented motor eliminates compression and allows quiet excursion Lightweight black anodized aluminum cone for rigidity and lower moving mass Triple shorting ring motor for ultra-low distortion 2-layer coil for reduced back EMF Suitable for sealed or vented enclosures Highest quality materials throughout for long-lasting performance Dayton Audio RSS390HF-4 15" Reference HF Subwoofer 4 Ohm The Dayton Audio Reference Series RSS390HF-4 15" speakers take the quality and performance of the much acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of these subwoofers is ultra-low-distortion. Second, third, and intemodulation distortion are kept extremely low by utilizing three magnetic short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look. Choose the high fidelity version for home systems when you are looking for clean, low bass and are not restricted by cabinet size.
Dayton Audio RS125-4
Dayton Audio RS125-4 5” Reference Woofer 4 Ohm The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Woofer features a black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminum phase plug, and gold terminals. Key Features 4 ohm impedance is perfect for series pairs in MTMs and center channel speakers Excellent car audio midrange/midbass High-end low-distortion motor with two shorting paths to reduce inductance Dayton Audio RS125-4 5" Reference Woofer 4 Ohm The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing a low-distortion motor system with two short-circuit paths and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofer features a black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminum phase plug, and gold terminals.

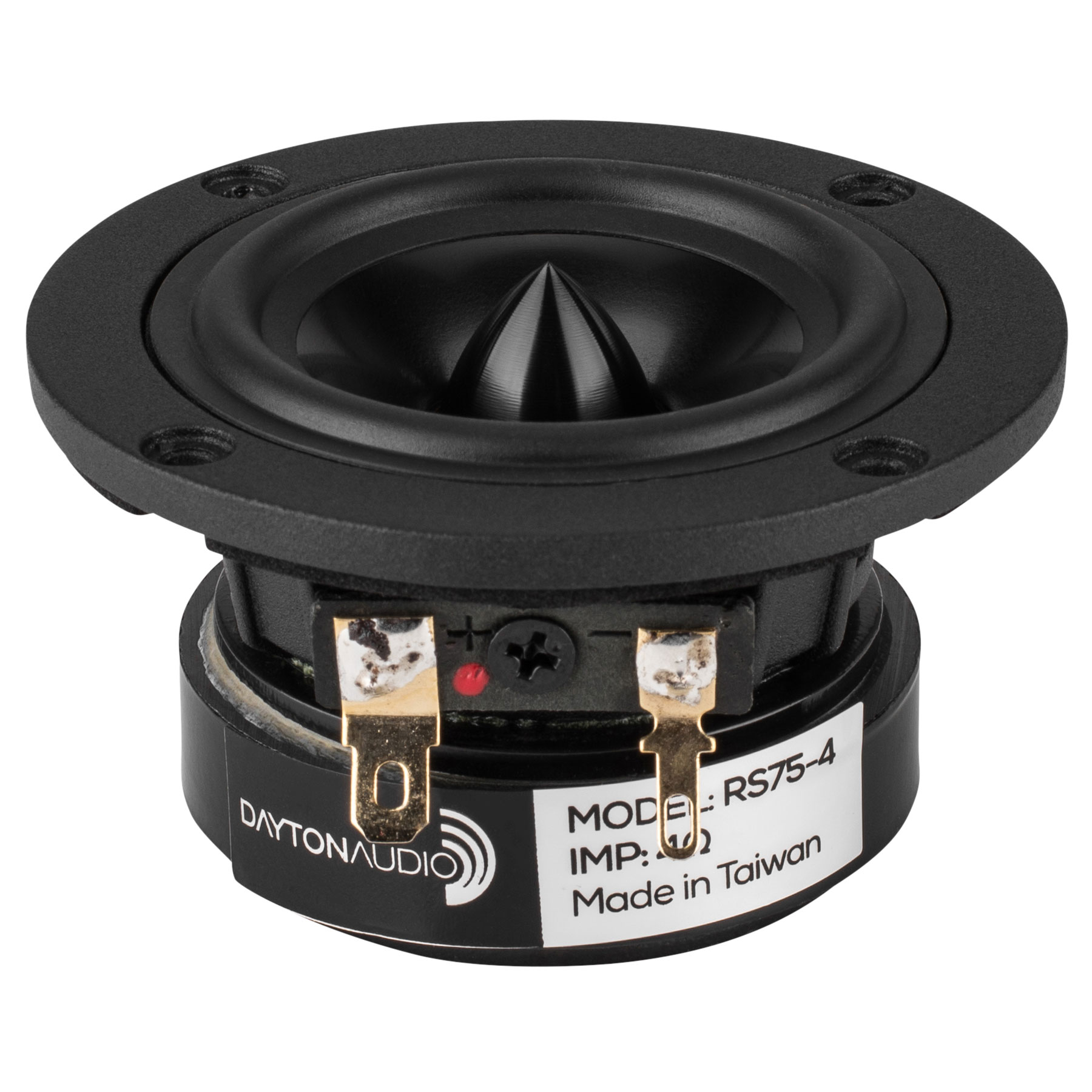

Dayton Audio RS75-4
Dayton Audio RS75-4 3” Reference Full-Range Driver 4 Ohm Incorporating a low-distortion motor system with a copper ring, a copper cap, and an aluminum phase plug, the RS75-4 can outperform "boutique" drivers that cost several times the price. Key Features Full-range performance Low distortion and high resolution Aluminum frame, aluminum cone, rubber surround Distortion-reducing copper ring, copper cap, and aluminum phase plug Subtle yet high-tech look makes a bold cosmetic statement Designed and engineered in USA Dayton Audio RS75-4 3" Reference Full-Range Driver 4 Ohm The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Incorporating a low-distortion motor system with a copper ring, a copper cap, and an aluminum phase plug, the RS75-4 can outperform "boutique" drivers that cost several times the price. Its low-distortion characteristics and smooth response provide exceptional clarity, detail, and dynamics. Features a black anodized cone, heavy-duty 4-hole cast frame, low-loss rubber surround, and gold terminals.

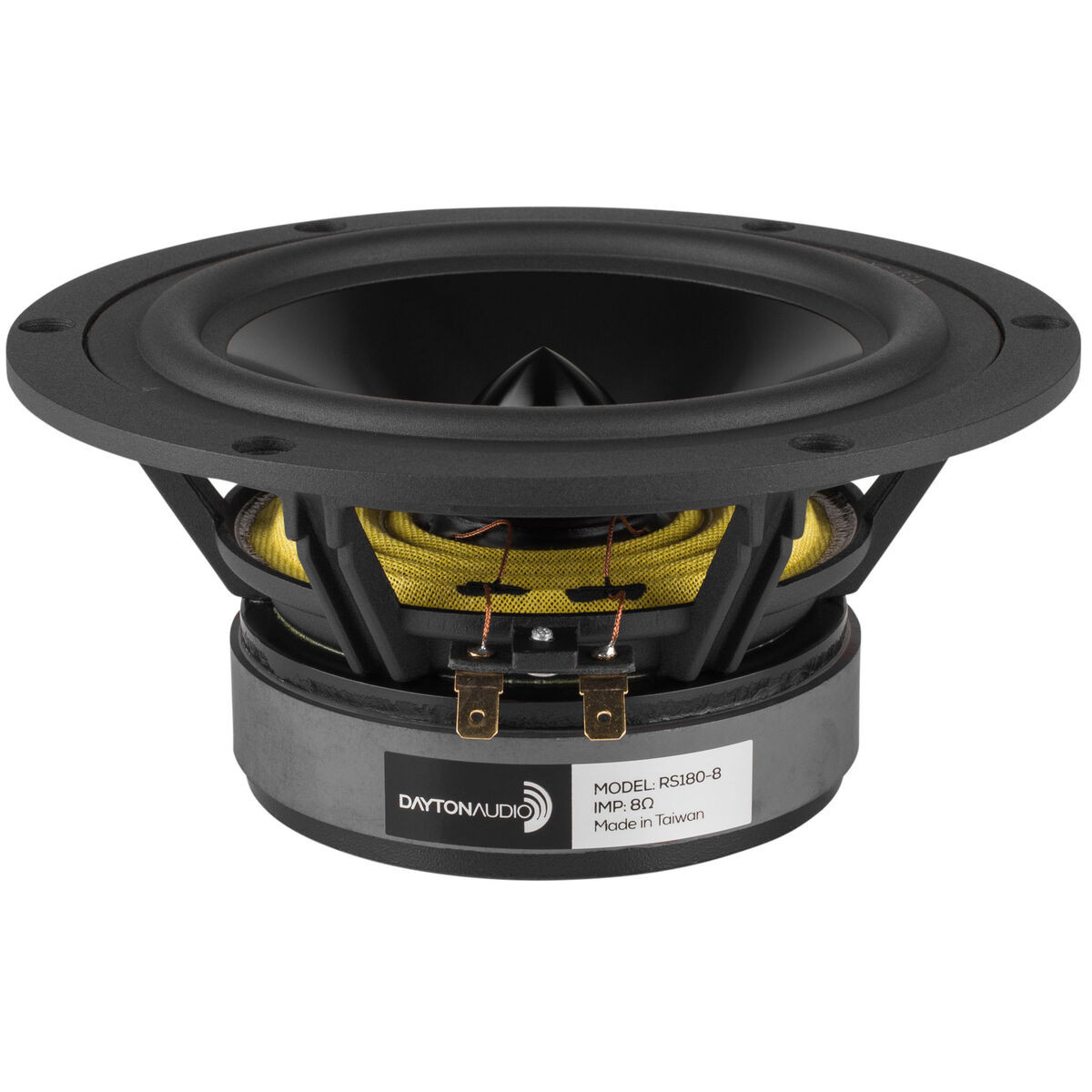

Dayton Audio RS180-8 7" Reference Woofer
Dayton Audio Reference Series RS180-8 7" woofers deliver exceptional clarity, detail, and dynamics--and of course, incredibly low distortion. Key Features One of the lowest distortion, highest resolution driver series available Low-distortion high-excursion motor system with two short-circuit paths Compliant suspension and rigid black anodized aluminum cone for strong bass performance Heavy-duty 6-hole cast frame, low-loss rubber surround, and solid aluminum phase plug Designed and engineered in the USA The Dayton Audio Reference Series was conceived with one goal in mind—low distortion. Each speaker was carefully designed and optimized to offer the highest performance with the lowest distortion levels. At the same time, by focusing on features that contribute to sound quality and eliminating unnecessary frills, the drivers offer value unparalleled in the industry. Dayton Audio Reference Series RS180-8 7" woofers deliver exceptional clarity, detail, and dynamics—and of course, incredibly low distortion.

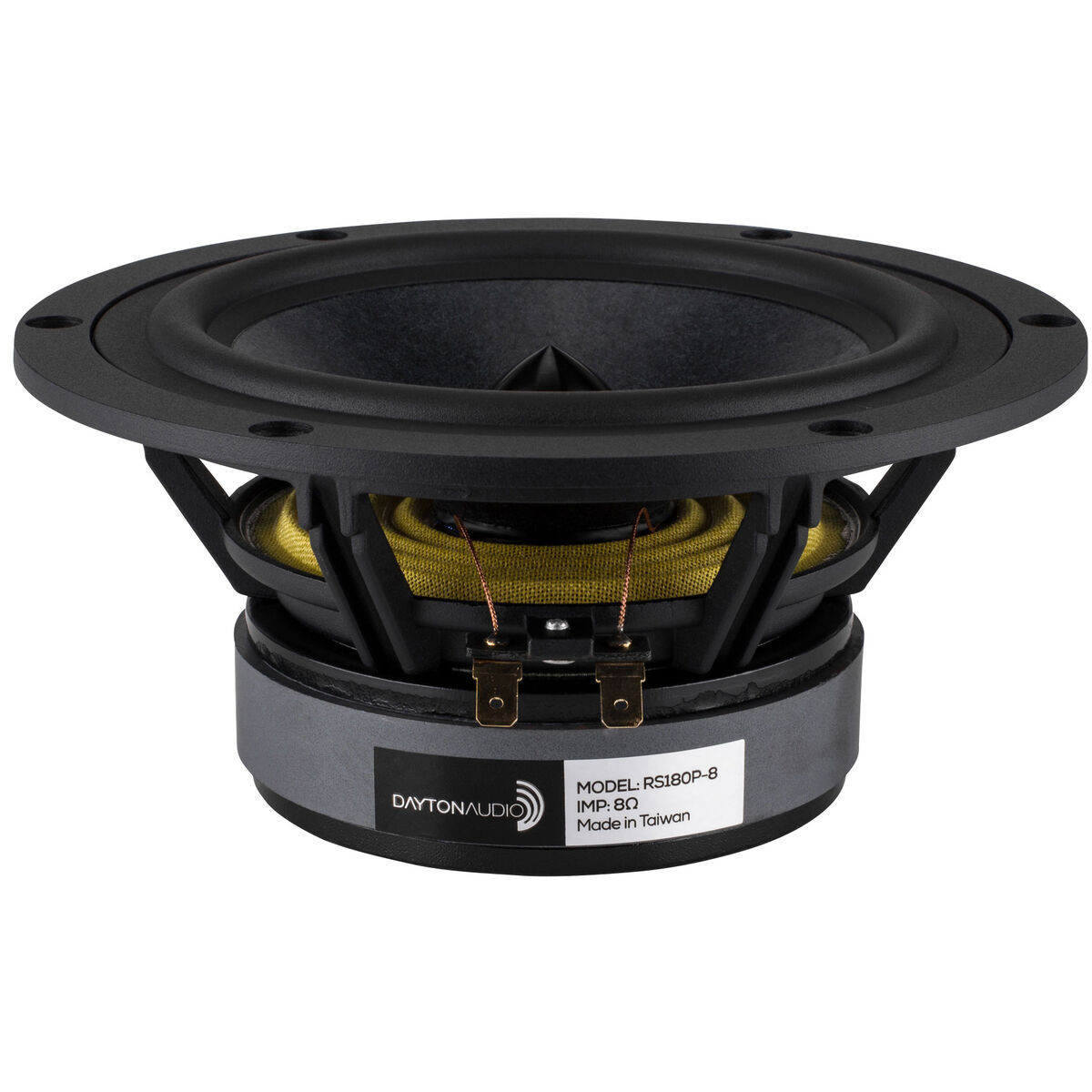

Dayton Audio RS180P-8 7" Reference Paper Woofer 8 Ohm
Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with super smooth frequency response due to the use of a proprietary cone blend. Key Features Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers Similar cosmetics and design features as original Reference Series with low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminum phase plug Perfect as woofers, midwoofers, or dedicated midrange drivers 6 mm Xmax and 89 dB sensitivity The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.

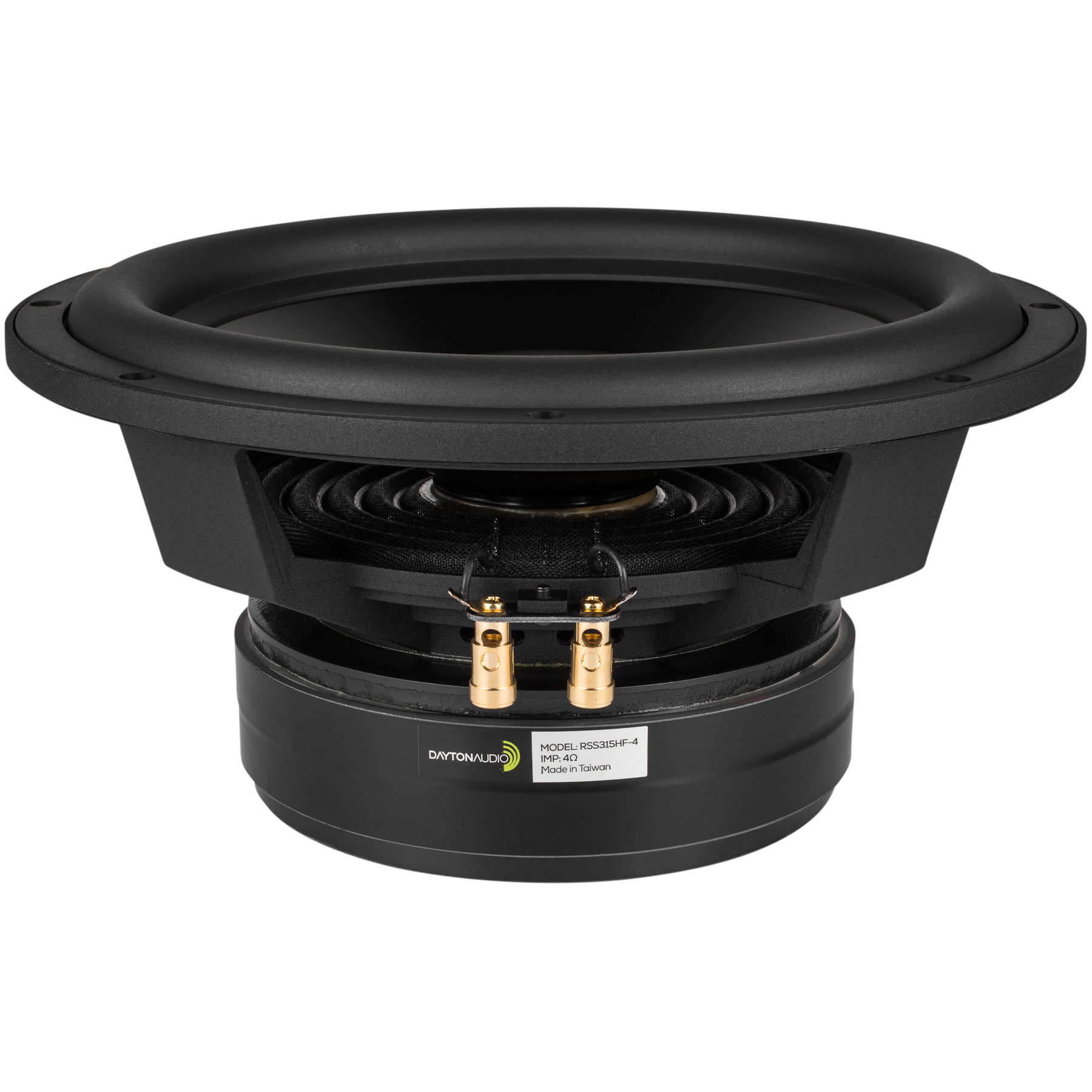

Dayton Audio RSS315HF-4
Dayton Audio RSS315HF-4 12” Reference HF Subwoofer 4 Ohm The Dayton Audio Reference Series subwoofer speakers take the quality and performance of the much acclaimed RS line into the subwoofer realm. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look. Key Features Extensively vented motor eliminates compression and allows quiet excursion Lightweight black anodized aluminum cone for rigidity and lower moving mass Triple shorting ring motor for ultra-low distortion 2-layer coil for reduced back EMF Suitable for sealed or vented enclosures Highest quality materials throughout for long-lasting performance Dayton Audio RSS315HF-4 12" Reference HF Subwoofer 4 Ohm As with the rest of the Dayton Audio Reference Series speakers, the main focus of these subwoofers is ultra-low-distortion. Second, third, and intermodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion for the Reference Series RSS315HF-4 12" subwoofer speaker. The black anodized cone, rubber surround, and custom basket give this driver and the rest of the Reference Series a unique, high-end look. Choose the high fidelity version for home systems when you are looking for clean, low bass and are not restricted by cabinet size.
Dayton Audio RS52FN-8
Dayton Audio RS52FN-8 2” Reference Fabric Dome Midrange 8 Ohm The Dayton Audio Reference Series dome midrange delivers excellent off-axis response and midrange performance. High quality construction includes a cast aluminum faceplate, metal grill, vented former, and copper clad pole piece. Key Features Large damped rear chamber for low resonance point 2" Fabric diaphragm for good clarity and dispersion Neodymium magnet minimizes stray magnetic field Copper clad motor reduces distortion for transparent sound Dayton Audio RS52FN-8 2" Reference Gewebe Dome Midrange The Dayton Audio Reference Series soft dome midrange delivers excellent off-axis response and midrange performance. Its 2" damped fabric diaphragm is linear throughout the midrange and lower treble, allowing it to provide a seamless transition to tweeters. The superior dispersion characteristics will eliminate suckouts and other problems that can occur in typical 2-way designs with large woofers. High quality construction includes a cast aluminum faceplate, metal grill, vented former, and copper clad pole piece. Great for use with other members of the Reference Series, but will also work well with any high-performance drivers.

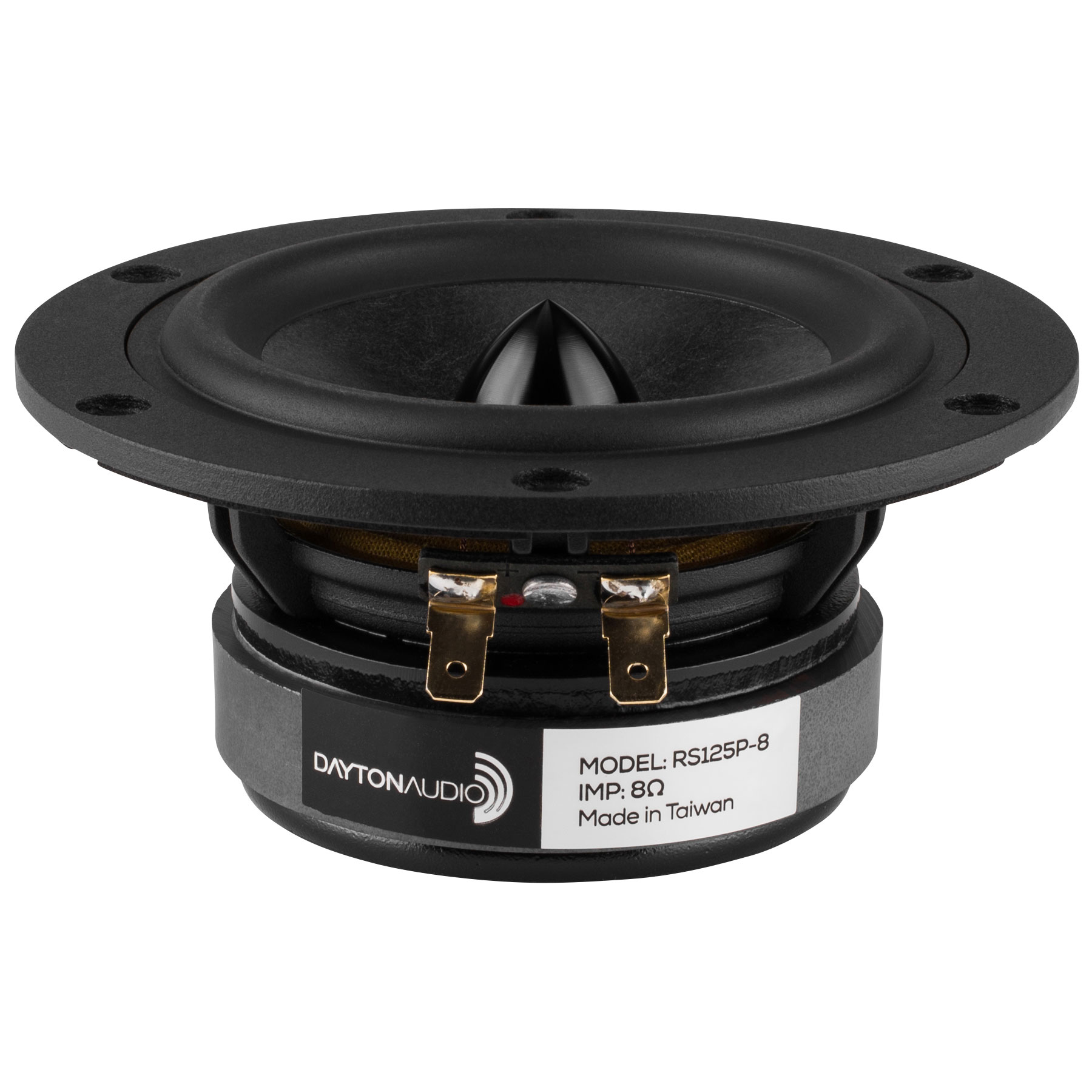

Dayton Audio RS125P-8
Dayton Audio RS125P-8 5” Reference Paper Woofer Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with super smooth frequency response due to the use of a proprietary cone blend. Key Features Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers Similar cosmetics and design features as original Reference Series with low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminum phase plug Perfect for use as a woofer, midwoofer, or dedicated midrange driver 4 mm of Xmax and 85.8 dB sensitivity Dayton Audio RS125P-8 5" Reference Paper Woofer 8 Ohm The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.

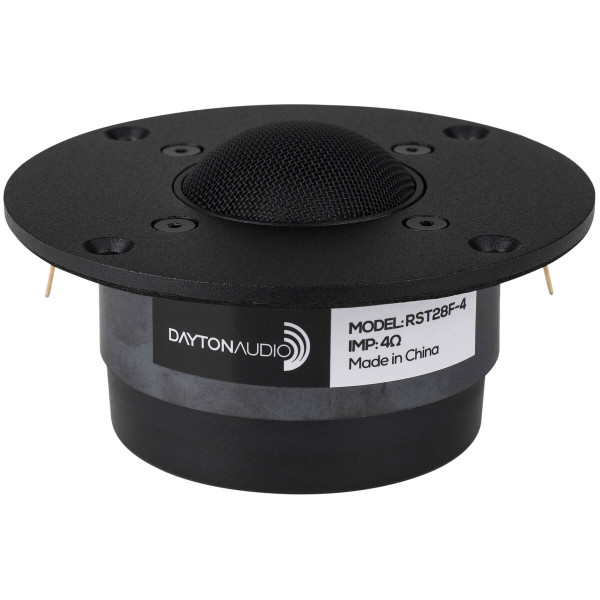

Dayton Audio RST28F-4 1-1/8" Reference Series Fabric Dome Tweeter 4 Ohm
The Dayton Audio RST28F-4 1-1/8" silk dome Reference Series tweeter has remarkable clarity, low free air resonance, exceptional efficiency, and smooth frequency response, a combination seldom found in the industry at any price. This upgrade over the original RS28F-4 provides incredible performance at an amazing value. Key Features 1-1/8" silk diaphragm offers excellent damping and remarkable clarity Exceptional efficiency at 93.5 ±3 dB from 1.4 kHz to 20 kHz for extremely accurate response Well-designed phase bridge to balance the response in the upper octave Tuned rear chamber and high-quality Ferrofluid for extended low-end response Low-distortion motor system achieves a rare level of transparency Matches the performance of even the most expensive audiophile high-frequency transducers The Dayton Audio RST28F-4 silk dome Reference Series tweeter offers exceptional efficiency from 1,400 Hz to 20,000 Hz with an extremely natural and dynamic sound. This unique 1-1/8" silk dome and a state-of-the-art Ferrofluid cooled motor system employs copper shorting rings to ensure that high frequency content is reproduced as transparently as possible, assuring studio-quality performance. RST28F-4 tweeters not only match the look and features of the RS woofers and midranges but also the clean, detailed, and uncolored sound that characterizes the entire series. These are just a few of the features that allow these tweeters to outperform some the most expensive audiophile high-frequency transducers.

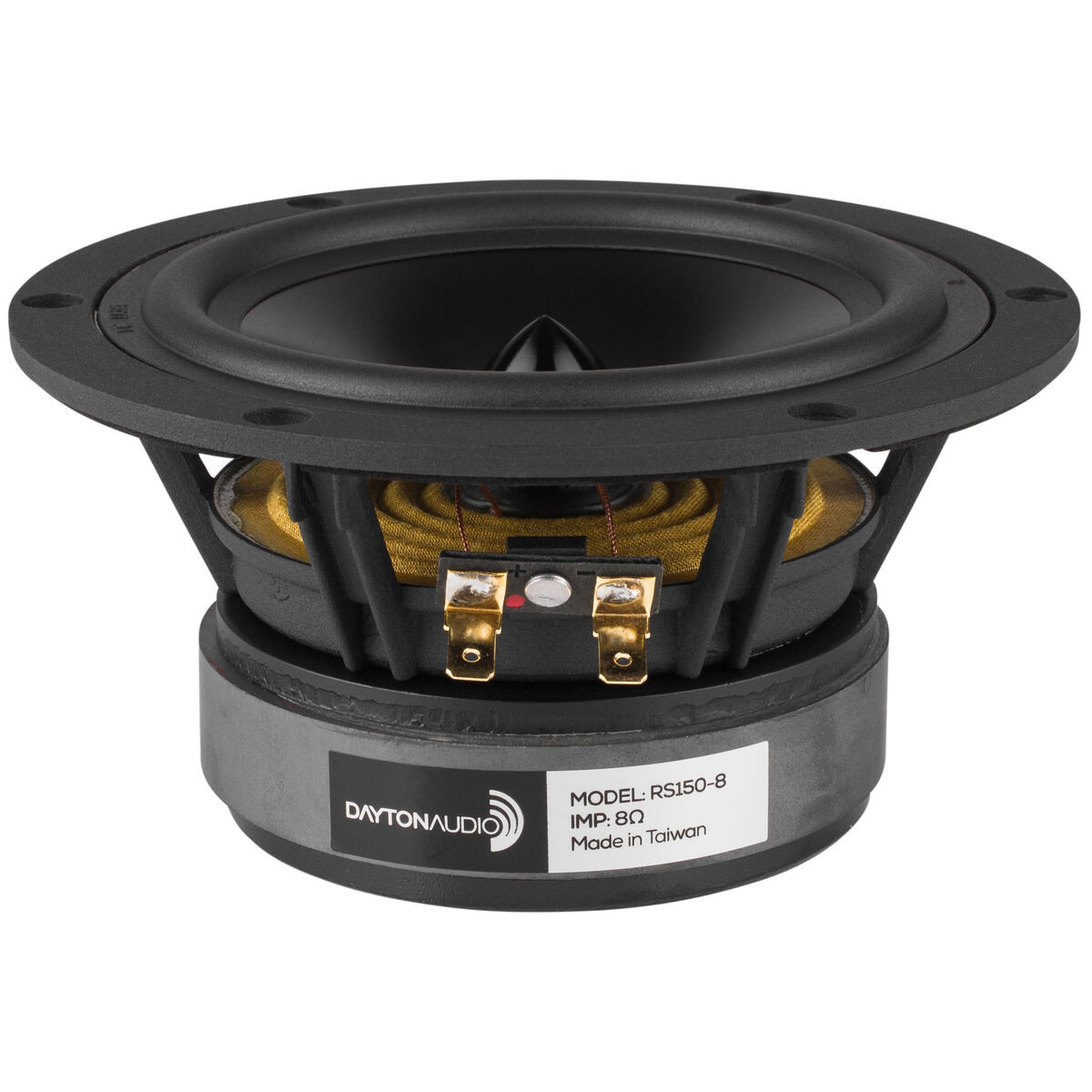

Dayton Audio RS150-8
Dayton Audio RS150-8 6” Reference Woofer Dayton Audio Reference Series RS150-8 6" woofers deliver exceptional clarity, detail, and dynamics—and of course, incredibly low distortion. Key Features One of the lowest distortion, highest resolution driver series available Low-distortion high-excursion motor system with two short-circuit paths Compliant suspension and rigid black anodized aluminum cone for strong bass performance Heavy-duty 6-hole cast frame, low-loss rubber surround, and solid aluminum phase plug Designed and engineered in the USA Dayton Audio RS150-8 6" Reference Woofer The Dayton Audio Reference Series was conceived with one goal in mind—low distortion. Each speaker was carefully designed and optimized to offer the highest performance with the lowest distortion levels. At the same time, by focusing on features that contribute to sound quality and eliminating unnecessary frills, the drivers offer value unparalleled in the industry. Dayton Audio Reference Series RS150-8 6" woofers deliver exceptional clarity, detail, and dynamics—and of course, incredibly low distortion.

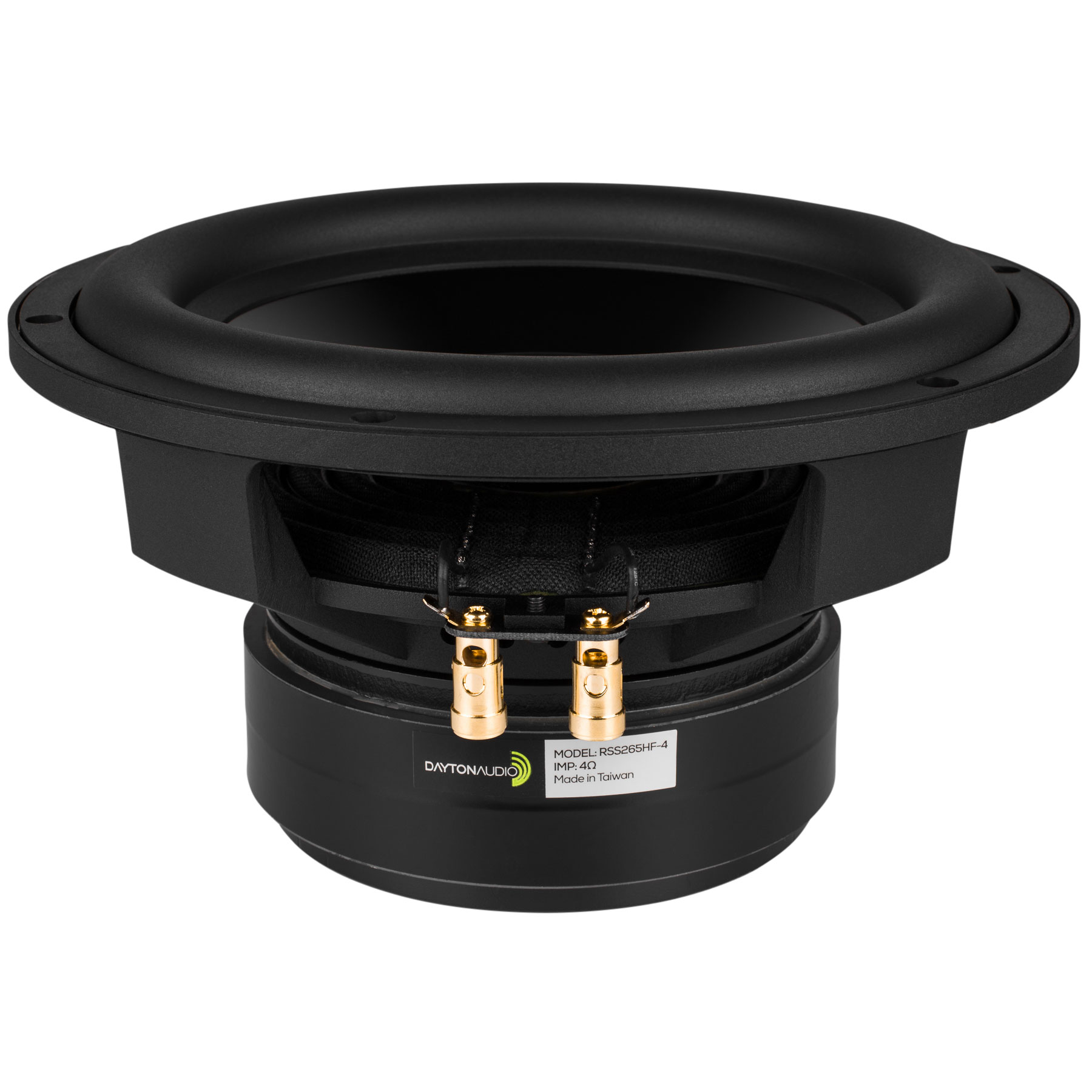

Dayton Audio RSS265HF-4
Dayton Audio RSS265HF-4 10” Reference HF Subwoofer 4 Ohm The Dayton Audio RSS265HF-4 10" subwoofer features the high-definition/low-distortion attributes of the acclaimed Reference Series, and provides great results in compact single-driver subwoofer speaker systems...or when used in multiples! Key Features Extensively vented motor eliminates compression and allows quiet excursion Lightweight black anodized aluminum cone for rigidity and lower moving mass Suitable for sealed or vented enclosures Triple shorting ring motor for ultra-low distortion 2-layer coil for reduced back EMF Highest quality materials throughout for long-lasting performance Dayton Audio RSS265HF-4 10" Reference HF Subwoofer 4 Ohm As with the rest of the Reference Series, the main focus of the Dayton Audio RSS265HF 10" subwoofer is ultra-low distortion. Second, third, and intermodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodized cone, thick rubber surround, and custom basket give this Dayton Audio driver a unique, high-end look. Choose the High Fidelity (HF) version for home systems when you are looking for clean, low bass and are not restricted by speaker cabinet size.
Dayton Audio RS52AN-8
Dayton Audio RS52AN-8 2” Reference Aluminum Dome Midrange The Dayton Audio Reference Series dome midrange delivers excellent off-axis response and midrange performance. High quality construction includes a cast aluminum faceplate, metal grill, vented former, and copper clad pole piece. Key Features Large damped rear chamber for low resonance point 2" Aluminum diaphragm for good clarity and dispersion Neodymium magnet minimizes stray magnetic field Copper clad motor reduces distortion for transparent sound Dayton Audio RS52AN-8 2" Reference Aluminum Dome Midrange The Dayton Audio Reference Series dome midrange delivers excellent off-axis response and midrange performance. Its black anodized 2" diaphragm is extremely linear throughout the midrange and lower treble, allowing it to provide a seamless transition to tweeters. The superior dispersion characteristics will eliminate suckouts and other problems that can occur in typical two-way designs with large woofers. High quality construction includes a cast aluminum faceplate, metal grill, vented former, and copper clad pole piece. Great for use with other members of the Reference Series, but will also work well with any high-performance driver.

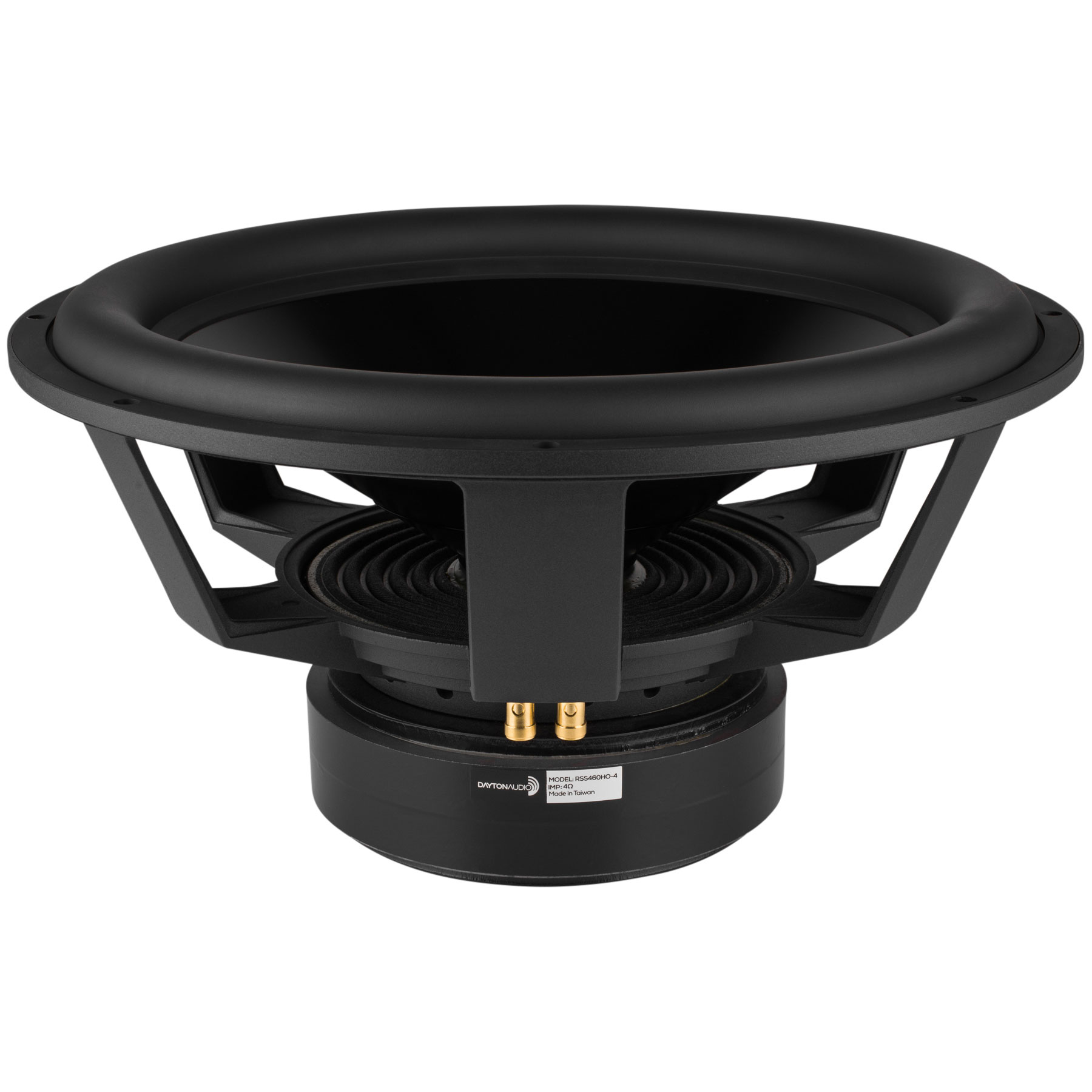

Dayton Audio RSS460HO-4
Dayton Audio RSS460HO-4 18” Reference HO Subwoofer 4 Ohm The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look. Key Features Extensively vented motor eliminates compression and allows quiet excursion Extra-thick black anodized aluminum cone for maximum rigidity Triple shorting ring motor for ultra-low distortion 4-layer coil for high power handling Optimized parameters for relatively small enclosures Highest quality materials throughout for long-lasting performance Dayton Audio RSS460HO-4 18" Reference HO Subwoofer 4 Ohm The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of these subwoofers is ultra-low-distortion. Second, third, and intemodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look.

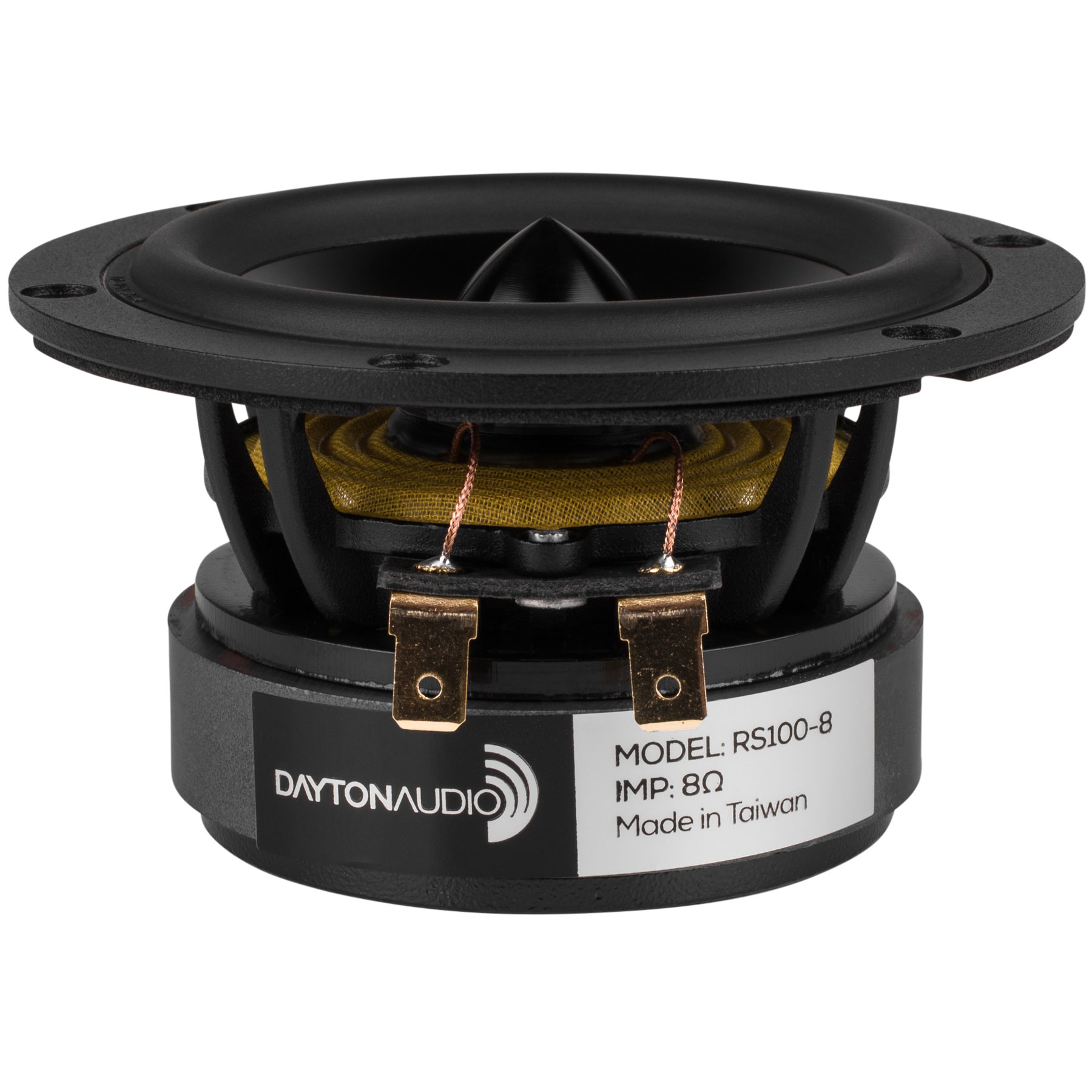

Dayton Audio RS100-8
Dayton Audio RS100-8 4” Reference Full-Range Driver 8 Ohm Dayton Audio Reference Series RS100-8 4" midbass speakers deliver exceptional clarity, detail, and dynamics—and of course, incredibly low distortion. Key Features One of the lowest distortion, highest resolution driver series available Low-distortion high-excursion motor system with two short-circuit paths Compliant suspension and rigid black anodized aluminum cone for strong bass performance Heavy-duty 6-hole cast frame, low-loss rubber surround, and solid aluminum phase plug Designed and engineered in the USA Dayton Audio RS100-8 4" Reference Full-Range Driver The Dayton Audio Reference Series was conceived with one goal in mind—low distortion. Each speaker was carefully designed and optimized to offer the highest performance with the lowest distortion levels. At the same time, by focusing on features that contribute to sound quality and eliminating unnecessary frills, the drivers offer value unparalleled in the industry. Dayton Audio Reference Series RS100-8 4" midbass speakers deliver exceptional clarity, detail, and dynamics—and of course, incredibly low distortion.

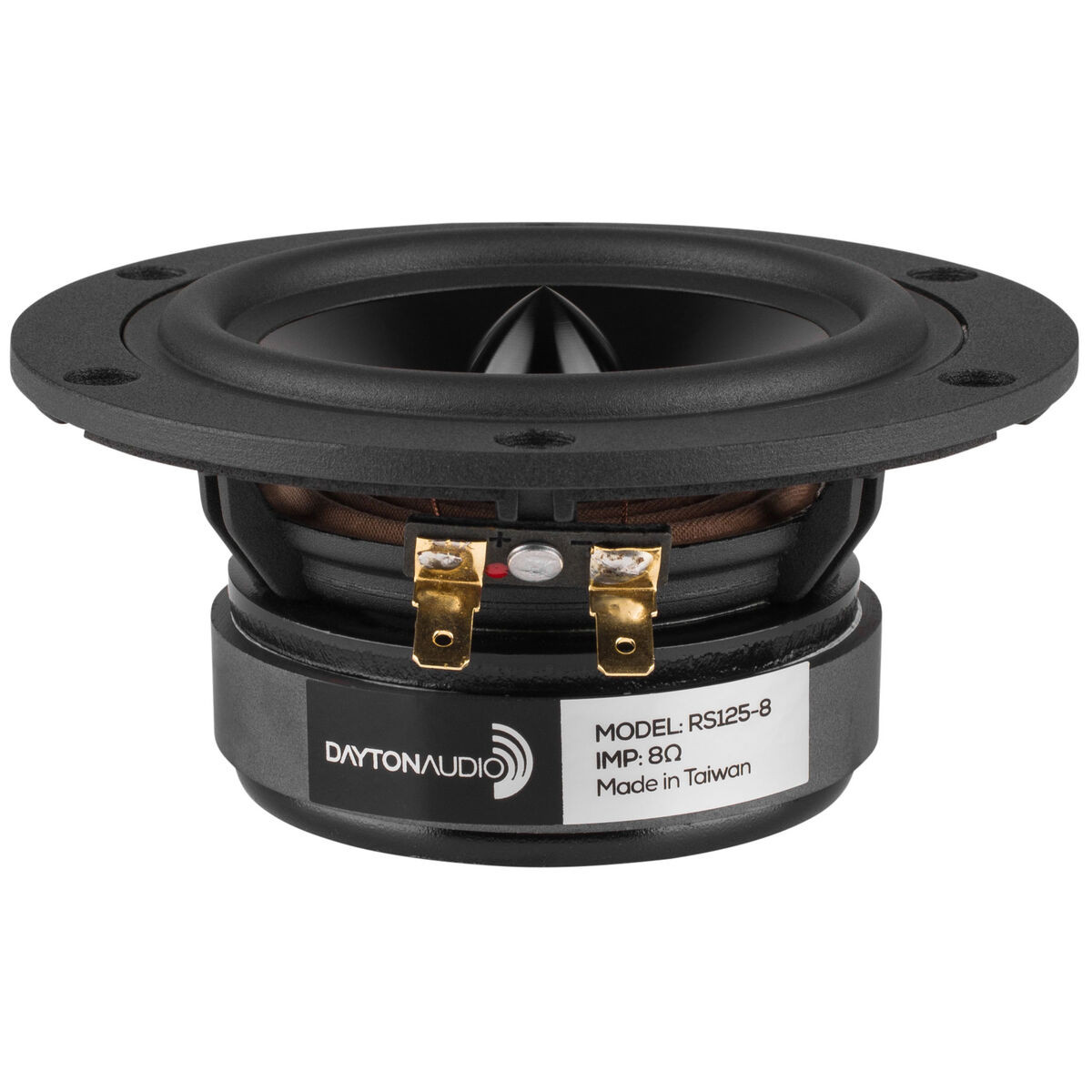

Dayton Audio RS125-8 5" Reference Woofer
Dayton Audio Reference Series RS125-8 5" woofers deliver exceptional clarity, detail, and dynamics—and of course, incredibly low distortion. Key Features One of the lowest distortion, highest resolution driver series available Low-distortion high-excursion motor system with two short-circuit paths Compliant suspension and rigid black anodized aluminum cone for strong bass performance Heavy-duty 6-hole cast frame, low-loss rubber surround, and solid aluminum phase plug Designed and engineered in the USA The Dayton Audio Reference Series was conceived with one goal in mind—low distortion. Each speaker was carefully designed and optimized to offer the highest performance with the lowest distortion levels. At the same time, by focusing on features that contribute to sound quality and eliminating unnecessary frills, the drivers offer value unparalleled in the industry. Dayton Audio Reference Series RS125-8 5" woofers deliver exceptional clarity, detail, and dynamics—and of course, incredibly low distortion.

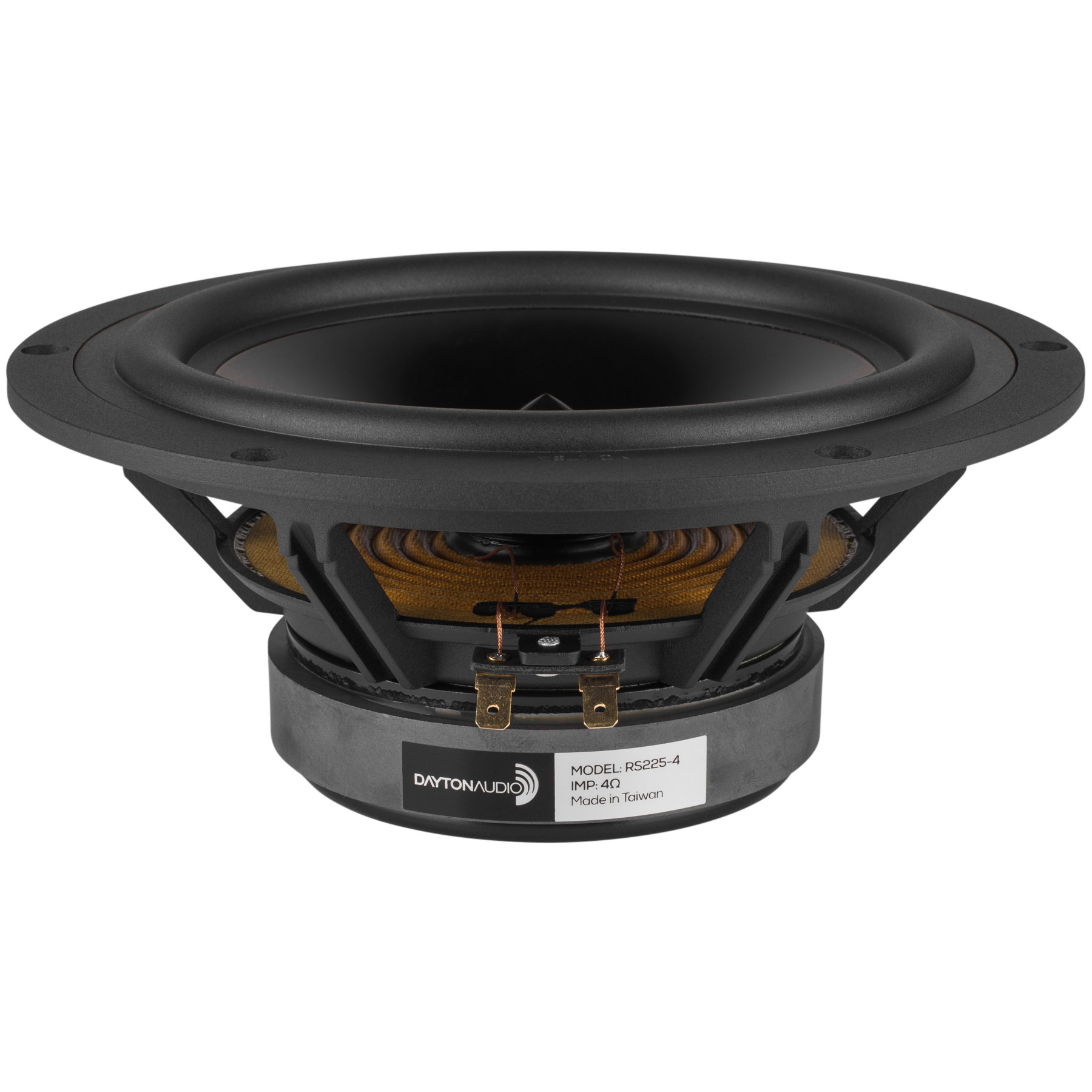

Dayton Audio RS225-4
Dayton Audio RS225-4 8” Reference Woofer 4 Ohm The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Woofer features a black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, and solid aluminum phase plug. Key Features 4 ohm impedance is perfect for series pairs in MTMs and center channel speakers Excellent car audio midrange/midbass High-end low-distortion motor with two shorting paths to reduce inductance Designed and engineered in the USA Dayton Audio RS225-4 8" Reference Woofer 4 Ohm The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing a low-distortion motor system with two short-circuit paths and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofer features a black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, and solid aluminum phase plug.

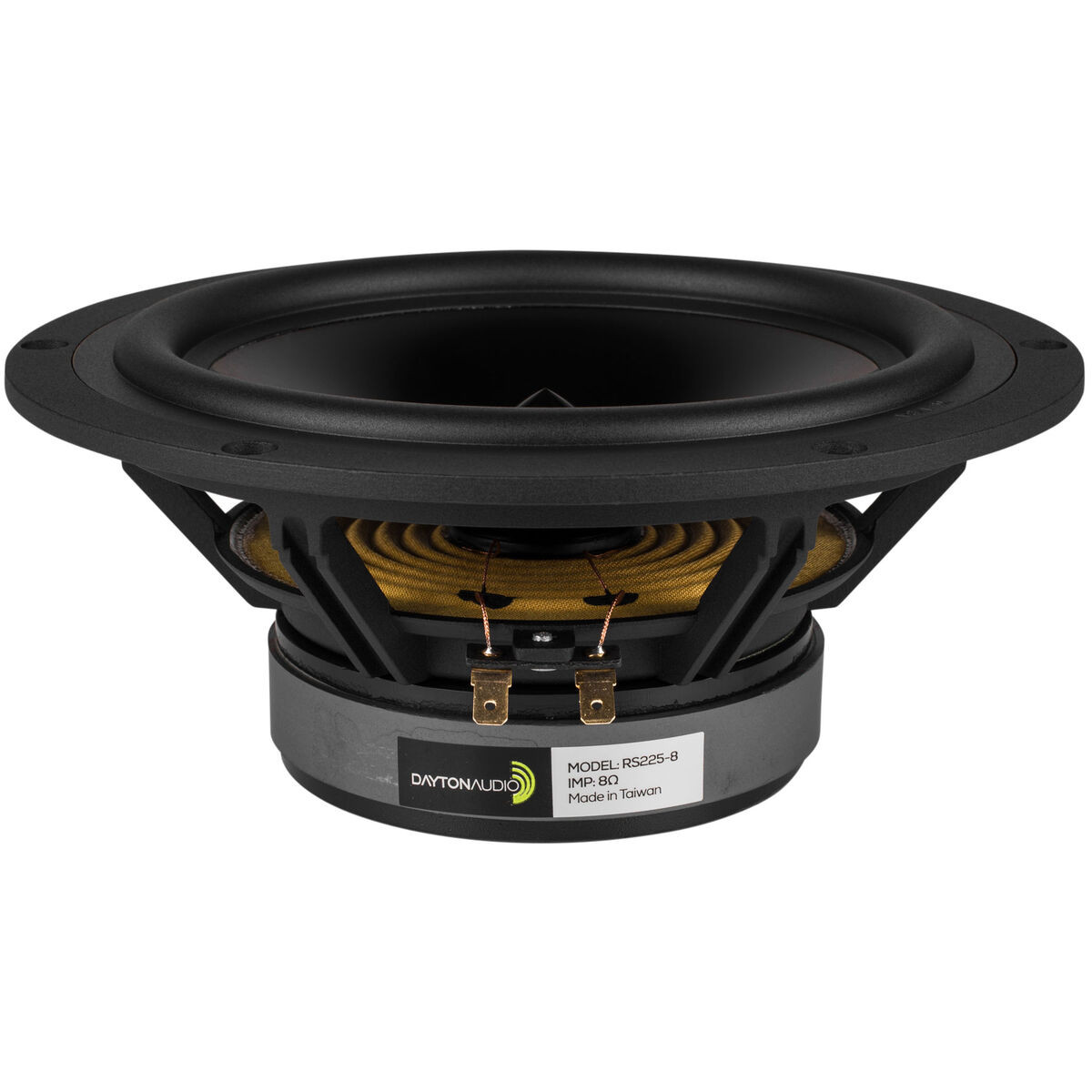

Dayton Audio RS225-8 8" Reference Woofer
Dayton Audio Reference Series RS225-8 8" woofers deliver exceptional clarity, detail, and dynamics—and of course, incredibly low distortion. Key Features One of the lowest distortion, highest resolution driver series available Low-distortion high-excursion motor system with two short-circuit paths Compliant suspension and rigid black anodized aluminum cone for strong bass performance Heavy-duty 6-hole cast frame, low-loss rubber surround, and solid aluminum phase plug Designed and engineered in the USA The Dayton Audio Reference Series was conceived with one goal in mind—low distortion. Each speaker was carefully designed and optimized to offer the highest performance with the lowest distortion levels. At the same time, by focusing on features that contribute to sound quality and eliminating unnecessary frills, the drivers offer value unparalleled in the industry. Dayton Audio Reference Series RS225-8 8" woofers deliver exceptional clarity, detail, and dynamics—and of course, incredibly low distortion.

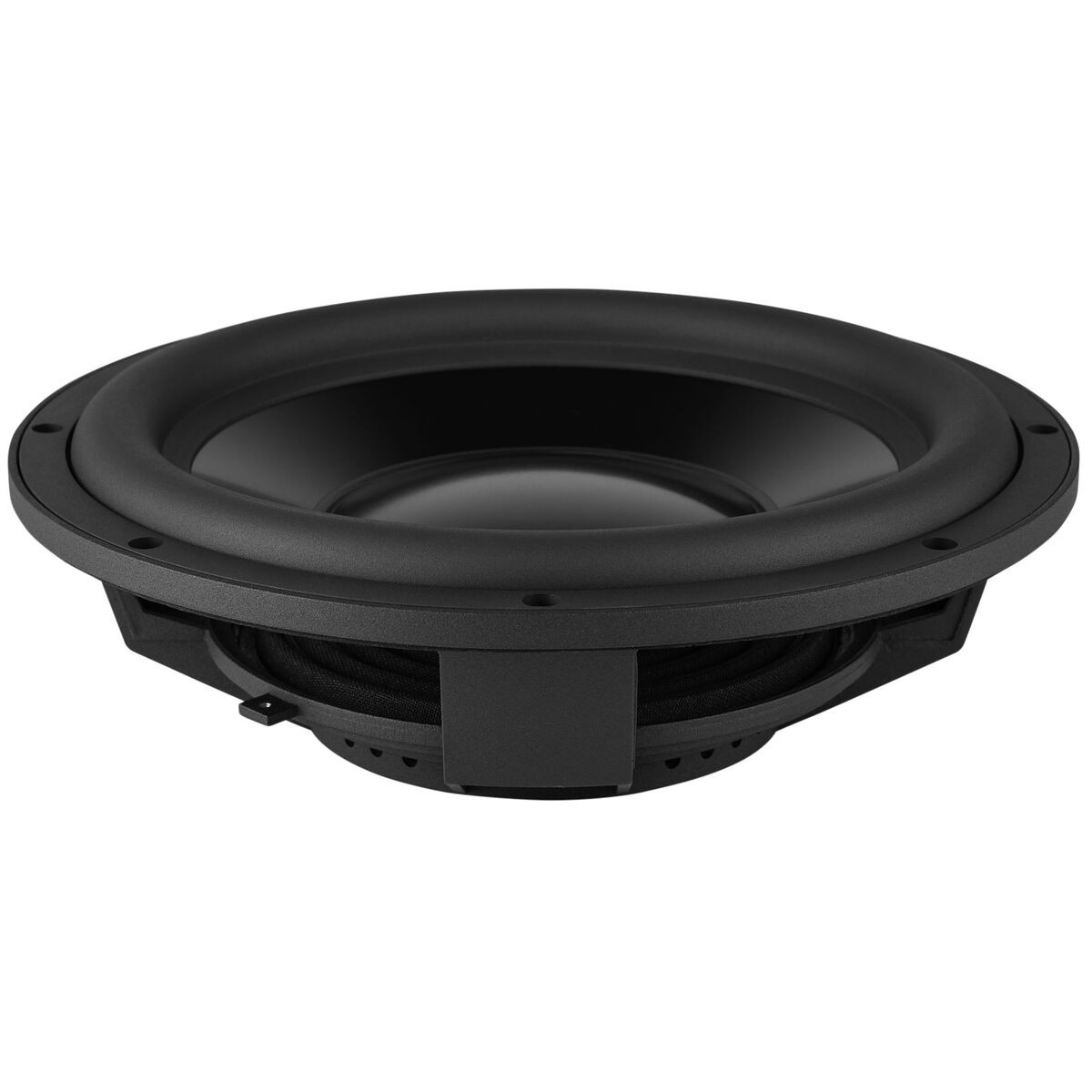

Dayton Audio RSS315-PR
Dayton Audio's RSS315-PR 12" passive radiator is the ideal choice for tuning small enclosures lower than possible with a conventional port. With a thick aluminum cone, cast frame, rubber surround, and incredible excursion capabilities (52 mm peak to peak) this radiator is perfect for today's high excursion subwoofers. Key Features SMS™ (Sandwich Mass System) permits greater linearity by minimizing angular torque Durable yet compliant suspension provides substantial linear travel and mechanical stability Rigid cast aluminum frame with thick black anodized aluminum cone Threaded rod with lock nut for easy adjustment of tuning frequency Includes six 75 gram weighted disks for simple tuning adjustment Cosmetically identical to the popular Reference Series subwoofer lines We are proud to offer our customers a complete line of Dayton Audio Reference Series passive radiators. These high quality, well-engineered passive radiators are carefully constructed using the same rigid anodized aluminum cone and cast frame as Dayton Audio's world renowned Reference Series subwoofers, making them visually identical and a perfect match to the very popular line of drivers. Each passive radiator employs the unique SMS™ (Sandwiched Mass Structure) design which keeps the majority of the mass centered between the surround and spider providing greater linearity by minimizing angular torque. These passives are also tunable using the included weights with the bolt-on mass adjustment assembly, making them easily integrated into virtually any subwoofer design. The RSS315-PR 12" passive radiator includes: (1) Passive radiator (6) 75 gram disk weights (1) wing nut (for tuning) (1) lock nut (for final assembly) Specifications: • Fs: 21 Hz • Vas: 2.79 ft³ (78.9 liters) • Qms: 4.79 • Cms: 0.22 mm/N • Mms: 300g • Rms: 7.77 kg/s • Sd: 506.7 sq. cm. • Xmech: 26 mm • Dimensions: Overall diameter: 12.36", Cutout diameter: 11.10", Depth: 3.43".

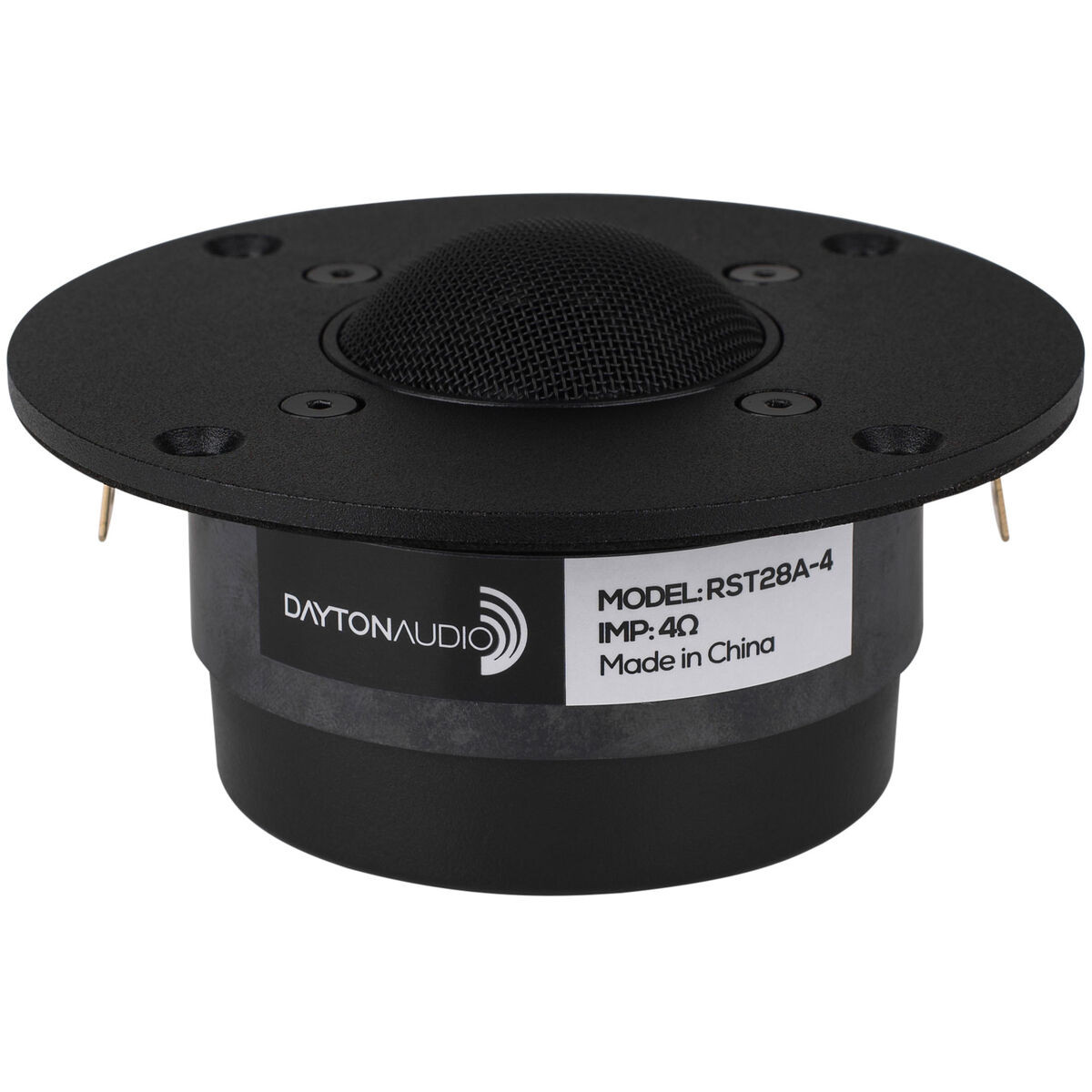

Dayton Audio RST28A-4 1-1/8" Reference Series Aluminum Dome Tweeter 4 Ohm
The Dayton Audio RST28A-4 1-1/8" aluminum dome Reference Series tweeter has remarkable clarity, low free air resonance, exceptional efficiency, and smooth frequency response, a combination seldom found in the industry at any price. This upgrade over the original RS28A-4 provides incredible performance at an amazing value. Key Features 1-1/8" aluminum diaphragm offers remarkable clarity without the typical harshness of metal domes Exceptional efficiency at 92.5 ±3 dB from 1.5 kHz to 19 kHz and a smooth frequency response Well-designed phase bridge to balance the response in the upper octave Tuned rear chamber and high-quality Ferrofluid for excellent low-end response Low-distortion motor system achieves a rare level of transparency Matches the performance of even the most expensive audiophile high-frequency transducers The Dayton Audio RST28A-4 aluminum dome Reference Series tweeter offers exceptional efficiency from 1,500 Hz to 20,000 Hz with smooth and well controlled frequency response. This tweeter's unique black anodized 1-1/8" aluminum diaphragm and state-of-the-art motor system not only match the look and features of Dayton Audio's Reference Series woofers and midranges, but also the clean, detailed, and uncolored sound you have come to expect. A specialized damped rear chamber, well-designed phase bridge, rigid mesh grill, and several distortion-reducing paths in the motor are just a few of the features that allow these tweeters to outperform some the most expensive audiophile high-frequency transducers. For applications like line arrays or compact mini-monitors that demand a smaller faceplate, an optional truncated faceplate is available.For the replacement diaphragm, see part number 275-133

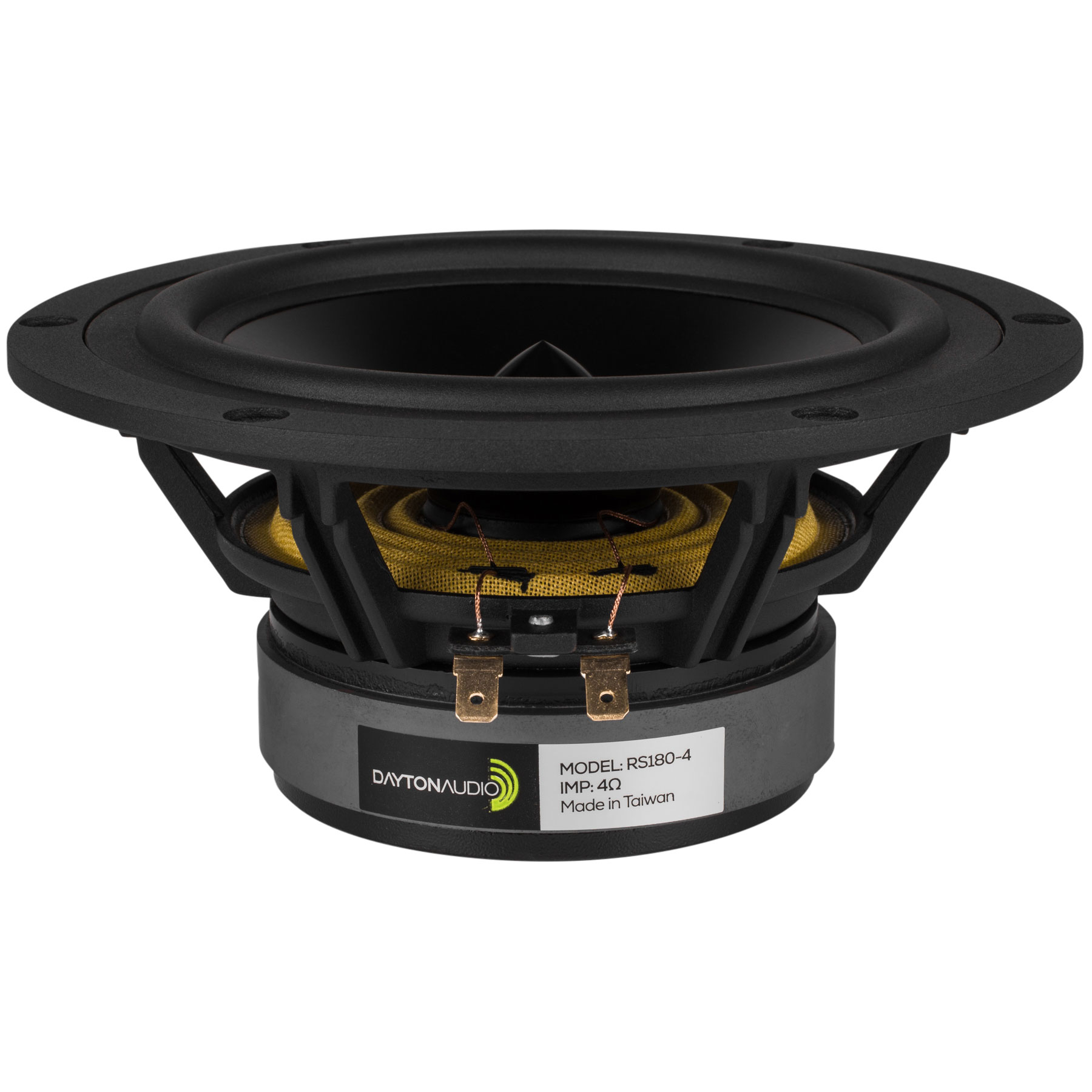

Dayton Audio RS180-4
Dayton Audio RS180-4 7” Reference Woofer 4 Ohm The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Woofer features a black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminum phase plug, and gold spring terminals. Key Features 4 ohm impedance is perfect for series pairs in MTMs and center channel speakers Excellent car audio midrange/midbass High-end low-distortion motor with two shorting paths to reduce inductance Dayton Audio RS180-4 7" Reference Woofer 4 Ohm The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing a low-distortion motor system with two short-circuit paths and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofer features a black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminum phase plug, and gold spring terminals.

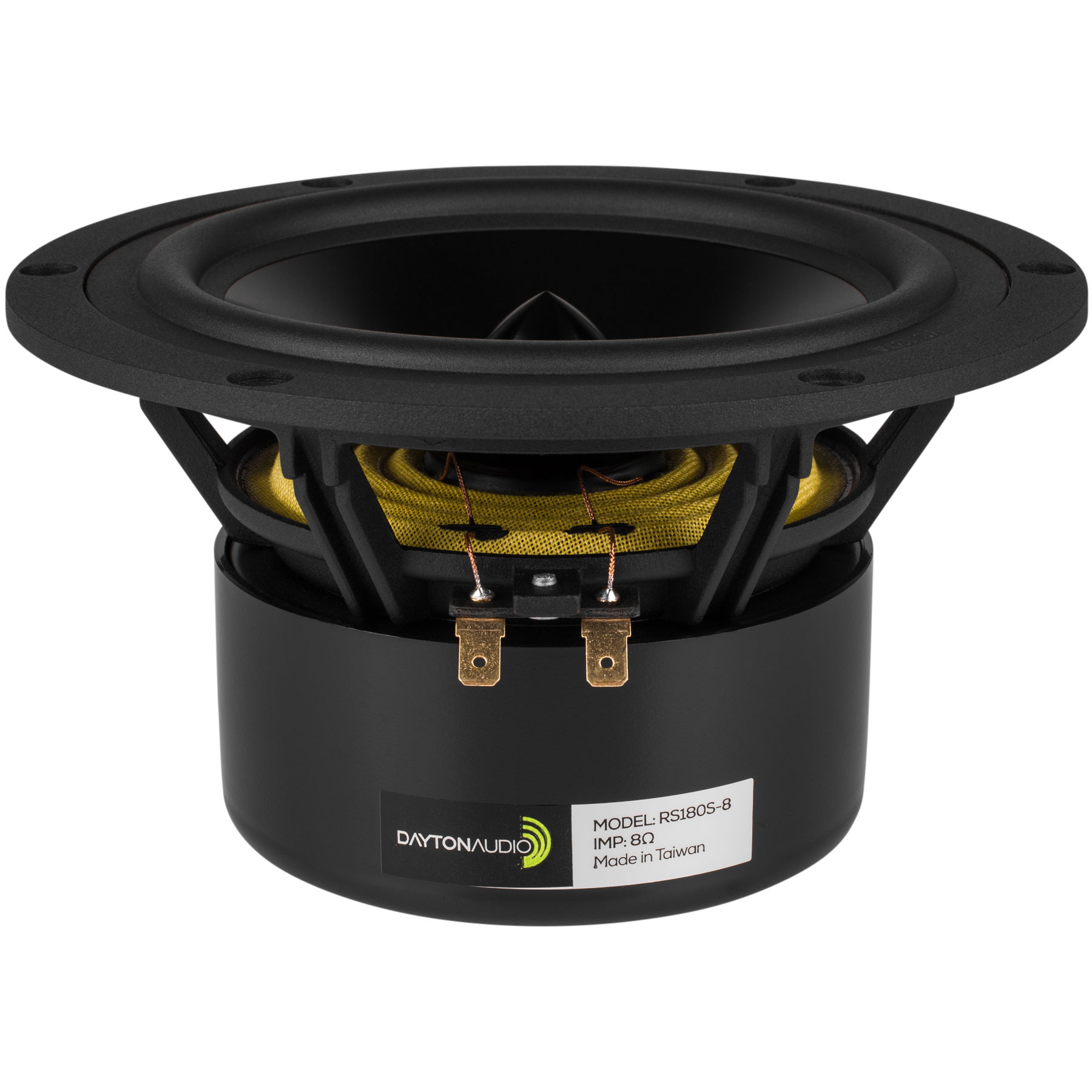

Dayton Audio RS180S-8
Dayton Audio RS180S-8 7” Reference Shielded Woofer The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing a low-distortion motor system with two short-circuit paths and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price. Key Features Long-excursion motor and suspension for strong bass performance Subtle yet high-tech look makes a bold cosmetic statement Ultra-low stray magnetic field allows extremely close proximity to CRT's Designed and engineered in the USA Dayton Audio RS180S-8 7" Reference Shielded Woofer 8 Ohm The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing a low-distortion motor system with two short-circuit paths and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofers feature a shielded motor system, black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, and solid aluminum phase plug.

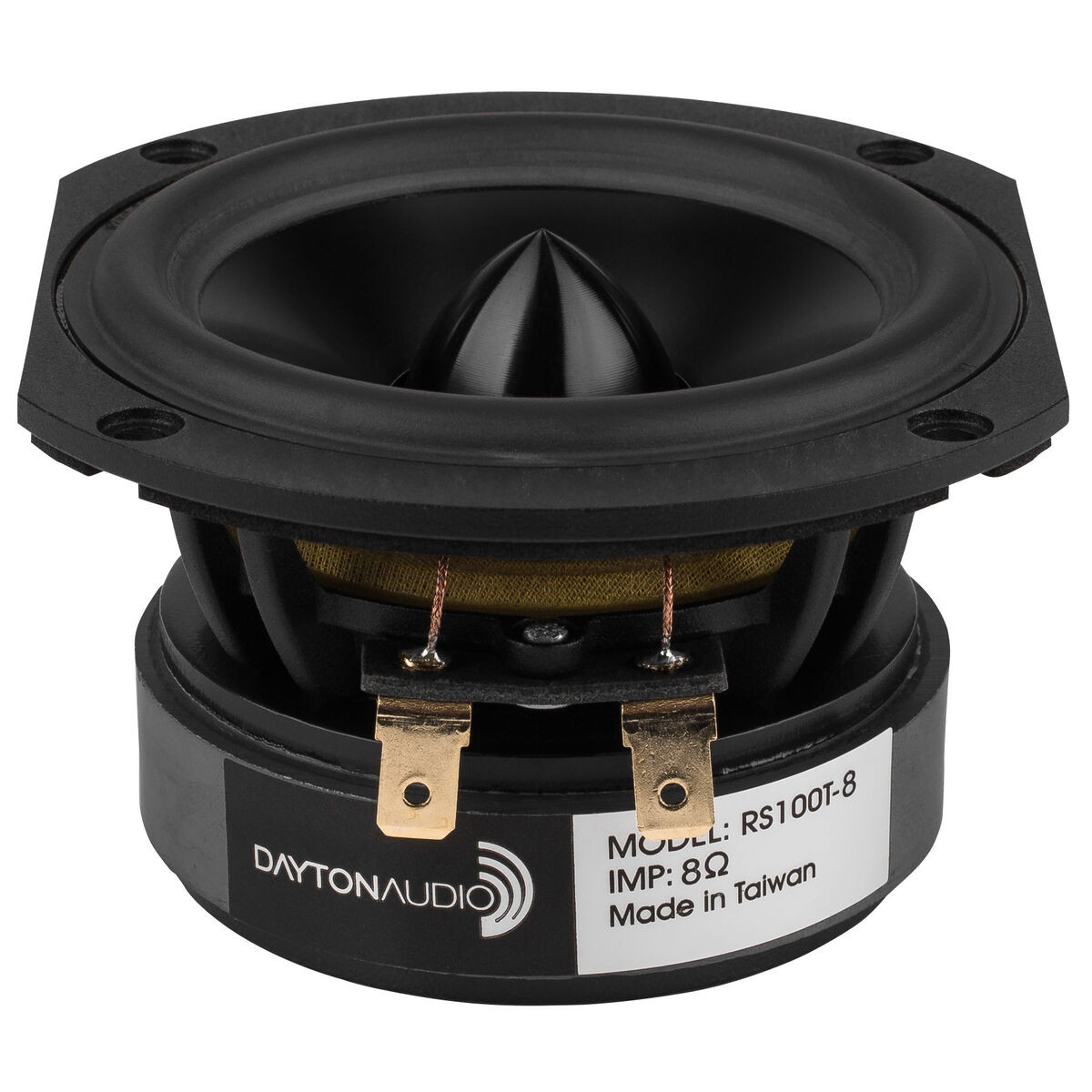

Dayton Audio RS100T-8 4" Reference Woofer Truncated Frame
Utilizing an advanced motor system and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price. Key Features Truncated cast frame, great for line arrays and MTM speaker designs Long-excursion motor and suspension for strong bass performance Advanced low-distortion motor design Extended, linear response Distortion-reducing copper ring in magnetic gap Lightweight black anodized aluminum cone Designed and engineered in the U.S.A. The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing an advanced motor system and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofer features a black anodized cone, heavy-duty cast frame, low-loss rubber surround, solid aluminum phase plug, distortion-reducing magnetic gap copper ring, rubber magnet boot, and gold terminals.

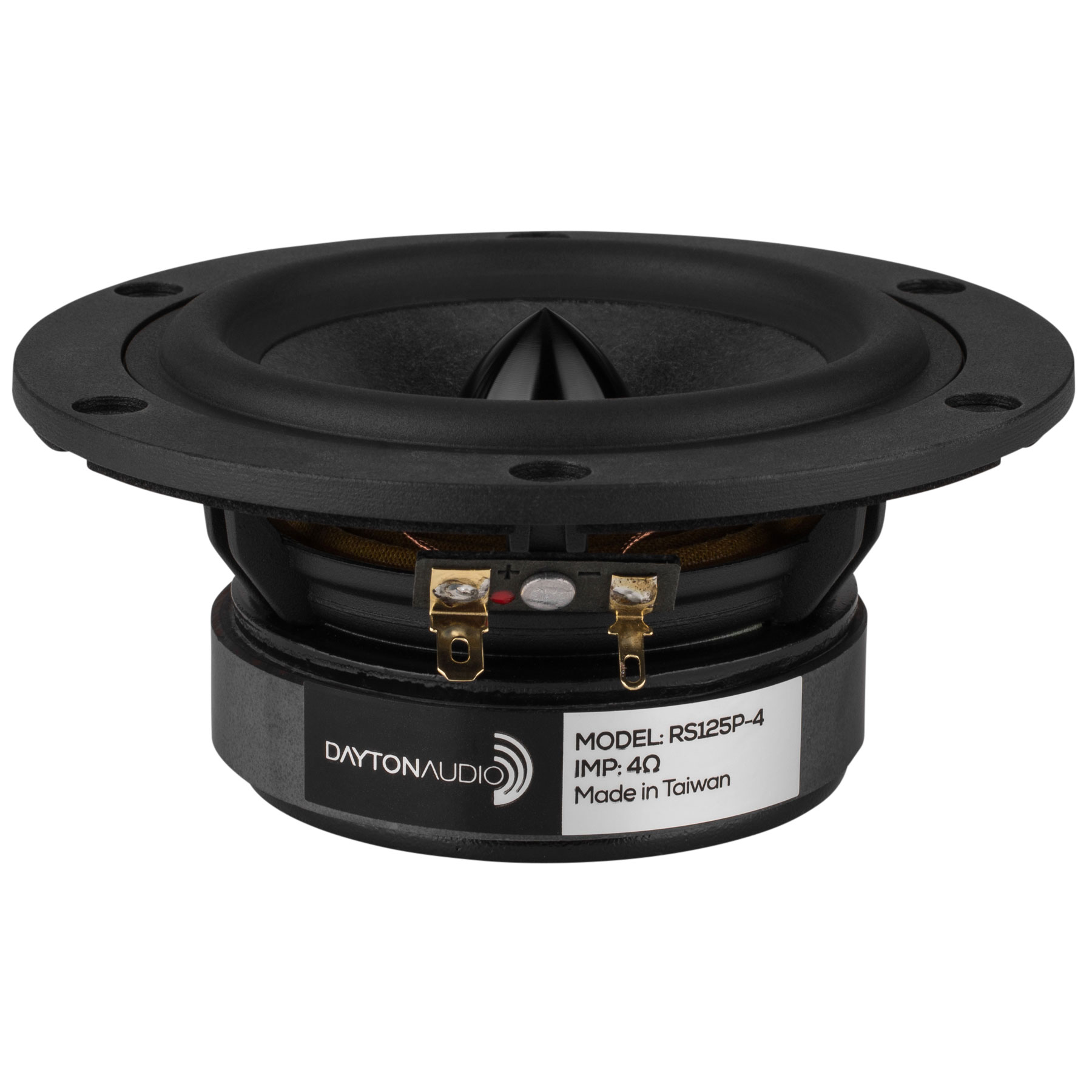

Dayton Audio RS125P-4
Dayton Audio RS125-4 5” Reference Woofer 4 Ohm The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Woofer features a black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminum phase plug, and gold terminals. Key Features 4 ohm impedance is perfect for series pairs in MTMs and center channel speakers Excellent car audio midrange/midbass High-end low-distortion motor with two shorting paths to reduce inductance Dayton Audio RS125-4 5" Reference Woofer 4 Ohm The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing a low-distortion motor system with two short-circuit paths and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofer features a black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminum phase plug, and gold terminals.

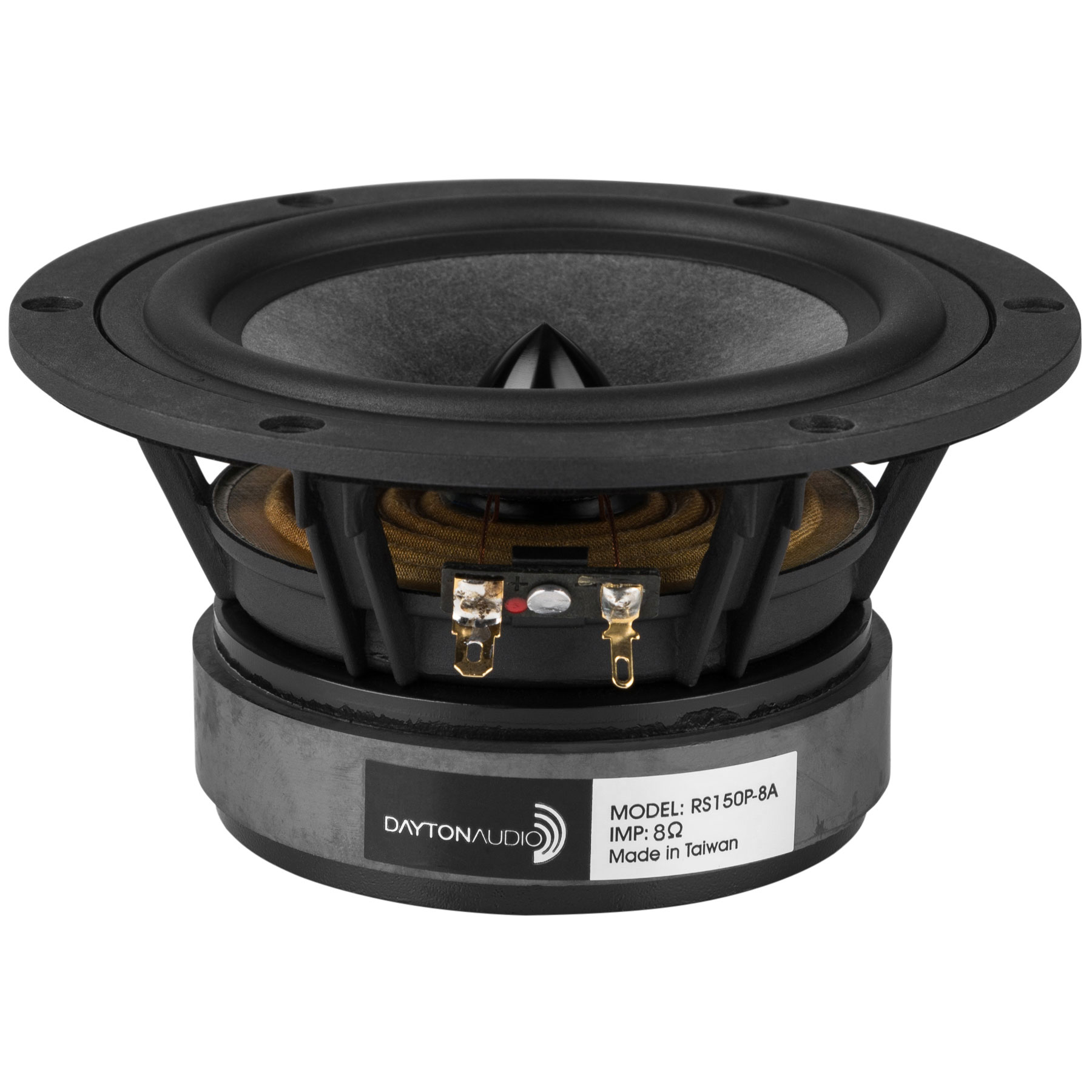

Dayton Audio RS150P-8A
CONCLUSION OF HOBBY HIFI 2/22 The RS150P-8A offers excellent acoustic quality, which it is able to exploit to the full even in a relatively compact cabinet. For an audiophile compact monitor, the RS150P-8A offers a low-cost, high-end low-midrange driver. It is clearly superior to its four-ohm counterpart. Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with the use of a proprietary cone blend. Now with a flatter frequency response and smoother high frequency roll-off allowing for extended bandwidth and easier crossover integration. Key Features Now with improved frequency response for easier crossover integration Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers Low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminum phase plug Perfect for use as a woofer, midwoofer, or dedicated midrange driver 88.7 dB sensitivity and 4 mm of excursion Dayton Audio RS150P-8A 6" Reference Paper Woofer 8 Ohm Now with improved frequency response – we tweaked the design and the result is a much a smoother high frequency roll-off allowing for extended bandwidth and easier crossover integration. The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.

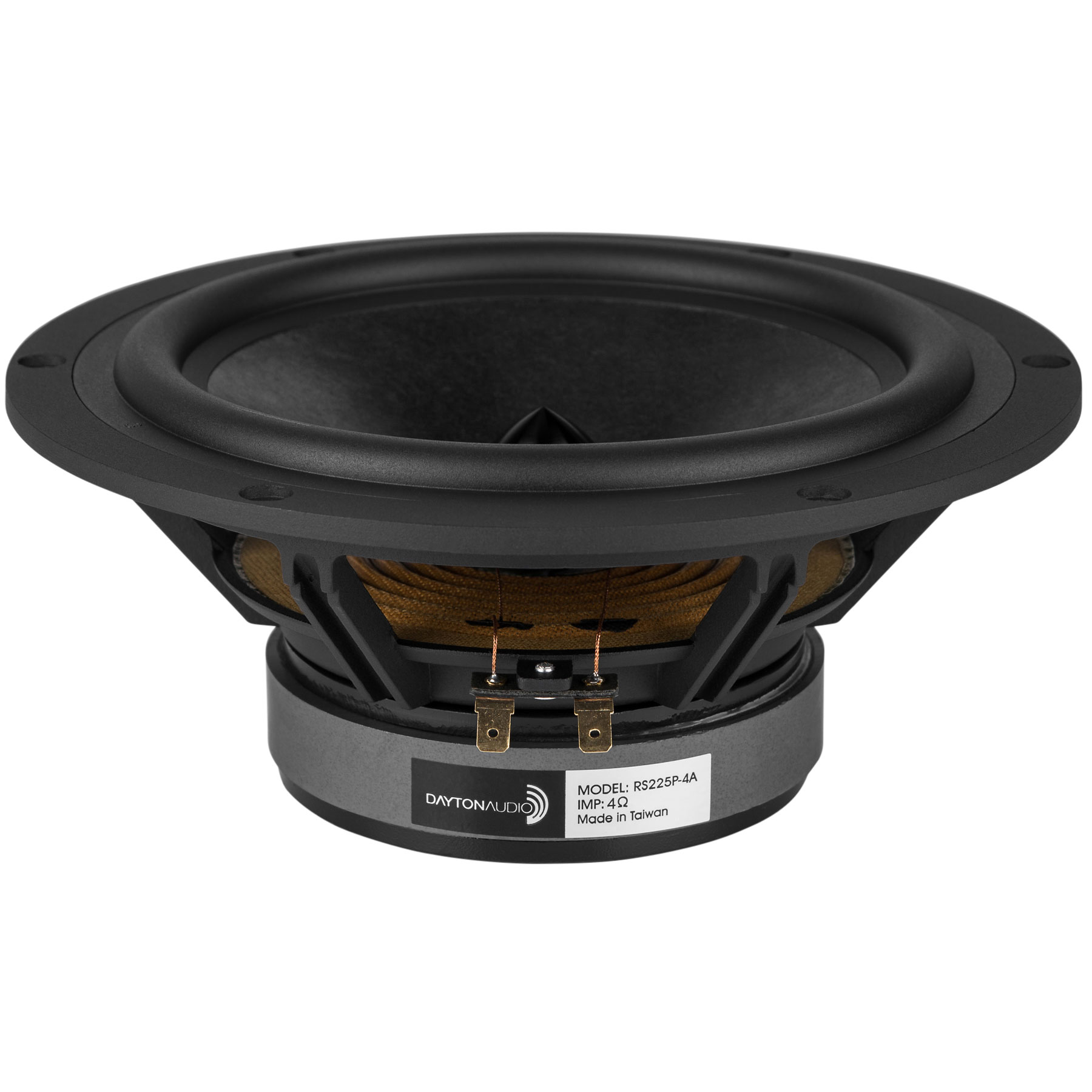

Dayton Audio RS225P-4A
Dayton Audio RS225P-4A 8” Reference Paper Woofer 4 Ohm Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with the use of a proprietary cone blend. Now with a flatter frequency response and smoother high frequency roll-off allowing for extended bandwidth and easier crossover integration. Key Features Now with improved frequency response for easier crossover integration Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers Low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminum phase plug Perfect for use as a woofer, midwoofer, or dedicated midrange driver 92.9 dB sensitivity and 6 mm of excursion Dayton Audio RS225P-4A 8" Reference Paper Woofer 4 Ohm Now with improved frequency response – we tweaked the design and the result is a much a smoother high frequency roll-off allowing for extended bandwidth and easier crossover integration. The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.

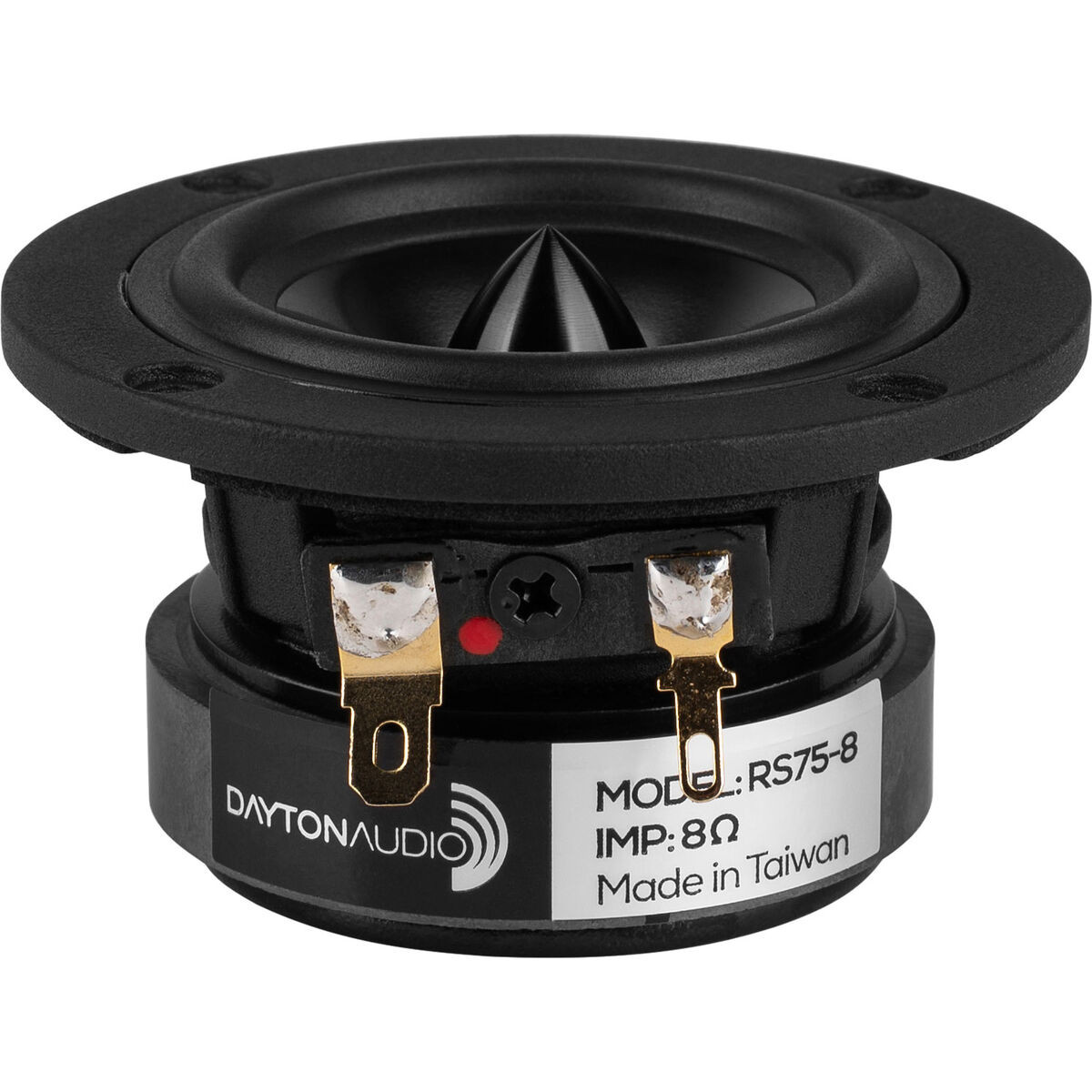

Dayton Audio RS75-8
The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Incorporating a low-distortion motor system with a copper ring, a copper cap, and an aluminum phase plug, the RS75-8 can outperform "boutique" drivers that cost several times the price. The driver's truncated frame makes it ideal for line arrays and ultra-compact MTM designs requiring minimal driver-to-driver spacing. Its low-distortion characteristics and smooth response provide exceptional clarity, detail, and dynamics. Features a black anodized cone, heavy-duty 4-hole cast frame, low-loss rubber surround, and gold terminals. Product Spezifications Parameter Produktreihe Refernce Series Product Type Full-Range Nominal size 3 " Impedance 8 ohm Frequency range 170-20.000 Hz sensitivity 84.3 dB 2.83V/1m Voice coil dia. 0.63 " Resonant frequency Fs 189.1 Hz DC resistance Re 6.11 Ω Voice coil inductance Le 0.32 mH Mechanical Q Qms 5837 Electrical Q Qes 1129 Total Q factor Qts 0.946 Suspension equivalent air volume Vas 0.223 litres Suspension mechanical compliance Cms 0.69 mm/N Force factor BL 2.58 T·m Moving mass (including airload) Mms 1 g Maximum linear excursion Xmax 1.3 mm Surface of the diaphragm Sd 12 cm² Power Handling RMS 15 Watts Efficiency η0 0.13 % Sound Pressure Level SPL 83.15 1W/1m Mounting Dimensions outside dia. AD 71.9 mm cutout diameter ID 54.1 mm mounting depth EBT 38.6 mm dia. mounting holes LK 64.0 mm moutning holes LKA 4

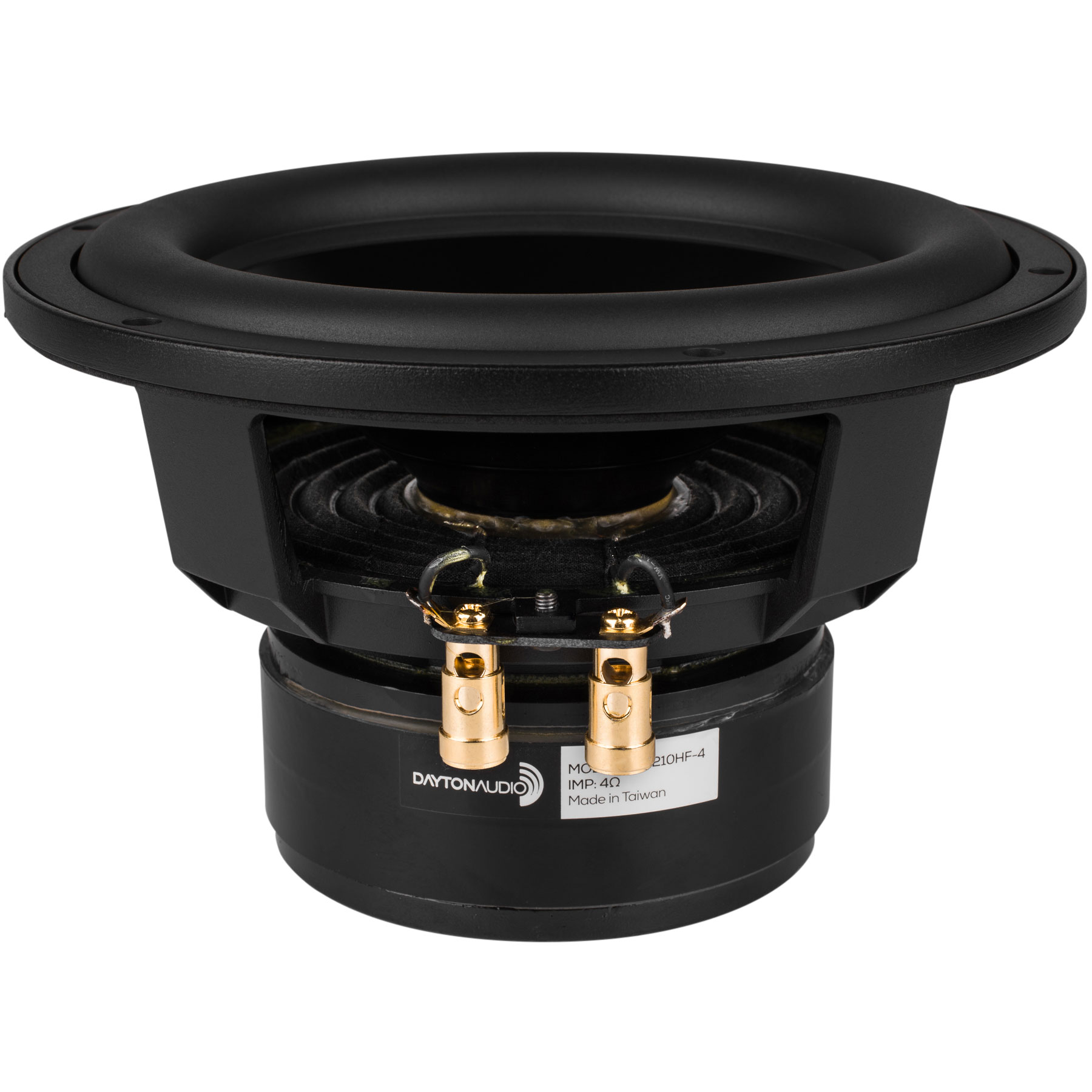

Dayton Audio RSS210HF-4
Dayton Audio RSS210HF-4 8” Reference HF Subwoofer 4 Ohm The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look. Key Features Extensively vented motor eliminates compression and allows quiet excursion Lightweight black anodized aluminum cone for rigidity and lower moving mass Suitable for sealed or vented enclosures Triple shorting ring motor for ultra-low distortion 2-layer coil for reduced back EMF Highest quality materials throughout for long-lasting performance Dayton Audio RSS210HF-4 8" Reference HF Subwoofer 4 Ohm The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of these subwoofers is ultra-low-distortion. Second, third, and intemodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look. Choose the high fidelity version for home systems when you are looking for clean, low bass and are not restricted by cabinet size.

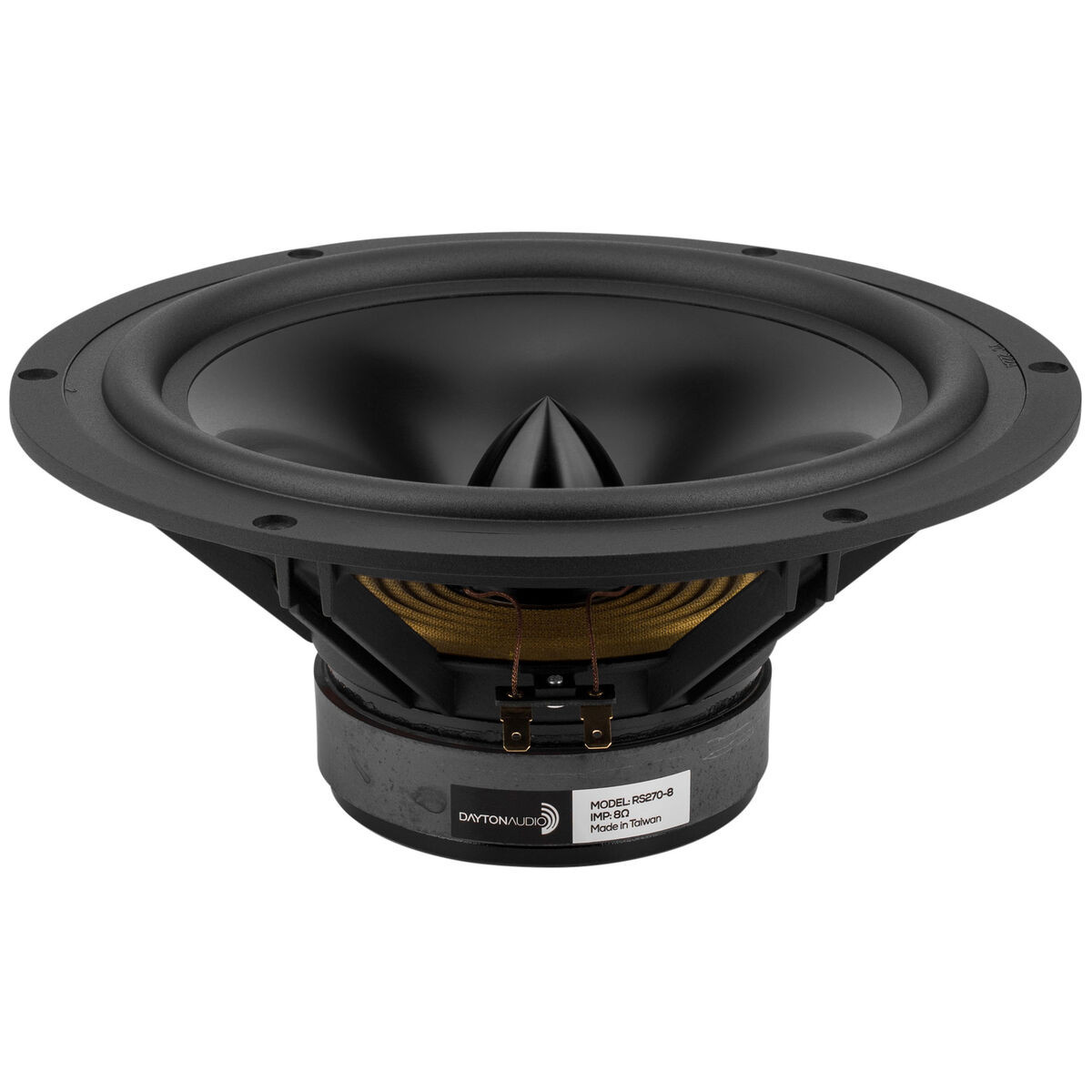

Dayton Audio RS270-8
Dayton Audio Reference Series RS270-8 10" woofers deliver exceptional clarity, detail, and dynamics—and of course, incredibly low distortion. Key Features One of the lowest distortion, highest resolution driver series available Low-distortion high-excursion motor system with two short-circuit paths Compliant suspension and rigid black anodized aluminum cone for strong bass performance Heavy-duty 6-hole cast frame, low-loss rubber surround, and solid aluminum phase plug Designed and engineered in the USA The Dayton Audio Reference Series was conceived with one goal in mind—low distortion. Each speaker was carefully designed and optimized to offer the highest performance with the lowest distortion levels. At the same time, by focusing on features that contribute to sound quality and eliminating unnecessary frills, the drivers offer value unparalleled in the industry. Dayton Audio Reference Series RS270-8 10" woofers deliver exceptional clarity, detail, and dynamics—and of course, incredibly low distortion.

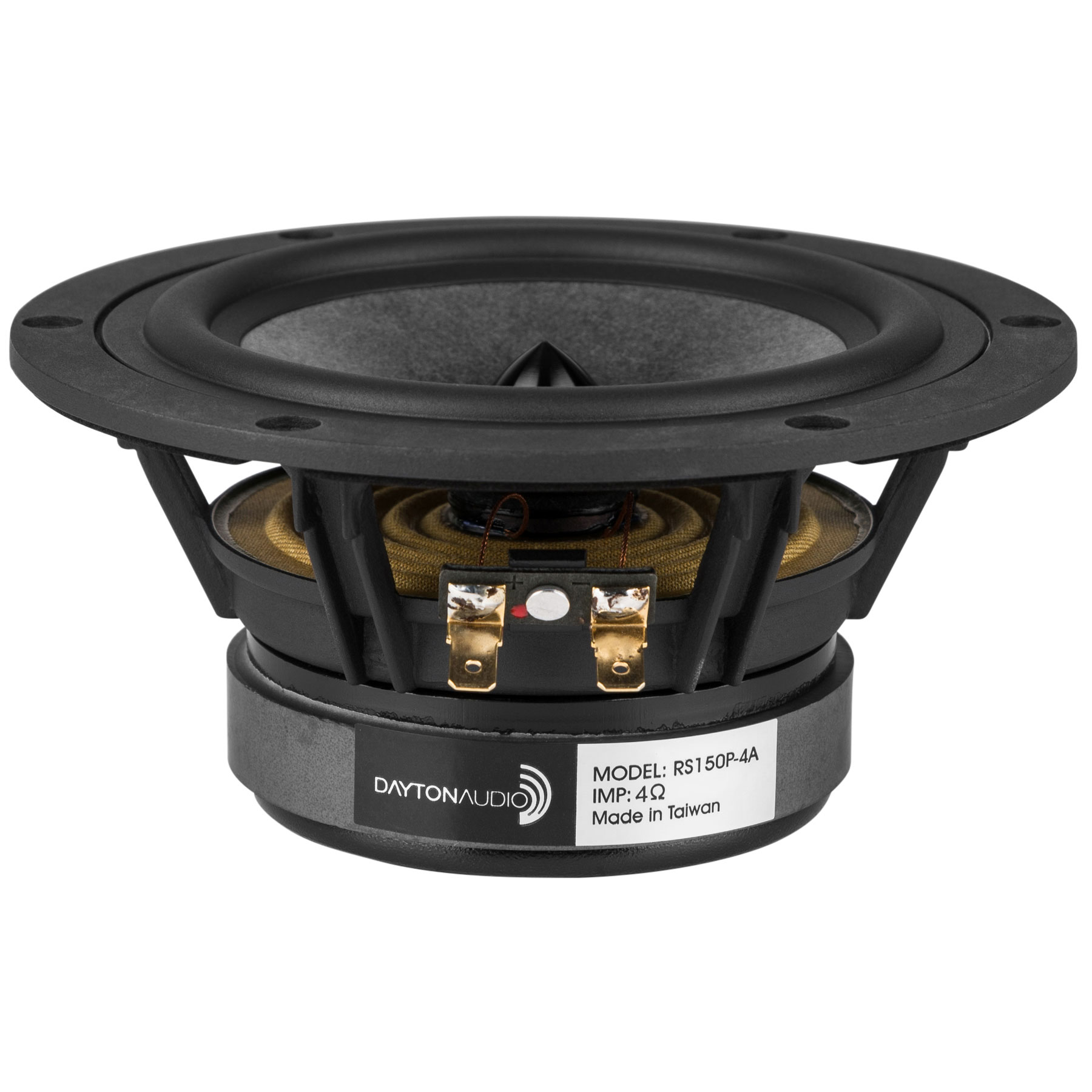

Dayton Audio RS150P-4A
CONCLUSION OF HOBBY HIFI 2/22 The RS150P-4A offers excellent acoustic quality, which it is able to exploit to the full even in a relatively compact cabinet. For an audiophile compact monitor, the RS150P-8A offers a low-cost, high-end low-midrange driver. Dayton Audio RS150P-4A 6” Reference Paper Woofer 4 Ohm Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with the use of a proprietary cone blend. Now with a flatter frequency response and smoother high frequency roll-off allowing for extended bandwidth and easier crossover integration. Key Features Now with improved frequency response for easier crossover integration Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers Low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminum phase plug Perfect for use as a woofer, midwoofer, or dedicated midrange driver 90.3 dB sensitivity and 4.4 mm of excursion Dayton Audio RS150P-4A 6" Reference Paper Woofer 4 Ohm Now with improved frequency response – we tweaked the design and the result is a much a smoother high frequency roll-off allowing for extended bandwidth and easier crossover integration. The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.

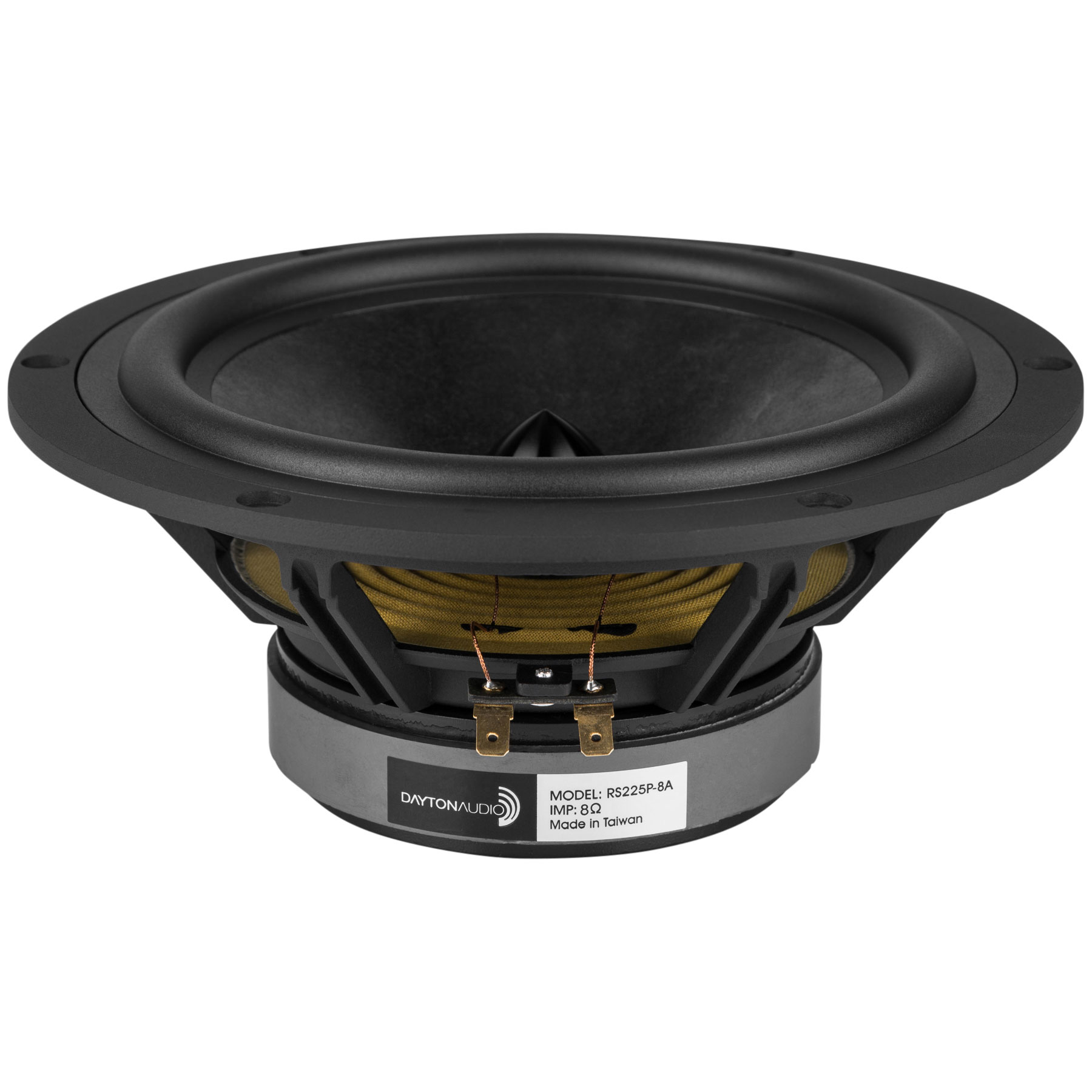

Dayton Audio RS225P-8A
Dayton Audio RS225P-8A 8” Reference Paper Woofer 8 Ohm Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with the use of a proprietary cone blend. Now with a flatter frequency response and smoother high frequency roll-off allowing for extended bandwidth and easier crossover integration. Key Features Now with improved frequency response for easier crossover integration Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers Low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminum phase plug Perfect for use as a woofer, midwoofer, or dedicated midrange driver 89.1 dB sensitivity and 7 mm of excursion Dayton Audio RS225P-8A 8" Reference Paper Woofer 8 Ohm Now with improved frequency response – we tweaked the design and the result is a much a smoother high frequency roll-off allowing for extended bandwidth and easier crossover integration. The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.

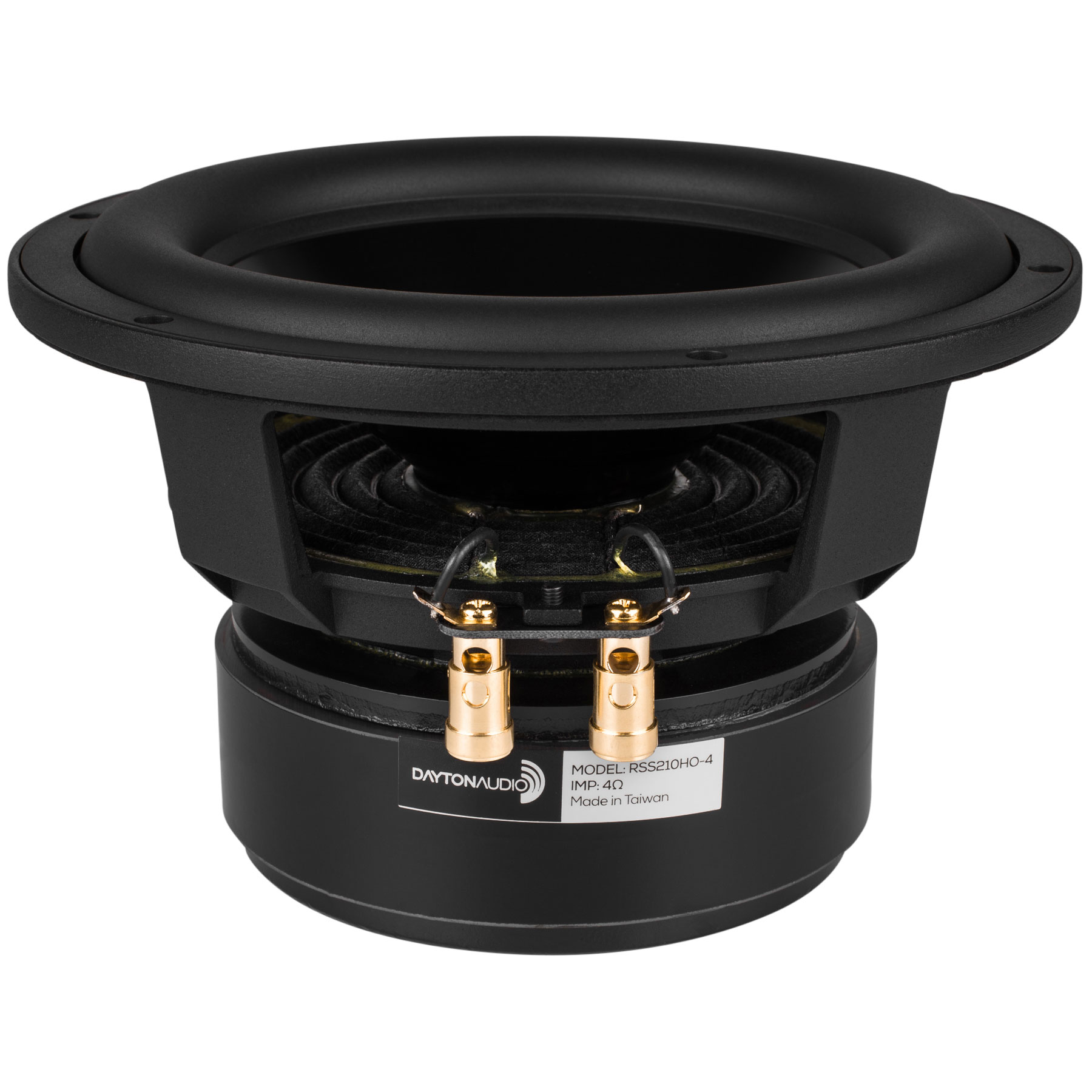

Dayton Audio RSS210HO-4
Dayton Audio RSS210HO-4 8” Reference HO Subwoofer 4 Ohm The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look. Key Features Extensively vented motor eliminates compression and allows quiet excursion Extra-thick black anodized aluminum cone for maximum rigidity Triple shorting ring motor for ultra-low distortion 4-layer coil for high power handling Optimized parameters for small enclosures Highest quality materials throughout for long-lasting performance Dayton Audio RSS210HO-4 8" Reference HO Subwoofer 4 Ohm The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed Reference Series woofer line into the subwoofer realm. As with the rest of the Reference Series, the main focus of these subwoofers is ultra-low-distortion. Second, third, and intermodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look.

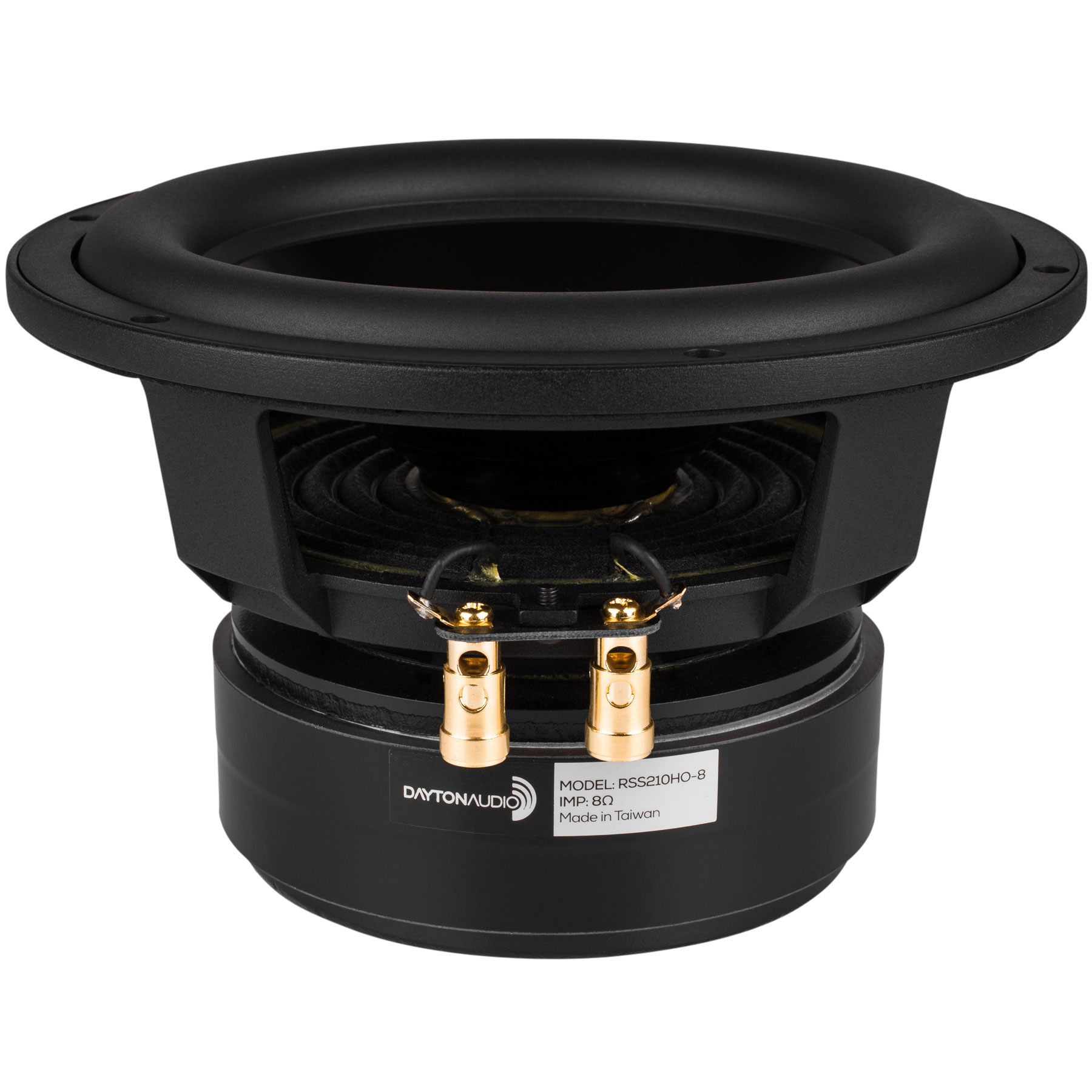

Dayton Audio RSS210HO-8
Dayton Audio RSS210HO-8 8” Reference HO Subwoofer 8 Ohm The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look. Key Features Extensively vented motor eliminates power compression and allows quiet excursion Triple shorting-ring motor for ultra-low distortion Heavy-gauge aluminum cones withstand pressures of small enclosures 4-layer high-temperature coils for maximum power handling Durable aramid fiber spider for greater mechanical control Unique, high-end look Optimized for small enclosures Dayton Audio RSS210HO-8 8" Reference HO Subwoofer 8 Ohm The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of these subwoofers is ultra-low-distortion. Second, third, and intemodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look.

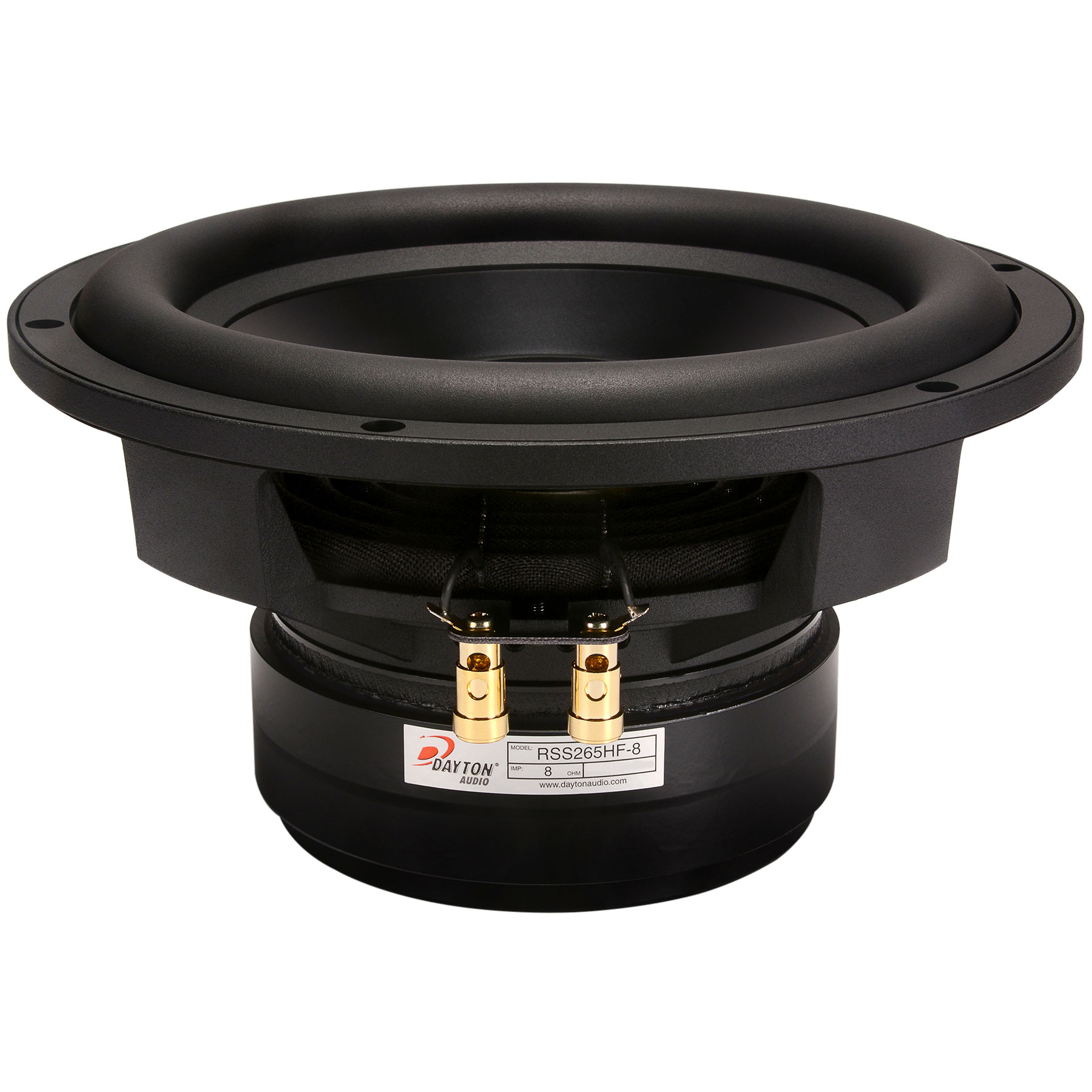

Dayton Audio RSS265HF-8
Dayton Audio RSS265HF-8 10” Reference Subwoofer 8 Ohm The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of the RSS265HF-8 10" subwoofer is ultra-low-distortion. Key Features Extensively vented motor eliminates power compression and allows quiet excursion Lighter-weight black anodized aluminum cone minimizes moving mass 2-layer coil for reduced back EMF Triple shorting-ring motor for ultra-low distortion Optimized for large enclosures Highest quality materials throughout for long-lasting performance Dayton Audio RSS265HF-8 10" Reference HF Subwoofer 8 Ohm The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of the RSS265HF-8 10" subwoofer is ultra-low-distortion. Second, third, and intermodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look. Choose this High Fidelity (HF) version for home speaker systems when your priority is clean, low bass and you are not restricted by cabinet size.
