Dayton Audio RS180P-4

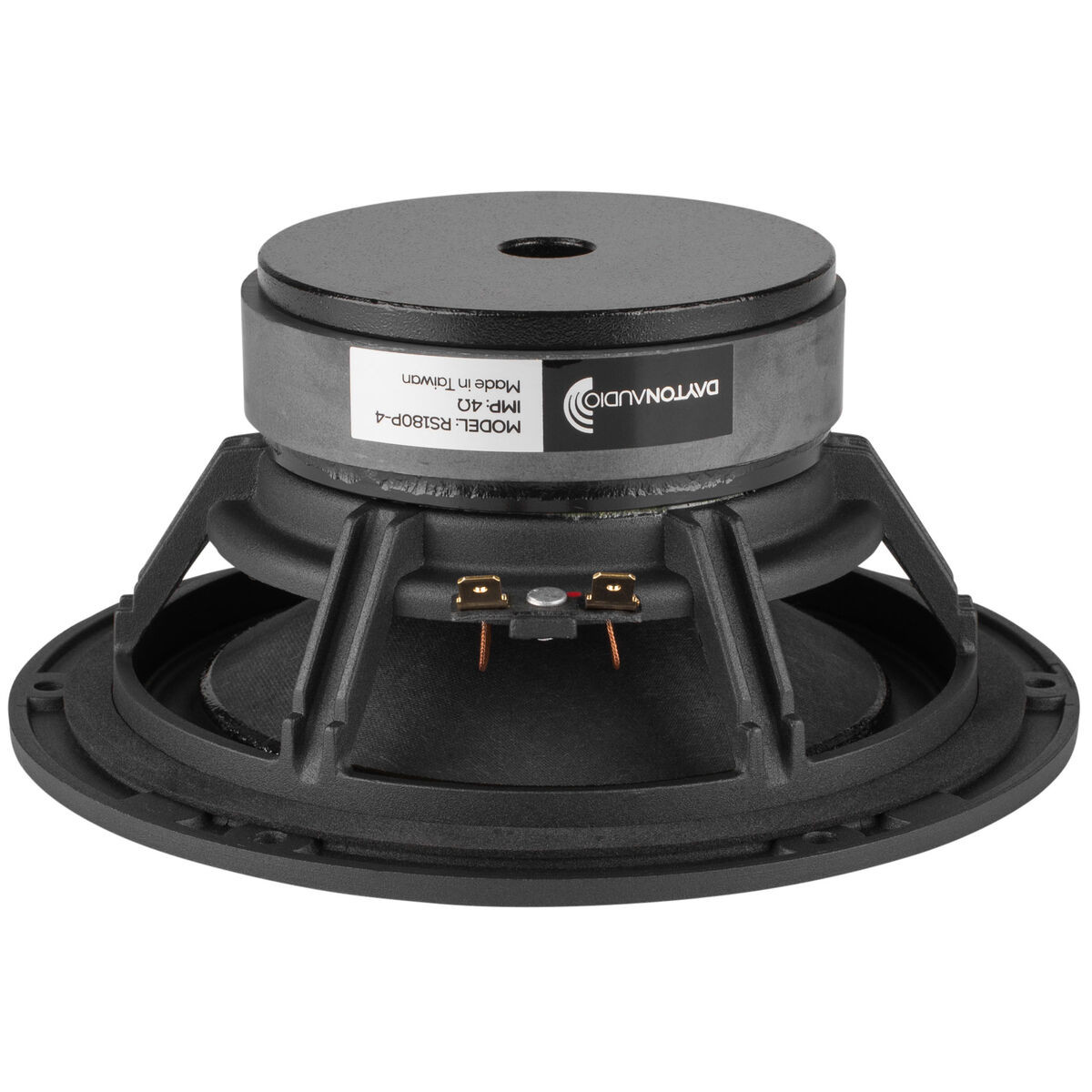

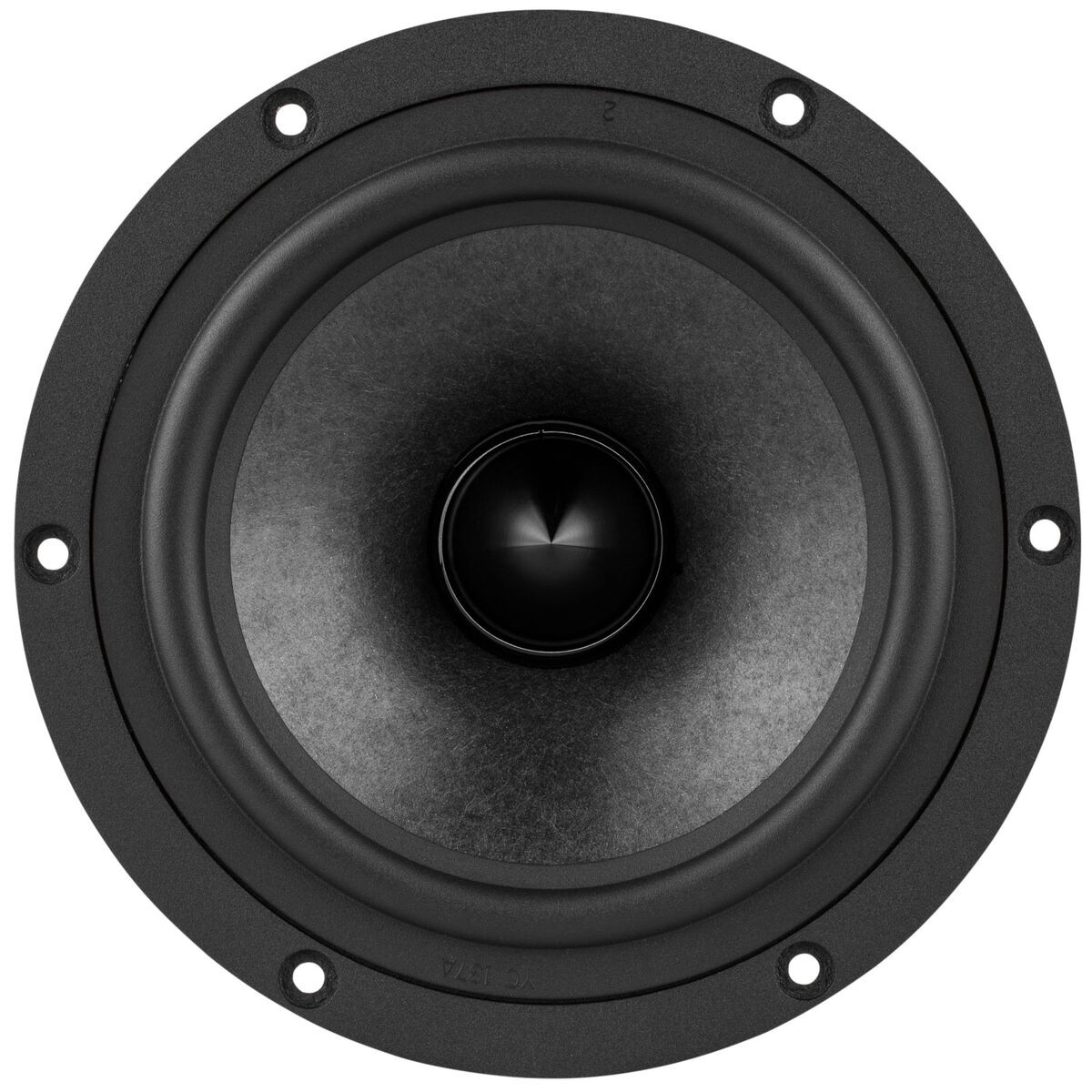

Dayton Audio RS180P-4 7” Reference Paper Woofer 4 Ohm

Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with super smooth frequency response due to the use of a proprietary cone blend.

Key Features

  • Similar cosmetics and design features as original Reference Series with low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminum phase plug
  • Perfect as a woofer, midwoofer, or dedicated midrange driver
  • Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers
  • 6 mm of Xmax and 88.2 dB sensitivity

Dayton Audio RS180P-4 7" Reference Paper Woofer 4 Ohm

The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.

Properties
Artikel-Nr.: 295-375
Außenmaß: 180,59mm
Bohrlochanzahl: 6
DC Resistance (Re): 3,1 Ohm
EAN: 848791001444
Eff. Membranfläche (Sd): 126,7cm²
Effektive Bewegte Masse (Mms): 148
Einbautiefe: 81 mm
Einbauöffnung: 146 mm
Einheit: Stück
Elektrische Güte (Qes): 48
Frequenzbereich: 35 bis 8,000Hz
Gesamtgüte (Qts): 39
Größe: 7 "
Impedanz (Z): 4 Ohm
Korbmaterial: Aluminium Guss
Kraftfaktor (BL): 5,03T·m
Lineare Auslenkung (Xmax): 6mm
Magnet: Ferrit
Marke: Dayton Audio
Mechanische Güte (Qms): 198
Membranmaterial: Papier / Kevlar
Modell: RS180P-4
Nachgiebigkeit (Cms): 1,21mm/N
Nennbelastbarkeit: 60 Watt
Resonanzfrequenz (fs): 37,7Hz
Schwingspulendurchmesser: 38,1 mm
Schwingspulenind. (Le): 0,47mH
Sensitivität: 90,8dB 2,83V/1m
Sickenmaterial: Gummi
Äquivalentvolumen (Vas): 27,184 l
Data according to manufacturer. Errors and changes reserved.
