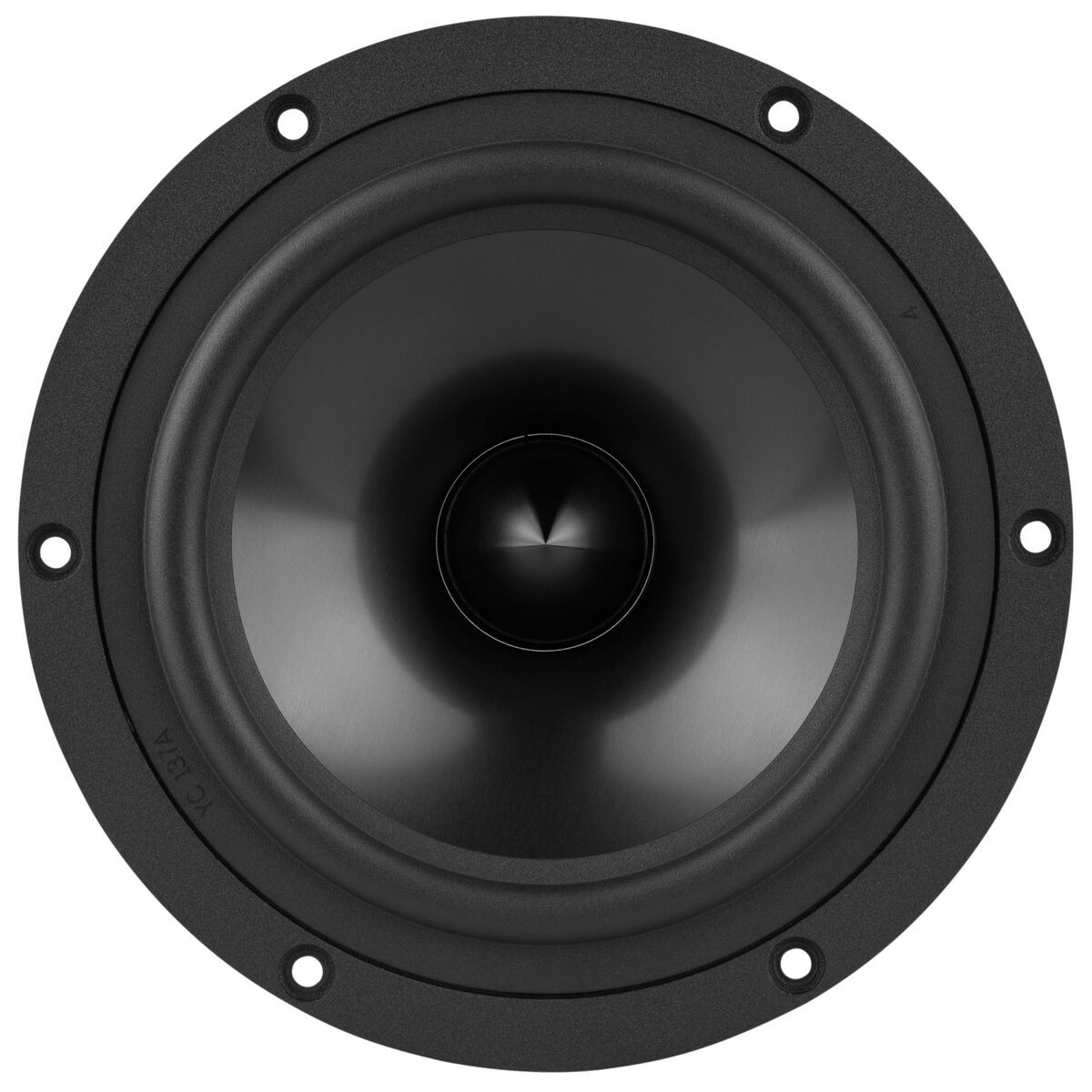

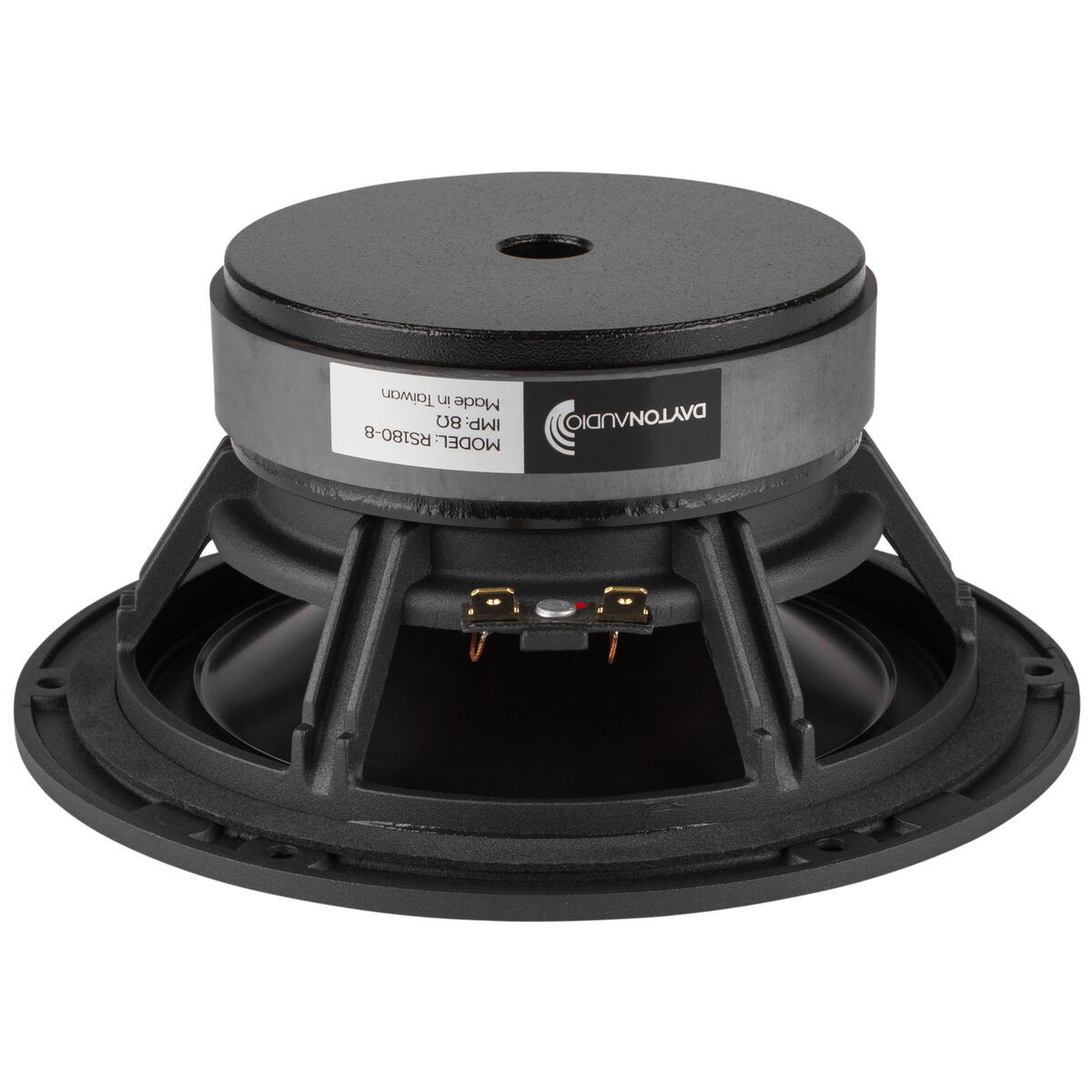

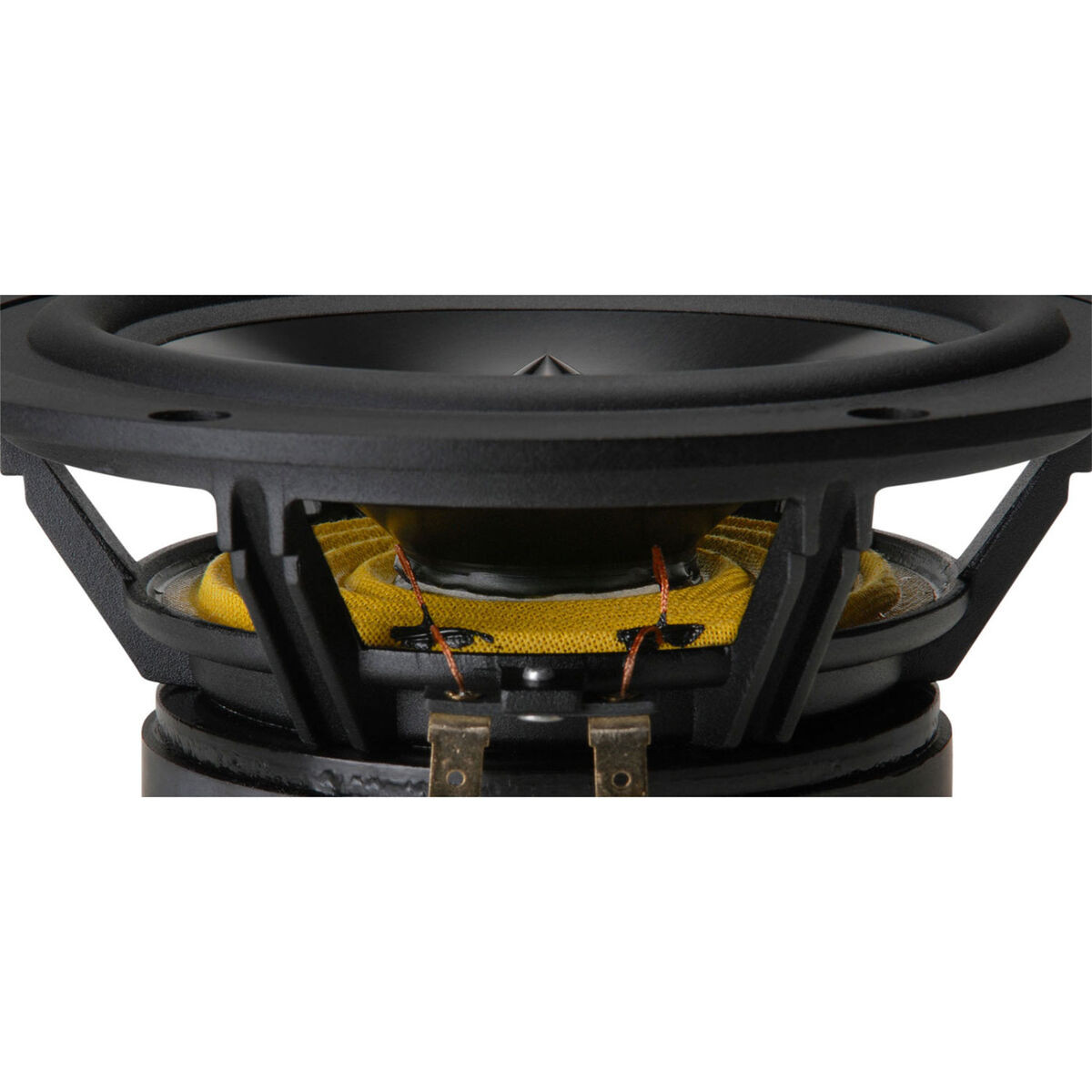

Dayton Audio RS180-8 7" Reference Woofer
Skip image gallery
Picture similar to product
Product number:
295-355
Manufacturer:
Dayton Audio
Length:
15.65 mm
Width:
6.16 mm
Height:
12.7 mm
Weight:
2.43 kg
Available stock:
12
Min. order quantity:
1
Dayton Audio Reference Series RS180-8 7" woofers deliver exceptional clarity, detail, and dynamics--and of course, incredibly low distortion.
Key Features
- One of the lowest distortion, highest resolution driver series available
- Low-distortion high-excursion motor system with two short-circuit paths
- Compliant suspension and rigid black anodized aluminum cone for strong bass performance
- Heavy-duty 6-hole cast frame, low-loss rubber surround, and solid aluminum phase plug
- Designed and engineered in the USA
The Dayton Audio Reference Series was conceived with one goal in mind—low distortion. Each speaker was carefully designed and optimized to offer the highest performance with the lowest distortion levels. At the same time, by focusing on features that contribute to sound quality and eliminating unnecessary frills, the drivers offer value unparalleled in the industry. Dayton Audio Reference Series RS180-8 7" woofers deliver exceptional clarity, detail, and dynamics—and of course, incredibly low distortion.
Properties
| Artikel-Nr.: | 295-355 |
|---|---|
| Außenmaß: | 180,6mm |
| Bohrlochanzahl: | 6 |
| DC Resistance (Re): | 6,4 Ohm |
| EAN: | 844632088759 |
| Eff. Membranfläche (Sd): | 124,7cm² |
| Effektive Bewegte Masse (Mms): | 179 |
| Einbautiefe: | 81 mm |
| Einbauöffnung: | 146,1 mm |
| Einheit: | Stück |
| Elektrische Güte (Qes): | 42 |
| Frequenzbereich: | 39 bis 3,600Hz |
| Gesamtgüte (Qts): | 31 |
| Größe: | 7 " |
| Impedanz (Z): | 8 Ohm |
| Korbmaterial: | Aluminium Guss |
| Kraftfaktor (BL): | 7,82T·m |
| Lineare Auslenkung (Xmax): | 6mm |
| Magnet: | Ferrit |
| Marke: | Dayton Audio |
| Mechanische Güte (Qms): | 122 |
| Membranmaterial: | Aluminium |
| Modell: | RS180-8 |
| Nachgiebigkeit (Cms): | 1,12mm/N |
| Nennbelastbarkeit: | 60 Watt |
| Resonanzfrequenz (fs): | 35,7Hz |
| Schwingspulendurchmesser: | 38,1 mm |
| Schwingspulenind. (Le): | 0,73mH |
| Schwingspulenkörper: | Aluminium |
| Schwingspulenmaterial: | Kupfer |
| Sensitivität: | 87,1dB 2,83V/1m |
| Sickenmaterial: | Gummi |
| Äquivalentvolumen (Vas): | 24,352 l |
Data according to manufacturer. Errors and changes reserved.
