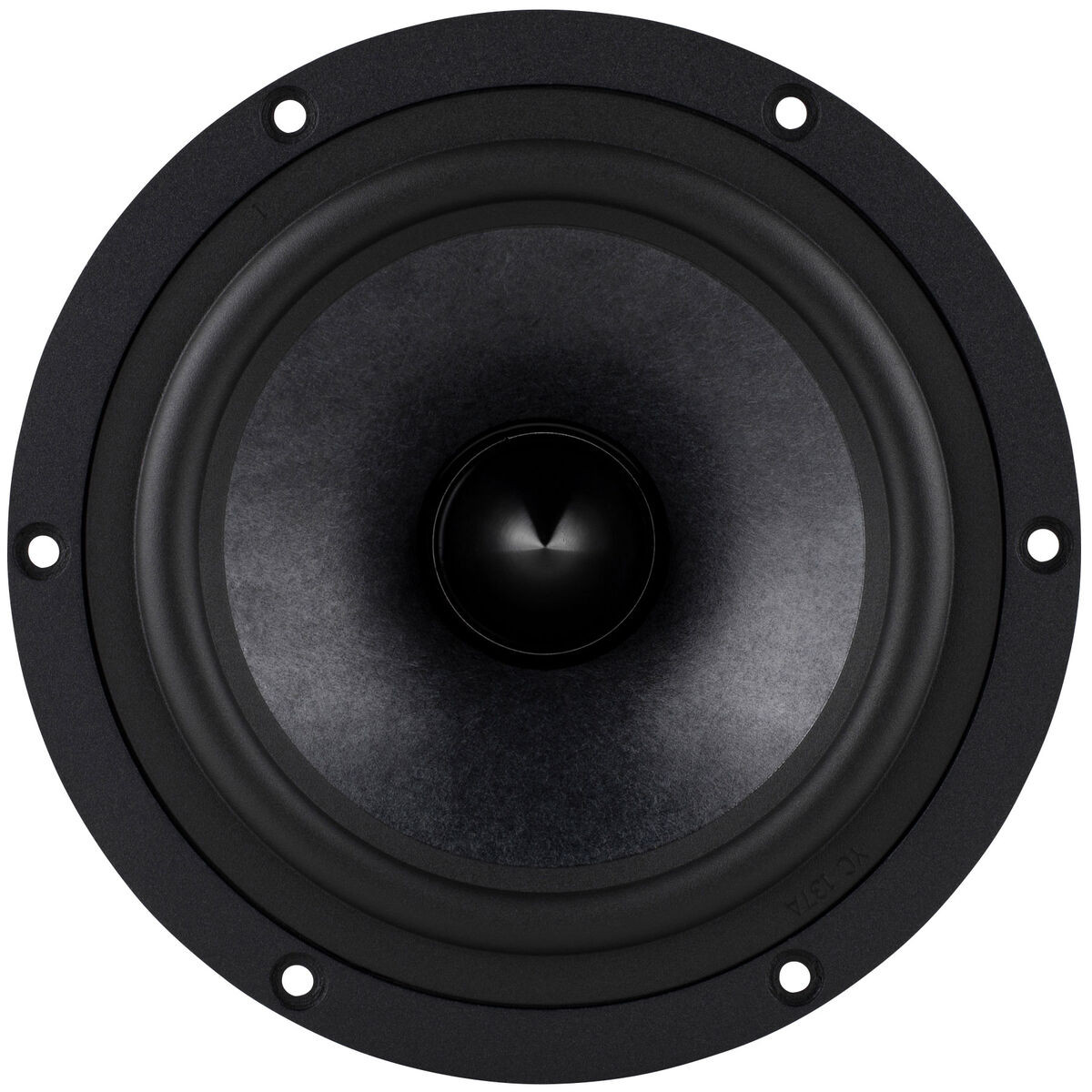

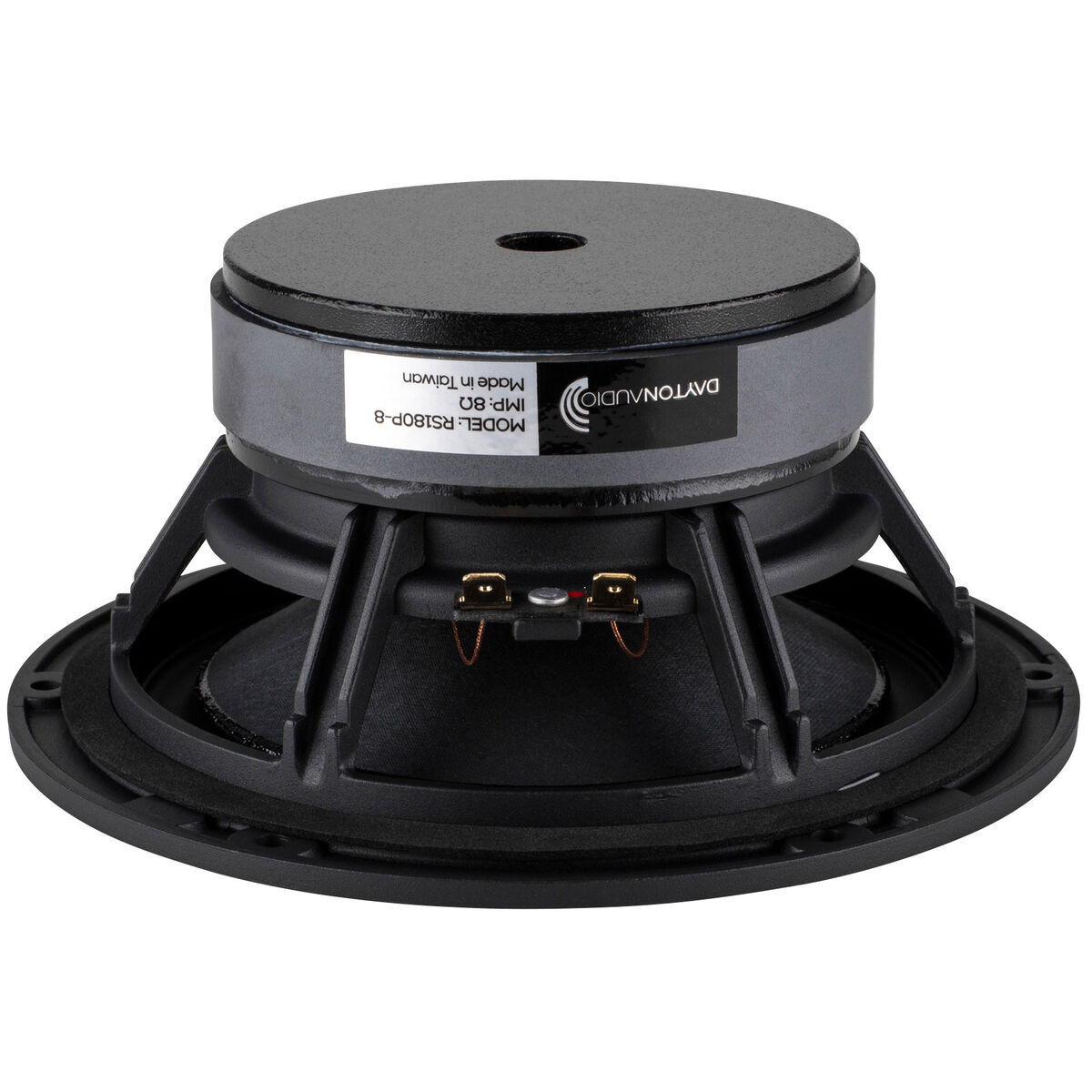

Dayton Audio RS180P-8 7" Reference Paper Woofer 8 Ohm
Skip image gallery
Picture similar to product
€84.95
Available, delivery time: 1-3 days
Product number:
295-365
Manufacturer:
Dayton Audio
Weight:
2.33 kg
Delivery time:
1-3 days
Min. order quantity:
1
Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with super smooth frequency response due to the use of a proprietary cone blend.
Key Features
- Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers
- Similar cosmetics and design features as original Reference Series with low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminum phase plug
- Perfect as woofers, midwoofers, or dedicated midrange drivers
- 6 mm Xmax and 89 dB sensitivity
The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.
Properties
| Artikel-Nr.: | 295-365 |
|---|---|
| Außenmaß: | 181mm |
| Bohrlochanzahl: | 6 |
| DC Resistance (Re): | 6,3 Ohm |
| EAN: | 848791001253 |
| Eff. Membranfläche (Sd): | 126,7cm² |
| Effektive Bewegte Masse (Mms): | 124 |
| Einbautiefe: | 82,6 mm |
| Einbauöffnung: | 146 mm |
| Einheit: | Stück |
| Elektrische Güte (Qes): | 44 |
| Frequenzbereich: | 45 bis 8,000Hz |
| Gesamtgüte (Qts): | 34 |
| Größe: | 7 " |
| Impedanz (Z): | 8 Ohm |
| Korbmaterial: | Aluminium Guss |
| Kraftfaktor (BL): | 7,16T·m |
| Lineare Auslenkung (Xmax): | 6mm |
| Magnet: | Ferrit |
| Marke: | Dayton Audio |
| Mechanische Güte (Qms): | 149 |
| Membranmaterial: | Papier / Kevlar |
| Modell: | RS180P-8 |
| Nachgiebigkeit (Cms): | 1mm/N |
| Nennbelastbarkeit: | 60 Watt |
| Resonanzfrequenz (fs): | 45,8Hz |
| Schwingspulendurchmesser: | 38,1 mm |
| Schwingspulenind. (Le): | 0,84mH |
| Sensitivität: | 89,8dB 2,83V/1m |
| Sickenmaterial: | Gummi |
| Äquivalentvolumen (Vas): | 22,087 l |
Data according to manufacturer. Errors and changes reserved.
