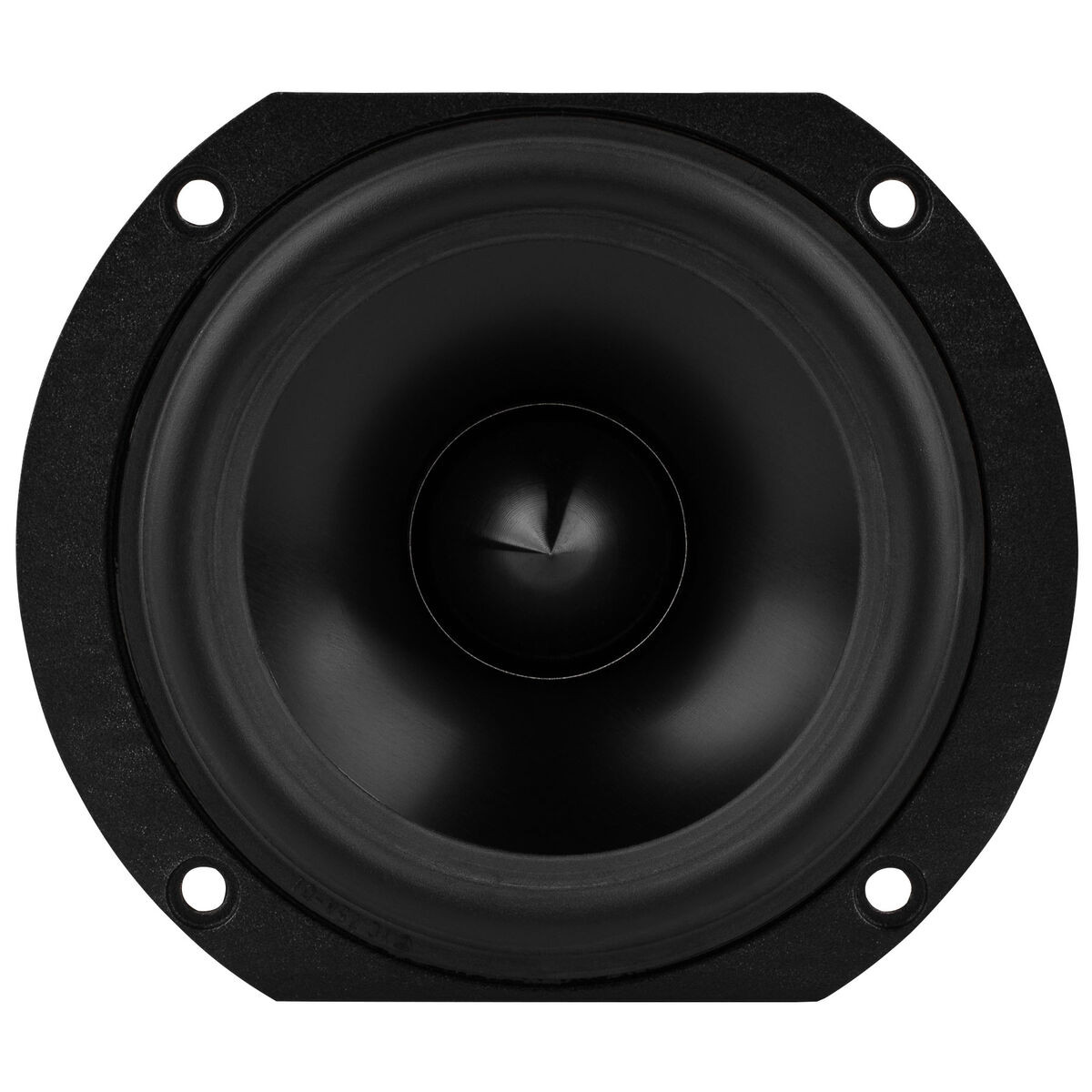

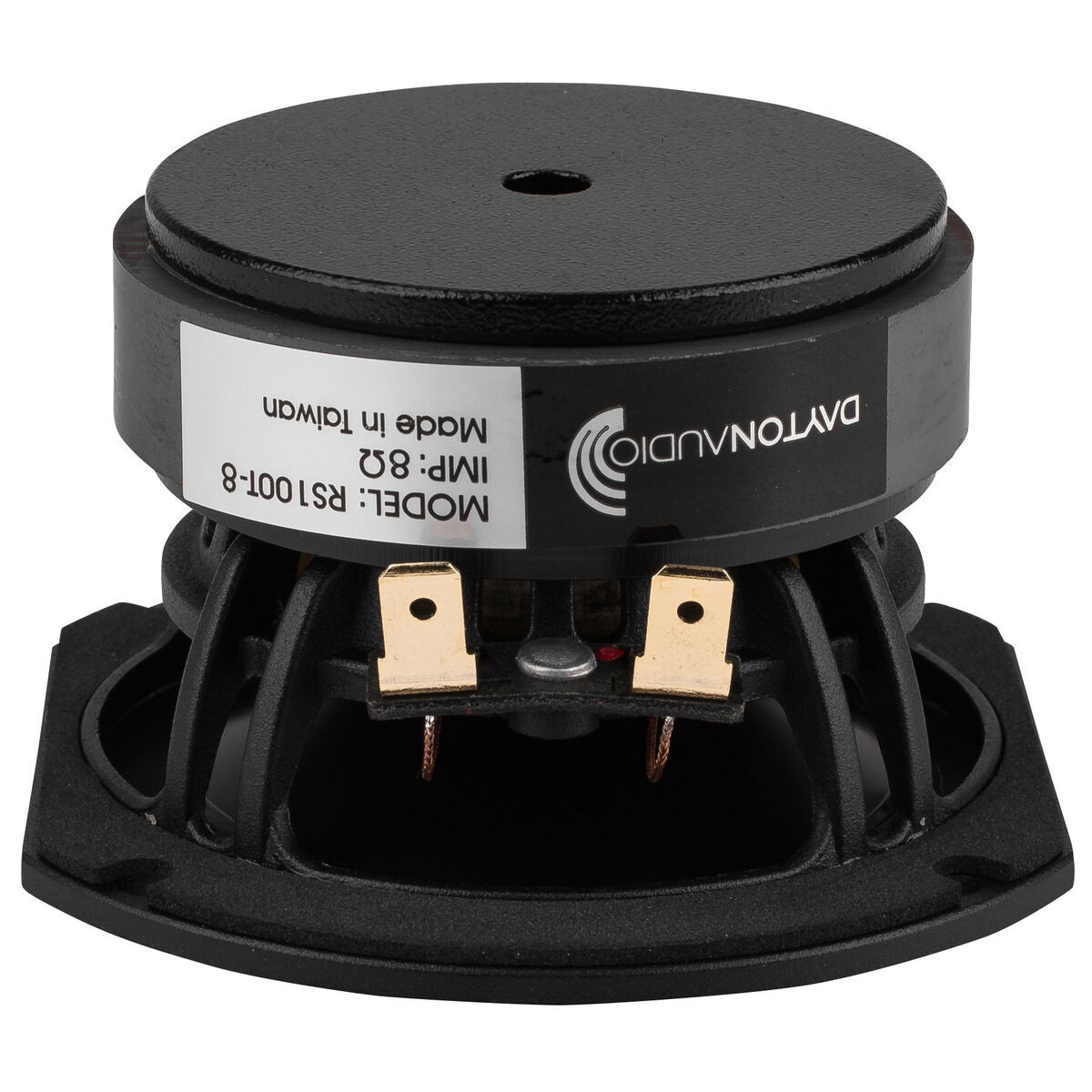

Dayton Audio RS100T-8 4" Reference Woofer Truncated Frame
Skip image gallery
Picture similar to product
Product number:
295-338
Manufacturer:
Dayton Audio
Length:
4.52 mm
Width:
1.78 mm
Height:
8.26 mm
Weight:
0.5 kg
Available stock:
6
Min. order quantity:
1
Utilizing an advanced motor system and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price.
Key Features
- Truncated cast frame, great for line arrays and MTM speaker designs
- Long-excursion motor and suspension for strong bass performance
- Advanced low-distortion motor design
- Extended, linear response
- Distortion-reducing copper ring in magnetic gap
- Lightweight black anodized aluminum cone
- Designed and engineered in the U.S.A.
The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing an advanced motor system and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofer features a black anodized cone, heavy-duty cast frame, low-loss rubber surround, solid aluminum phase plug, distortion-reducing magnetic gap copper ring, rubber magnet boot, and gold terminals.
Properties
| Artikel-Nr.: | 295-338 |
|---|---|
| Außenmaß: | 98mm |
| Bohrlochanzahl: | 4 |
| DC Resistance (Re): | 6,5 Ohm |
| EAN: | 844632079788 |
| Eff. Membranfläche (Sd): | 36,3cm² |
| Effektive Bewegte Masse (Mms): | 22 |
| Einbautiefe: | 51,1 mm |
| Einbauöffnung: | 77 mm |
| Einheit: | Stück |
| Elektrische Güte (Qes): | 79 |
| Frequenzbereich: | 90 bis 20,000Hz |
| Gesamtgüte (Qts): | 6 |
| Größe: | 4 " |
| Impedanz (Z): | 8 Ohm |
| Korbmaterial: | Aluminium Guss |
| Kraftfaktor (BL): | 3,27T·m |
| Lineare Auslenkung (Xmax): | 3,7mm |
| Magnet: | Ferrit |
| Marke: | Dayton Audio |
| Mechanische Güte (Qms): | 24 |
| Membranmaterial: | Aluminium |
| Modell: | RS100T-8 |
| Nachgiebigkeit (Cms): | 1,3mm/N |
| Nennbelastbarkeit: | 30 Watt |
| Resonanzfrequenz (fs): | 94,9Hz |
| Schwingspulendurchmesser: | 25,4 mm |
| Schwingspulenind. (Le): | 0,5mH |
| Schwingspulenkörper: | Aluminium |
| Schwingspulenmaterial: | Kupfer |
| Sensitivität: | 87dB 2,83V/1m |
| Sickenmaterial: | Gummi |
| Äquivalentvolumen (Vas): | 2,265 l |
Data according to manufacturer. Errors and changes reserved.
