Dayton Audio RS75-8
Skip image gallery
Picture similar to product
Product number:
295-337
Manufacturer:
Dayton Audio
Length:
1.94 mm
Width:
0.76 mm
Height:
6.35 mm
Weight:
0.3 kg
Available stock:
4
Min. order quantity:
1

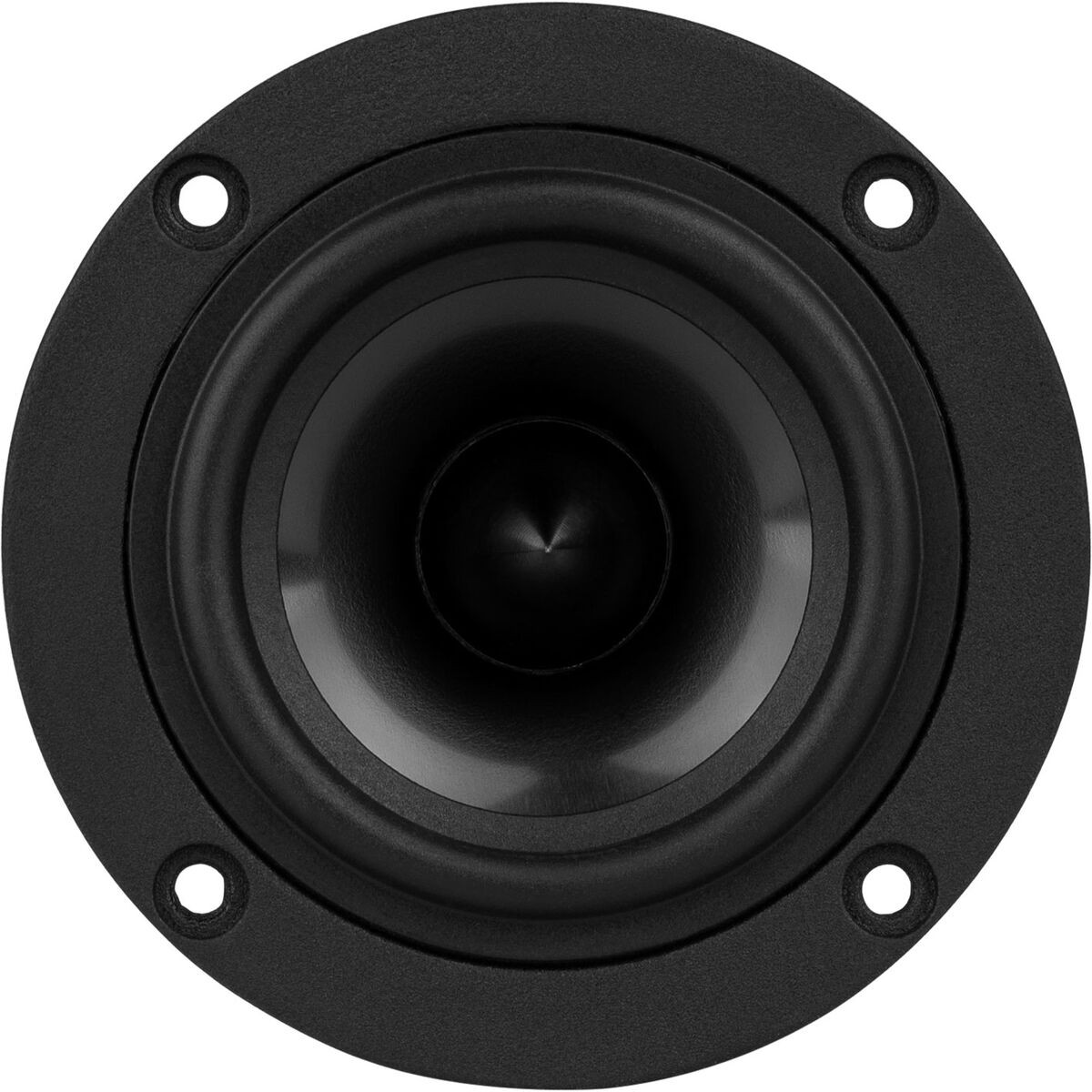

The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Incorporating a low-distortion motor system with a copper ring, a copper cap, and an aluminum phase plug, the RS75-8 can outperform "boutique" drivers that cost several times the price. The driver's truncated frame makes it ideal for line arrays and ultra-compact MTM designs requiring minimal driver-to-driver spacing. Its low-distortion characteristics and smooth response provide exceptional clarity, detail, and dynamics. Features a black anodized cone, heavy-duty 4-hole cast frame, low-loss rubber surround, and gold terminals.
| Product Spezifications | |||
| Parameter | |||
| Produktreihe | Refernce Series | ||
| Product Type | Full-Range | ||
| Nominal size | 3 | " | |
| Impedance | 8 | ohm | |
| Frequency range | 170-20.000 | Hz | |
| sensitivity | 84.3 | dB 2.83V/1m | |
| Voice coil dia. | 0.63 | " | |
| Resonant frequency | Fs | 189.1 | Hz |
| DC resistance | Re | 6.11 | Ω |
| Voice coil inductance | Le | 0.32 | mH |
| Mechanical Q | Qms | 5837 | |
| Electrical Q | Qes | 1129 | |
| Total Q factor | Qts | 0.946 | |
| Suspension equivalent air volume | Vas | 0.223 | litres |
| Suspension mechanical compliance | Cms | 0.69 | mm/N |
| Force factor | BL | 2.58 | T·m |
| Moving mass (including airload) | Mms | 1 | g |
| Maximum linear excursion | Xmax | 1.3 | mm |
| Surface of the diaphragm | Sd | 12 | cm² |
| Power Handling | RMS | 15 | Watts |
| Efficiency | η0 | 0.13 | % |
| Sound Pressure Level | SPL | 83.15 | 1W/1m |
| Mounting Dimensions |
|||
| outside dia. | AD | 71.9 | mm |
| cutout diameter | ID | 54.1 | mm |
| mounting depth | EBT | 38.6 | mm |
| dia. mounting holes | LK | 64.0 | mm |
| moutning holes | LKA | 4 | |
Properties
| Artikel-Nr.: | 295-337 |
|---|---|
| Außenmaß: | 58,31mm |
| Bohrlochanzahl: | 4 |
| DC Resistance (Re): | 6,2 Ohm |
| EAN: | 848791005664 |
| Eff. Membranfläche (Sd): | 12cm² |
| Effektive Bewegte Masse (Mms): | 123 |
| Einbautiefe: | 38,6 mm |
| Einbauöffnung: | 54,1 mm |
| Einheit: | Stück |
| Elektrische Güte (Qes): | 135 |
| Frequenzbereich: | 160 bis 20,000Hz |
| Gesamtgüte (Qts): | 107 |
| Größe: | 3 " |
| Impedanz (Z): | 8 Ohm |
| Korbmaterial: | Aluminium Guss |
| Kraftfaktor (BL): | 2,55T·m |
| Lineare Auslenkung (Xmax): | 1,3mm |
| Magnet: | Ferrit |
| Marke: | Dayton Audio |
| Mechanische Güte (Qms): | 512 |
| Membranmaterial: | Aluminium |
| Modell: | RS75-8 |
| Nachgiebigkeit (Cms): | 0,6mm/N |
| Nennbelastbarkeit: | 15 Watt |
| Resonanzfrequenz (fs): | 185Hz |
| Schwingspulendurchmesser: | 15,2 mm |
| Schwingspulenind. (Le): | 0,32mH |
| Schwingspulenkörper: | Aluminium |
| Schwingspulenmaterial: | Kupfer |
| Sensitivität: | 80,5dB 2,83V/1m |
| Sickenmaterial: | Gummi |
| Äquivalentvolumen (Vas): | 0,113 l |
Data according to manufacturer. Errors and changes reserved.
