Dayton Audio RSS210HO-4

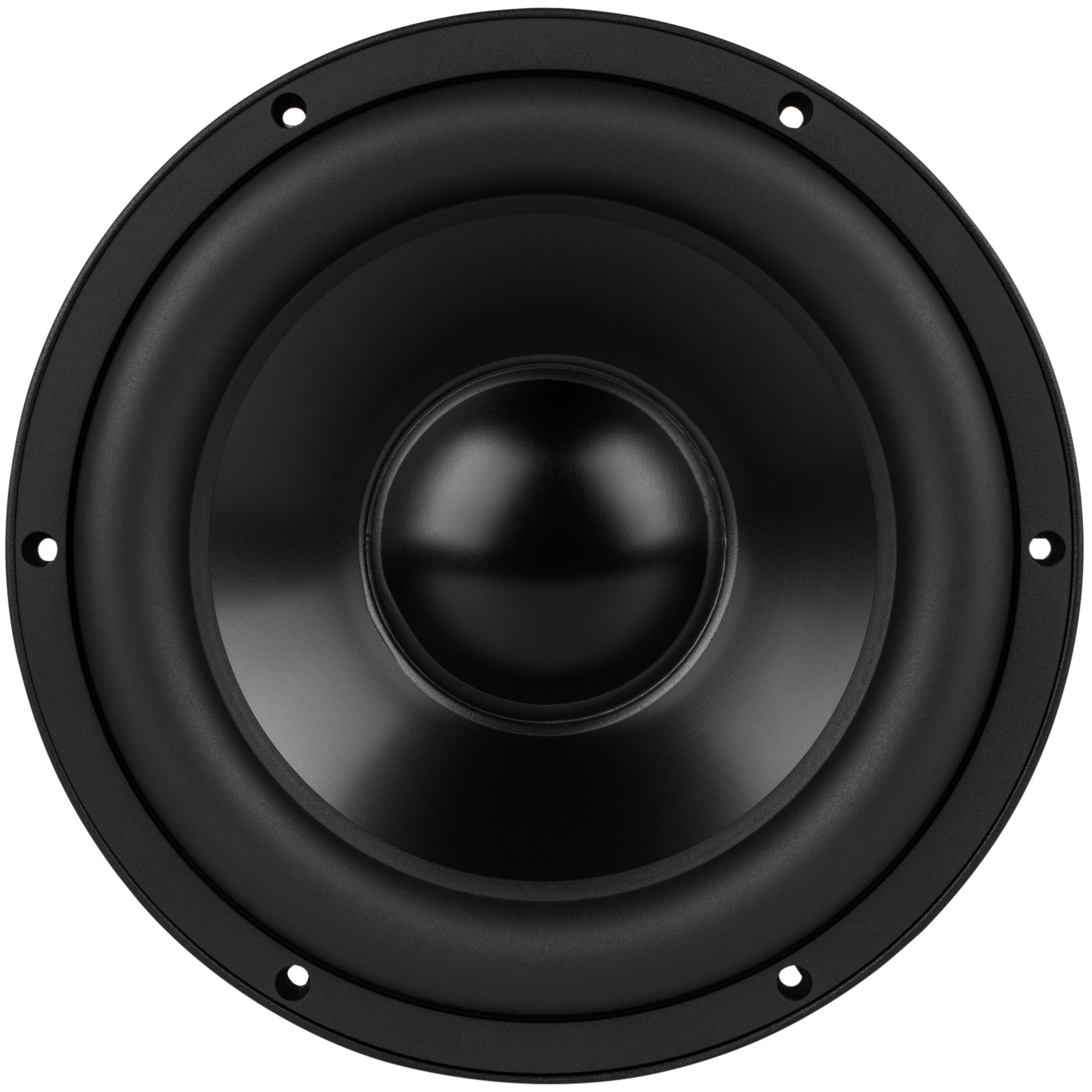

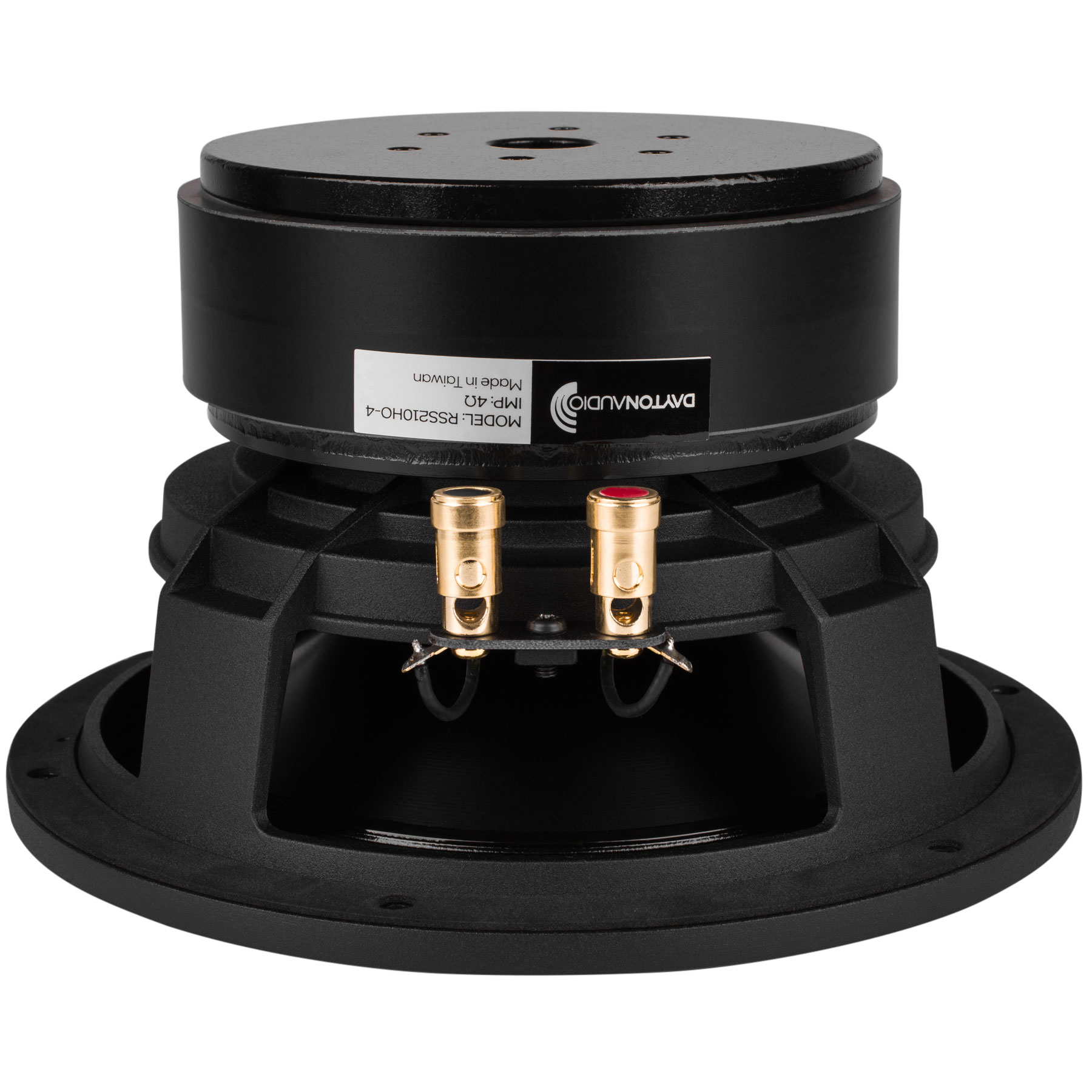

Dayton Audio RSS210HO-4 8” Reference HO Subwoofer 4 Ohm

The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look.

Key Features

  • Extensively vented motor eliminates compression and allows quiet excursion
  • Extra-thick black anodized aluminum cone for maximum rigidity
  • Triple shorting ring motor for ultra-low distortion
  • 4-layer coil for high power handling
  • Optimized parameters for small enclosures
  • Highest quality materials throughout for long-lasting performance

Dayton Audio RSS210HO-4 8" Reference HO Subwoofer 4 Ohm


The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed Reference Series woofer line into the subwoofer realm. As with the rest of the Reference Series, the main focus of these subwoofers is ultra-low-distortion. Second, third, and intermodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look.

Properties
Artikel-Nr.: 295-458
Außenmaß: 213,1mm
DC Resistance (Re): 3,6 Ohm
EAN: 844632099601
Eff. Membranfläche (Sd): 213,8cm²
Effektive Bewegte Masse (Mms): 99,3g
Einbautiefe: 126 mm
Einbauöffnung: 184,9 mm
Einheit: Stück
Elektrische Güte (Qes): 0,46
Frequenzbereich: 30 bis 1,500Hz
Gesamtgüte (Qts): 0,4
Größe: 8 "
Impedanz (Z): 4 Ohm
Korbmaterial: Aluminium Guss
Kraftfaktor (BL): 12T·m
Lineare Auslenkung (Xmax): 11mm
Magnet: Ferrit
Marke: Dayton Audio
Mechanische Güte (Qms): 3,33
Membranmaterial: Aluminium
Modell: RSS210HO-4
Nachgiebigkeit (Cms): 0,29mm/N
Nennbelastbarkeit: 300 Watt
Resonanzfrequenz (fs): 29,6Hz
Schwingspulendurchmesser: 50,8 mm
Schwingspulenind. (Le): 0,99mH
Schwingspulenkörper: Aluminium
Schwingspulenmaterial: Kupfer
Sensitivität: 85,7dB 2,83V/1m
Sickenmaterial: Gummi
Äquivalentvolumen (Vas): 18,689 l
Data according to manufacturer. Errors and changes reserved.
