Dayton Audio RS75-4

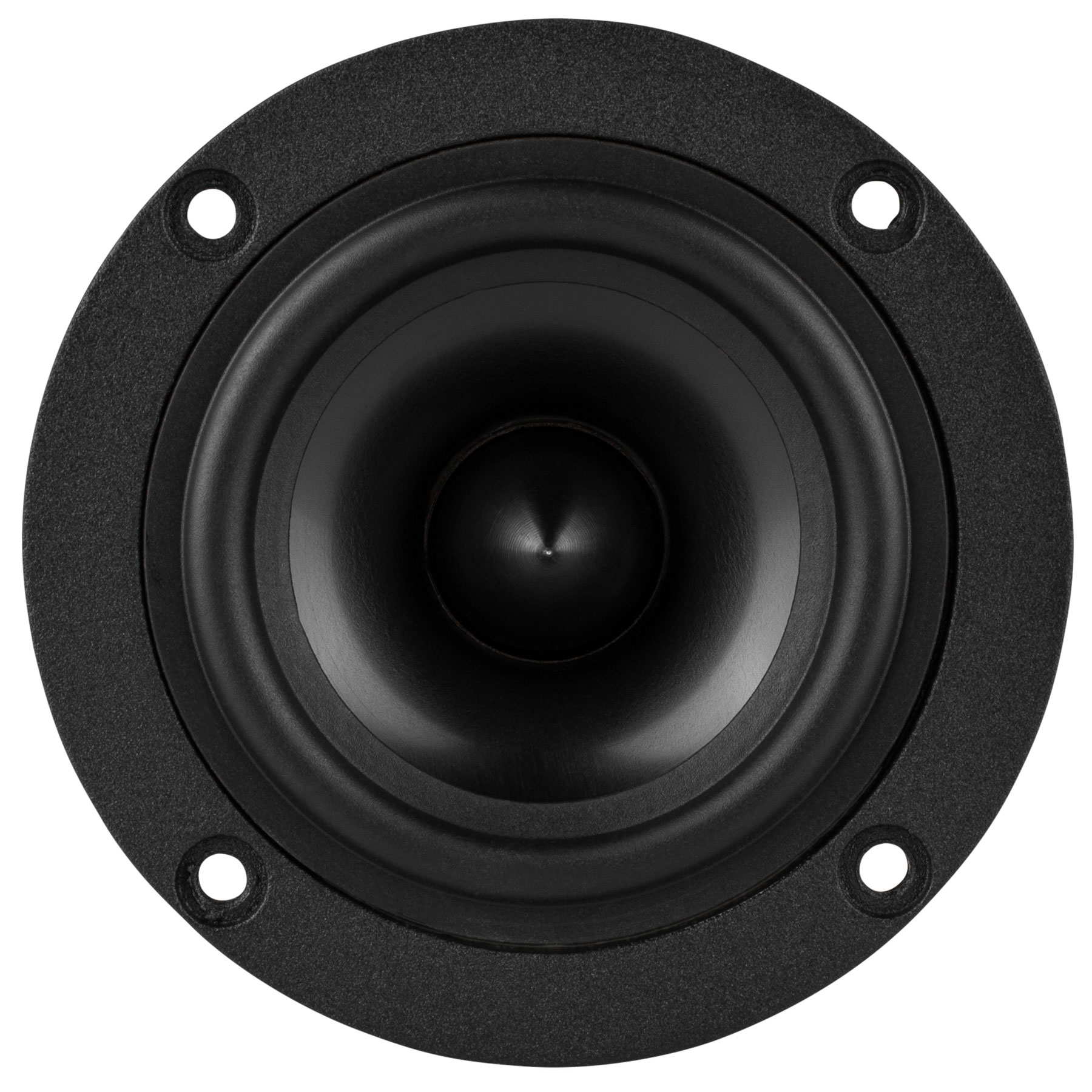

Dayton Audio RS75-4 3” Reference Full-Range Driver 4 Ohm
Incorporating a low-distortion motor system with a copper ring, a copper cap, and an aluminum phase plug, the RS75-4 can outperform "boutique" drivers that cost several times the price.
Key Features
- Full-range performance
- Low distortion and high resolution
- Aluminum frame, aluminum cone, rubber surround
- Distortion-reducing copper ring, copper cap, and aluminum phase plug
- Subtle yet high-tech look makes a bold cosmetic statement
- Designed and engineered in USA
Dayton Audio RS75-4 3" Reference Full-Range Driver 4 Ohm

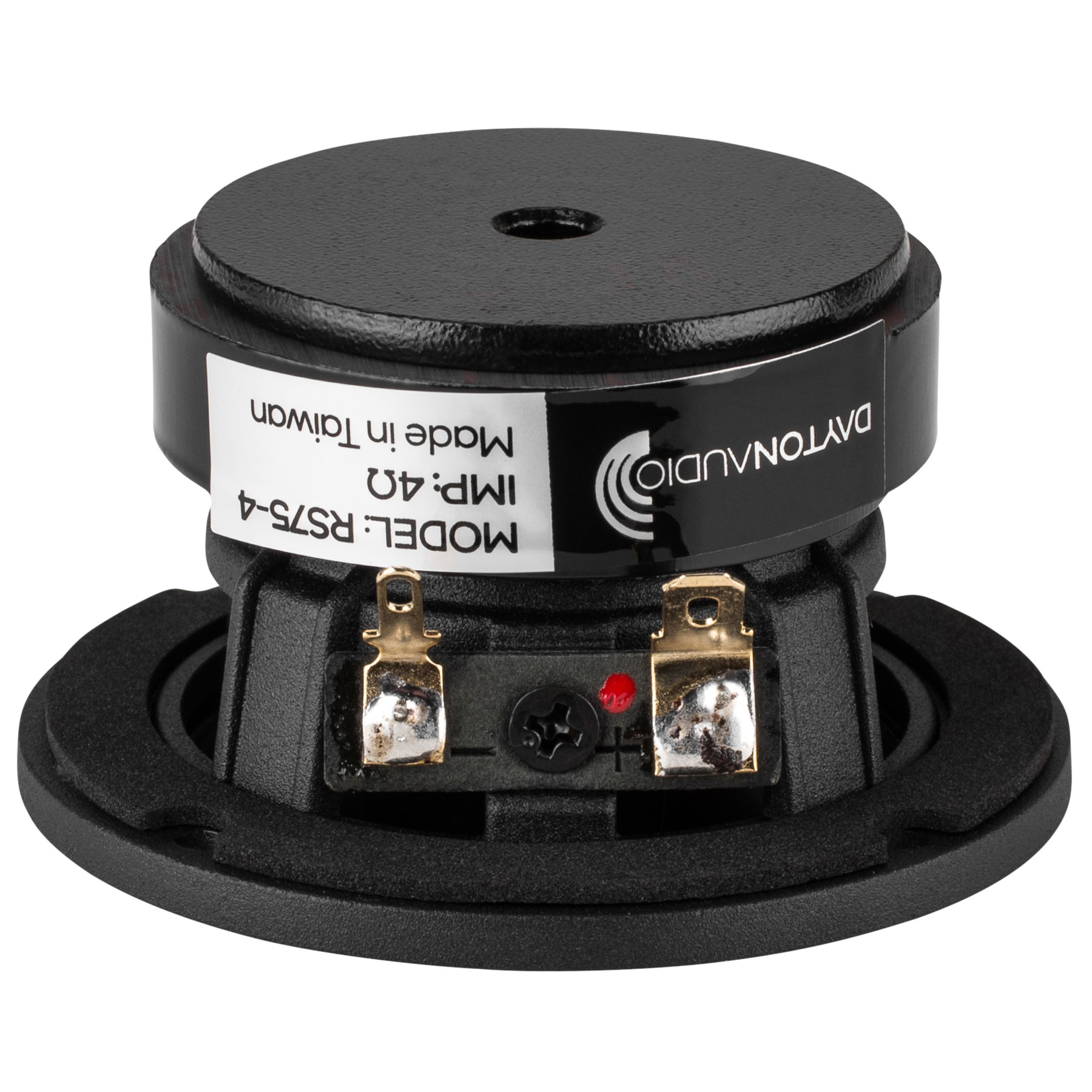

The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Incorporating a low-distortion motor system with a copper ring, a copper cap, and an aluminum phase plug, the RS75-4 can outperform "boutique" drivers that cost several times the price. Its low-distortion characteristics and smooth response provide exceptional clarity, detail, and dynamics. Features a black anodized cone, heavy-duty 4-hole cast frame, low-loss rubber surround, and gold terminals.
| Artikel-Nr.: | 295-380 |
|---|---|

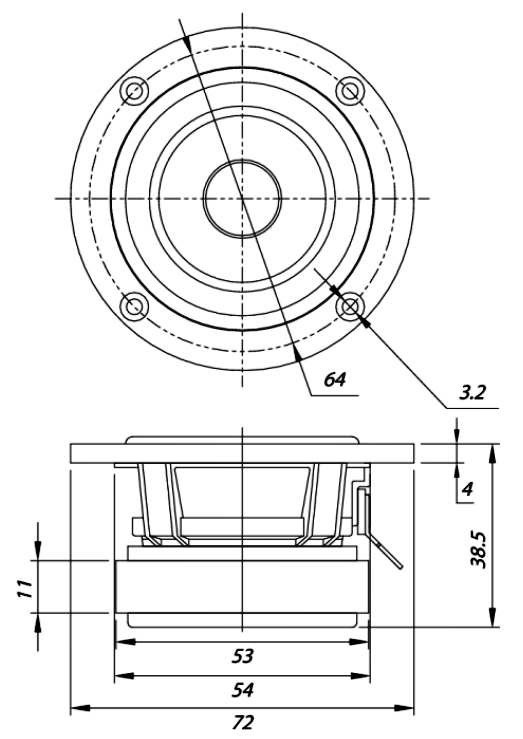

| Außenmaß: | 60,45mm |
| Bohrlochanzahl: | 4 |
| DC Resistance (Re): | 3,1 Ohm |
| EAN: | 844632086281 |
| Eff. Membranfläche (Sd): | 12cm² |
| Effektive Bewegte Masse (Mms): | 11 |
| Einbautiefe: | 38,6 mm |
| Einbauöffnung: | 54,1 mm |
| Einheit: | Stück |
| Elektrische Güte (Qes): | 97 |
| Frequenzbereich: | 170 bis 20,000Hz |
| Gesamtgüte (Qts): | 83 |
| Größe: | 3 " |
| Impedanz (Z): | 4 Ohm |
| Korbmaterial: | Aluminium Guss |
| Kraftfaktor (BL): | 2,01T·m |
| Lineare Auslenkung (Xmax): | 1,1mm |
| Magnet: | Ferrit |
| Marke: | Dayton Audio |
| Mechanische Güte (Qms): | 576 |
| Membranmaterial: | Aluminium |
| Modell: | RS75-4 |
| Nachgiebigkeit (Cms): | 0,72mm/N |
| Nennbelastbarkeit: | 15 Watt |
| Resonanzfrequenz (fs): | 177Hz |
| Schwingspulendurchmesser: | 16 mm |
| Schwingspulenind. (Le): | 0,72mH |
| Schwingspulenkörper: | Aluminium |
| Schwingspulenmaterial: | Kupfer |
| Sensitivität: | 85,2dB 2,83V/1m |
| Sickenmaterial: | Gummi |
| Äquivalentvolumen (Vas): | 0,142 l |
