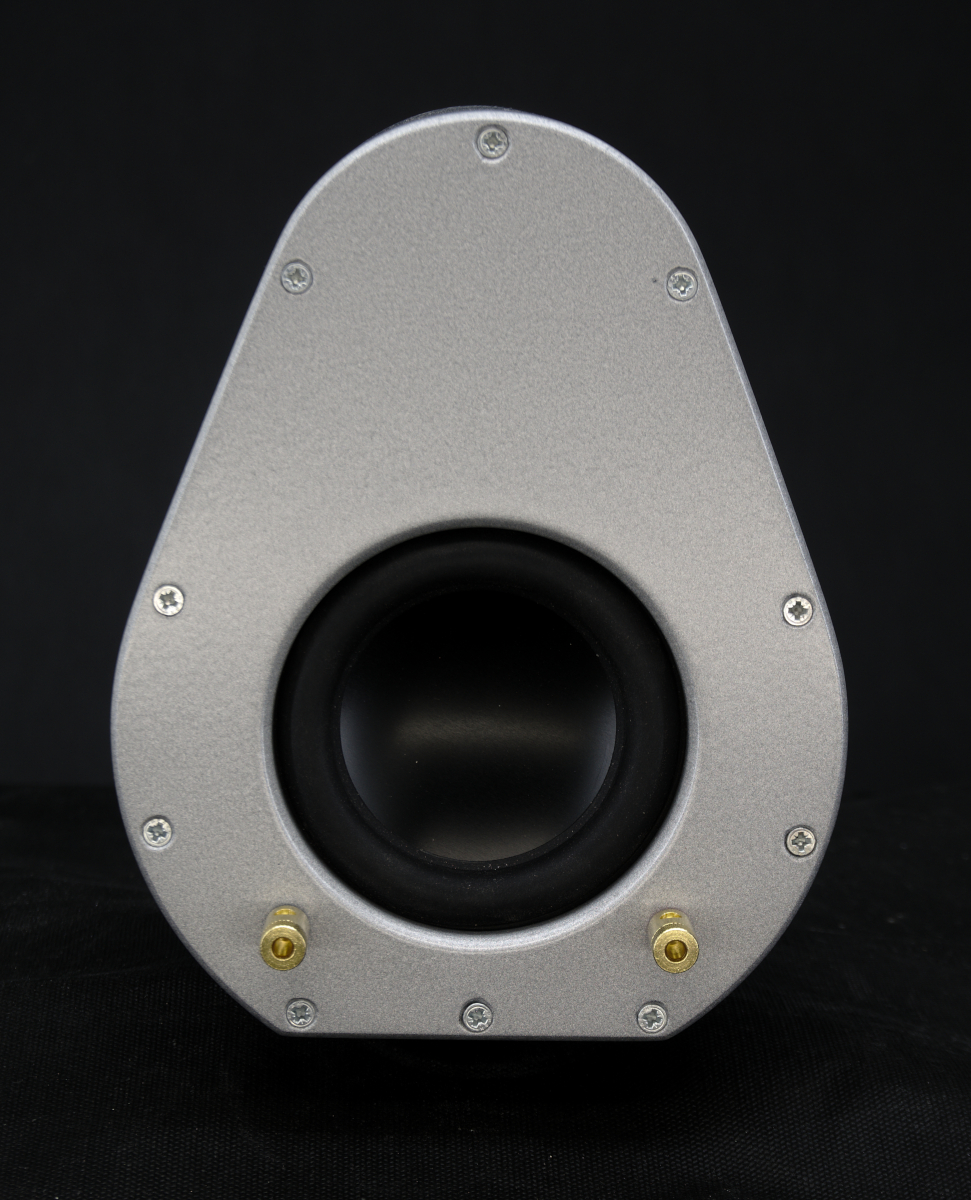

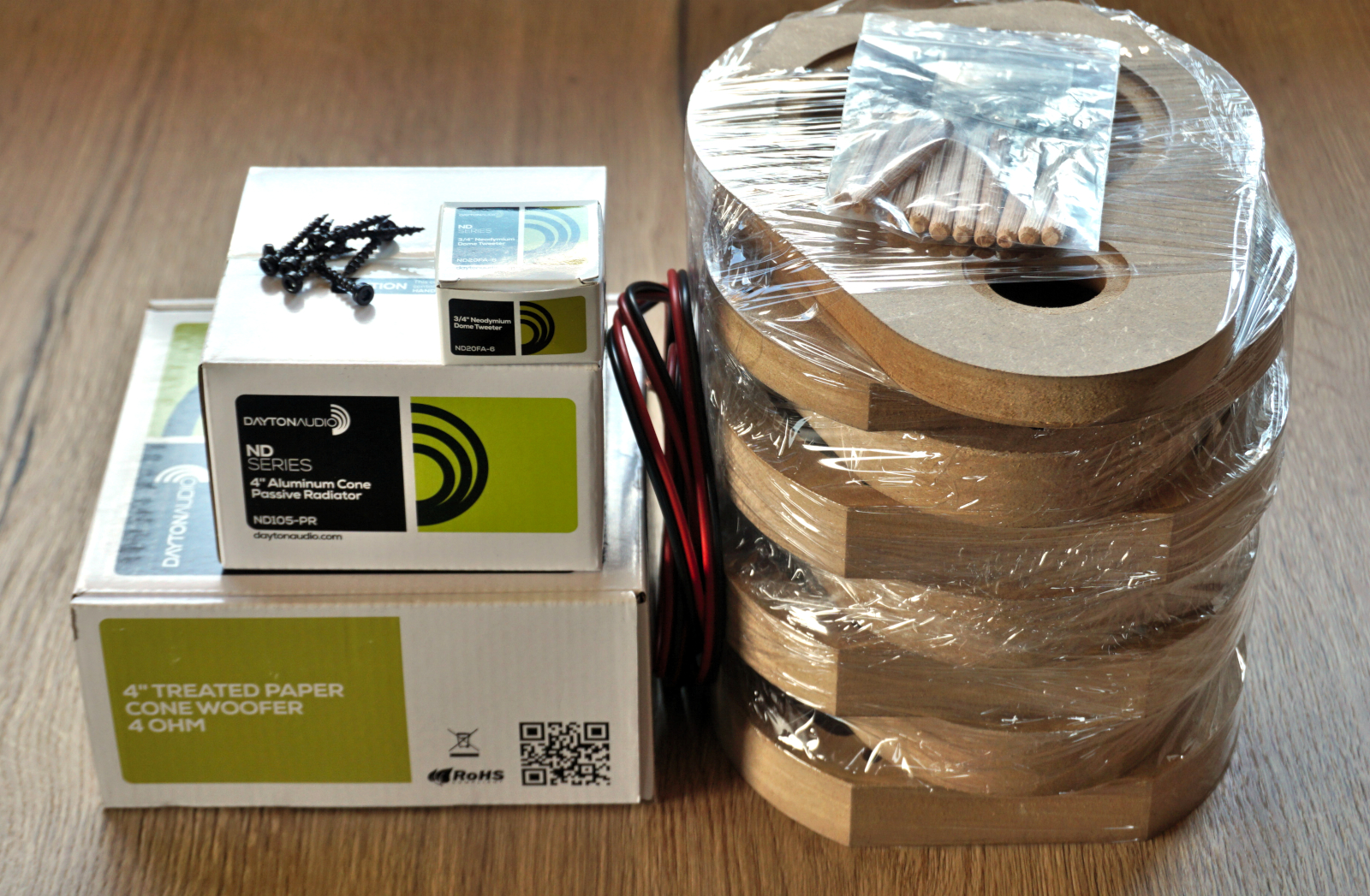

Teardrop Lautsprecher-Bausatz

Dayton Audio ND20FA-6 3/4” Soft Dome Neodynium Tweeter This versatile tweeter is a huge step above the average "budget" tweeter. It has the sensitivity, smoothness, and power handling to individually do a two-way with most small woofers. Key Features Compact neodymium motors have low stray field Ferrofluid enhances power handling and helps damp resonance Front-mount pressfit design Perfect for placement in car A-pillars Center-to-center spacing as low as 1-3/4" Extremely flat and extended response   Dayton Audio ND20FA-6 3/4" Soft Dome Neodymium Tweeter Don't let the low price fool you! This versatile tweeter is a huge step above the average "budget" tweeter. Conceived with line array thoughts in mind, it is finally possible to achieve the inter-driver spacing needed to minimize comb filtering out to nearly 20 kHz. But their uses don't stop at line arrays-- they have the sensitivity, smoothness, and power handling to individually do a two-way with most small woofers. Give them a try for your next budget or micro speaker-- you will be pleasantly surprised!

Dayton Audio TCP115-8 4” Treated Paper Cone Midbass With high excursion capabilities and low Fs, Dayton Audio's TCP115-8 can produce a surprising amount of bass for a 4" woofer. In addition to its low frequency performance, this driver also performs very well through the midrange, making this driver ideal for use in smaller 2-way designs. Key Features Aluminum former keeps voice coil cool for high power handling 1" diameter 4-layer voice coil improves power handling and low frequency response Extended pole piece creates symmetrical magnetic field for lower distortion Cosmetic low-profile mounting flange looks good without flush mounting Powerful motor for efficiency and compact enclosure Dayton Audio TCP115-8 4" Treated Paper Cone Midbass Woofer 8 Ohm The TCP115-4 combines a large motor, 1" 4-layer voice coil, vented pole, and a sizable rubber surround to make use of its 4 mm of XMAX. This combination of features makes it a very versatile driver which can be used as a bass driver in a small 2-way system, center channel, or even portable Bluetooth speaker designs.

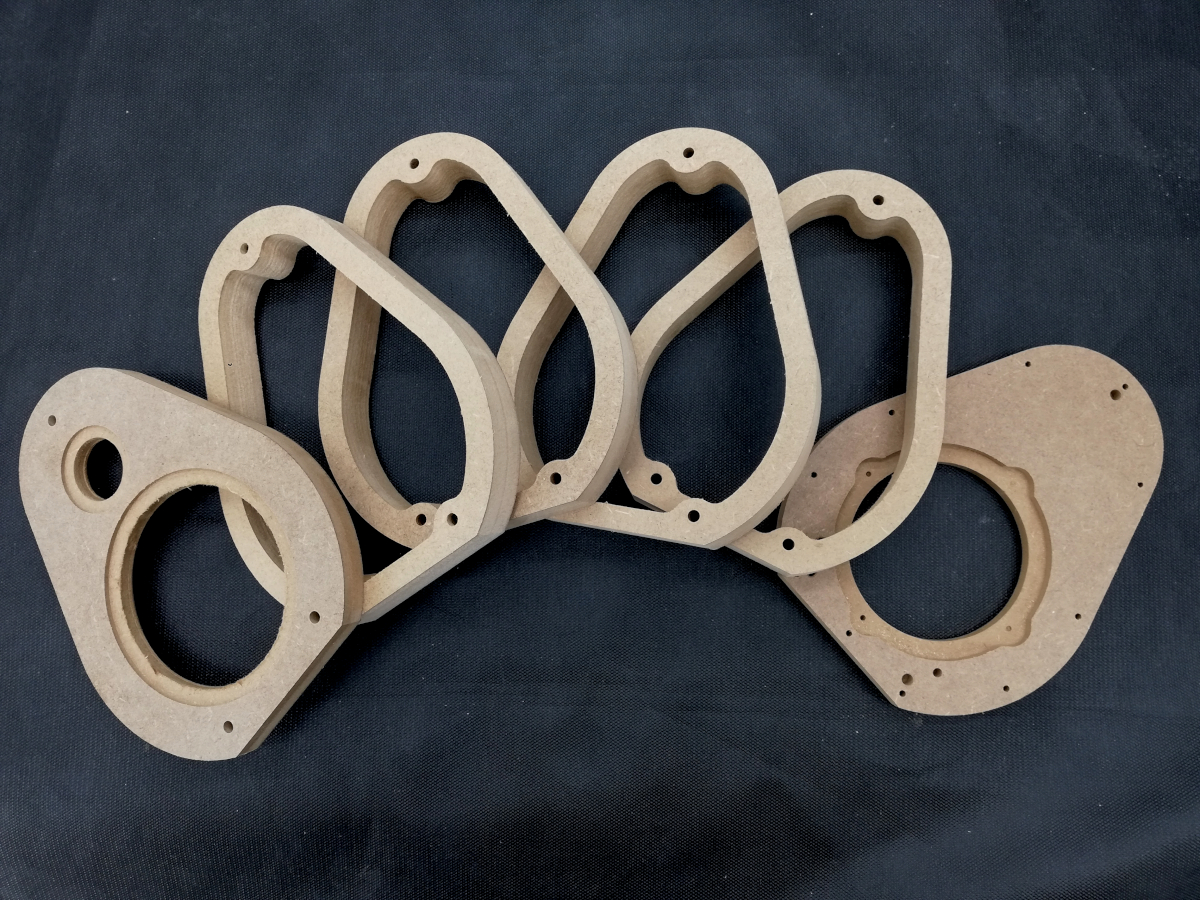

Teardrop Case KitTeardrop Case Kit Suitable for assembly:Teardrop Speaker Kit Exterior dimensions: Width: 170 mm Height: 215 mm Depth: 180 mm This great design case cannot be easily made even by an experienced DIY builder.Variant developed this special case to combine design and function. The non-parallelWalls reduce standing waves and also provide stability. About the CaseThe enclosures are specially developed and manufactured for the speaker kits developed by variant GmbH. Variant also manufactures enclosures according to specifications for the kits of our distribution products and other sources such as trade magazines or private projects. Extract details from the selection legend next to the product images. Grundlegend sind MDF raw, through-dyed MDF black, and primed MDF, in the thicknesses 10, 12,16, 19, 22 and larger intended for the case kits. On request, we also manufacture in our own large carpentry workshop using other materials such as multiplex,Solid wood with glued joints, real wood (if suitable), and similar. The housing kits are manufactured during the CNC process using miter or rabbet and joint techniquesmanufactured to align the plates precisely. In many case kits, struts andBraces. They provide superior rigidity without compromising the performance and energy of the speakers toaffect. Everything that remains to be done is to finish it to match your decor or to paint it to create aunique music furniture your own.

Dayton Audio ND105-4 4” Aluminum Cone Passive Radiator The Dayton Audio ND105-PR 4" passive radiator makes it easy to tune small enclosures lower without increasing overall enclosure size. With a one-piece aluminum cone, rubber surround, high excursion capability, and easily adjustable mass, this passive radiator is perfect for building extremely compact speaker systems capable of incredible low frequency output. Key Features Rigid black anodized aluminum alloy cone High excursion capability: 12 mm peak to peak Same "family look" as ND Series woofers Adjustable mass for a vast range of tuning frequencies Dayton Audio ND105-PR 4" Aluminum Cone Passive Radiator Tune small enclosures with Dayton Audio's ND105-PR 4" passive radiator in speaker designs where a conventional port is not a viable option. This compact passive radiator includes all of the features you expect with larger radiators including high excursion capability, aluminum cone, rubber surround, and adjustable mass. Visually identical to Dayton Audio's popular ND series drivers, the ND105-PR can be used with any small speaker. The threaded rod and included wing nut on the back of the cone makes it easy to add mass to tune the radiator as needed for your projects. Whether you are building a multi-driver array, sound bar, or portable Bluetooth speaker, the Dayton Audio ND105-PR introduces a new range of possibilities. The ND105-PR 4" passive radiator includes: (1) Passive radiator (1) 21.8 gram disk weights (1) Wing nut Specifications: • Fs: 51.5 Hz • Vas: 0.09 cu. ft. (2.6 liters) • Qms: 5.93 • Cms: 0.68 mm/N • Mms: 13.9g • Rms: 0.76 kg/s • Sd: 51.5 sq. cm. • Xmech: 6 mm • Dimensions: Overall diameter: 4.13", Cutout diameter: 3.66", Depth: 2.64". Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system. To calculate Vd: Sd x Xmax = Vd
