Dayton Audio TCP115-8

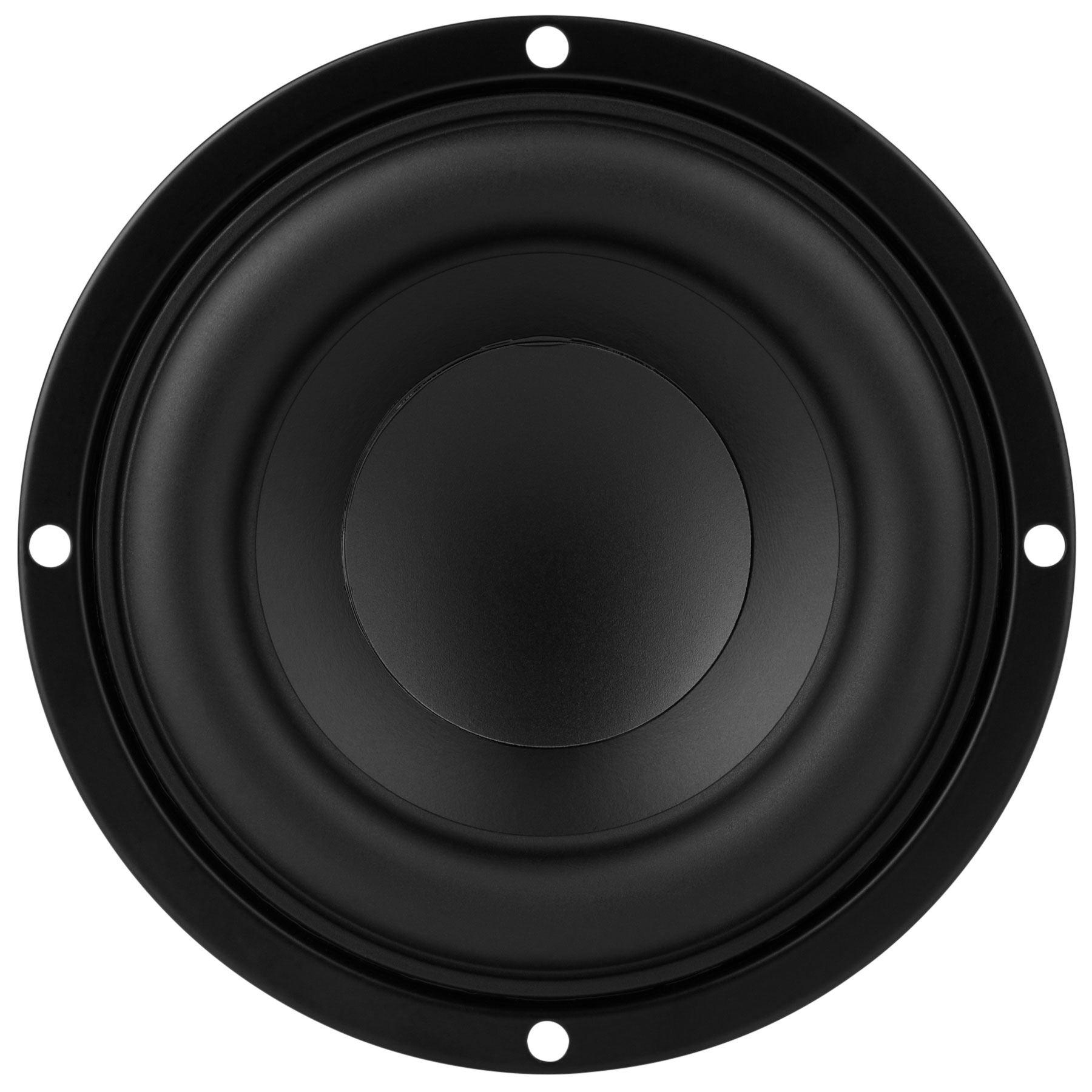

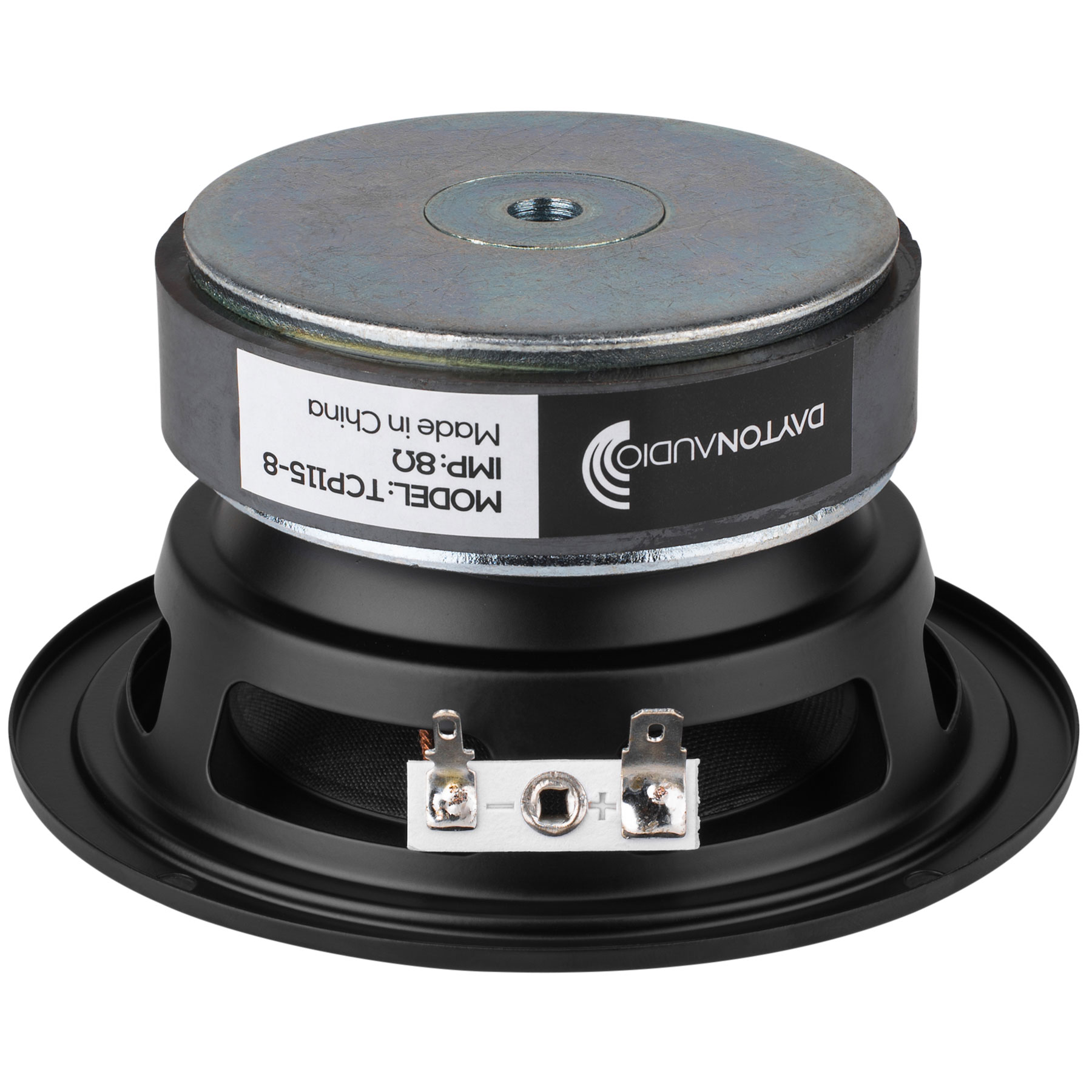

Dayton Audio TCP115-8 4” Treated Paper Cone Midbass
With high excursion capabilities and low Fs, Dayton Audio's TCP115-8 can produce a surprising amount of bass for a 4" woofer. In addition to its low frequency performance, this driver also performs very well through the midrange, making this driver ideal for use in smaller 2-way designs.
Key Features
- Aluminum former keeps voice coil cool for high power handling
- 1" diameter 4-layer voice coil improves power handling and low frequency response
- Extended pole piece creates symmetrical magnetic field for lower distortion
- Cosmetic low-profile mounting flange looks good without flush mounting
- Powerful motor for efficiency and compact enclosure
Dayton Audio TCP115-8 4" Treated Paper Cone Midbass Woofer 8 Ohm
The TCP115-4 combines a large motor, 1" 4-layer voice coil, vented pole, and a sizable rubber surround to make use of its 4 mm of XMAX. This combination of features makes it a very versatile driver which can be used as a bass driver in a small 2-way system, center channel, or even portable Bluetooth speaker designs.
| Artikel-Nr.: | 295-416 |
|---|---|
| Außenmaß: | 116,0mm |
| Bohrlochanzahl: | 4 |
| DC Resistance (Re): | 7,8 Ohm |
| EAN: | 848791004971 |
| Eff. Membranfläche (Sd): | 50cm² |
| Effektive Bewegte Masse (Mms): | 1016 |
| Einbautiefe: | 58,9 mm |
| Einbauöffnung: | 95,8 mm |
| Einheit: | Stück |
| Elektrische Güte (Qes): | 54 |
| Frequenzbereich: | 55 bis 6,000Hz |
| Gesamtgüte (Qts): | 43 |
| Größe: | 4 " |
| Impedanz (Z): | 8 Ohm |
| Korbmaterial: | Stahl |
| Kraftfaktor (BL): | 7,4T·m |
| Lineare Auslenkung (Xmax): | 4mm |
| Magnet: | Ferrit |
| Marke: | Dayton Audio |
| Mechanische Güte (Qms): | 23 |
| Membranmaterial: | beschichtetes Papier |
| Modell: | TCP115-8 |
| Nachgiebigkeit (Cms): | 0,71mm/N |
| Nennbelastbarkeit: | 40 Watt |
| Resonanzfrequenz (fs): | 59,2Hz |
| Schwingspulendurchmesser: | 25,4 mm |
| Schwingspulenind. (Le): | 1,9mH |
| Schwingspulenkörper: | Aluminium |
| Schwingspulenmaterial: | CCA |
| Sensitivität: | 81,9dB 2,83V/1m |
| Sickenmaterial: | Gummi |
| Äquivalentvolumen (Vas): | 2,549 l |
