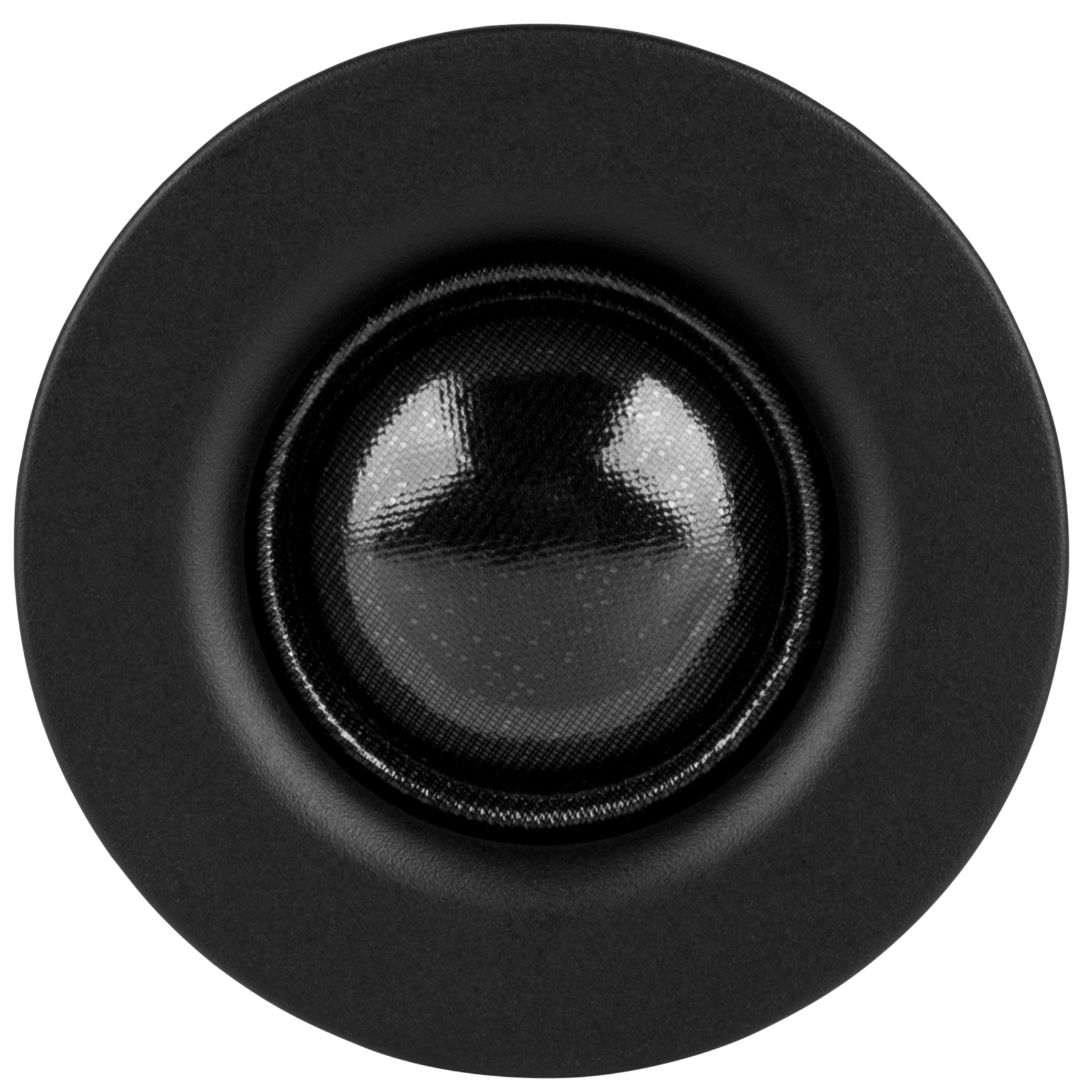

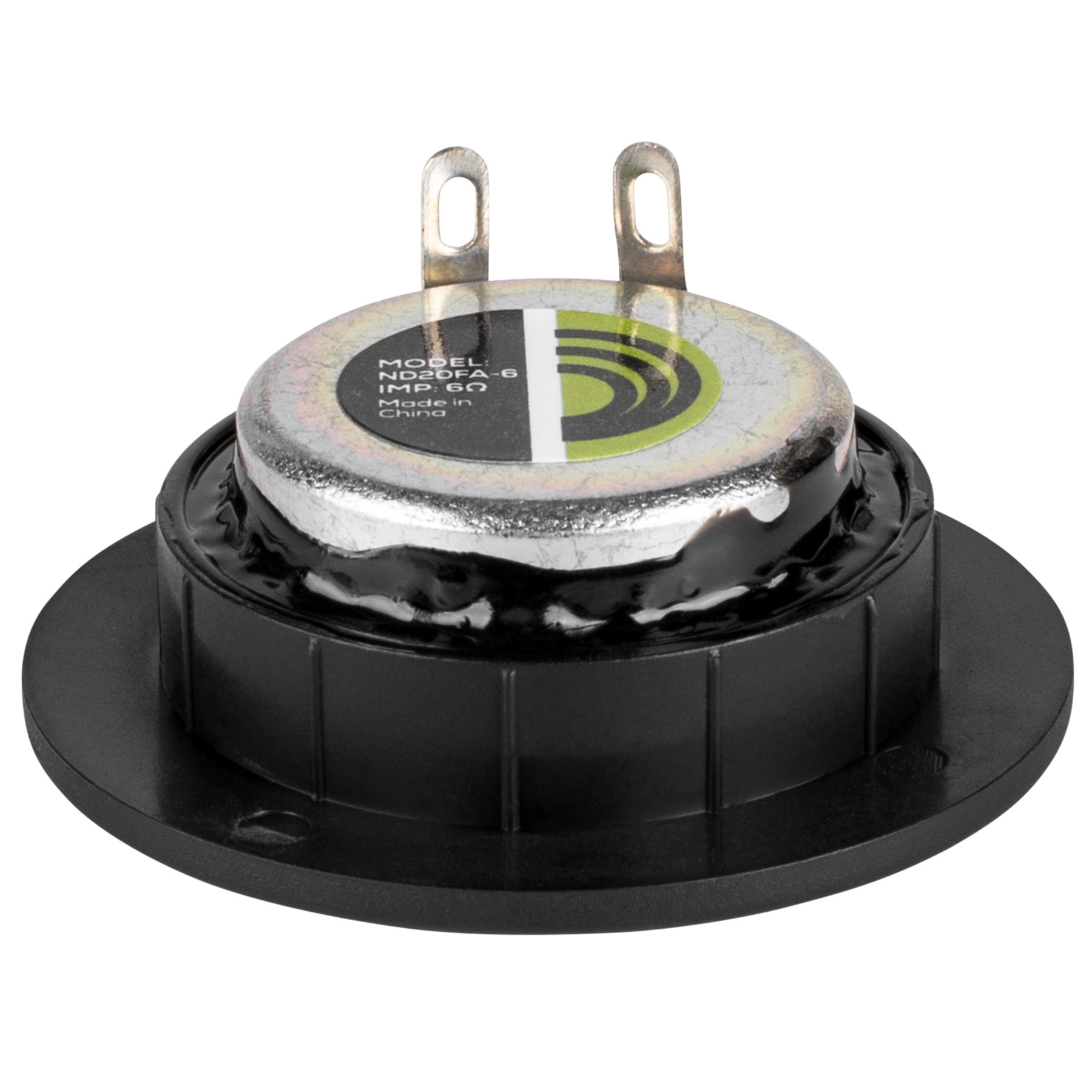

Dayton Audio ND20FA-6
Dayton Audio ND20FA-6 3/4” Soft Dome Neodynium Tweeter
This versatile tweeter is a huge step above the average "budget" tweeter. It has the sensitivity, smoothness, and power handling to individually do a two-way with most small woofers.
Key Features
- Compact neodymium motors have low stray field
- Ferrofluid enhances power handling and helps damp resonance
- Front-mount pressfit design
- Perfect for placement in car A-pillars
- Center-to-center spacing as low as 1-3/4"
- Extremely flat and extended response
Dayton Audio ND20FA-6 3/4" Soft Dome Neodymium Tweeter
Don't let the low price fool you! This versatile tweeter is a huge step above the average "budget" tweeter. Conceived with line array thoughts in mind, it is finally possible to achieve the inter-driver spacing needed to minimize comb filtering out to nearly 20 kHz. But their uses don't stop at line arrays-- they have the sensitivity, smoothness, and power handling to individually do a two-way with most small woofers. Give them a try for your next budget or micro speaker-- you will be pleasantly surprised!
| Artikel-Nr.: | 275-030 |
|---|---|

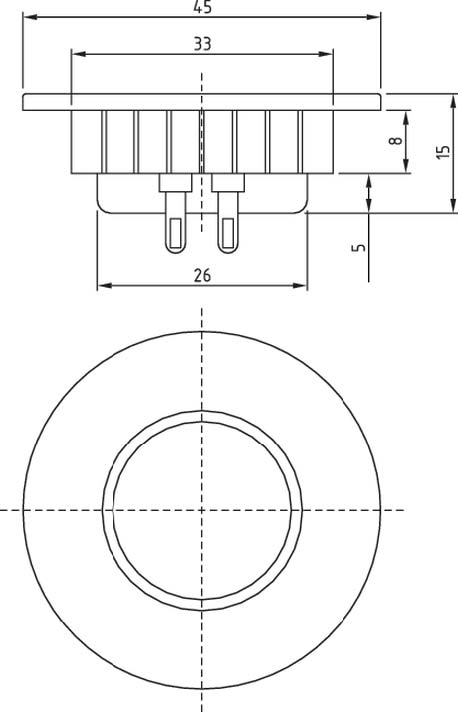

| Außenmaß: | 45mm |
| DC Resistance (Re): | 5,2 Ohm |
| EAN: | 844632000874 |
| Einbautiefe: | 15 mm |
| Einheit: | Stück |
| Elektrische Güte (Qes): | 288 |
| Frequenzbereich: | 3,500 bis 25,000Hz |
| Gesamtgüte (Qts): | 99 |
| Hochtöner Typ: | Kalotte |
| Impedanz (Z): | 6 Ohm |
| Marke: | Dayton Audio |
| Mechanische Güte (Qms): | 15 |
| Modell: | ND20FA-6 |
| Nennbelastbarkeit: | 15 Watt |
| Resonanzfrequenz (fs): | 2005Hz |
| Schwingspulenind. (Le): | 0,05mH |
| Sensitivität: | 90dB 2,83V/1m |
