Dayton Audio ND65-4

Dayton Audio ND65-4 2-1/2” Aluminum Cone Full-Range Neo Driver 4 Ohm Dayton Audio's compact ND65-4 aluminum cone full-range driver demonstrates the latest advances in high-excursion design processes. When teamed up with the matching ND series passive radiators this driver can produce incredible full sound from compact enclosures. Key Features Rubber-edged aluminum alloy cone Large excursion capability Self-shielded Neo-Balanced motor structure 4-layer underhung voice coil with polyimide former High power handling Dayton Audio ND65-4 2-1/2" Aluminum Cone Full-Range Neo Driver 4 Ohm Dayton Audio's compact ND65-4 aluminum cone driver demonstrates the latest advances in high-excursion design processes. An efficient, low-distortion Neo-Balanced motor is combined with a rigid yet lightweight aluminum diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source speaker applications, or combined in multiples and line arrays.

Dayton Audio RS100-4

Dayton Audio RS100-4 4” Reference Full-Range Driver 4 Ohm The Dayton Audio RS100-4 4" driver is a sleek and durable unit that never compromises on sound quality. The compact size and exceptional performance make it an ideal choice for building portable DIY speakers. It is perfect for replacing the speaker of your audio systems at home or in your car. Key Features Full-range capability allows reproduction of low to high frequency range as much as possible Low-distortion motor system for clear and crisp sound Long-excursion motor and low-loss rubber surround ensures incredible bass performance Heavy-duty 6-hole cast aluminum frame for exceptional durability Great for building compact DIY speakers Sophisticated design for a rich visual appeal Ideal replacement for RS100S-8 4" reference shielded full-range driver   Dayton Audio RS100-4 4" Reference Full-Range Driver 4 Ohm Versatile and powerful, the Dayton Audio RS100-4 4" Reference Full-Range Driver 4 is ideal for your DIY speaker or as a replacement for your existing speaker. Its low-distortion motor system delivers amazing sound with exceptional clarity. Long-excursion characteristics and low-loss rubber surround offer powerful and deep bass performance. The woofer features anodized aluminium cone and heavy-duty cast aluminum frame for rigidity, solid aluminum phase plug for high-frequency response and gold terminals for better connectivity offering you quality sound performance.

Dayton Audio ND91-4

Dayton Audio ND91-4 3-1/2” Aluminum Cone Full-Range Neo Driver 4 Ohm The low distortion and high excursion capabilities of the Dayton Audio ND91-4 3-1/2" full-range driver make it an ideal candidate for miniature point-source monitors, surround speakers, and line arrays. When teamed up with the matching ND series passive radiators this driver can produce incredible full sound from compact enclosures. Key Features Low distortion, full-range 65 Hz to 17 kHz performance Rubber-edged black anodized aluminum alloy cone Large excursion capability—4.6 mm Xmax, 25 mm peak Self-shielded Neo-Balanced motor structure with copper alloy shorting ring 1" 4-layer underhung voice coil with polyimide former 30 watts RMS power handling Great for line arrays and micro monitors Dayton Audio ND91-4 3-1/2" Aluminum Cone Full-Range Neo Driver 4 Ohm Dayton Audio's ND91 aluminum cone full-range drivers are the latest addition to the acclaimed ND Series high output/low distortion neodymium transducers. By increasing the original ND90's voice coil diameter from 3/4" to 1" and adding a copper alloy shorting ring, the ND91-4 features even lower distortion and delivers better bass impact and dynamic range—with peak Xmax up to 25 mm! This high-BL version further exploits the low distortion characteristics of the Neo-Balanced motor's optimized magnetic field, making the ND91 drivers an excellent choice for full-range point-source speaker enclosures, as well as extremely accurate, high resolution line arrays.

Dayton Audio RS150-4 6" Reference Woofer 4 Ohm

The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Woofer features a black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminum phase plug, and gold terminals.   Key Features 4 ohm impedance is perfect for series pairs in MTMs and center channel speakers Excellent car audio midrange/midbass High-end low-distortion motor with two shorting paths to reduce inductance The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing a low-distortion motor system with two short-circuit paths and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofer features a black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminum phase plug, and gold terminals.

Dayton Audio DC130B-8

Dayton Audio DC130B-8 5-1/4" Classic Woofer Speaker Dayton Audio's DC130B-8 5-1/4" Classic Series woofer is perfect for compact 2-way designs as well as use in multiples or transmission lines. Key Features Sturdy, easy-to-countersink round steel frame Coated paper cone provides smooth response and reduced cone breakup Aluminum voice coil former for high power handling Large diameter flat spider and good Xmax for clean bass Suitable for sealed or vented enclosures Dayton Audio DC130B-8 5-1/4" Classic Woofer Speaker One of the main design goals at Dayton Audio is to create loudspeakers that can achieve high levels of performance at reasonable prices. The Dayton Audio DC130B-8 5-1/4" woofer is a great example of this approach. It features a non-pressed treated paper cone, rubber half-roll surround, ASV voice coil, coated cloth dust cap, and excellent low frequency response.

Dayton Audio PS220-8

Dayton Audio PS220-8 8” Point Source Full-Range Neo Driver The Dayton Audio PS Series drivers do it all: true bass, articulate midrange, and balanced, extended highs. Key Features High sensitivity/minimal distortion—an ideal match for lower powered amplifiers Parasitic HF cone and carefully engineered phase plug extend on- and off-axis response Solid bass performance, thanks to usefully high excursion capability (4.8 mm Xmax) Optimized neodymium magnet provides high motor strength Low-mass copper clad aluminum voice coil Copper cap and copper ring on pole piece reduce inductance and distortion Kevlar reinforced paper cone is lightweight yet rigid and well controlled Dayton Audio PS220-8 8" Point Source Full-Range Neo Driver The Dayton Audio PS Series drivers do it all: true bass, articulate midrange, and balanced, extended highs. An intensive program of design and testing has yielded full-range speakers that feature high sensitivity and smooth response, both on- and off-axis. Although an ideal match for lower powered Class A and Class T designs, the PS220-8 8" driver's superb resolution and natural sound quality make it a viable option for an even wider variety of applications. The PS Series' audio performance is complemented by the speaker's striking appearance—they look great in dipole and other open back designs, too!

Dayton Audio TCP115-4

Dayton Audio TCP115-4 4” Treated Paper Cone Midbass With high excursion capabilities and low Fs, Dayton Audio's TCP115-4 can produce a surprising amount of bass for a 4" woofer. In addition to its low frequency performance, this driver also performs very well through the midrange, making this driver ideal for use in smaller 2-way designs. Key Features Aluminum former keeps voice coil cool for high power handling 1" diameter 4-layer voice coil improves power handling and low frequency response Extended pole piece creates symmetrical magnetic field for lower distortion Cosmetic low-profile mounting flange looks good without flush mounting Powerful motor for efficiency and compact enclosure Dayton Audio TCP115-4 4" Treated Paper Cone Midbass Woofer 4 Ohm The TCP115-4 combines a large motor, 1" 4-layer voice coil, vented pole, and a sizable rubber surround to make use of its 4 mm of XMAX. This combination of features makes it a very versatile driver which can be used as a bass driver in a small 2-way system, center channel, or even portable Bluetooth speaker designs.

Dayton Audio RS125-4

Dayton Audio RS125-4 5” Reference Woofer 4 Ohm The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Woofer features a black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminum phase plug, and gold terminals. Key Features 4 ohm impedance is perfect for series pairs in MTMs and center channel speakers Excellent car audio midrange/midbass High-end low-distortion motor with two shorting paths to reduce inductance Dayton Audio RS125-4 5" Reference Woofer 4 Ohm The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing a low-distortion motor system with two short-circuit paths and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofer features a black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminum phase plug, and gold terminals.

Dayton Audio SIG180-4 6.5” Signature Series Extended Range 80W Driver 4 Ohm

The Dayton Audio Signature Series was designed to give DIY speaker designers access to the pinnacle of speaker technology at the value expected from Dayton Audio. Featuring an open aluminum cast frame, anodized aluminum cone and a polyimide former, these drivers can provide extended range with incredibly low distortion. After hours of painstaking engineering and testing with meticulous attention to detail, we at Dayton Audio deem this driver line worthy of the endorsement of even the most critical audiophile. Key Features Extensive Klippel LMP and LSI testing to optimize Bl symmetry and parameters Indexed cone/surround junction for smooth transition/frequency response Polyimide formers and aluminum shorting sleeve for improved inductance, damping, and frequency response One piece concave black anodized aluminum cone Vented former and elevated spider for improved air flow Open aluminum cast frame for improved heat dissipation Countersunk stainless steel magnet badging for long time aesthetics Dayton Audio SIG180-4 6.5” Signature Series Extended Range 80W Driver 4 Ohm The Dayton Audio Signature Series was designed to give DIY speaker designers access to the pinnacle of speaker technology at the value expected from Dayton Audio. Featuring an open aluminum cast frame, anodized aluminum cone and a polyimide former, these drivers can provide extended range with incredibly low distortion. Key Specs Nominal Diameter: 6-1/2" Power Handling (RMS): 80 watts Power Handling (MAX): 160 watts Impedance: 4Ω Frequency Response: 40 - 4,000 Hz Sensitivity: 91.0 dB @ 2.83V/1m Voice Coil Diameter: 31.8mm Maximum Linear Excursion: 5mm Signature Sound and Performance The smooth and extended frequency response of these Dayton Audio speaker drivers ensures that the entire audible spectrum is accurately reproduced, from the lowest bass notes to the highest treble frequencies. This well-balanced frequency response delivers a natural and immersive listening experience, allowing you to hear every detail and nuance in your favorite music or movies. Meticulous Attention to Detail The speaker drivers' design, materials, and meticulous engineering work in harmony to minimize distortion, ensuring that the sound remains clean and clear even at high volumes. By achieving low distortion, these speaker drivers provide an accurate representation of the original audio signal, allowing audiophiles to enjoy a true-to-life listening experience with exceptional clarity and precision. The Signature Series speaker drivers used rigorous Klippel testing throughout the design process, a state-of-the-art analysis method to provide optimal performance, consistency, and reliability by precisely measuring and optimizing the drivers' magnetic and mechanical properties. Featuring the innovative use of aluminum shorting sleeves, our speakers deliver unmatched audio performance. These Faraday rings, expertly situated around the driver's pole piece, not only stabilize the magnetic field but also significantly reduce inductive distortion. The result? Consistent, high-quality sound in every note. Thanks to aluminum's superior conductivity, every audio signal is transmitted efficiently and without distortion. Indexed Cone and Surround Junction Diffraction caused by the abrupt edge of the surround is minimized by the use of an indexed junction. This design feature helps create a smooth transition between the cone and surround, resulting in improved frequency response while improving the rigidity of the cone further resulting in less cone distortion at high excursion. Vented Polyimide Former with CCA Voice Coil Wire and Elevated Spider Suspension The polyimide voice coil formers provide excellent mechanical damping and a smoother frequency response, and the copper-clad aluminum (CCA) wire reduces moving mass further enhancing the overall sound quality and increasing the efficiency of the speaker driver. An elevated spider and vented former increases airflow to the coils to keep the assembly running cool during long periods of use. Concave Black Anodized Aluminum Cone The aluminum construction of the cone is lightweight, rigid, and helps reduce distortion, contributing to a more accurate sound reproduction. The anodization process is optimized to contribute to the dampening of the cone and provides high aesthetic value to any speaker design. Open Aluminum Cast Frame and CNC'd Stainless-Steel Badging The aluminum cast frame keeps movement isolated to the diaphragm, increasing low frequency performance and providing additional thermal dissipation. Stainless-steel badging completes the sleek aesthetic of the Signature Series drivers providing a timeless visual appeal for every speaker designer.

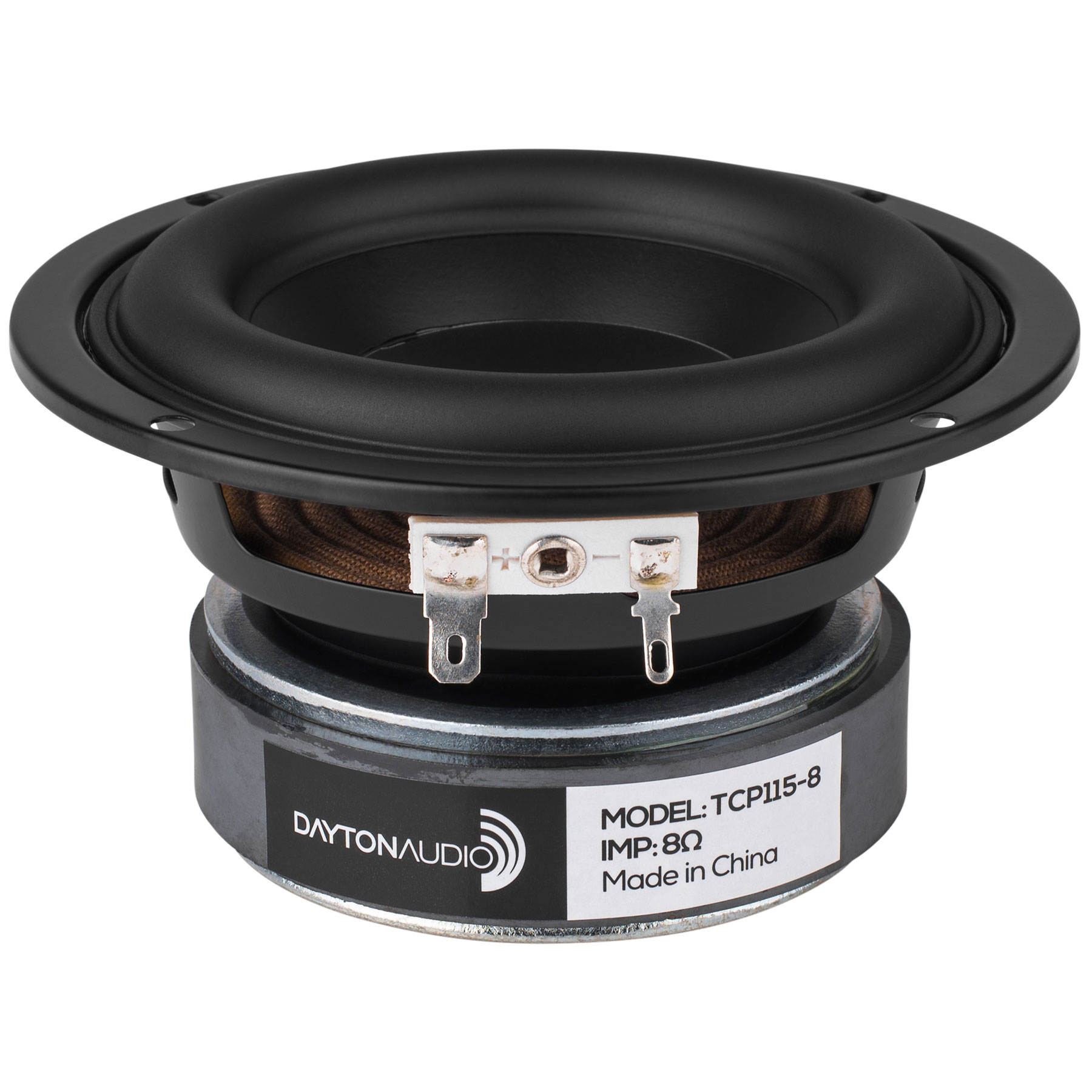

Dayton Audio TCP115-8

Dayton Audio TCP115-8 4” Treated Paper Cone Midbass With high excursion capabilities and low Fs, Dayton Audio's TCP115-8 can produce a surprising amount of bass for a 4" woofer. In addition to its low frequency performance, this driver also performs very well through the midrange, making this driver ideal for use in smaller 2-way designs. Key Features Aluminum former keeps voice coil cool for high power handling 1" diameter 4-layer voice coil improves power handling and low frequency response Extended pole piece creates symmetrical magnetic field for lower distortion Cosmetic low-profile mounting flange looks good without flush mounting Powerful motor for efficiency and compact enclosure Dayton Audio TCP115-8 4" Treated Paper Cone Midbass Woofer 8 Ohm The TCP115-4 combines a large motor, 1" 4-layer voice coil, vented pole, and a sizable rubber surround to make use of its 4 mm of XMAX. This combination of features makes it a very versatile driver which can be used as a bass driver in a small 2-way system, center channel, or even portable Bluetooth speaker designs.

Dayton Audio PC83-4

Dayton Audio PC83-4 2-1/2” Full-Range Poly Cone Driver 4 Ohm Dayton Audio's PC83-4 3" full-range driver will deliver smooth and natural response from extremely compact designs. When used in line arrays, portable speakers, sound bars, or as a dedicated midrange in 3-way designs this driver will prove to be an excellent value. Key Features Copper cap to keep inductance under control and extend high frequency response Poly damped woven glass fiber cone controls cone break-up and provides a smooth roll-off Smooth response with true full-range reproduction for simple speaker designs High energy ferrite magnet increases BL for higher efficiency and more output Great for MTM bookshelves, car audio, or line arrays   Dayton Audio PC83-4 3" Full-Range Poly Cone Driver The Dayton Audio PC83-4 3" full-range driver features a poly damped woven glass fiber cone, damped rubber surround, and high energy motor. The addition of a copper cap on the extended pole improves cone control, lowers inductance, and decreases distortion allowing for improved high frequency response. Offering great full-range performance, controlled off-axis response, and high efficiency, this driver will provide impressive output for its size. Perfect for use in line arrays, sound bars, portable speakers, or even car audio systems, the Dayton Audio PC83-4 will deliver high fidelity and low distortion from compact applications for an amazing value.

Dayton Audio ND91-8

Dayton Audio ND91-8 3-1/2” Aluminum Cone Full-Range Neo Driver 8 Ohm The low distortion and high excursion capabilities of the Dayton Audio ND91-8 3-1/2" full-range driver make it an ideal candidate for miniature point-source monitors, surround speakers, and line arrays. When teamed up with the matching ND series passive radiators this driver can produce incredible full sound from compact enclosures. Key Features Low distortion, full-range 65 Hz to 17 kHz performance Rubber-edged black anodized aluminum alloy cone Large excursion capability—4.6 mm Xmax, 25 mm peak Self-shielded Neo-Balanced motor structure with copper alloy shorting ring 1" 4-layer underhung voice coil with polyimide former 30 watts RMS power handling Great for line arrays and micro monitors Dayton Audio ND91-8 3-1/2" Aluminum Cone Full-Range Neo Driver 8 Ohm Dayton Audio's ND91 aluminum cone full-range drivers are the latest addition to the acclaimed ND Series high output/low distortion neodymium transducers. By increasing the original ND90's voice coil diameter from 3/4" to 1" and adding a copper alloy shorting ring, the ND91-8 features even lower distortion and delivers better bass impact and dynamic range—with peak Xmax up to 25 mm! This high-BL version further exploits the low distortion characteristics of the Neo-Balanced motor's optimized magnetic field, making the ND91 drivers an excellent choice for full-range point-source speaker enclosures, as well as extremely accurate, high resolution line arrays.

Dayton Audio SIG120-4

Dayton Audio SIG120-4 4” Signature Series Extended Range 40W Driver 4 Ohm The Dayton Audio Signature Series was designed to give DIY speaker designers access to the pinnacle of speaker technology at the value expected from Dayton Audio. Featuring an open aluminum cast frame, anodized aluminum cone and a polyimide former, these drivers can provide extended range with incredibly low distortion. After hours of painstaking engineering and testing with meticulous attention to detail, we at Dayton Audio deem this driver line worthy of the endorsement of even the most critical audiophile. Key Features Extensive Klippel LMP and LSI testing to optimize Bl symmetry and parameters Indexed cone/surround junction for smooth transition/frequency response Polyimide formers and aluminum shorting sleeve for improved inductance, damping, and frequency response One piece concave black anodized aluminum cone Vented former and elevated spider for improved air flow Open aluminum cast frame for improved heat dissipation Countersunk stainless steel magnet badging for long time aesthetics Dayton Audio SIG120-4 4” Signature Series Extended Range 40W Driver 4 Ohm The Dayton Audio Signature Series was designed to give DIY speaker designers access to the pinnacle of speaker technology at the value expected from Dayton Audio. Featuring an open aluminum cast frame, anodized aluminum cone and a polyimide former, these drivers can provide extended range with incredibly low distortion. Key Specs Nominal Diameter: 4" Power Handling (RMS): 40 watts Power Handling (MAX): 80 watts Impedance: 4Ω Frequency Response: 75 - 8,500 Hz Sensitivity: 89.7dB @ 2.83V/1m Voice Coil Diameter: 26.6mm Maximum Linear Excursion: 4mm Signature Sound and Performance The smooth and extended frequency response of these Dayton Audio speaker drivers ensures that the entire audible spectrum is accurately reproduced, from the lowest bass notes to the highest treble frequencies. This well-balanced frequency response delivers a natural and immersive listening experience, allowing you to hear every detail and nuance in your favorite music or movies. Meticulous Attention to Detail The speaker drivers' design, materials, and meticulous engineering work in harmony to minimize distortion, ensuring that the sound remains clean and clear even at high volumes. By achieving low distortion, these speaker drivers provide an accurate representation of the original audio signal, allowing audiophiles to enjoy a true-to-life listening experience with exceptional clarity and precision. The Signature Series speaker drivers used rigorous Klippel testing throughout the design process, a state-of-the-art analysis method to provide optimal performance, consistency, and reliability by precisely measuring and optimizing the drivers' magnetic and mechanical properties. Featuring the innovative use of aluminum shorting sleeves, our speakers deliver unmatched audio performance. These Faraday rings, expertly situated around the driver's pole piece, not only stabilize the magnetic field but also significantly reduce inductive distortion. The result? Consistent, high-quality sound in every note. Thanks to aluminum's superior conductivity, every audio signal is transmitted efficiently and without distortion. Indexed Cone and Surround Junction Diffraction caused by the abrupt edge of the surround is minimized by the use of an indexed junction. This design feature helps create a smooth transition between the cone and surround, resulting in improved frequency response while improving the rigidity of the cone further resulting in less cone distortion at high excursion. Vented Polyimide Former with CCA Voice Coil Wire and Elevated Spider Suspension The polyimide voice coil formers provide excellent mechanical damping and a smoother frequency response, and the copper-clad aluminum (CCA) wire reduces moving mass further enhancing the overall sound quality and increasing the efficiency of the speaker driver. An elevated spider and vented former increases airflow to the coils to keep the assembly running cool during long periods of use. Concave Black Anodized Aluminum Cone The aluminum construction of the cone is lightweight, rigid, and helps reduce distortion, contributing to a more accurate sound reproduction. The anodization process is optimized to contribute to the dampening of the cone and provides high aesthetic value to any speaker design. Open Aluminum Cast Frame and CNC'd Stainless-Steel Badging The aluminum cast frame keeps movement isolated to the diaphragm, increasing low frequency performance and providing additional thermal dissipation. Stainless-steel badging completes the sleek aesthetic of the Signature Series drivers providing a timeless visual appeal for every speaker designer.

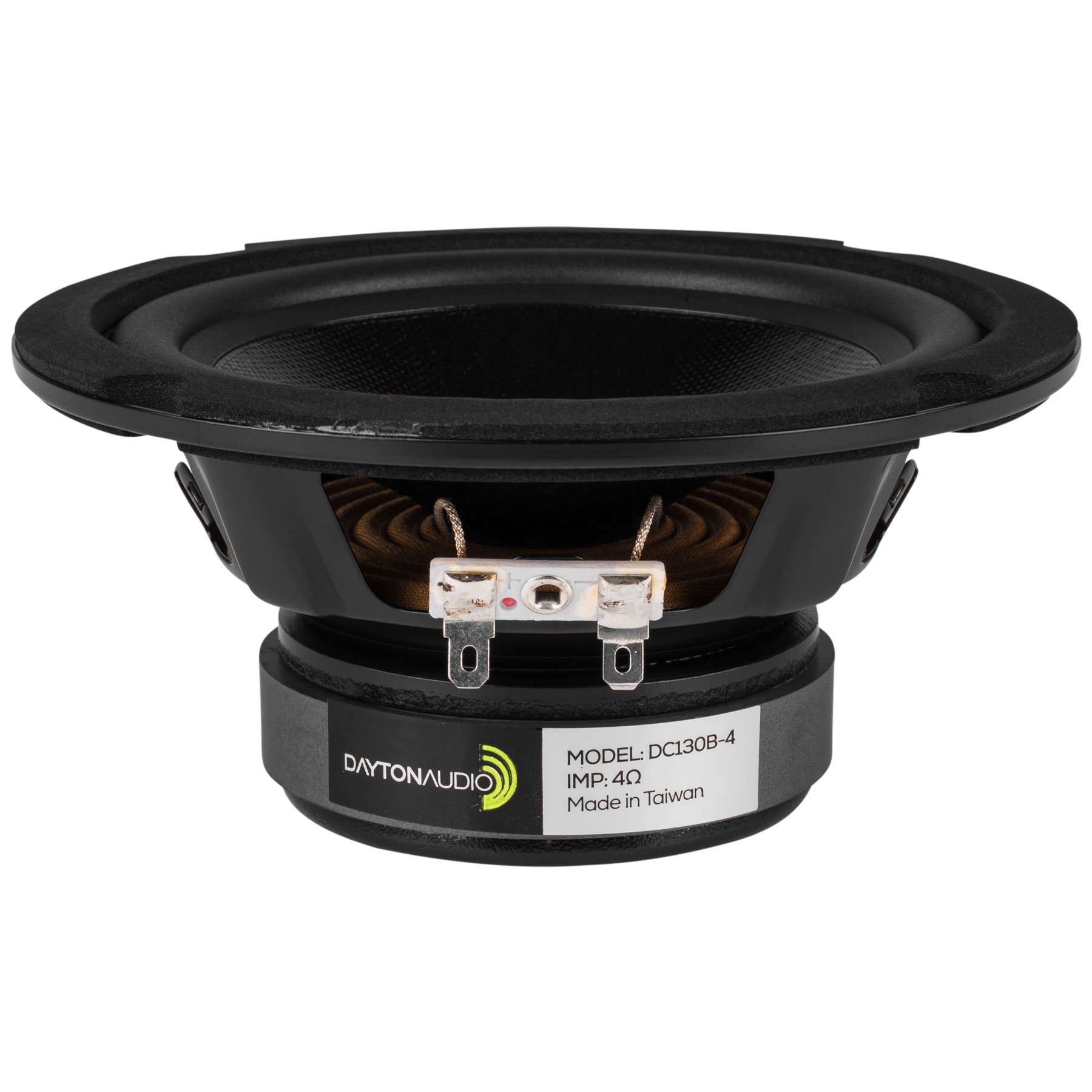

Dayton Audio DC130B-4

Dayton Audio DC130B-4 5-1/4" Classic Woofer Speaker The Dayton Audio DC130B-4 5-1/4" woofer is a 4 ohm, round frame version of the popular Classic Series DC130 drivers. Key Features Sturdy, easy-to-countersink round steel frame 4 ohm impedance offers alternative load possibilities Coated paper cone provides smooth response and reduced cone breakup Aluminum VC former and vented pole piece for high power handling Large diameter flat spider and good Xmax for clean bass Suitable for sealed or vented enclosures   Dayton Audio DC130B-4 5-1/4" Classic Woofer Speaker One of the main design goals at Dayton Audio is to create loudspeakers that can achieve high levels of performance at reasonable prices. The Dayton Audio DC130B-4 5-1/4" woofer is a great example of this approach. It features a non-pressed treated paper cone, rubber half-roll surround, ASV voice coil, vented pole piece, coated cloth dust cap, and excellent low frequency response.

Dayton Audio SIG150-4 5.25” Signature Series Woofer 60W Driver 4 Ohm

The Dayton Audio Signature Series was designed to give DIY speaker designers access to the pinnacle of speaker technology at the value expected from Dayton Audio. Featuring an open aluminum cast frame, anodized aluminum cone and a polyimide former, these drivers can provide extended range with incredibly low distortion. After hours of painstaking engineering and testing with meticulous attention to detail, we at Dayton Audio deem this driver line worthy of the endorsement of even the most critical audiophile. Key Features Extensive Klippel LMP and LSI testing to optimize Bl symmetry and parameters Indexed cone/surround junction for smooth transition/frequency response Polyimide formers and aluminum shorting sleeve for improved inductance, damping, and frequency response One piece concave black anodized aluminum cone Vented former and elevated spider for improved air flow Open aluminum cast frame for improved heat dissipation Countersunk stainless steel magnet badging for long time aesthetics Dayton Audio SIG150-4 5.25” Signature Series Extended Range 60W Driver 4 Ohm The Dayton Audio Signature Series was designed to give DIY speaker designers access to the pinnacle of speaker technology at the value expected from Dayton Audio. Featuring an open aluminum cast frame, anodized aluminum cone and a polyimide former, these drivers can provide extended range with incredibly low distortion. Key Specs Nominal Diameter: 5-1/4" Power Handling (RMS): 60 watts Power Handling (MAX): 120 watts Impedance: 4Ω Frequency Response: 60 - 4,000 Hz Sensitivity: 91.1 dB @ 2.83V/1m Voice Coil Diameter: 26.7mm Maximum Linear Excursion: 4mm Signature Sound and Performance The smooth and extended frequency response of these Dayton Audio speaker drivers ensures that the entire audible spectrum is accurately reproduced, from the lowest bass notes to the highest treble frequencies. This well-balanced frequency response delivers a natural and immersive listening experience, allowing you to hear every detail and nuance in your favorite music or movies. Meticulous Attention to Detail The speaker drivers' design, materials, and meticulous engineering work in harmony to minimize distortion, ensuring that the sound remains clean and clear even at high volumes. By achieving low distortion, these speaker drivers provide an accurate representation of the original audio signal, allowing audiophiles to enjoy a true-to-life listening experience with exceptional clarity and precision. The Signature Series speaker drivers used rigorous Klippel testing throughout the design process, a state-of-the-art analysis method to provide optimal performance, consistency, and reliability by precisely measuring and optimizing the drivers' magnetic and mechanical properties. Featuring the innovative use of aluminum shorting sleeves, our speakers deliver unmatched audio performance. These Faraday rings, expertly situated around the driver's pole piece, not only stabilize the magnetic field but also significantly reduce inductive distortion. The result? Consistent, high-quality sound in every note. Thanks to aluminum's superior conductivity, every audio signal is transmitted efficiently and without distortion. Indexed Cone and Surround Junction Diffraction caused by the abrupt edge of the surround is minimized by the use of an indexed junction. This design feature helps create a smooth transition between the cone and surround, resulting in improved frequency response while improving the rigidity of the cone further resulting in less cone distortion at high excursion. Vented Polyimide Former with CCA Voice Coil Wire and Elevated Spider Suspension The polyimide voice coil formers provide excellent mechanical damping and a smoother frequency response, and the copper-clad aluminum (CCA) wire reduces moving mass further enhancing the overall sound quality and increasing the efficiency of the speaker driver. An elevated spider and vented former increases airflow to the coils to keep the assembly running cool during long periods of use. Concave Black Anodized Aluminum Cone The aluminum construction of the cone is lightweight, rigid, and helps reduce distortion, contributing to a more accurate sound reproduction. The anodization process is optimized to contribute to the dampening of the cone and provides high aesthetic value to any speaker design. Open Aluminum Cast Frame and CNC'd Stainless-Steel Badging The aluminum cast frame keeps movement isolated to the diaphragm, increasing low frequency performance and providing additional thermal dissipation. Stainless-steel badging completes the sleek aesthetic of the Signature Series drivers providing a timeless visual appeal for every speaker designer.

Dayton Audio CE Series CE65W-8 2-1/2" Shielded Extended Range Driver 8 Ohms

The economical, compact CE65W-8 extended-range woofer from Dayton Audio features a woven glass-fiber cone, rubber surround, and ferrite magnet motor assembly with shielding magnet. It offers great performance in a variety of small music-oriented audio systems. Key Features Usable as a full-range driver or small woofer Woven glass fiber cone for excellent sonic detail Robust, compact design Shielded magnet for use near sensitive electronic parts Dayton Audio's CE65W-8 2-1/2" shielded extended range driver excels in wide-range speaker or "mini-woofer" applications. The woven fiberglass cone and rubber surround provide a wide operating frequency range, enabling this driver to be used as either a woofer or full-range driver. Its bucking magnet provides video shielding for operation near legacy CRT monitors without causing magnetic interference, and the stamped frame and cotton spider ensure reliable, properly aligned operation for years. It is the perfect choice for multimedia applications, line arrays, or compact hi-fi loudspeakers. The Commercial Engineering (CE) Series drivers from Dayton Audio provide engineers, designers, and integrators with a line of economical small drivers that fit the diverse range of applications found in consumer electronics and audio-enabled electronic projects. Multiple types and styles are available within the CE Series family of drivers, to suit a wide spectrum of engineering requirements.

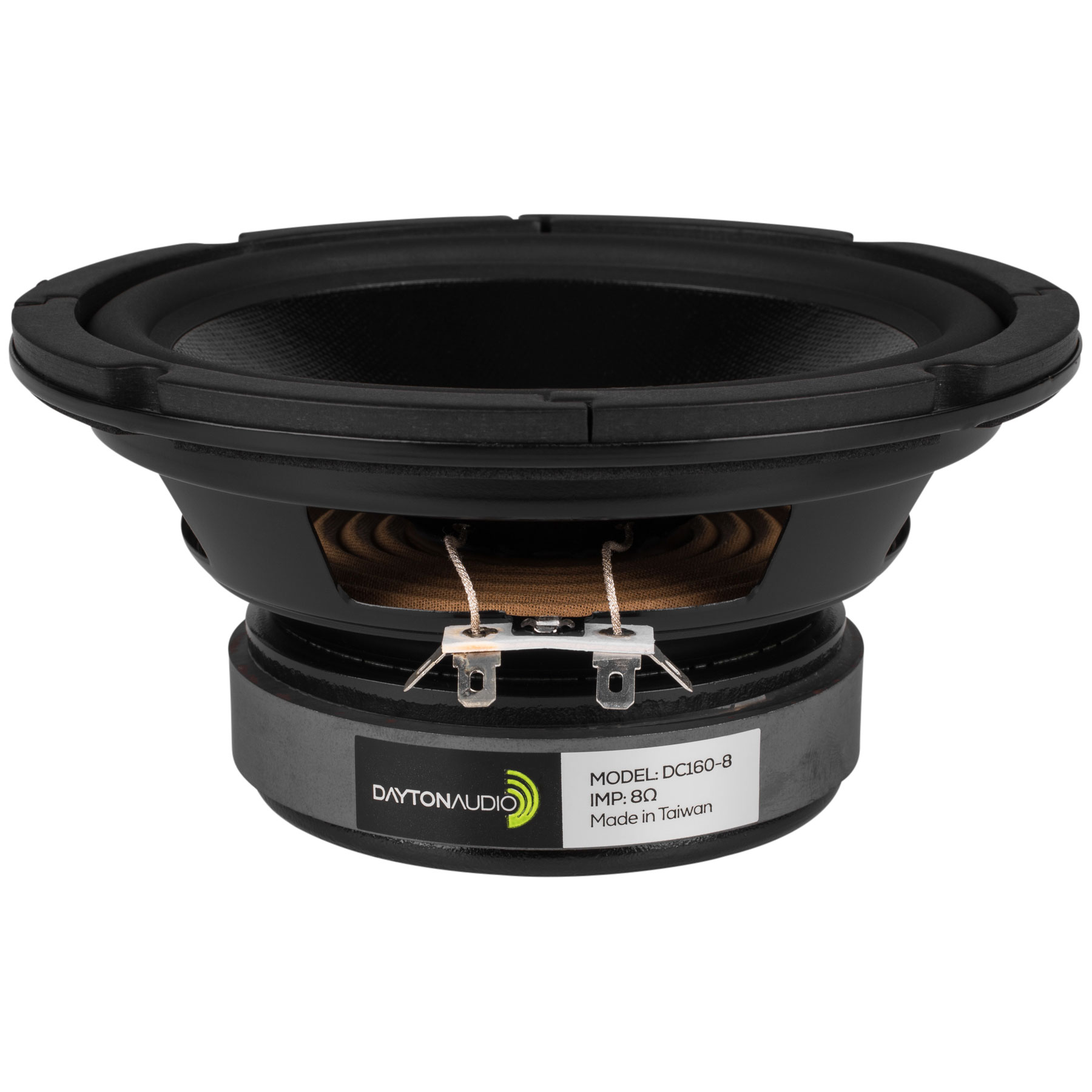

Dayton Audio DC160-8

Dayton Audio DC160-8 6-1/2" Classic Woofer Choose the Dayton Audio DC160-8 Classic Series 6-1/2" woofer for use as a great replacement bookshelf speaker, midbass in 3-way designs, or even as a small subwoofer. Key Features Great bang-for-the-buck driver can be used as a woofer, midbass, or even as a small subwoofer! Smooth frequency response up to 2 kHz and great bass response Rubber surround, aluminum voice coil, and extended bump plate Low 34 Hz free-air resonance   Dayton Audio DC160-8 6-1/2" Classic Woofer Dayton Audio Classic Series woofers are excellent for use as replacement speakers or for new loudspeaker system design and construction. The DC160-8 6-1/2" woofer has developed quite a reputation for having the best bang-for-the-buck performance and value available anywhere. You can even be use the DC160-8 as a small subwoofer! The excellent low frequency performance will amaze you. A non-pressed treated paper cone allows for smooth frequency response, while the high temperature aluminum voice coil and vented pole piece combine to increase power handling without compression. Longevity is ensured with the use of a rubber surround, treated cloth dust cap, and an extended bump plate.

Dayton Audio RS75-4

Dayton Audio RS75-4 3” Reference Full-Range Driver 4 Ohm Incorporating a low-distortion motor system with a copper ring, a copper cap, and an aluminum phase plug, the RS75-4 can outperform "boutique" drivers that cost several times the price. Key Features Full-range performance Low distortion and high resolution Aluminum frame, aluminum cone, rubber surround Distortion-reducing copper ring, copper cap, and aluminum phase plug Subtle yet high-tech look makes a bold cosmetic statement Designed and engineered in USA Dayton Audio RS75-4 3" Reference Full-Range Driver 4 Ohm The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Incorporating a low-distortion motor system with a copper ring, a copper cap, and an aluminum phase plug, the RS75-4 can outperform "boutique" drivers that cost several times the price. Its low-distortion characteristics and smooth response provide exceptional clarity, detail, and dynamics. Features a black anodized cone, heavy-duty 4-hole cast frame, low-loss rubber surround, and gold terminals.

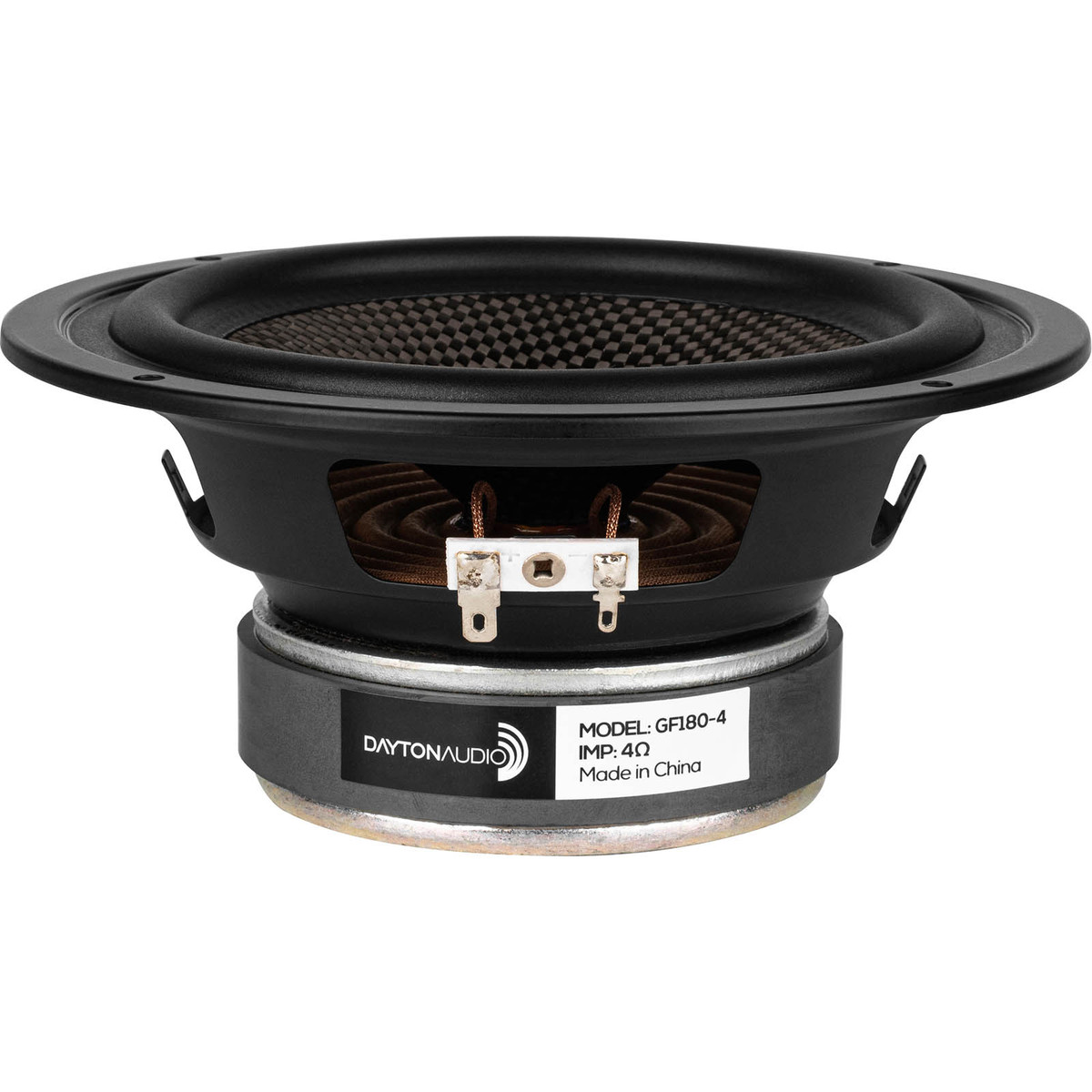

Dayton Audio GF180-4

Dayton Audio GF180-4 6-1/2" Glass Fiber Cone Woofer 4 Ohm Dayton Audio’s GF180-4 6-1/2” glass fiber cone woofer is built to produce powerful bass with smooth midrange response. The woven fiberglass cone and rubber surround damps cone resonances allowing an easy transition to tweeters when crossed over at 2,000 Hz. This affordable woofer is a great choice for 2-way bookshelf speaker designs. Key Features Woven fiberglass cone lowers resonances for smooth response and natural sound 4-layer voice coil on an aluminum former provides excellent heat dissipation Rubber surround helps damp the outside edge of the cone improving high frequency response Vented pole piece releases air trapped under the dustcap for quiet operation Low-profile frame minimizes diffraction making these drivers suitable for surface mount applications Dayton Audio GF180-4 6-1/2" Glass Fiber Cone Woofer 4 Ohm With flat response to 4,000 Hz and excellent low frequency extension, the GF180-4 6-1/2” glass fiber cone woofer from Dayton Audio is ideal for use in low cost 2-ways speaker designs. The naturally damped woven fiberglass cone is driven by a 4-layer voice coil wound on an aluminum former. This driver is a great choice for your next bookshelf speaker, multiple driver tower, or even portable sound systems

Dayton Audio PC83-8

Dayton Audio PC83-8 3” Full-Range Poly Cone Driver 8 Ohm Dayton Audio's PC83-8 3" full-range driver will deliver smooth and natural response from extremely compact designs. When used in line arrays, portable speakers, sound bars, or as a dedicated midrange in 3-way designs this driver will prove to be an excellent value. Key Features Copper cap to keep inductance under control and extend high frequency response Poly damped woven glass fiber cone controls cone break-up and provides a smooth roll-off Smooth response with true full-range reproduction for simple speaker designs High energy ferrite magnet increases BL for higher efficiency and more output Great for MTM bookshelves, car audio, or line arrays   Dayton Audio PC83-8 3" Full-Range Poly Cone Driver The Dayton Audio PC83-8 3" full-range driver features a poly damped woven glass fiber cone, damped rubber surround, and high energy motor. The addition of a copper cap on the extended pole improves cone control, lowers inductance, and decreases distortion allowing for improved high frequency response. Offering great full-range performance, controlled off-axis response, and high efficiency, this driver will provide impressive output for its size. Perfect for use in line arrays, sound bars, portable speakers, or even car audio systems, the Dayton Audio PC83-8 will deliver high fidelity and low distortion from compact applications for an amazing value.

Dayton Audio RS180-8 7" Reference Woofer

Dayton Audio Reference Series RS180-8 7" woofers deliver exceptional clarity, detail, and dynamics--and of course, incredibly low distortion.   Key Features One of the lowest distortion, highest resolution driver series available Low-distortion high-excursion motor system with two short-circuit paths Compliant suspension and rigid black anodized aluminum cone for strong bass performance Heavy-duty 6-hole cast frame, low-loss rubber surround, and solid aluminum phase plug Designed and engineered in the USA The Dayton Audio Reference Series was conceived with one goal in mind—low distortion. Each speaker was carefully designed and optimized to offer the highest performance with the lowest distortion levels. At the same time, by focusing on features that contribute to sound quality and eliminating unnecessary frills, the drivers offer value unparalleled in the industry. Dayton Audio Reference Series RS180-8 7" woofers deliver exceptional clarity, detail, and dynamics—and of course, incredibly low distortion.

Dayton Audio RS180P-8 7" Reference Paper Woofer 8 Ohm

Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with super smooth frequency response due to the use of a proprietary cone blend.   Key Features Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers Similar cosmetics and design features as original Reference Series with low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminum phase plug Perfect as woofers, midwoofers, or dedicated midrange drivers 6 mm Xmax and 89 dB sensitivity The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.

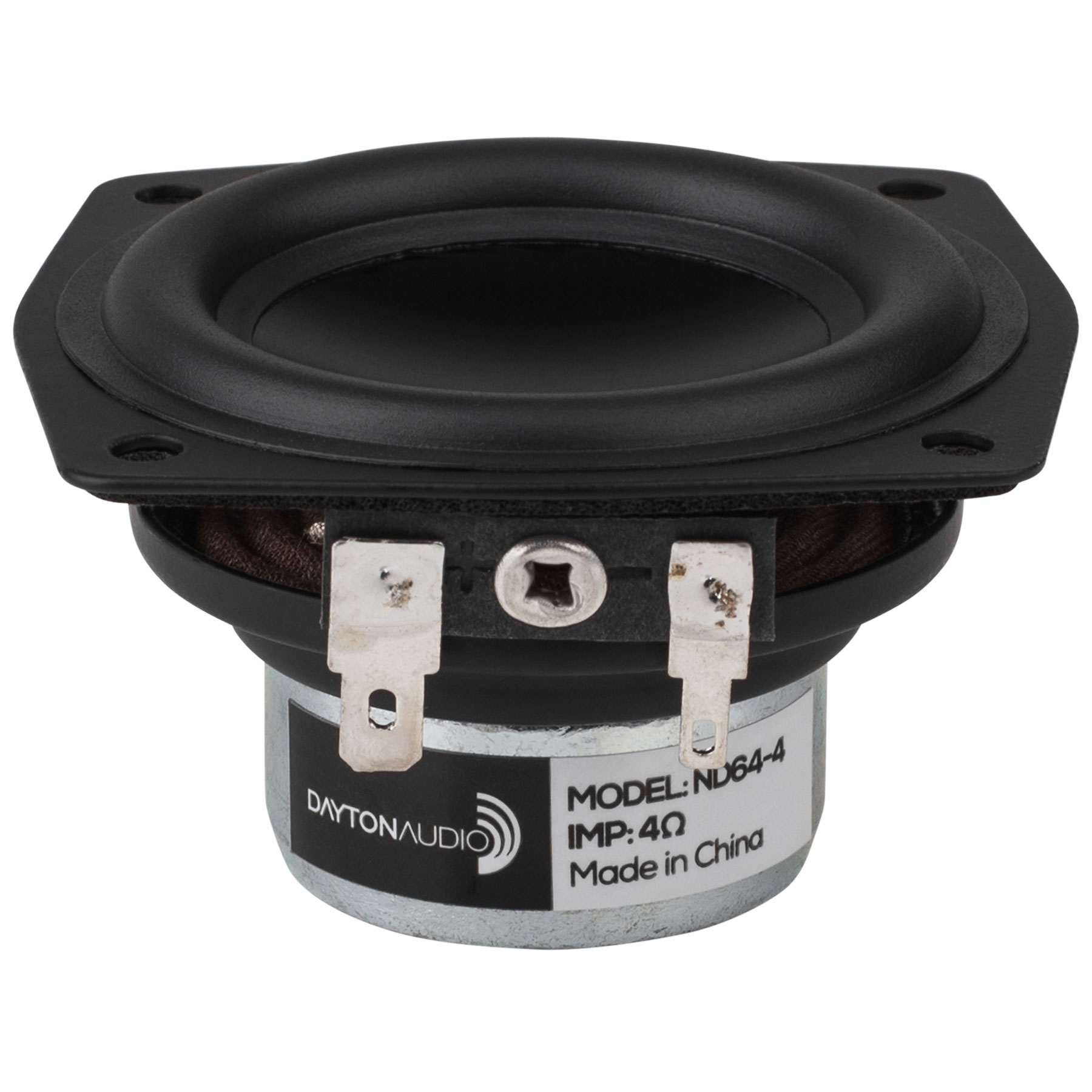

Dayton Audio ND64-4

Dayton Audio ND64-4 2-1/2” Aluminum Cone Full-Range Neo Driver 4 Ohm Dayton Audio’s ND64-4 is truly a full-range, low distortion driver and capable of over 6 mm of peak-to-peak excursion. When teamed up with the matching ND series passive radiators this driver can produce incredible full sound from compact enclosures. Key Features Rubber-edged aluminum magnesium alloy cone Dual neodymium motor structure 4-layer voice coil with polyimide former Copper sleeve to minimize distortion High power handling Dayton Audio ND64-4 2-1/2" Aluminum Magnesium Cone Full-Range Neo Driver 4 Ohm Dayton Audio’s ND64-4 is truly a full-range driver and capable of over 6 mm of peak-to-peak excursion. It features a dual neodymium magnet structure, a 3/4" CCAW voice coil, and a copper sleeve to minimize distortion. An efficient, low-distortion neodymium motor is combined with a rigid yet lightweight aluminum magnesium diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source speaker applications, or combined in multiples in line array designs.

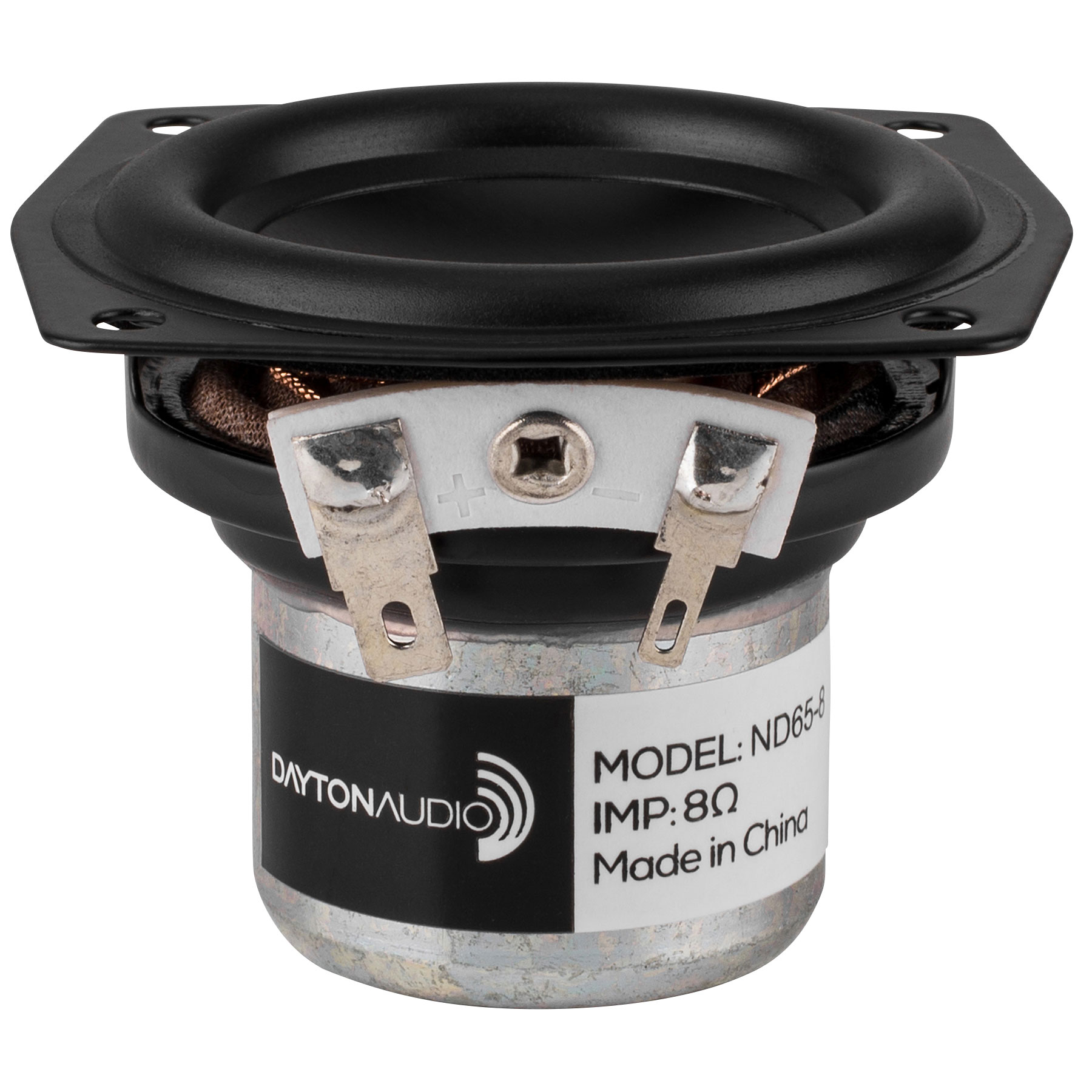

Dayton Audio ND65-8

Dayton Audio ND65-8 2-1/2” Aluminum Cone Full-Range Neo Driver 8 Ohm Dayton Audio's compact ND65-8 aluminum cone full-range driver demonstrates the latest advances in high-excursion design processes. When teamed up with the matching ND series passive radiators this driver can produce incredible full sound from compact enclosures. Key Features Rubber-edged aluminum alloy cone Large excursion capability Self-shielded Neo-Balanced motor structure 4-layer underhung voice coil with polyimide former High power handling   Dayton Audio ND65-8 2-1/2" Aluminum Cone Full-Range Neo Driver 8 Ohm Dayton Audio's compact ND65-8 aluminum cone driver demonstrates the latest advances in high-excursion design processes. An efficient, low-distortion Neo-Balanced motor is combined with a rigid yet lightweight aluminum diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source speaker applications, or combined in multiples and line arrays.

Dayton Audio SIG225-4

Test in Hobby HiFi 4-5/2024 Dayton Audio SIG225-4 8" Signature Series, Tieftöner 100W 4 Ohm Dayton Audio SIG225-4 8-Zoll-Treiber der Signature-Serie mit erweitertem Frequenzumfang. Die Dayton Audio Signature-Serie wurde entwickelt, um Heimwerker-Lautsprecherdesignern Zugang zur Spitze der Lautsprechertechnologie zu dem von Dayton Audio erwarteten Preis zu ermöglichen. Ausgestattet mit einem offenen Aluminiumgusskorb, einer eloxierten Aluminiummembran und einem Polyimid-Träger bieten diese Treiber eine größeren Frequenzumfang bei unglaublich geringer Verzerrung. Spezifikationen: Nenndurchmesser: 8" Belastbarkeit (RMS): 100 Belastbarkeit (MAX): 200 Impedanz: 4Ω Frequenzgang: 40Hz-3000Hz Empfindlichkeit: 91,2 dB bei 2,83 V/1 m Schwingspulendurchmesser: 2" Maximale lineare Auslenkung: 6 mm Der gleichmäßige und erweiterte Frequenzgang dieser Dayton Audio-Lautsprecherchassis sorgt dafür, dass das gesamte Hörspektrum von den tiefsten Bassnoten bis zu den höchsten Mitteltonbereich präzise wiedergegeben wird. Dieser ausgewogene Frequenzgang sorgt für ein natürliches und intensives Hörerlebnis, sodass Sie jedes Detail und jede Nuance Ihrer Lieblingsmusik oder -filme hören können. Akribische Liebe zum Detail; Das Design, die Materialien und die sorgfältige Konstruktion der Lautsprechertreiber arbeiten harmonisch zusammen, um Verzerrungen zu minimieren und sicherzustellen, dass der Klang auch bei hohen Lautstärken sauber und klar bleibt. Durch die Erzielung einer geringen Verzerrung bieten diese Lautsprecherchassis eine genaue Darstellung des ursprünglichen Audiosignals, sodass Audiophile ein naturgetreues Hörerlebnis mit außergewöhnlicher Klarheit und Präzision genießen können. Die Lautsprecherchassis der Signature-Serie wurden während des gesamten Designprozesses strengen Klippel-Tests unterzogen, einer hochmodernen Analysemethode, um optimale Leistung, Konsistenz und Zuverlässigkeit durch präzise Messung und Optimierung der magnetischen und mechanischen Eigenschaften der Treiber zu gewährleisten. Invers Kalotten-Membran- und Sicken-Anschluss; Die durch die abrupte Kante der Einfassung verursachte Beugung wird durch die Verwendung einer indexierten Verbindung minimiert. Dieses Designmerkmal trägt dazu bei, einen sanften Übergang zwischen Konus und Sicke zu schaffen, was zu einem verbesserten Frequenzgang führt und gleichzeitig die Steifigkeit des Konus weiter verbessert, was zu einer geringeren Konusverzerrung bei hoher Auslenkung führt. Belüfteter Polyimid-Schwingspulenträger mit CCA-Schwingspulendraht und erhöhter Spinnenaufhängung. Der Polyimid-Schwingspulenkörper sorgt für eine hervorragende mechanische Dämpfung und einen gleichmäßigeren Frequenzgang, und der kupferkaschierte Aluminiumdraht (CCA) reduziert die bewegte Masse, was die Gesamtklangqualität weiter verbessert, und die Effizienz des Lautsprechertreibers erhöht. Eine erhöhte Spinne und ein belüfteter Schwingspulenträger erhöhen den Luftstrom zu den Spulen, um die Baugruppe bei längerem Gebrauch kühl zu halten. Konkaver (Invers), schwarz eloxierte Aluminiummembran; Die Aluminiumkonstruktion der Kugelsegment-membran ist leicht, steif und trägt zur Reduzierung von Verzerrungen bei, was zu einer genaueren Klangwiedergabe beiträgt. Der Eloxierungsprozess ist so optimiert, dass er zur Dämpfung der Membran beiträgt und jedem Lautsprecherdesign einen hohen ästhetischen Wert verleiht. Offener Aluminiumgusskorb und Edelstahlplakette; Der Aluminiumgusskorb hält die Bewegung isoliert von der Membran, erhöht die Leistung bei niedrigen Frequenzen und sorgt für zusätzliche Wärmeableitung. Die Edelstahlplakette vervollständigt die elegante Ästhetik der Treiber der Signature-Serie und bietet jedem Lautsprecherdesigner einen zeitlosen optischen Reiz.

Dayton Audio RS125P-8

Dayton Audio RS125P-8 5” Reference Paper Woofer Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with super smooth frequency response due to the use of a proprietary cone blend. Key Features Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers Similar cosmetics and design features as original Reference Series with low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminum phase plug Perfect for use as a woofer, midwoofer, or dedicated midrange driver 4 mm of Xmax and 85.8 dB sensitivity Dayton Audio RS125P-8 5" Reference Paper Woofer 8 Ohm The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.

Dayton Audio PC105-4

Dayton Audio PC105-4 4” Full-Range Poly Cone Driver 4 Ohm Dayton Audio's PC105-4 4" full-range driver will deliver smooth and natural response from extremely compact designs. When used in line arrays, portable speakers, sound bars, or as a dedicated midrange in 3-way designs this driver will prove to be an excellent value. Key Features Poly damped woven glass fiber cone controls cone break-up and provides a smooth roll-off Copper cap keeps inductance under control and extends high frequency response 1" vented aluminum voice coil former and vented pole piece for high power handling High energy ferrite magnet increases BL for higher efficiency and more output Smooth response with true full-range reproduction for simple speaker designs    Dayton Audio PC105-4 4" Full-Range Poly Cone Driver The Dayton Audio PC105-4 4" full-range driver features a poly damped woven glass fiber cone, damped rubber surround, and high energy motor. Thanks to the vented pole piece and vented aluminum voice coil former the PC105-4 can handle up to 40 watts RMS for surprising output capability with minimal power compression. The addition of a copper cap on the extended pole improves cone control, lowers inductance, and decreases distortion allowing for improved high frequency response. Offering great full-range performance, controlled off-axis response, and high efficiency, this driver will provide impressive output for its size. Perfect for use in line arrays, sound bars, portable speakers, or even car audio systems, the Dayton Audio PC105-4 will deliver high fidelity and low distortion from compact applications.

Dayton Audio DSA135-8

Dayton Audio DSA135-8 5" Designer Series Aluminum Cone Woofer The Designer Series DSA135-8 from Dayton Audio brings great audio fidelity and superior cosmetics to the 5" woofer category. Key Features Cosmetic frame with low profile lip, designed for front mounting — no countersinking required! Low distortion motor system with copper shorting ring Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction Smooth frequency response and linear roll-off simplify filter design Vented pole piece for minimized power compression and maximized reliability Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators Generous Xmax capability encourages use of moderate bass boost to tailor the response Dayton Audio DSA135-8 5" Designer Series Aluminum Cone Woofer The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies — without exceeding Xmax. These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

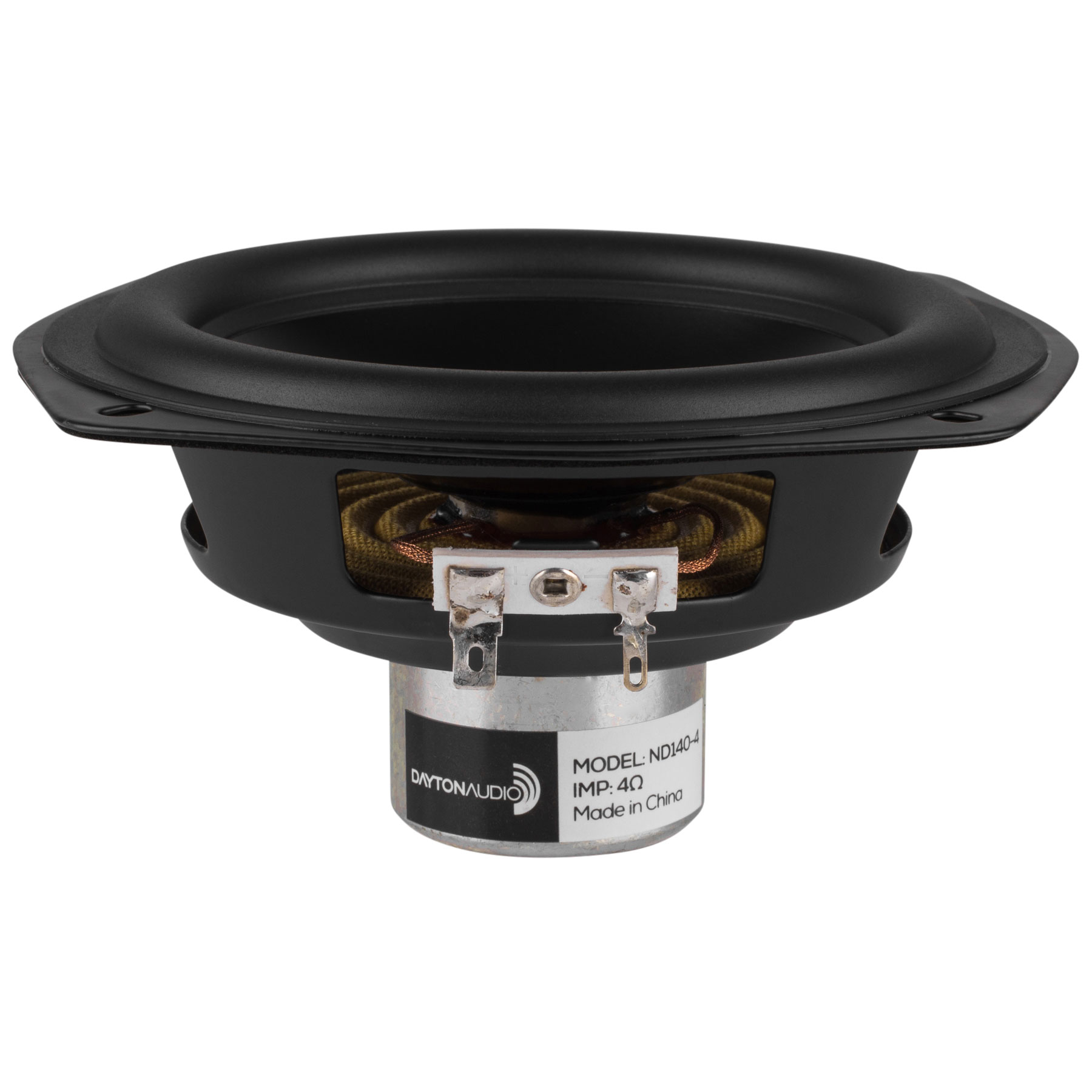

Dayton Audio ND140-4

Dayton Audio ND140-4 4” Aluminum Cone Midbass Neo Driver 4 Ohm Dayton Audio's ND140-4 compact aluminum cone driver demonstrates the latest advances in high-excursion design processes. When teamed up with the matching ND series passive radiators this driver can produce incredible full sound from compact enclosures. Key Features Extended-range 54 Hz to 8 kHz performance Rubber-edged aluminum alloy cone Large excursion capability—4 mm Xmax, 20 mm peak Self-shielded Neo-Balanced motor structure 1" 4-layer underhung voice coil with polyimide former 40 watts RMS power handling Dayton Audio ND140-4 5-1/4" Aluminum Cone Midbass Neo Driver 4 Ohm Dayton Audio's compact aluminum cone drivers demonstrate the latest advances in high-excursion design processes. An efficient, low-distortion Neo-Balanced motor is combined with a rigid yet lightweight aluminum diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source applications, or combined in multiples and line arrays.

Dayton Audio SIG270-4

Dayton Audio SIG270-4Test in Hobby HiFi 4-5/2024 The Dayton Audio Signature Series was developed to provide DIY speaker designers with access to the pinnacle of speaker technology at the price expected from Dayton Audio. Equipped with an open aluminum cast frame, an anodized aluminum cone, and a polyimide former, these drivers offer a wider frequency range with incredibly low distortion. After careful development and testing with great attention to detail, we at Dayton Audio believe that this line of drivers deserves the approval of even the most critical audiophile.Main FeaturesExtensive Klippel LPM and LSI tests to optimize Bl symmetry and parametersIndexed cone/surround connection for smooth transition/frequency responsePolyimide former for improved mechanical damping and uniform frequency responseOne-piece, concave, black anodized aluminum diaphragmOpen aluminum casting basket for improved heat dissipationRecessed stainless steel magnetic emblem for long-lasting aesthetics

Dayton Audio DC200-8

Dayton Audio DC200-8 8" Classic Woofer The Dayton Audio DC200-8 Classic Series 8" woofer achieves high levels of performance at a reasonable price. It's perfect as the basis of a custom speaker project, or for repairs and upgrades. Key Features Great price/performance ratio Treated non-pressed paper cone with rubber surround Vented pole piece for better power handling Clean, balanced sound quality   Dayton Audio DC200-8 8" Classic Woofer Dayton Audio's DC200-8 Classic Series 8" woofer offers one of the best price/performance values available anywhere. This DC200-8 8" speaker, and in fact the whole Classic Series, has a non-pressed treated paper cone, ASV voice coil, vented pole piece, rubber surround, coated cloth dust cap, and excellent low frequency performance.

Dayton Audio DSA90-8

Dayton Audio DSA90-8 3" Designer Series Aluminum Cone Full-Range Driver 8 Ohm The Dayton Audio Designer Series DSA90-8 3" driver adds extended high frequency response to its outstanding mini-woofer performance. Key Features Cosmetic frame with low profile lip, designed for front mounting—no countersinking required! Low distortion motor system with copper shorting ring Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction Smooth frequency response and linear roll-off simplify filter design Vented pole piece for minimized power compression and maximized reliability Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators Generous Xmax capability encourages use of moderate bass boost to tailor the response Dayton Audio DSA90-8 3" Designer Series Aluminum Cone Full-Range Driver 8 Ohm The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies — without exceeding Xmax. These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

Dayton Audio DSA215-8
