Dayton Audio DSA175-8

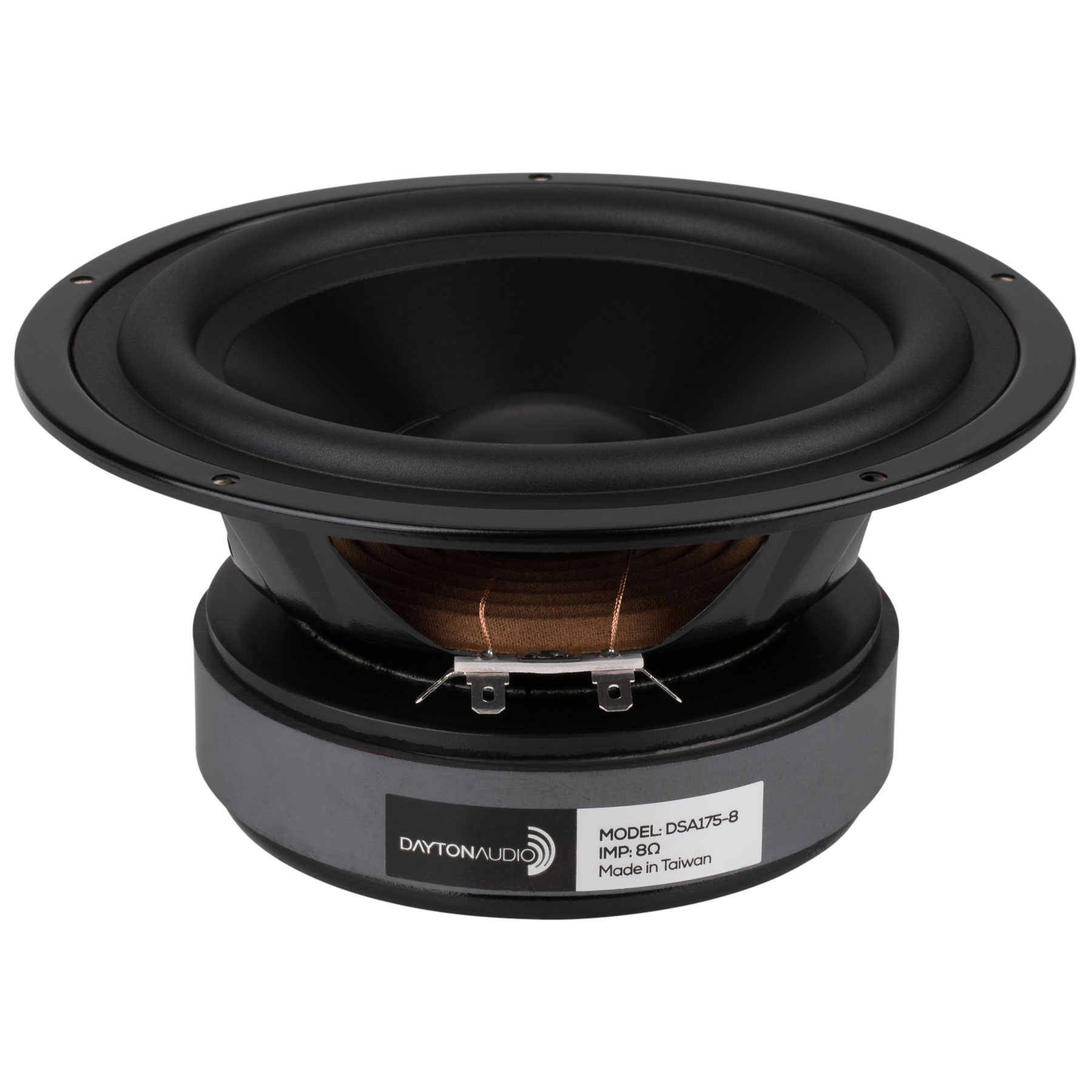

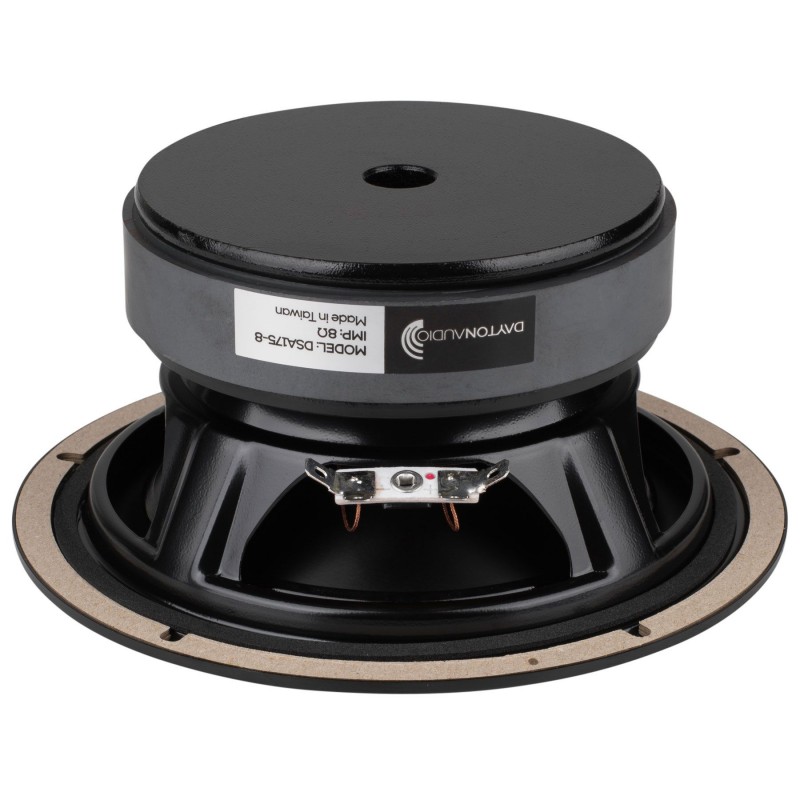

Dayton Audio DSA175-8 6-1/2" Designer Series Aluminum Cone Woofer

Although it's true that the Dayton Audio Designer Series DSA175-8 is a nice looking and well thought-out 6-1/2" woofer, its ability to handle full rated power down to 39 Hz without exceeding Xmax is very impressive!

Key Features

  • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
  • Low distortion motor system with copper shorting ring
  • Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction
  • Smooth frequency response and linear roll-off simplify filter design
  • Vented pole piece for minimized power compression and maximized reliability
  • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
  • Generous Xmax capability encourages use of moderate bass boost to tailor the response

Dayton Audio DSA175-8 6-1/2" Designer Series Aluminum Cone Woofer

The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies — without exceeding Xmax.

These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

Properties
Artikel-Nr.: 295-528
Außenmaß: 175,5mm
Bohrlochanzahl: 5
DC Resistance (Re): 5,8 Ohm
EAN: 848791002410
Eff. Membranfläche (Sd): 128,7cm²
Effektive Bewegte Masse (Mms): 242
Einbautiefe: 80,5 mm
Einbauöffnung: 144mm
Einheit: Stück
Elektrische Güte (Qes): 35
Frequenzbereich: 38 bis 7,500Hz
Gesamtgüte (Qts): 29
Impedanz (Z): 8 Ohm
Korbmaterial: Stahl
Kraftfaktor (BL): 9,75T·m
Lineare Auslenkung (Xmax): 5,3mm
Magnet: Ferrit
Marke: Dayton Audio
Mechanische Güte (Qms): 166
Membranmaterial: Aluminium
Modell: DSA175-8
Nachgiebigkeit (Cms): 0,71mm/N
Nennbelastbarkeit: 70 Watt
Resonanzfrequenz (fs): 38,36Hz
Schwingspulendurchmesser: 35,6 mm
Schwingspulenind. (Le): 0,85mH
Schwingspulenkörper: Aluminium
Schwingspulenmaterial: Kupfer
Sensitivität: 88,1dB 2,83V/1m
Sickenmaterial: Gummi
Äquivalentvolumen (Vas): 18,689 l
Data according to manufacturer. Errors and changes reserved.
