Dayton Audio ND65-8
Skip image gallery
Picture similar to product
Product number:
290-206
Manufacturer:
Dayton Audio
Length:
1.29 mm
Width:
0.51 mm
Height:
6.99 mm
Weight:
0.2 kg
Available stock:
4
Min. order quantity:
1

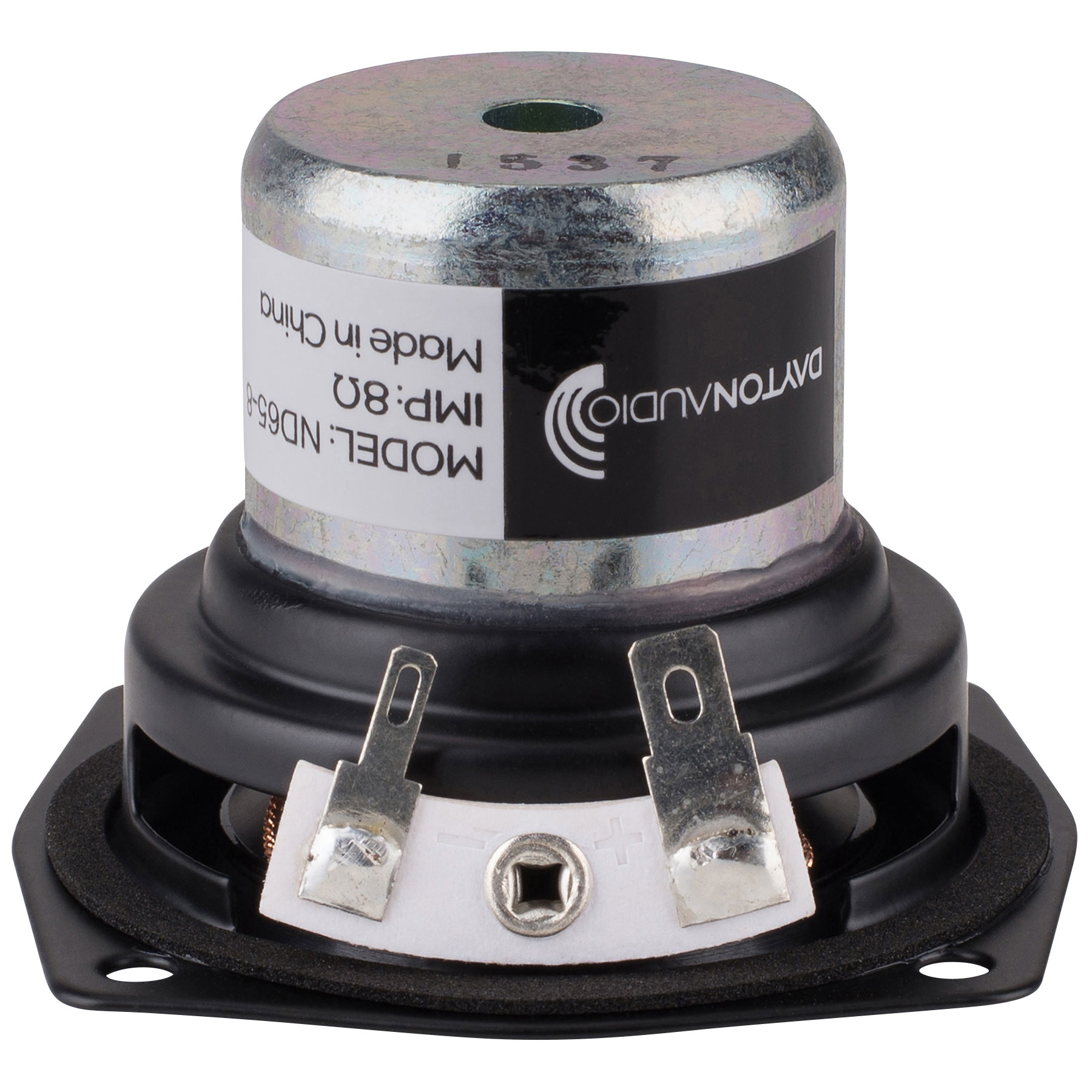

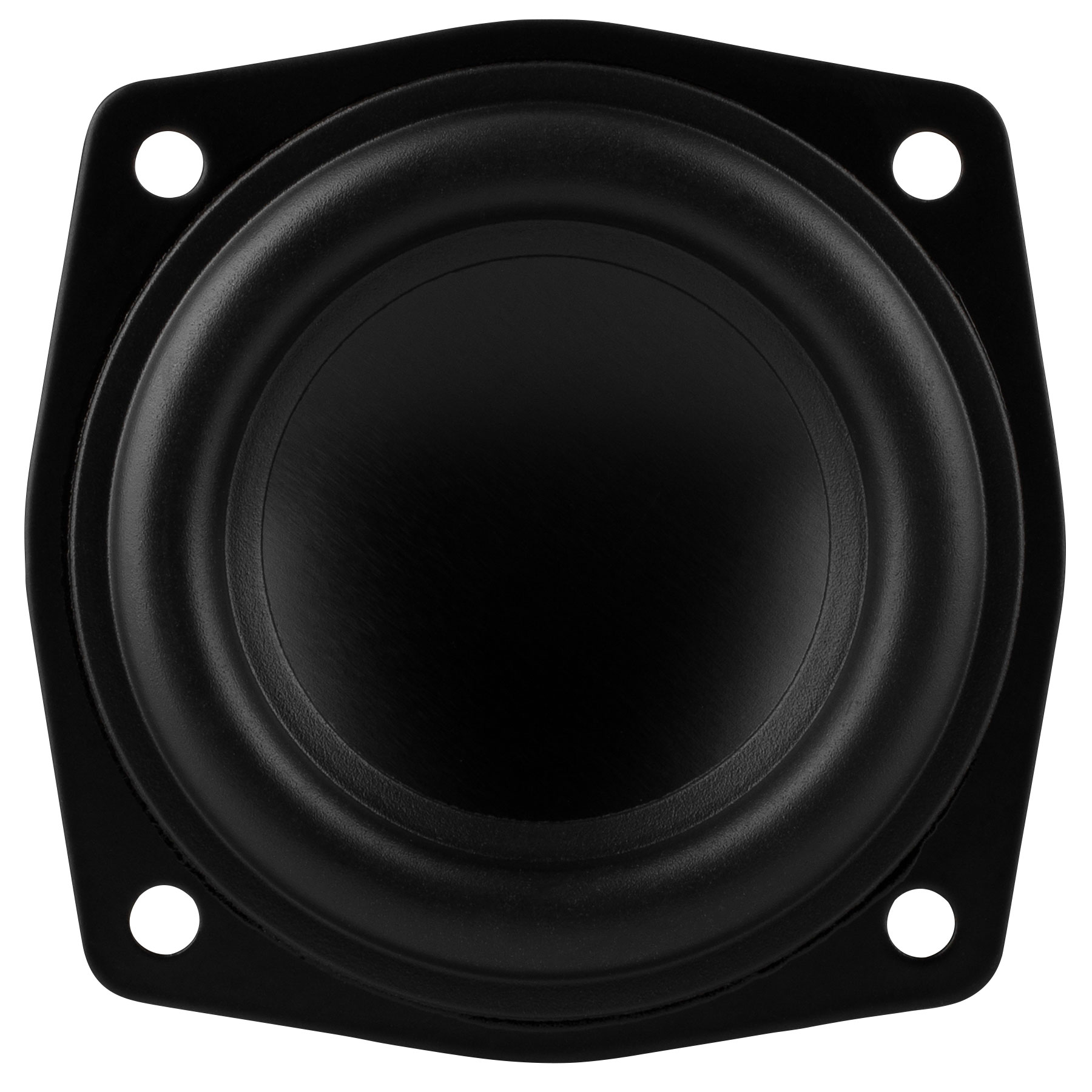

Dayton Audio ND65-8 2-1/2” Aluminum Cone Full-Range Neo Driver 8 Ohm
Dayton Audio's compact ND65-8 aluminum cone full-range driver demonstrates the latest advances in high-excursion design processes. When teamed up with the matching ND series passive radiators this driver can produce incredible full sound from compact enclosures.
Key Features
- Rubber-edged aluminum alloy cone
- Large excursion capability
- Self-shielded Neo-Balanced motor structure
- 4-layer underhung voice coil with polyimide former
- High power handling
Dayton Audio ND65-8 2-1/2" Aluminum Cone Full-Range Neo Driver 8 Ohm
Dayton Audio's compact ND65-8 aluminum cone driver demonstrates the latest advances in high-excursion design processes. An efficient, low-distortion Neo-Balanced motor is combined with a rigid yet lightweight aluminum diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source speaker applications, or combined in multiples and line arrays.
Properties
| Artikel-Nr.: | 290-206 |
|---|---|
| Außenmaß: | 63,5mm |
| Bohrlochanzahl: | 4 |
| DC Resistance (Re): | 7,4 Ohm |
| EAN: | 844632081477 |
| Eff. Membranfläche (Sd): | 15,6cm² |
| Effektive Bewegte Masse (Mms): | 25 |
| Einbautiefe: | 50,8 mm |
| Einbauöffnung: | 52,1 mm |
| Einheit: | Stück |
| Elektrische Güte (Qes): | 46 |
| Frequenzbereich: | 80 bis 20,000Hz |
| Gesamtgüte (Qts): | 41 |
| Impedanz (Z): | 8 Ohm |
| Kraftfaktor (BL): | 4,47T·m |
| Lineare Auslenkung (Xmax): | 3,5mm |
| Magnet: | Neodym |
| Marke: | Dayton Audio |
| Mechanische Güte (Qms): | 401 |
| Membranmaterial: | Aluminium |
| Modell: | ND65-8 |
| Nachgiebigkeit (Cms): | 1,68mm/N |
| Nennbelastbarkeit: | 15 Watt |
| Resonanzfrequenz (fs): | 77,4Hz |
| Schwingspulendurchmesser: | 19,1 mm |
| Schwingspulenind. (Le): | 1,04mH |
| Schwingspulenkörper: | Kapton / Polyimide |
| Sensitivität: | 80,8dB 2,83V/1m |
| Sickenmaterial: | Gummi |
| Äquivalentvolumen (Vas): | 0,566 l |
Data according to manufacturer. Errors and changes reserved.
