Dayton Audio PS220-8
€239.95
Available in 14 days, delivery time 1-3 days
Dayton Audio PS220-8 8” Point Source Full-Range Neo Driver
The Dayton Audio PS Series drivers do it all: true bass, articulate midrange, and balanced, extended highs.
Key Features
- High sensitivity/minimal distortion—an ideal match for lower powered amplifiers

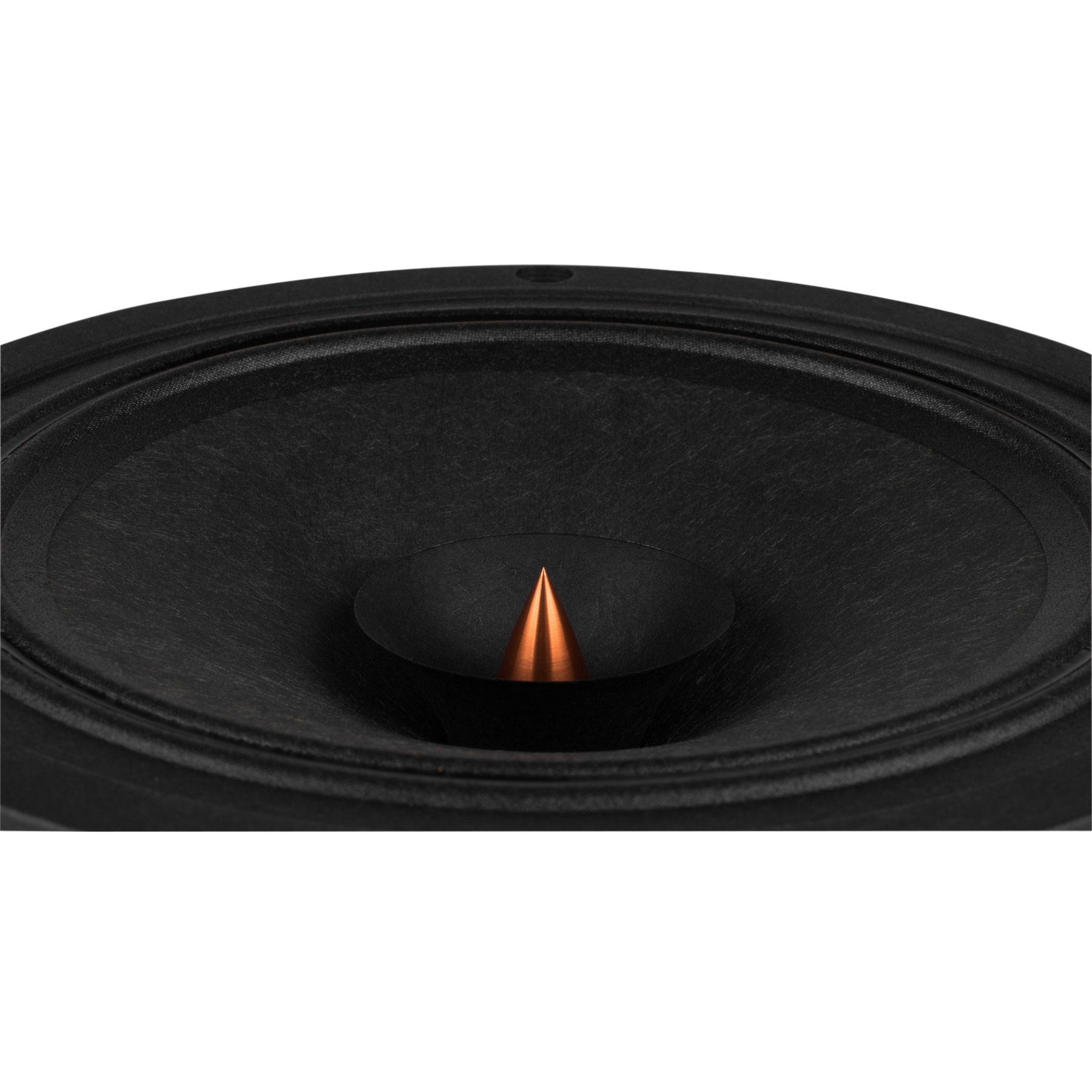

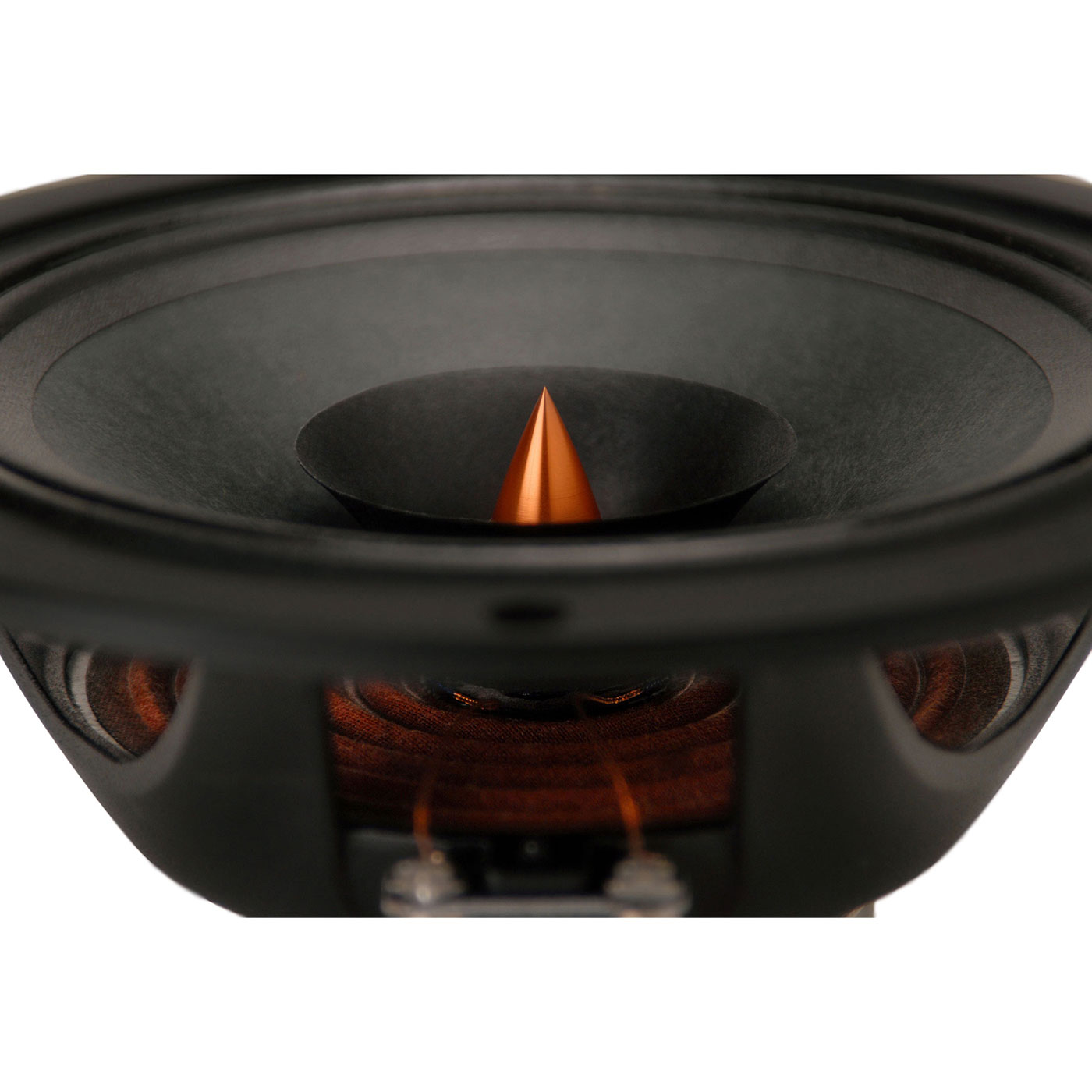

- Parasitic HF cone and carefully engineered phase plug extend on- and off-axis response
- Solid bass performance, thanks to usefully high excursion capability (4.8 mm Xmax)
- Optimized neodymium magnet provides high motor strength
- Low-mass copper clad aluminum voice coil
- Copper cap and copper ring on pole piece reduce inductance and distortion
- Kevlar reinforced paper cone is lightweight yet rigid and well controlled
Dayton Audio PS220-8 8" Point Source Full-Range Neo Driver
The Dayton Audio PS Series drivers do it all: true bass, articulate midrange, and balanced, extended highs. An intensive program of design and testing has yielded full-range speakers that feature high sensitivity and smooth response, both on- and off-axis. Although an ideal match for lower powered Class A and Class T designs, the PS220-8 8" driver's superb resolution and natural sound quality make it a viable option for an even wider variety of applications. The PS Series' audio performance is complemented by the speaker's striking appearance—they look great in dipole and other open back designs, too!
| Artikel-Nr.: | 295-346 |
|---|---|

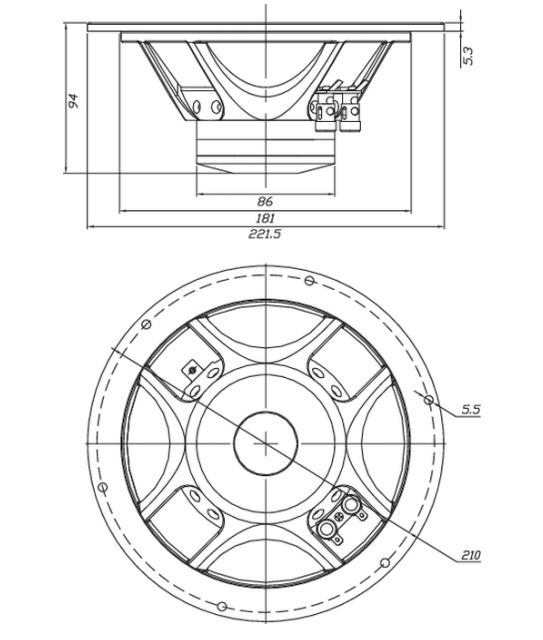

| Außenmaß: | 221,5mm |
| Bohrlochanzahl: | 6 |
| DC Resistance (Re): | 6,2 Ohm |
| EAN: | 844632088803 |
| Eff. Membranfläche (Sd): | 216,4cm² |
| Effektive Bewegte Masse (Mms): | 8,4g |
| Einbautiefe: | 94 mm |
| Einbauöffnung: | 181,1mm |
| Einheit: | Stück |
| Elektrische Güte (Qes): | 0,4 |
| Frequenzbereich: | 40 bis 25,000Hz |
| Gesamtgüte (Qts): | 0,38 |
| Gleichstromwiderstand (Re): | 6,2 Ohm |
| Größe: | 8 " |
| Impedanz (Z): | 8 Ohm |
| Korbmaterial: | Aluminium Guss |
| Kraftfaktor (BL): | 6,15T·m |
| Lineare Auslenkung (Xmax): | 4,8mm |
| Magnet: | Neodym |
| Marke: | Dayton Audio |
| Mechanische Güte (Qms): | 5,73 |
| Membranmaterial: | Papier / Kevlar |
| Modell: | PS220-8 |
| Nachgiebigkeit (Cms): | 1,41mm/N |
| Nennbelastbarkeit: | 40 Watt |
| Resonanzfrequenz (fs): | 46,4Hz |
| Schwingspulendurchmesser: | 25,4 mm |
| Schwingspulenind. (Le): | 0,73mH |
| Schwingspulenkörper: | Aluminium |
| Schwingspulenmaterial: | Kupfer |
| Sensitivität: | 96,5dB 2,83V/1m |
| Sickenmaterial: | Gummi |
| Äquivalentvolumen (Vas): | 90,331 l |
Accessory Items
Jericho 23 Speaker KitZitat Bernd Timmermanns Hobby HiFi 2-3/23; "Full-range speakers and horn systems: That simply belongstogether. Jericho 23 stunningly good!“ Description; The Jericho Horn is a long-standing design in the DIY scene, nevertheless, you can findimmer wieder pearls that pay tribute to the construction and play wonderfully, even earlier line-upsleave behind. So the Dayton Audio PS220-8 joins with its balanced qualities in both the bass and treble range.also into the top tier of horn equipment. To the highest form, according to the creator BerndTimmermanns, who subjects every 20cm full-range driver tested in his magazine Hobby HiFi to a suitability testfor the Jericho Horn undergoes, is the verdict. Additionally, the correction network is so economical andlow-value, so that the costs in even high-quality components do not immediately lead to financial ruinführen. Thus, in the high-end version, there are baked wire air coils and finest oil film capacitorsa very budget-conscious decision. For music lovers of the purely instrumental kind, you can eventhese components (provided room acoustic measures are in place). However, voices require theminimal but quite effective intervention of the blocking circuits. Such an extraordinary horn construction paired with the PS220-8 allows percussive sounds withschlagartigen Impulsen, like small explosions, resound vividly. Start quickly and lively. TheHorn underscores this tonal balance with a powerful, physically palpable bass. Uncontested strengths of broadband are their spatial representation power, they create tangibleSpace. Jericho 23, is in any case an extremely level-stable as well as sonically outstanding construction, as itnot created every day. And the demands on the electronics are also performance-efficient. But you can almost listen even more beautifully, quietly without missing details, dynamics, or resolution.
Similar Items
20 cm (8") full-range speaker with tweeter cone. High efficiency. Suitable as a full range driver for small vocal and guitar monitors or as a midrange driver for PA systems and musician's cabinets. Possible applications: Midrange driver in PA systems and musician's cabinets.vocal and guitar monitorsFull range speaker for electronic organs and keyboards

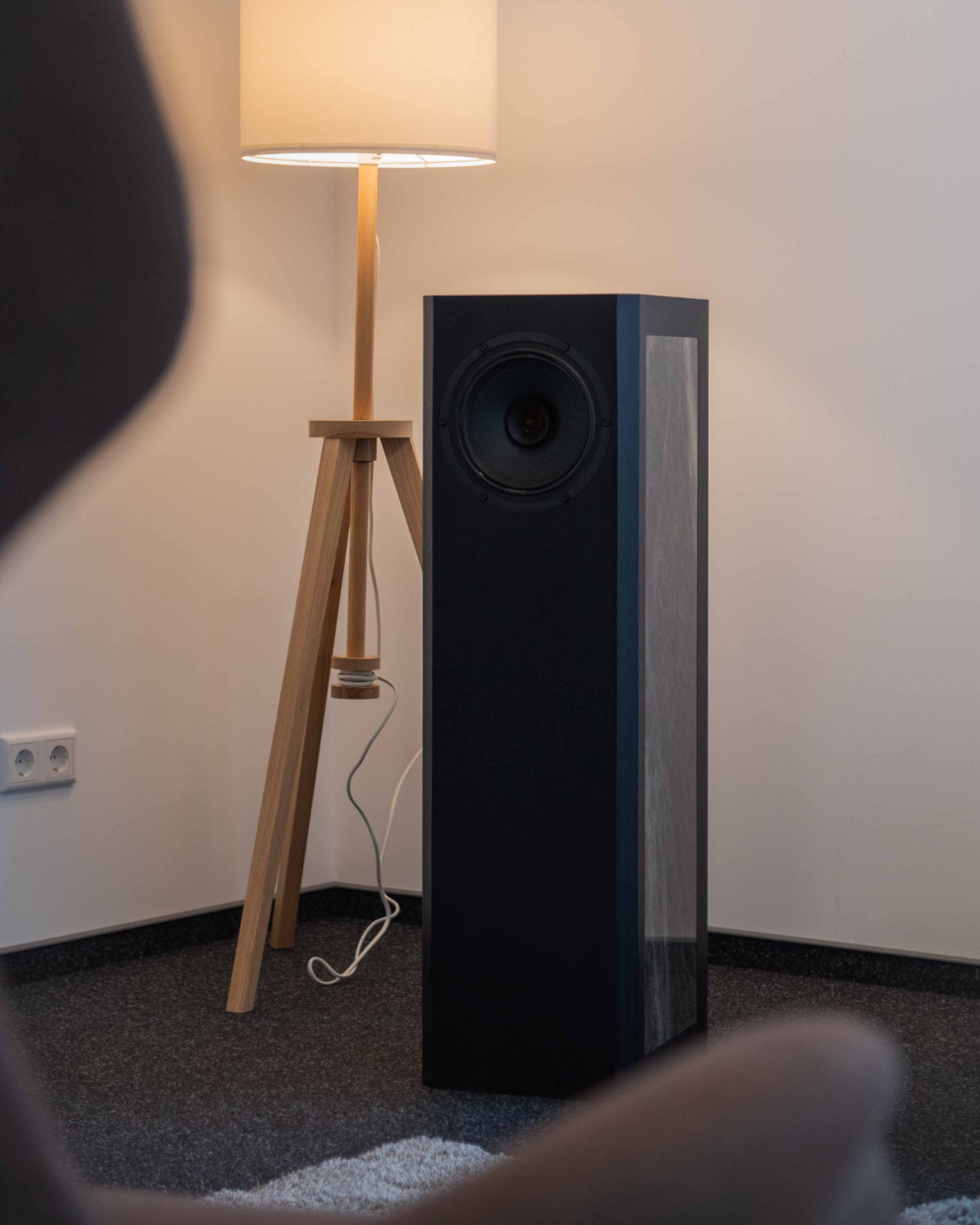

AVA23 Case KitSpeaker enclosure kit for speaker kit AVA23 AVA23 Case KitAssembly suggestion: Dayton Audio PS220-8Properties:Floorstanding Speaker AVA23 Flat Pack Enclosure KitAbout the Case:This clever enclosure was specially developed by variant GmbH for the Dayton Audio PS220-8 high-end full-range driver.During the CNC manufacturing process, grooves and joints are cut into the housing panels to align the panels precisely. Cutouts for speaker chassis and connection terminal as well as bass reflex openings are precisely milled.All that remains to be done is to finish it to match your decor or paint it to stand out. Specifications:- Material thickness: 19mm, Panel material: Medium Density Fiberboard (MDF) -External dimensions W/H/D: 280mm x 975mm x 325mm Dayton Audio PS220-8Zitat der Hobby Hifi 2-3/2023;„Dayton's eight-inch full-range driver PS220-8 is an excellent choice for a large bass reflex enclosure and even more so as a driver for the Jericho horn“ To the chassis,• High sensitivity and minimal distortion - ideal for amplifiers with lower power• Parasitic HF diaphragm and carefully designed phase plug extend the frequency response on and off axis• Solid bass performance thanks to the high excursion capability (4.8 mm Xmax)• Optimized neodymium drive ensures high motor strength• Low-mass, copper-clad aluminum voice coil• Copper cap and copper ring on the pole piece reduce inductance and distortions• Kevlar-reinforced paper cone is lightweight yet rigid and well-controlledAttention: BPlease note and address any change requests in the comment field or via email:In all our housing kits, unless otherwise mentioned, terminal cutouts for our Terminal T105 on the back of the housing are prefabricated!All housing kits (not glued or painted) are without rounded edges or chamfers!Chamfers or rounds are only made on fully assembled housings.
