Dayton Audio ND140-4
Skip image gallery
Picture similar to product
Product number:
290-216
Manufacturer:
Dayton Audio
Length:
3.23 mm
Width:
1.27 mm
Height:
4.45 mm
Weight:
0.5 kg
Available stock:
4
Min. order quantity:
1
Dayton Audio ND140-4 4” Aluminum Cone Midbass Neo Driver 4 Ohm
Dayton Audio's ND140-4 compact aluminum cone driver demonstrates the latest advances in high-excursion design processes. When teamed up with the matching ND series passive radiators this driver can produce incredible full sound from compact enclosures.
Key Features

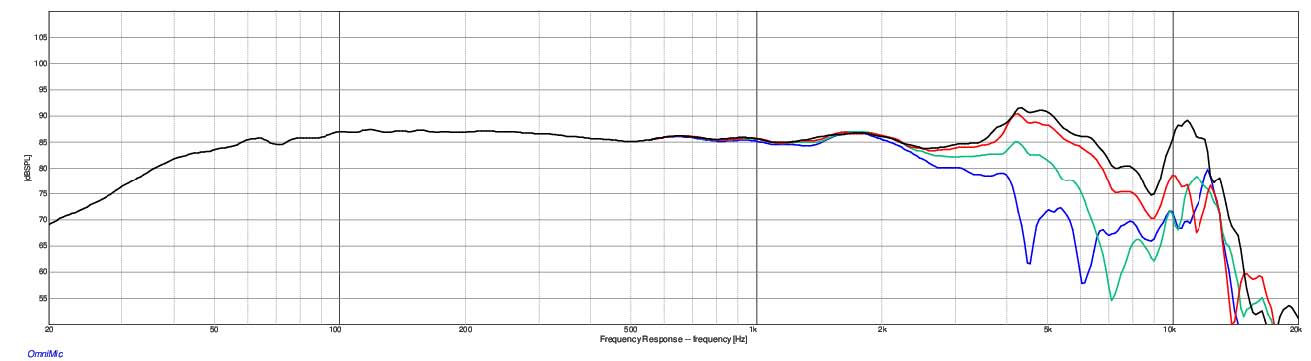

- Extended-range 54 Hz to 8 kHz performance
- Rubber-edged aluminum alloy cone
- Large excursion capability—4 mm Xmax, 20 mm peak
- Self-shielded Neo-Balanced motor structure
- 1" 4-layer underhung voice coil with polyimide former
- 40 watts RMS power handling
Dayton Audio ND140-4 5-1/4" Aluminum Cone Midbass Neo Driver 4 Ohm
Dayton Audio's compact aluminum cone drivers demonstrate the latest advances in high-excursion design processes. An efficient, low-distortion Neo-Balanced motor is combined with a rigid yet lightweight aluminum diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source applications, or combined in multiples and line arrays.
Properties
| Artikel-Nr.: | 290-216 |
|---|---|

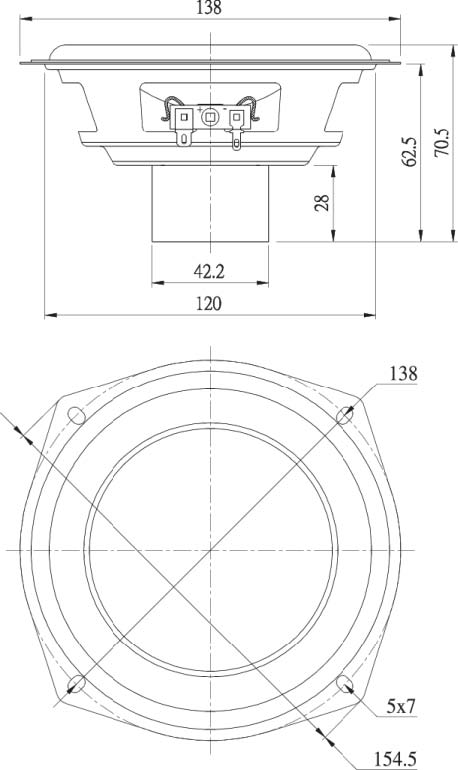

| Außenmaß: | 139,7mm |
| Bohrlochanzahl: | 4 |
| DC Resistance (Re): | 3,7 Ohm |
| EAN: | 844632081484 |
| Eff. Membranfläche (Sd): | 86,6cm² |
| Effektive Bewegte Masse (Mms): | 10,1g, 101 |
| Einbautiefe: | 63,5 mm |
| Einbauöffnung: | 120,7 mm |
| Einheit: | Stück |
| Elektrische Güte (Qes): | 0,72, 72 |
| Frequenzbereich: | 54 bis 8,000Hz |
| Gesamtgüte (Qts): | 0,63, 63 |

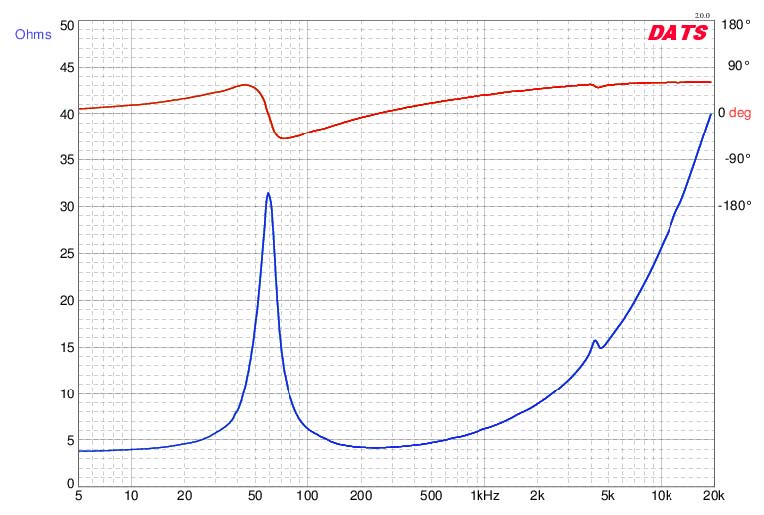

| Impedanz (Z): | 4 Ohm |
| Kraftfaktor (BL): | 3,9T·m |
| Lineare Auslenkung (Xmax): | 4mm |
| Magnet: | Neodym |
| Marke: | Dayton Audio |
| Mechanische Güte (Qms): | 5,35, 535 |
| Membranmaterial: | Aluminium |
| Modell: | ND140-4 |
| Nachgiebigkeit (Cms): | 0,71mm/N |
| Nennbelastbarkeit: | 40 Watt |
| Resonanzfrequenz (fs): | 59,2Hz |
| Schwingspulendurchmesser: | 25,4 mm |
| Schwingspulenind. (Le): | 0,79mH |
| Schwingspulenkörper: | Kapton / Polyimide |
| Sensitivität: | 88,4dB 2,83V/1m |
| Sickenmaterial: | Gummi |
| Äquivalentvolumen (Vas): | 10,194 l |
Data according to manufacturer. Errors and changes reserved.
