Melodie 8018 Lautsprecherbausatz
€531.90
Available, delivery time: 1-3 days

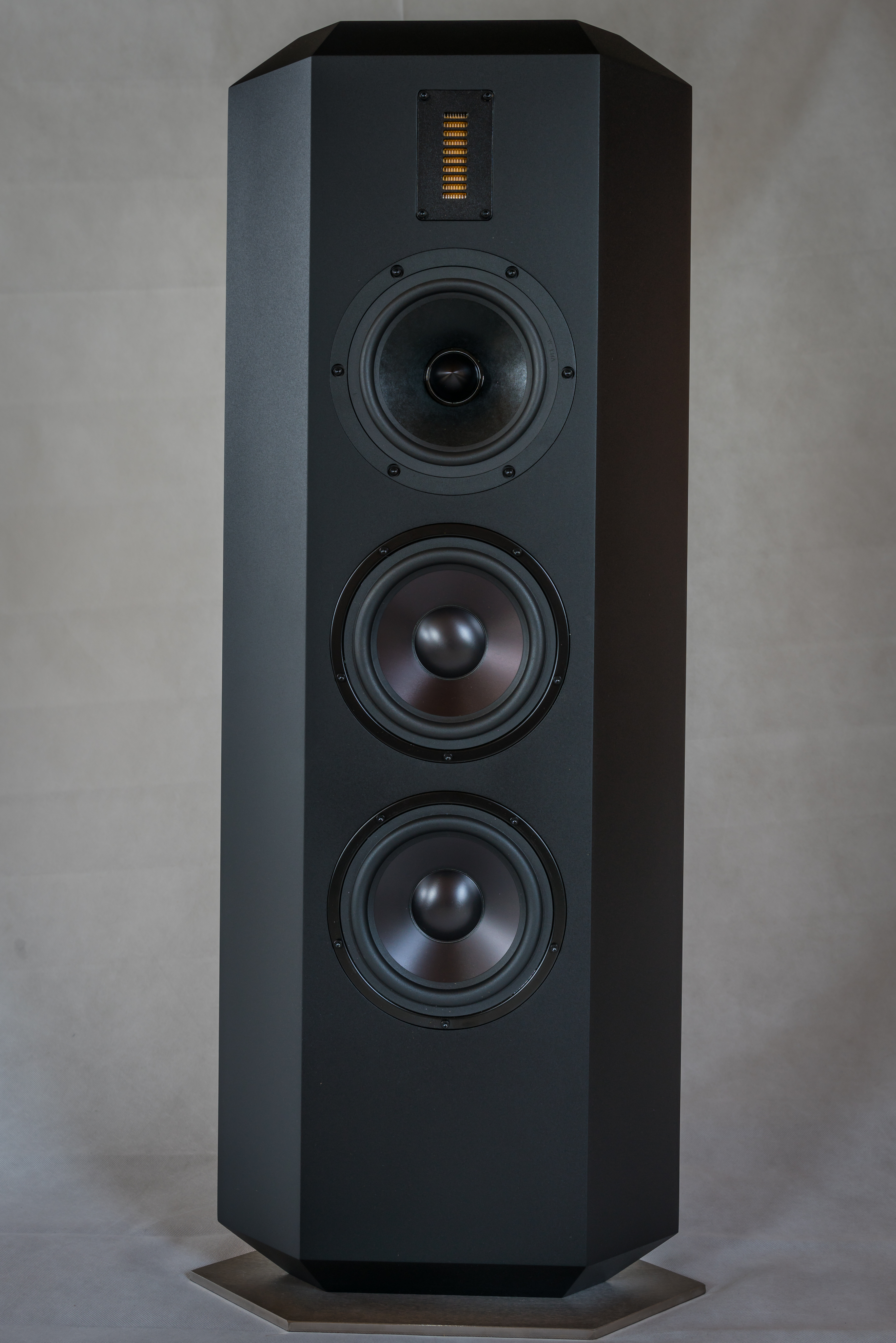

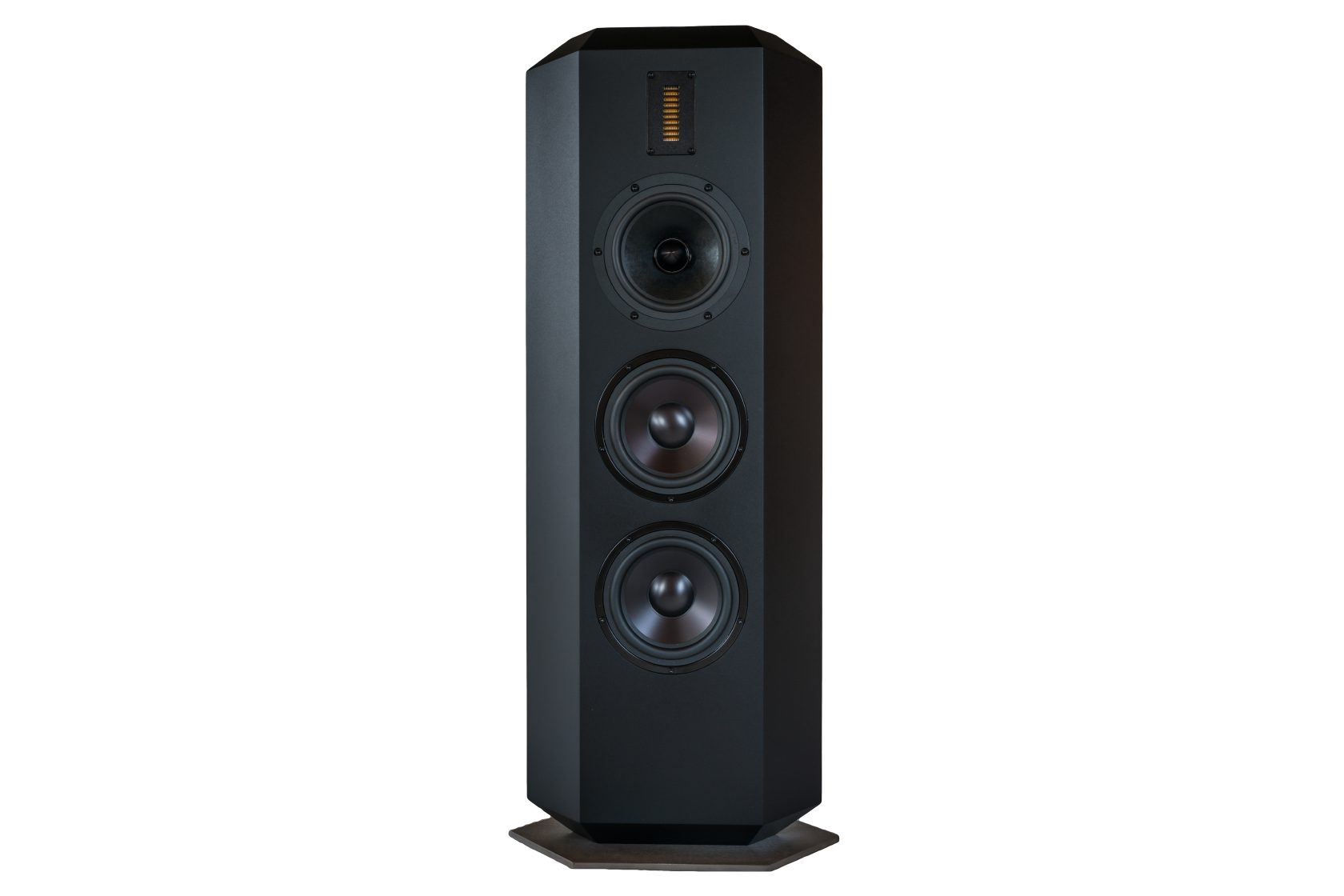

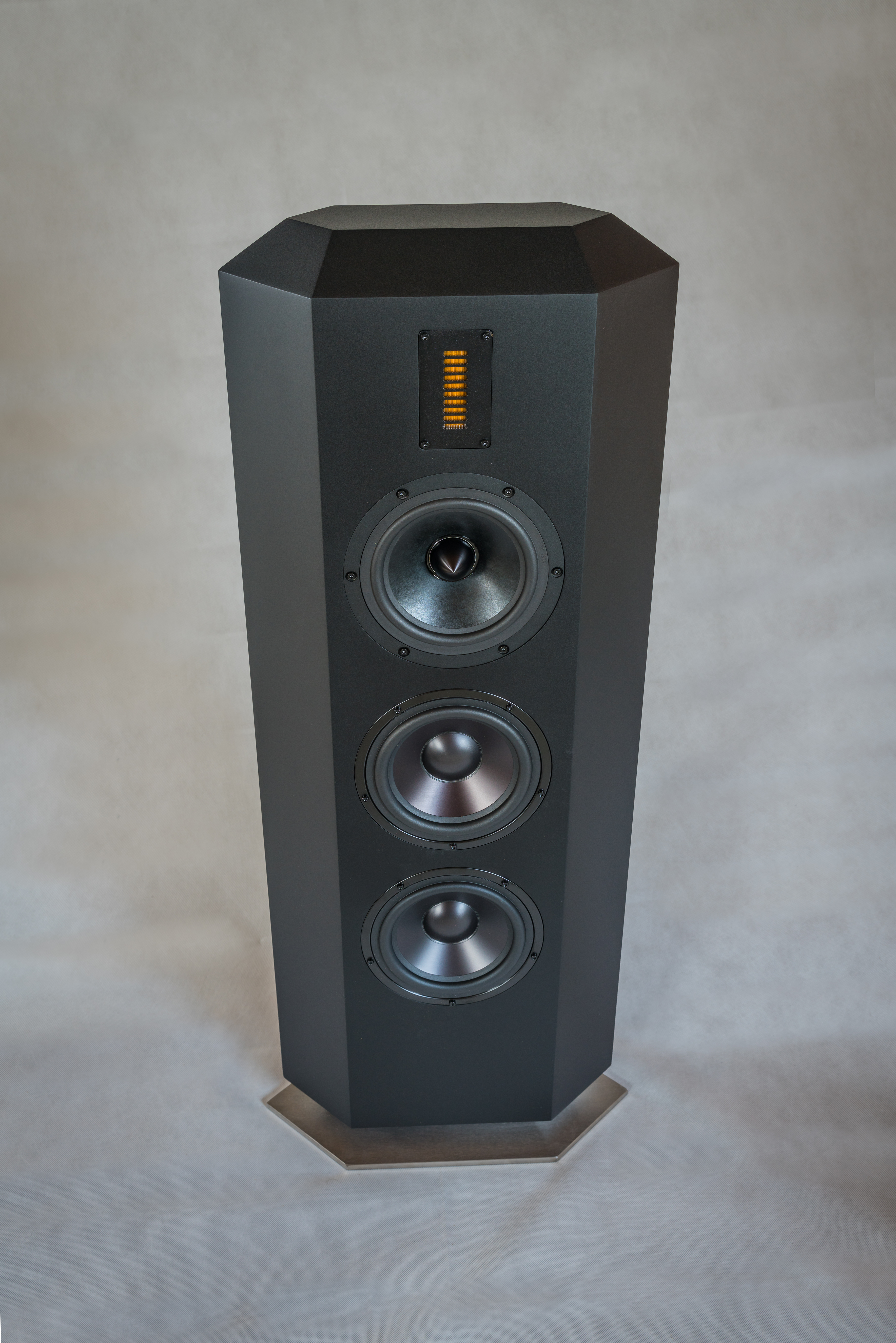

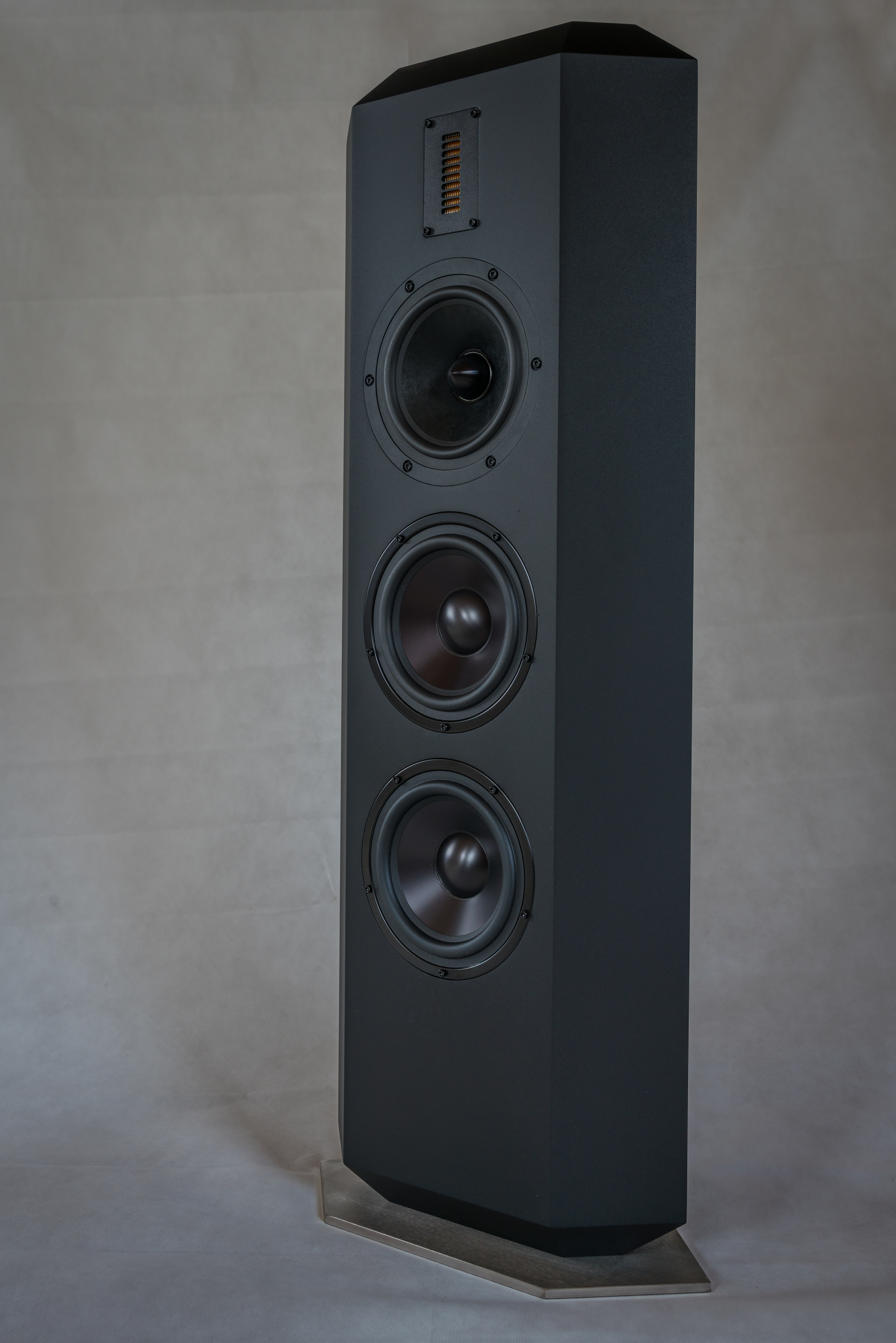

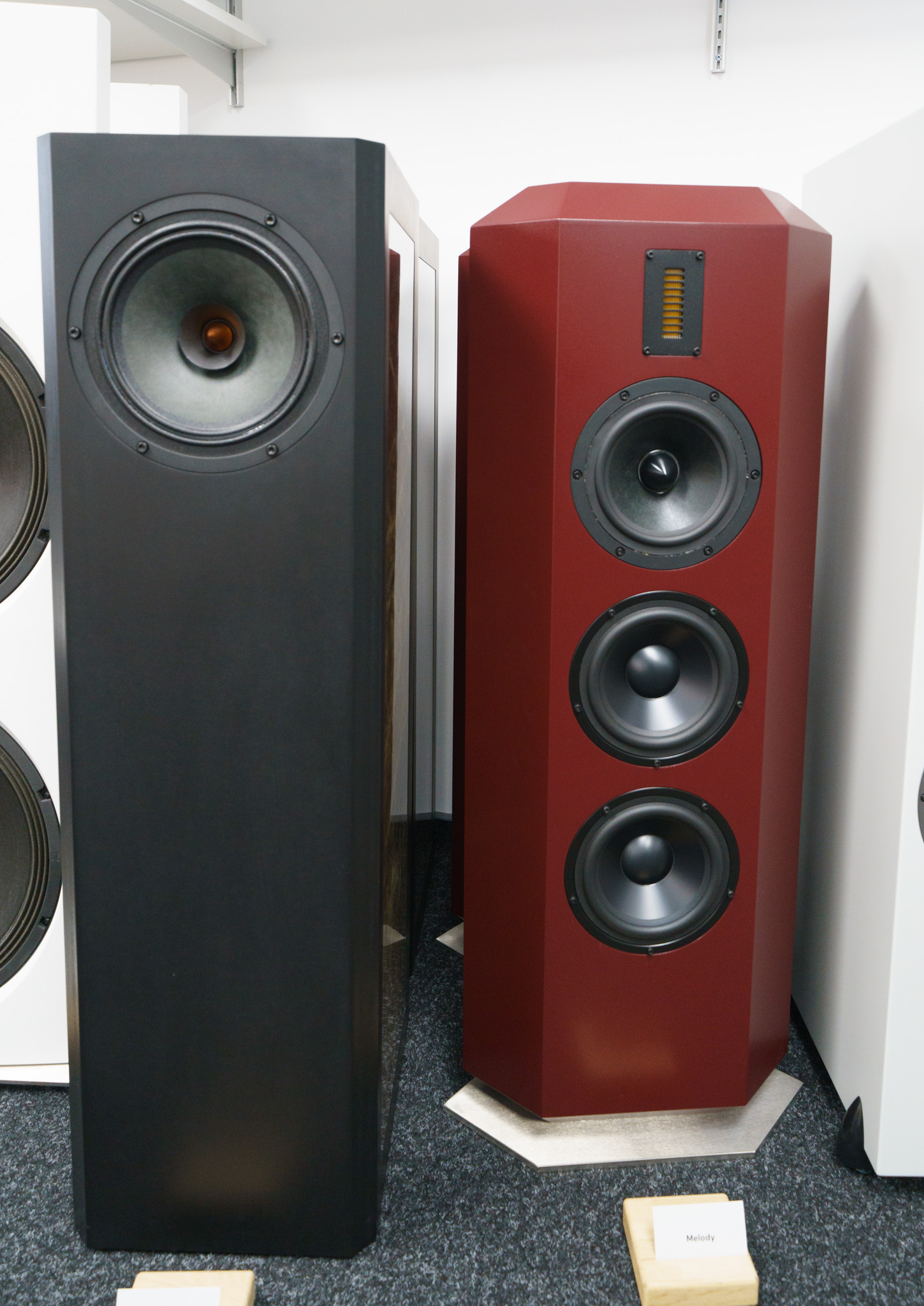

Melody 8018 Speaker Kit
Melody 8018
Klang + Ton 01/2021
2-Way Design Floorstanding Speaker
Assembly:
Mundorf AMTU80W1.1, Dayton Audio RS180p-4; Crossover components Mundorf Hi-Quality.
Conclusion Klang+ Ton 01/2021
Hearing test
And as confidently as in the measuring room, the Melodie 8018 also impresses in the listening test: Deep and powerful bass captivates the listener – you can build on such a foundation. The very low tones find an optimal mix of elasticity and hardness – a very successful combination, we think. The midrange is clear and seamlessly transitions into the equally defined high range. This has absolutely audiophile qualities, which can be slightly adjusted with the voltage divider before the AMT if greater sound quality is desired. We are thoroughly impressed with the extremely spatial and defined performance of the Melodie 8018..Thomas Schmitz
Properties:

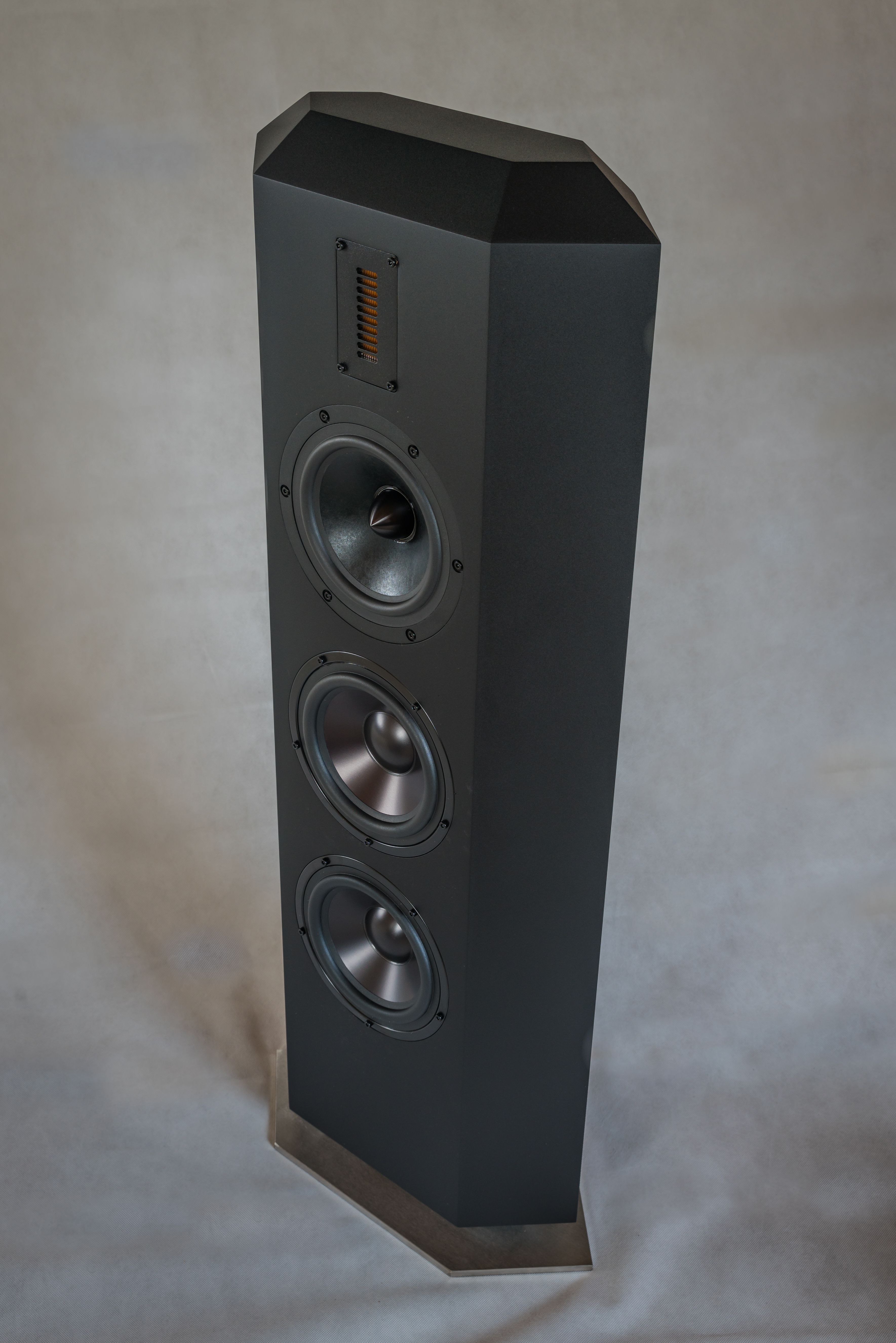

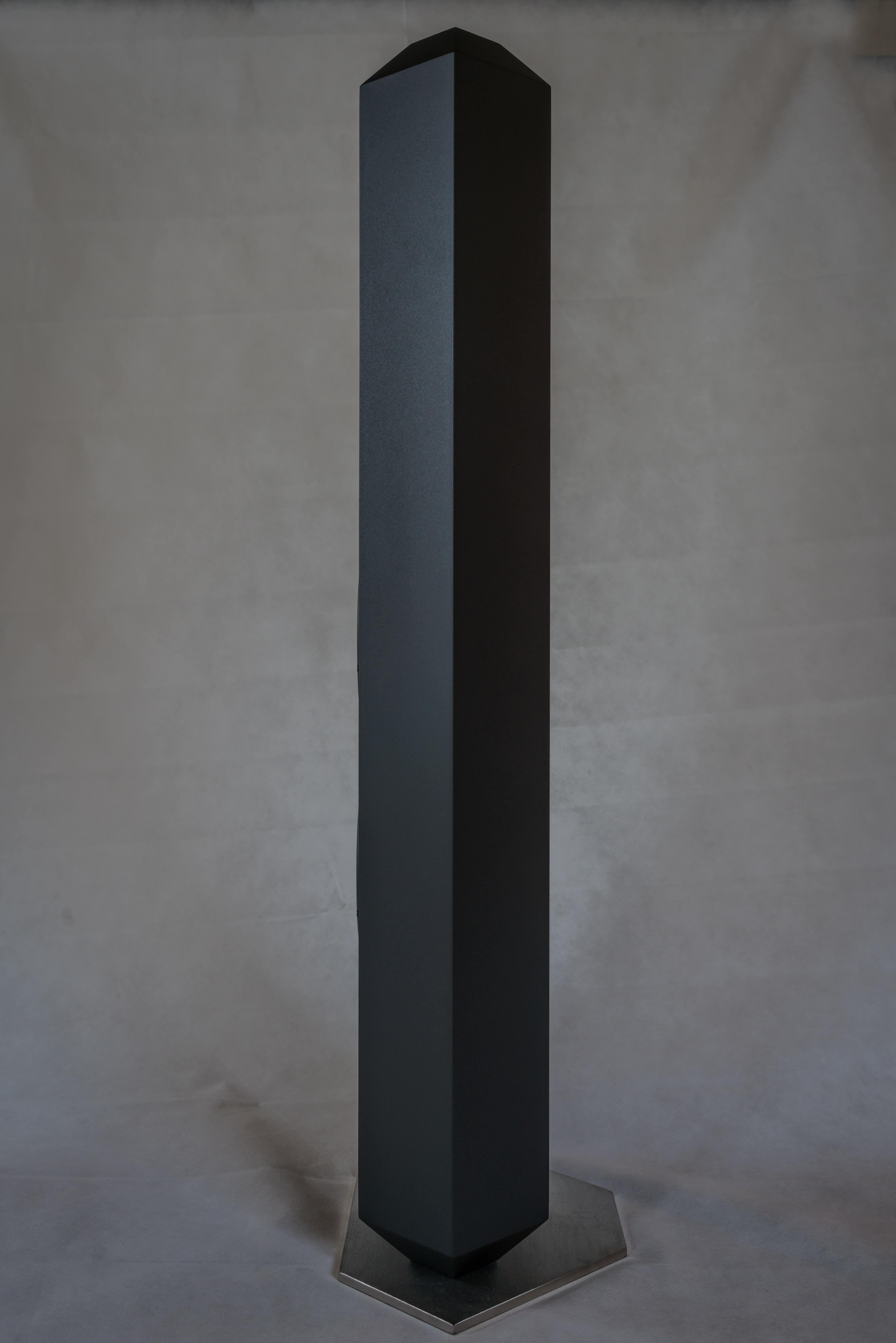

Floor-standing speakers in a slim design silhouette for modern living style (possible close-to-wall placement).

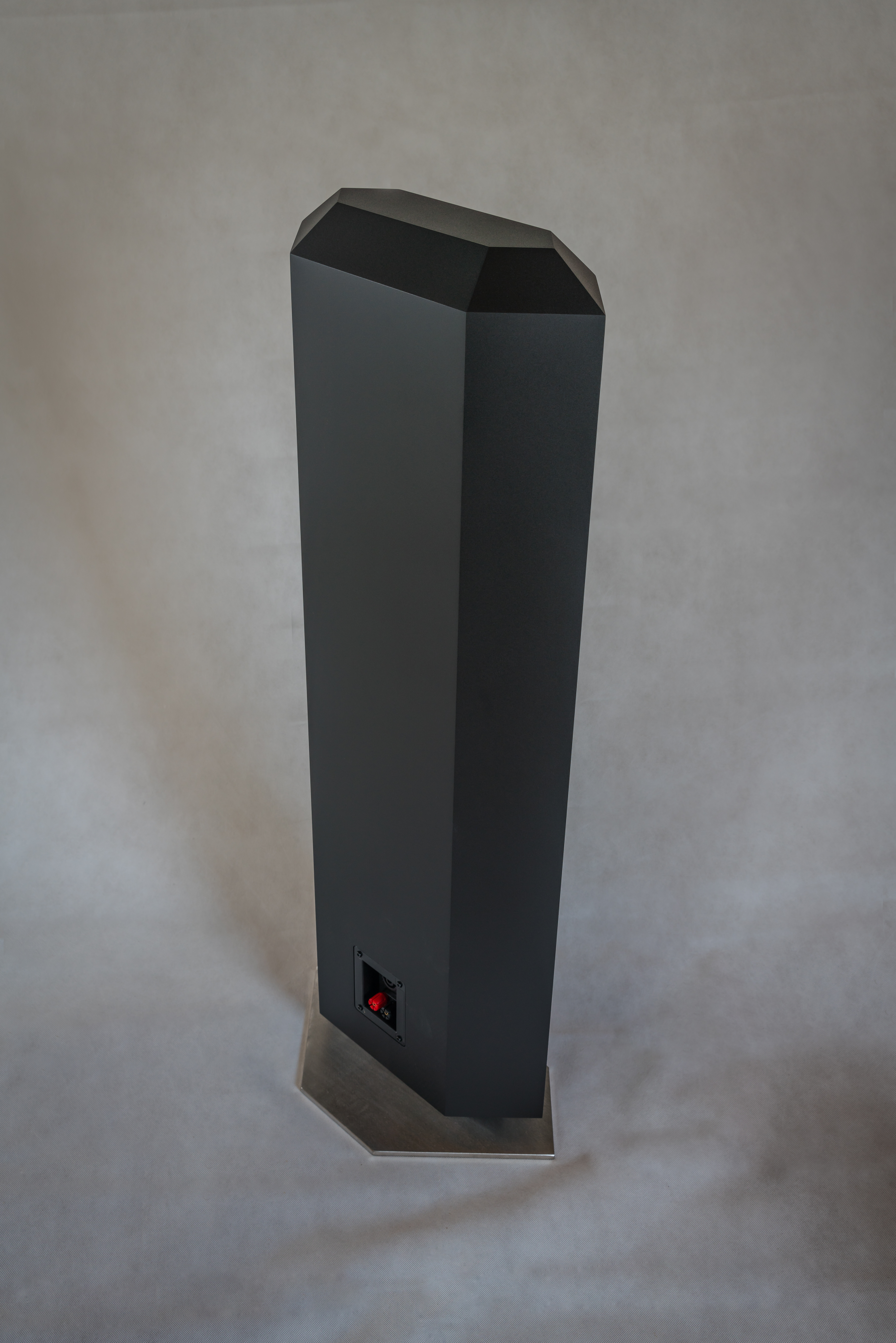

As a topping, you can choose an 8mm stainless steel base plate that provides stable support as an extra.
Variant also delivers the cuttings and pre-milled fronts or complete kits, in MPX, raw MDF,
Black or primed foil up to fully painted and assembled LS.
Ihre hochwertigen Komponenten vereinen sich wunderbar zu einem Ganzen. Not a pretty player and not a
Poet. She plays with what she is fed. Experience their music preserves as they are, without
Mistunings or discolorations disturb the sound experience.

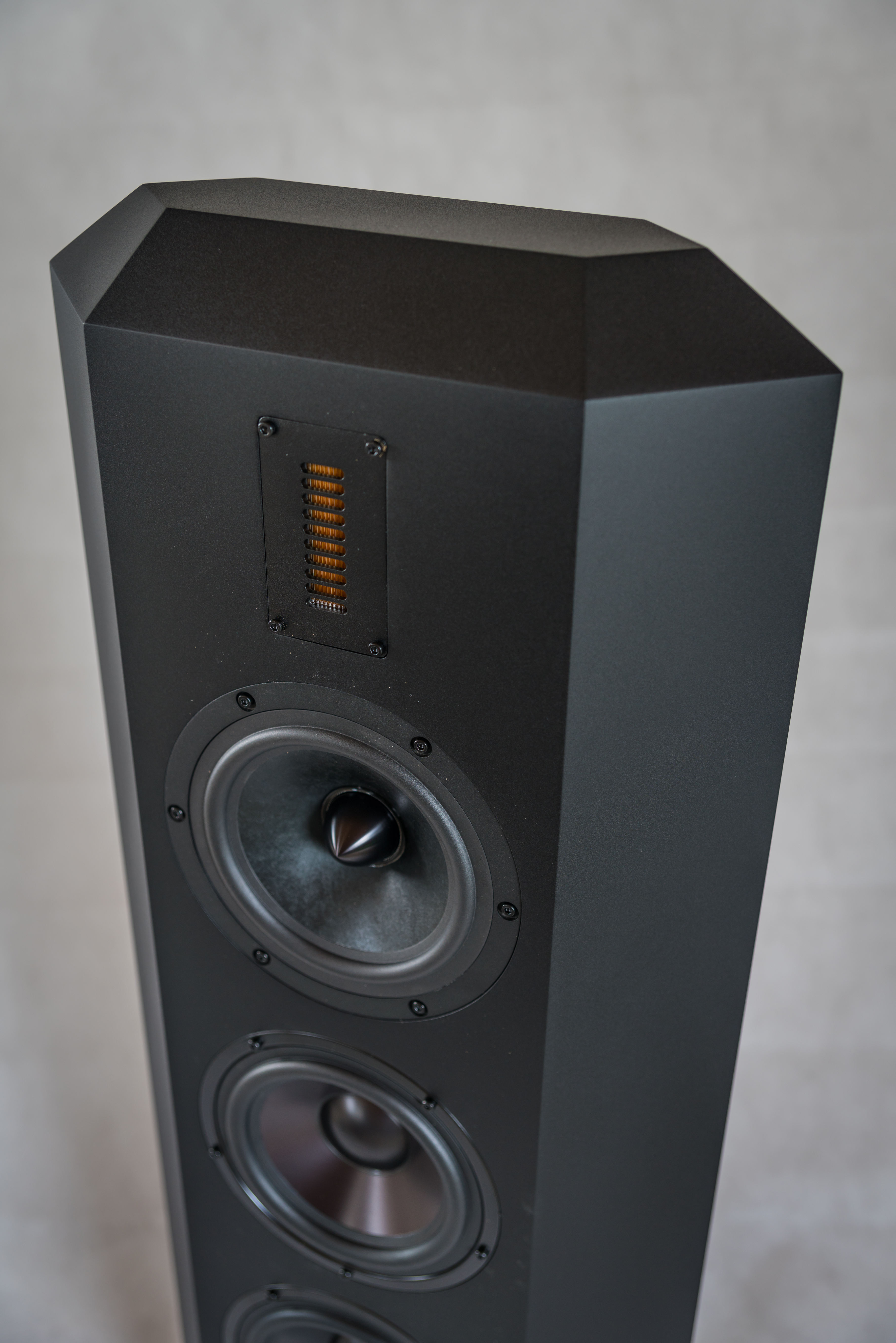

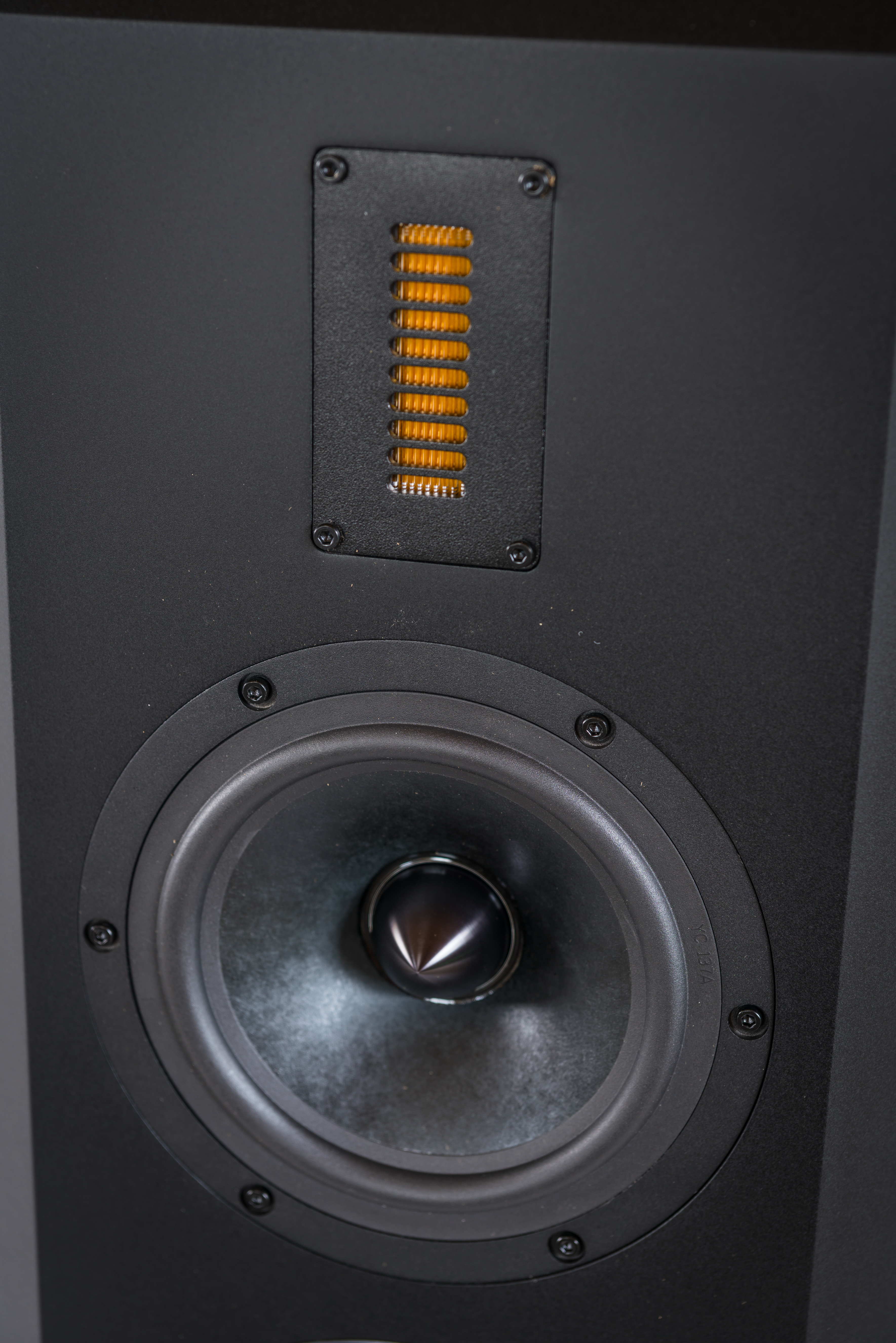

The Mundorf AMT from the brand new U-profile series shows what modern foil tweeters are capable of
leisten sind. Finest details, brilliant resolution, and dynamic treble behavior, without ever
intrusive or superficial, that is the supreme discipline of tweeters.
Der Reference mid-bass driver with a powerful ferrite magnet, the stable die-cast basket with
6 mounting holes that guarantee a firm hold and the coated lightweight paper membrane, they
guarantees the homogeneous sound unity and delivers powerful bass. The passive membranes are
instead of bass reflex tubes and do not tend to air flow noise when tuned low, and
create tuning options to respond to room-related modes and room gain.
| Breite: | 380mm |
|---|---|
| Frequenzumfang: | 40-35000Hz |
| Funktion: | 2 Wege |
| Funktionsprinzip: | Passiv Membran |
| Gesamtimpedanz: | 4 Ohm |
| Höhe: | 980 mm |
| SPL: | 87dB |
| Tiefe: | 150mm |
Accessory Items

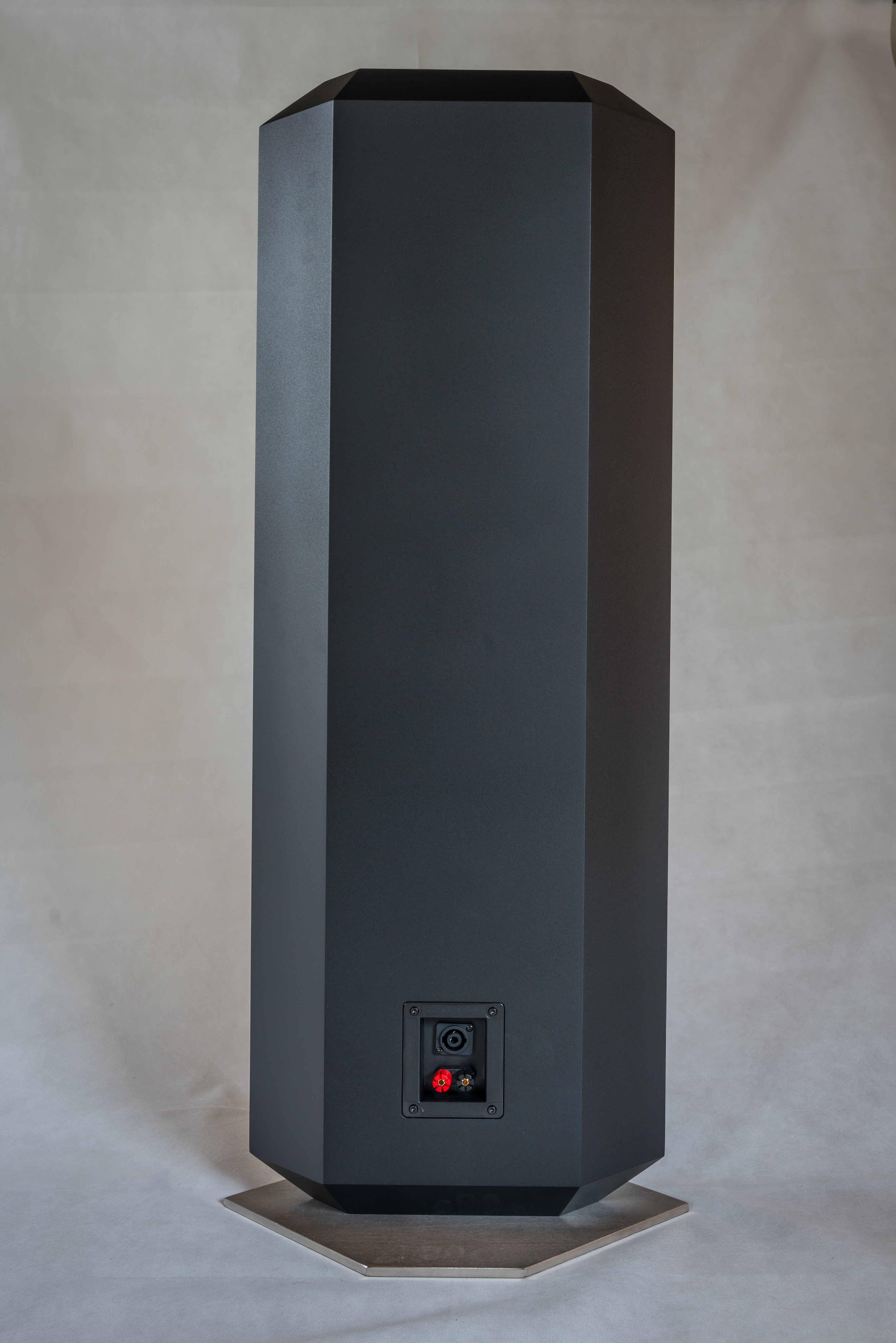

Gehäuse Melody 8018Attention please note and for change requests please in the comment field or by email change requestsaddress: In all our enclosure kits, unless otherwise mentioned, terminal cutouts for our terminalT105 on the back of the housing, prefabricated! All housing kits (not glued or painted) are without rounded edges or chamfers! Fascias or curves are only manufactured on fully assembled housings.
Dayton Audio DSA175-PR 6-1/2" Designer Series Aluminum Cone Passive Radiator The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. Built to be a perfect match for the Designer Series drivers, these passive radiators feature the same steel frame, rubber surround, and anodized aluminum cone making them visually identical. Key Features Perfect match for Dayton Audio's aluminum cone Designer Series drivers Rear mounted screw allows easy mass adjustment for custom tuning Cosmetic frame edge looks great even when surface mounted Allows tuning small enclosures lower than using conventional ports Dayton Audio DSA175-PR 6-1/2" Designer Series Aluminum Cone Passive Radiator The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, these passives match Dayton Audio's Designer Series drives, with a black anodized aluminum cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from stand mount two-ways to portable battery powered speaker systems. Specifications: • Fs: 26.8 Hz • Vas: 0.95 ft³ • Qms: 4.30 • Cms: 1.15 mm/N • Rms: 1.2 kg/s • Mms: 30.7 g • Sd: 128.7 sq. cm. • Xmax: 8 mm • Dimensions: Overall diameter: 6.91", Cutout diameter: 5.67", Depth: 1.85". Note: Adding mass to the passive radiator will decrease Fs and increase Qms. Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system. To calculate Vd: Sd x Xmax = Vd
4 Ohm - 55x95mm - NeodymiumThe AMT U60W1.1 and the AMT U80W1.1 could be described as the small and the large all-rounder of the product range. Both can be used in small to medium two-way and three-way systems. The AMT U80W1.1 offers additional dynamic range. Both convince with the decisive quality features of the AMT U.Series with Mundorf diaphragm: exceptionally low K3/K5 distortions, a powerful music reproduction over the entire application range and the Mundorf AMT typical fine detail.

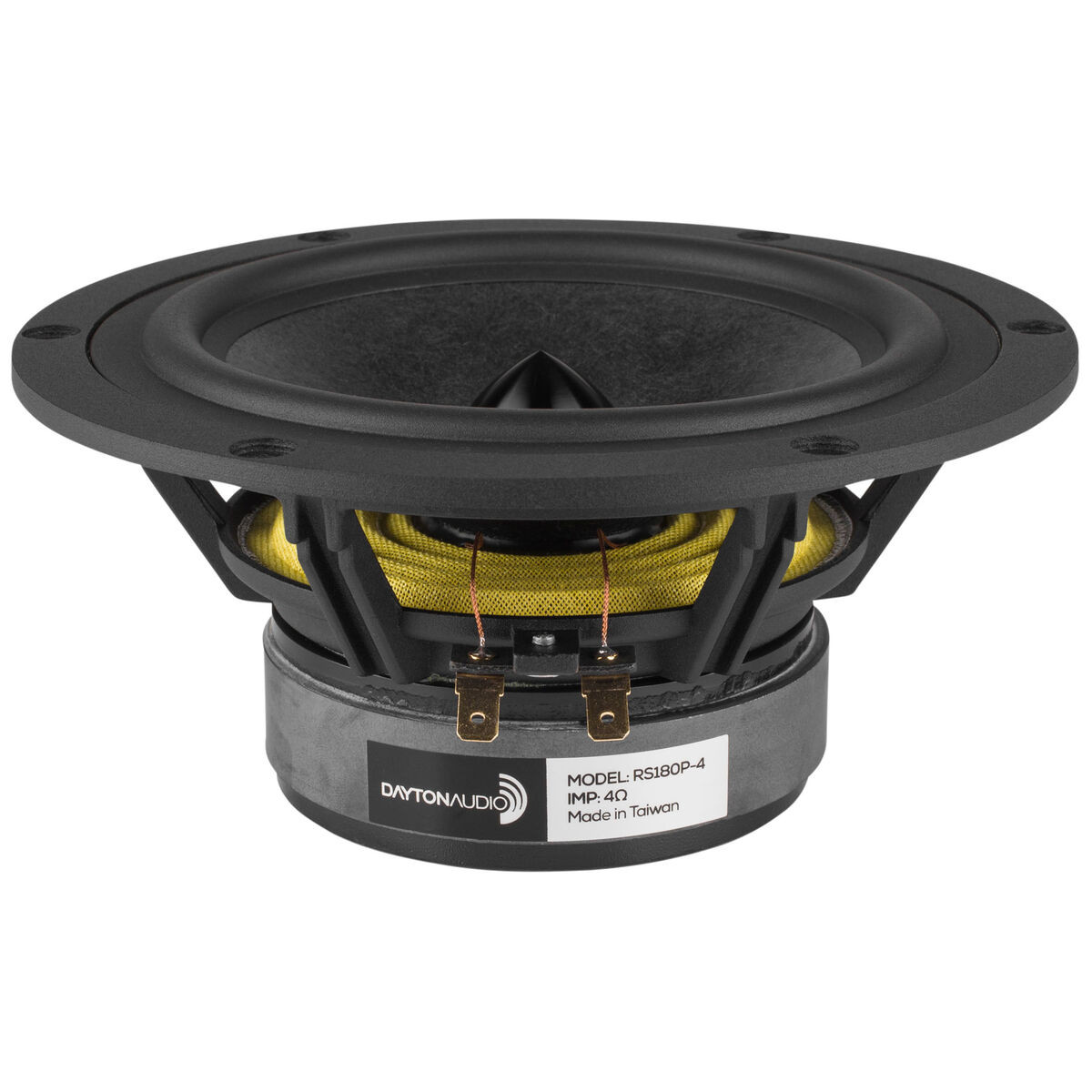

Dayton Audio RS180P-4 7” Reference Paper Woofer 4 Ohm Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with super smooth frequency response due to the use of a proprietary cone blend. Key Features Similar cosmetics and design features as original Reference Series with low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminum phase plug Perfect as a woofer, midwoofer, or dedicated midrange driver Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers 6 mm of Xmax and 88.2 dB sensitivity Dayton Audio RS180P-4 7" Reference Paper Woofer 4 Ohm The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.
