Dayton Audio DSA175-PR

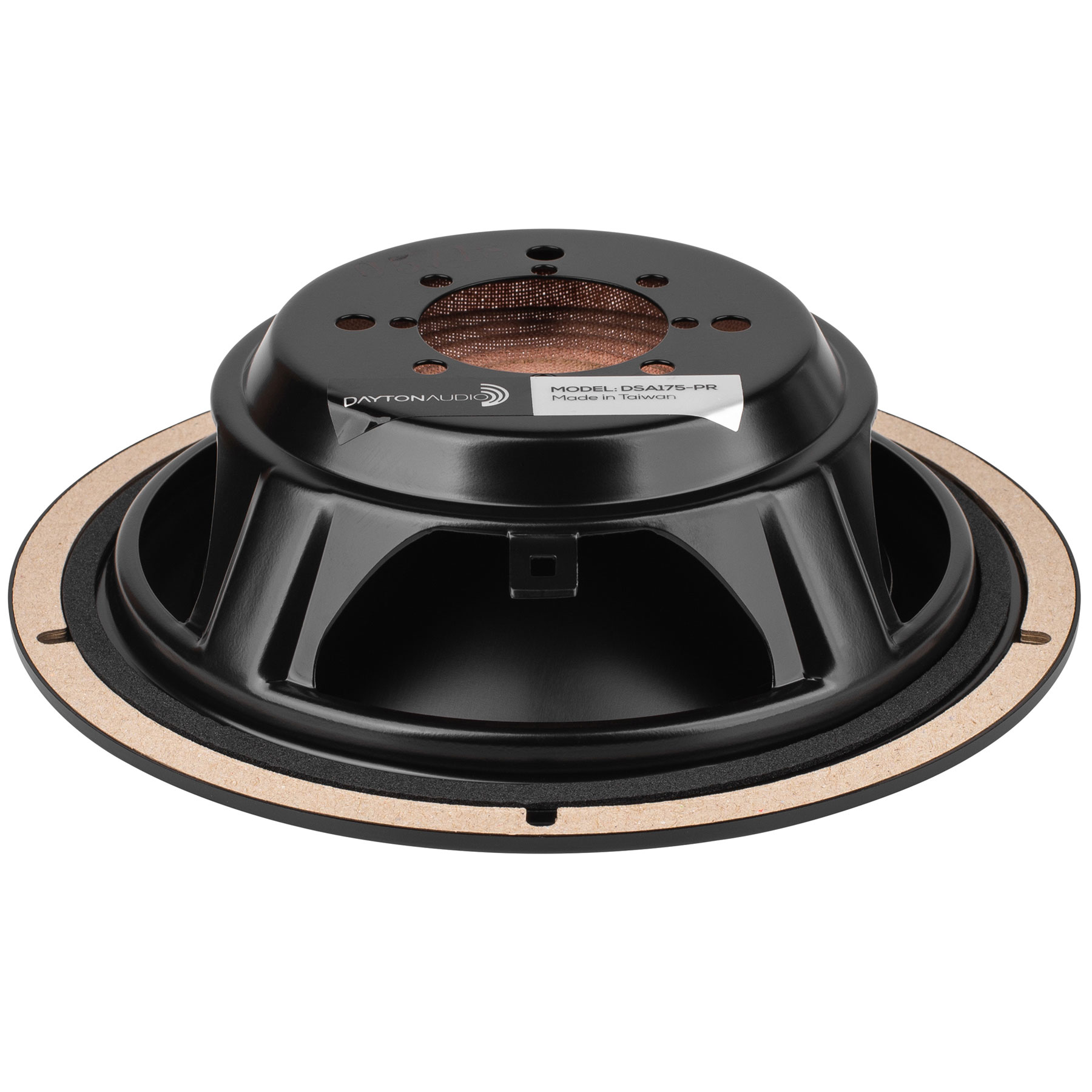

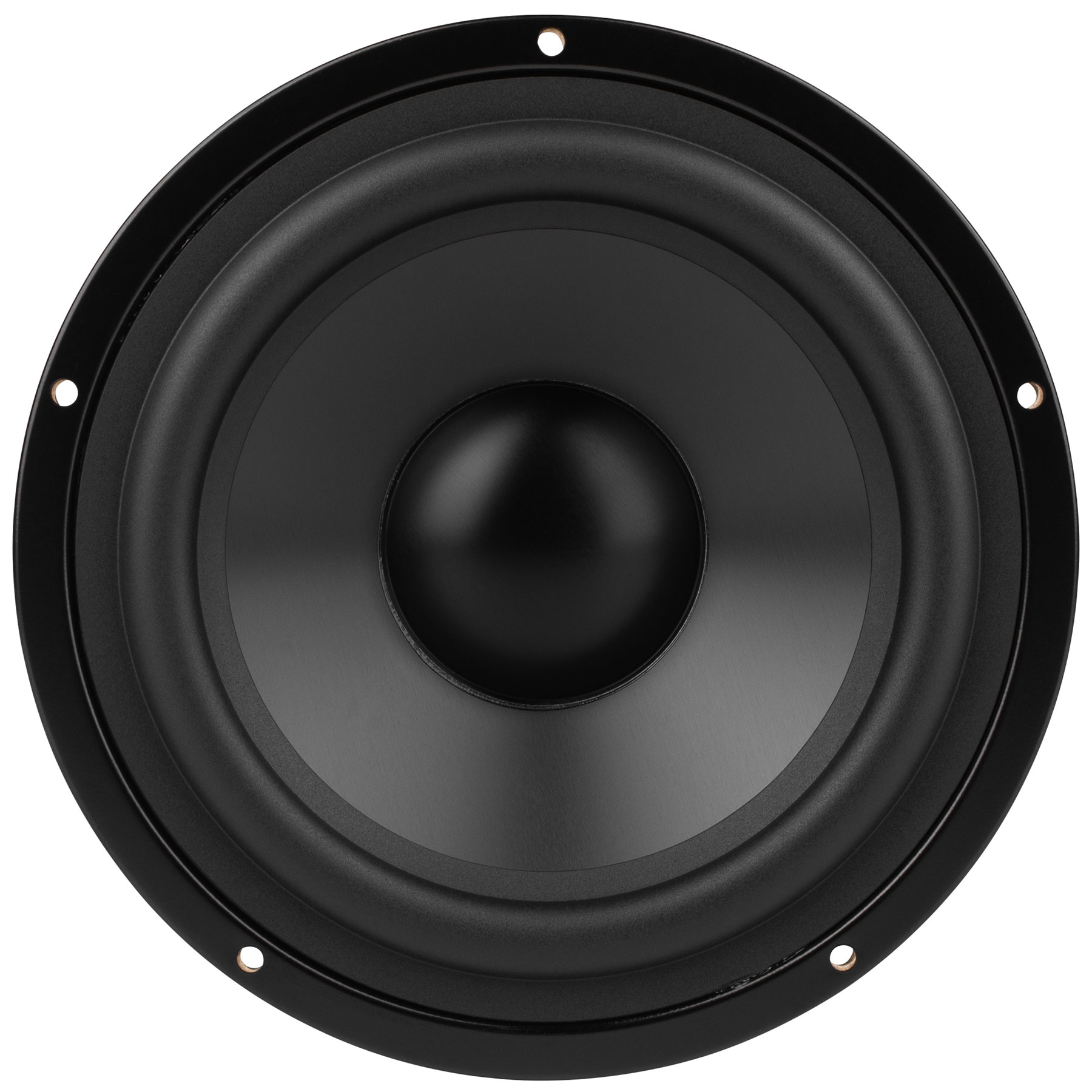

Dayton Audio DSA175-PR 6-1/2" Designer Series Aluminum Cone Passive Radiator

The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. Built to be a perfect match for the Designer Series drivers, these passive radiators feature the same steel frame, rubber surround, and anodized aluminum cone making them visually identical.

Key Features

  • Perfect match for Dayton Audio's aluminum cone Designer Series drivers
  • Rear mounted screw allows easy mass adjustment for custom tuning
  • Cosmetic frame edge looks great even when surface mounted
  • Allows tuning small enclosures lower than using conventional ports

Dayton Audio DSA175-PR 6-1/2" Designer Series Aluminum Cone Passive Radiator

The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, these passives match Dayton Audio's Designer Series drives, with a black anodized aluminum cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from stand mount two-ways to portable battery powered speaker systems.

Specifications: • Fs: 26.8 Hz • Vas: 0.95 ft³ • Qms: 4.30 • Cms: 1.15 mm/N • Rms: 1.2 kg/s • Mms: 30.7 g • Sd: 128.7 sq. cm. • Xmax: 8 mm • Dimensions: Overall diameter: 6.91", Cutout diameter: 5.67", Depth: 1.85".

Note: Adding mass to the passive radiator will decrease Fs and increase Qms.

Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system.
To calculate Vd: Sd x Xmax = Vd

Properties
Artikel-Nr.: 295-548
Außenmaß: 175,5mm
Bohrlochanzahl: 5
EAN: 848791005053
Eff. Membranfläche (Sd): 128,7cm²
Effektive Bewegte Masse (Mms): 307
Einbautiefe: 47 mm
Einbauöffnung: 144mm
Einheit: Stück
Korbmaterial: Stahl
Lineare Auslenkung (Xmax): 8mm
Marke: Dayton Audio
Mechanische Güte (Qms): 43
Membranmaterial: Aluminium
Modell: DSA175-PR
Nachgiebigkeit (Cms): 1,15mm/N
Resonanzfrequenz (fs): 26,8Hz
Sickenmaterial: Gummi
Äquivalentvolumen (Vas): 26,901 l
