AVA23 Gehäusebausatz

Picture similar to product

€15.00*

Prices incl. VAT plus shipping costs

Material

MDF black

MDF natural

Stage

Baffle

Flat pack

Bausatz fertig verleimt

Surface Finish

Unfinished

primered white

primered black

painted in a RAL color

Product number: G3198G.1

Manufacturer: Schreinerei Schmitz

Weight: 8 kg

Min. order quantity: 1

AVA23 Case Kit

Speaker enclosure kit for speaker kit AVA23

AVA23 Case Kit
Assembly suggestion:
Dayton Audio PS220-8
Properties:

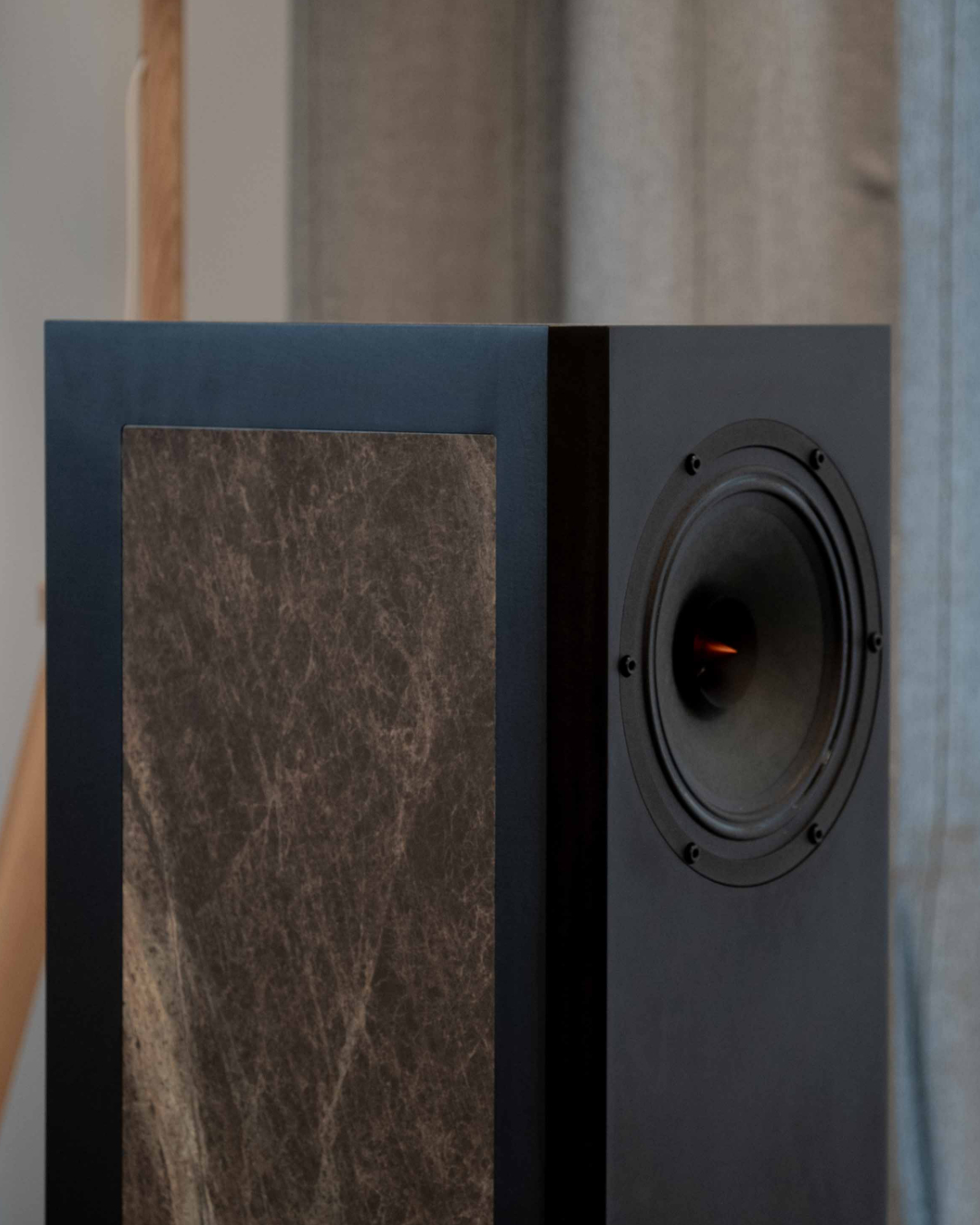

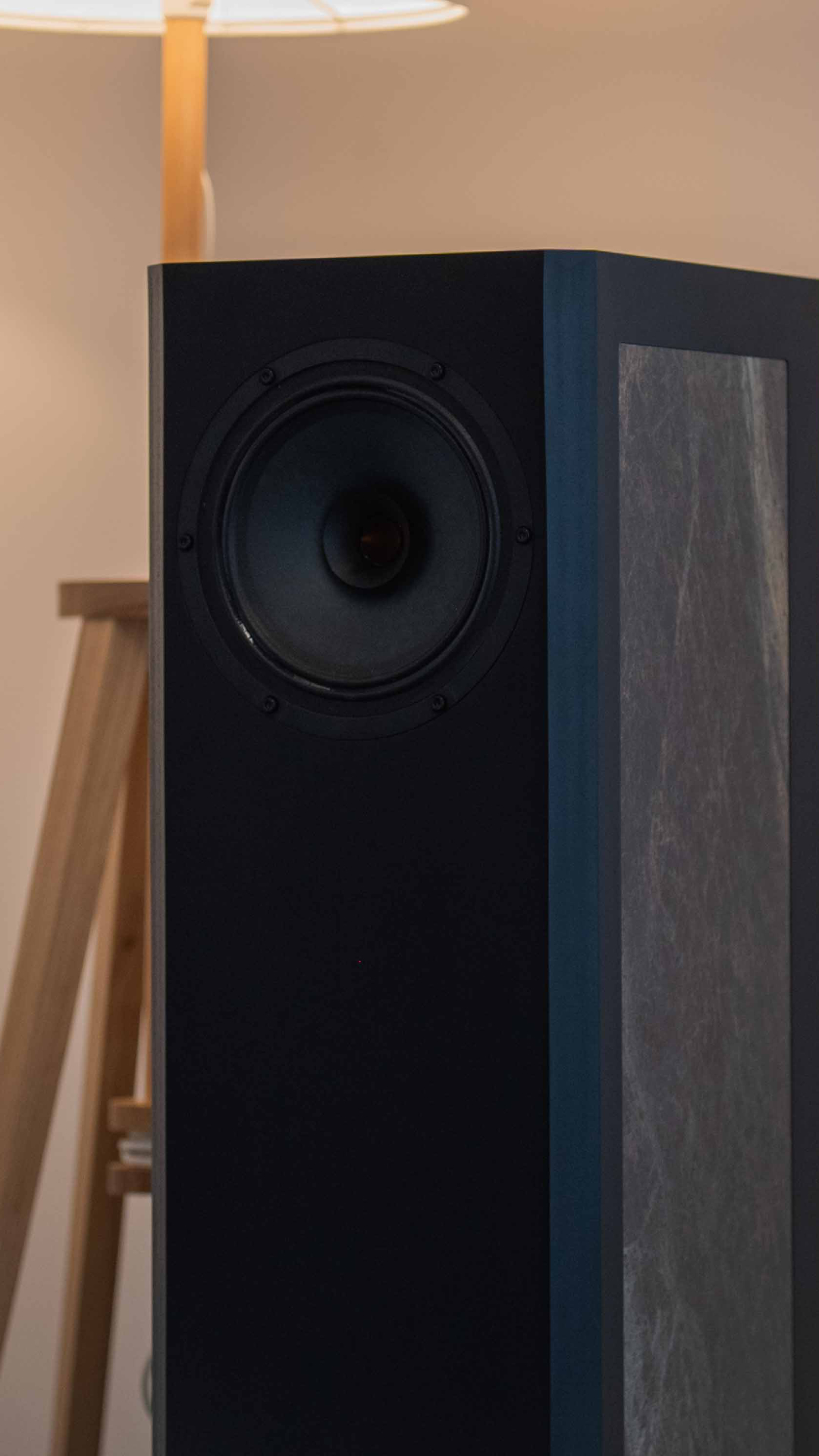

Floorstanding Speaker AVA23 Flat Pack Enclosure Kit
About the Case:
This clever enclosure was specially developed by variant GmbH for the Dayton Audio PS220-8 high-end full-range driver.
During the CNC manufacturing process, grooves and joints are cut into the housing panels to align the panels precisely.

Cutouts for speaker chassis and connection terminal as well as bass reflex openings are precisely milled.
All that remains to be done is to finish it to match your decor or paint it to stand out.

Specifications:- Material thickness: 19mm, Panel material: Medium Density Fiberboard (MDF) -
External dimensions W/H/D: 280mm x 975mm x 325mm

Dayton Audio PS220-8
Zitat der Hobby Hifi 2-3/2023;
„Dayton's eight-inch full-range driver PS220-8 is an excellent choice for a large bass reflex enclosure and even more so as a driver for the Jericho horn“

To the chassis,
• High sensitivity and minimal distortion - ideal for amplifiers with lower power
• Parasitic HF diaphragm and carefully designed phase plug extend the frequency response on and off axis
• Solid bass performance thanks to the high excursion capability (4.8 mm Xmax)
• Optimized neodymium drive ensures high motor strength
• Low-mass, copper-clad aluminum voice coil
• Copper cap and copper ring on the pole piece reduce inductance and distortions
• Kevlar-reinforced paper cone is lightweight yet rigid and well-controlled

Attention:

BPlease note and address any change requests in the comment field or via email:
In all our housing kits, unless otherwise mentioned, terminal cutouts for our Terminal T105 on the back of the housing are prefabricated!
All housing kits (not glued or painted) are without rounded edges or chamfers!
Chamfers or rounds are only made on fully assembled housings.

Properties

Breite:	280mm
Funktionsprinzip:	ML-TQWT
Höhe:	975mm
Tiefe:	325mm

Data according to manufacturer. Errors and changes reserved.
