Apollon Lautsprecherbausatz

€213.95*

Prices incl. VAT plus shipping costs

Weichenausführung

Highend Weiche

Standard Weiche

Product number: B3104

Manufacturer: variant

Weight: 0.001 kg

Available stock: 6

Min. order quantity: 1

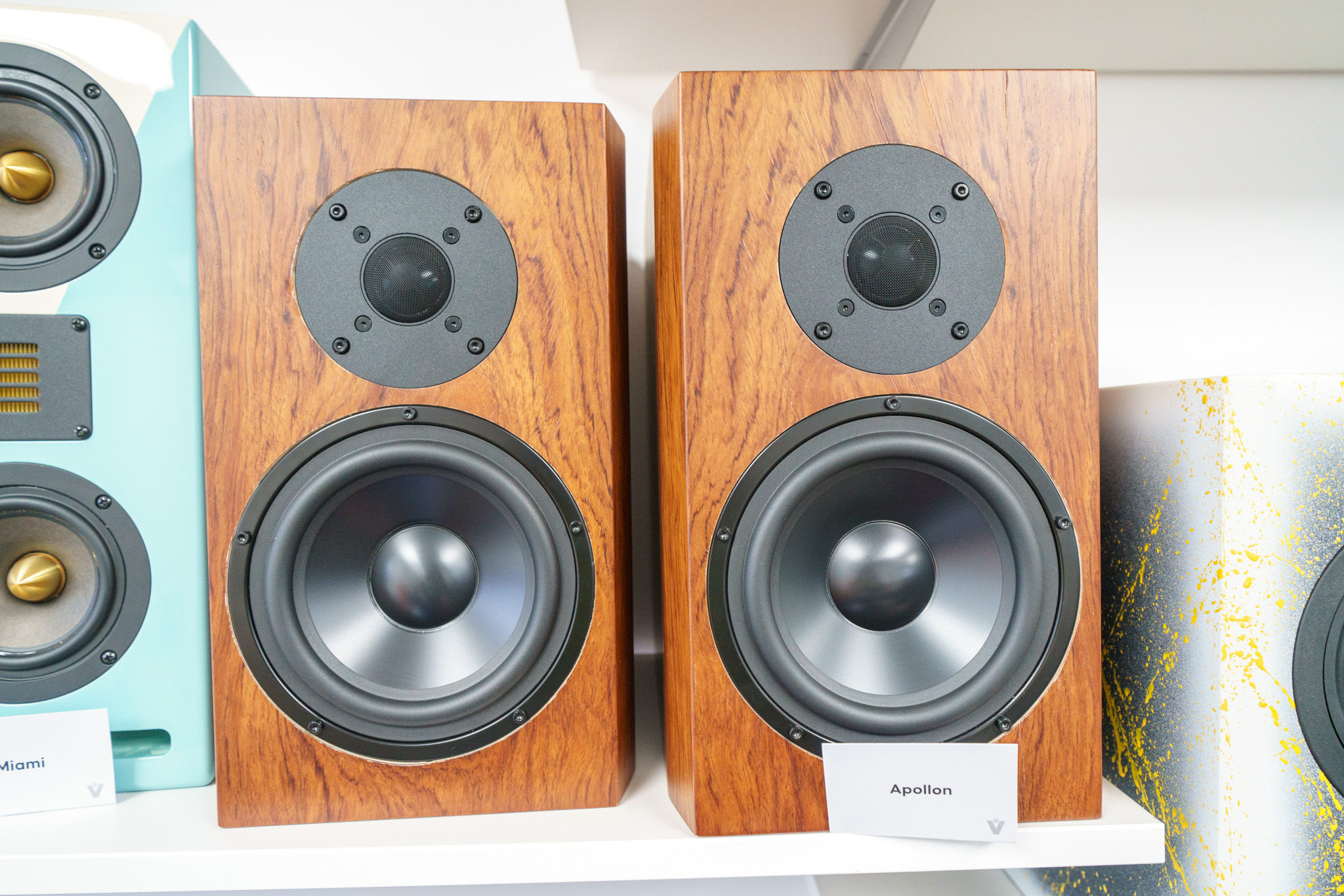

Apollon Speaker Kit

Apollon

Classic two-way compact speaker

Assembly:

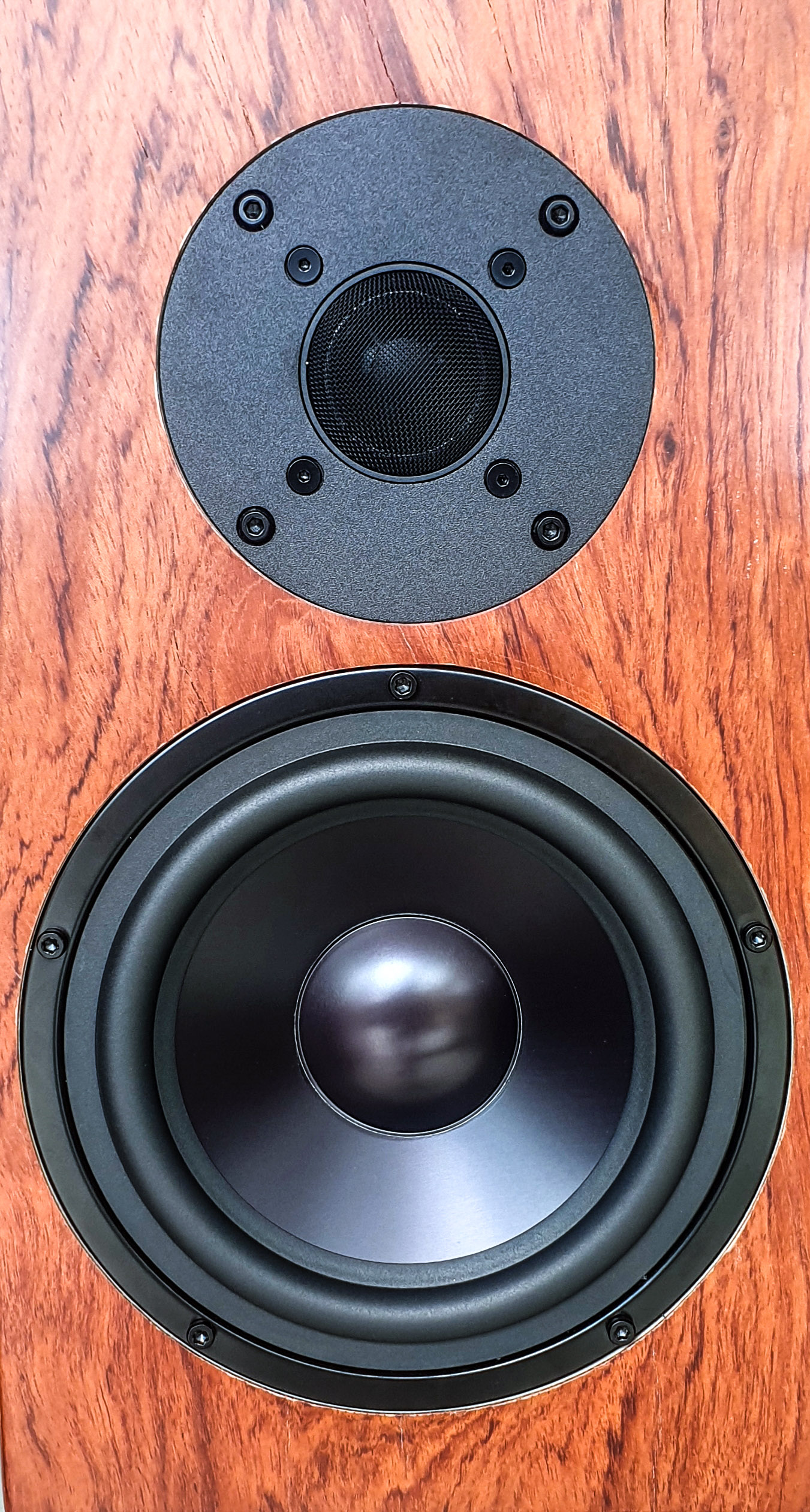

Dayton DSA175-8 and RST28A-4; Crossover components Mundorf Hi-Quality:

Properties:

The extremely popular size is a large playing field. What can Apollon do; now its 175mm mid-woofer chassis Dayton Audio DSA175-8 with a torsion-resistant aluminum diaphragm is immune to loss deformation in the bass even with coarser music material. The upper end of the midrange is a mature chassis development with enough damping properties of the surround and bonding technology, resulting in a very balanced midrange. "On the point," as test listeners commented, Apollon achieves bass, midrange, kick, and harmonious vocal reproduction. Accompanying this is a large 28mm tweeter dome RST28A-4 from the Dayton Audio Reference Series, which is also made of aluminum. You can see from its development that the designers have come up with something sensible. It has the tendency of a so-called English tuning with a constantly steadily declining frequency range up to over 20000Hz. This property also helps the metal dome to achieve a stress-free sound image and harmonizes perfectly with the mid-woofer.

From only 14 liters net, it goes down to 45Hz-3dB, and the precise and powerful reproduction brings
doch des Öfteren erstauntes Augenaufschlagen hervor. Auch die Langzeit Hörfähigkeit ist erstaunlich gut
successful, both chassis actors have already been praised by many specialist magazines and dedicated hobbyists,
a pronounced biting poverty and appealing efficiency have been attested. One reason why we
the two chassis also as a harmonious duo. The box is nominally 4 ohms, below 3000Hz
however clean 8 Ohm, SPL is a stately 88dB/2.83V which is also suitable for smaller amplifiers
controlled to handle.

Our conclusion; a beautiful classic compact with long-term qualities and a
grobdynamic elevated recipient class.

Scope of delivery:

Screws
Chassis

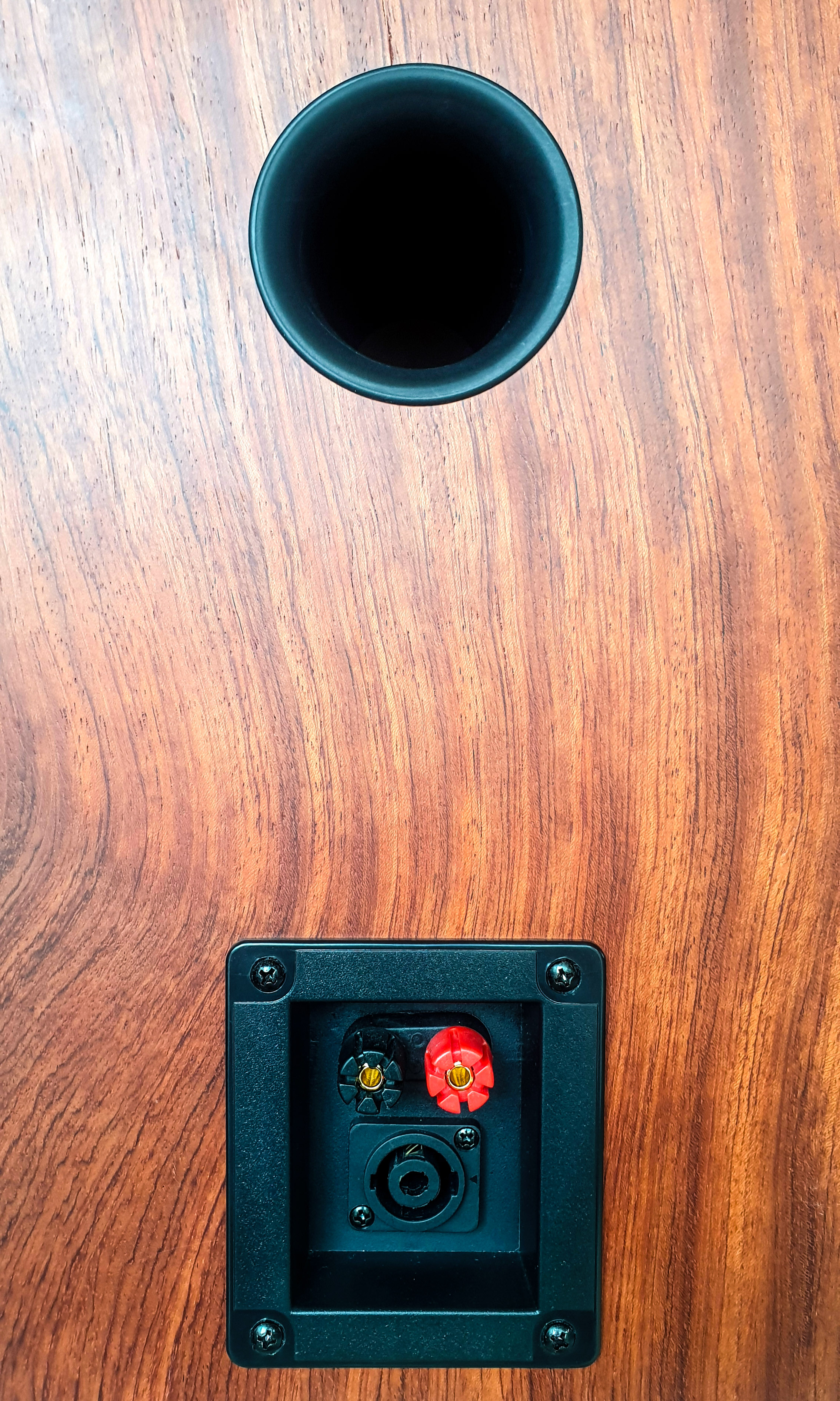

Terminal
Cable (Inside)
Insulation fleece
Crossover Components (Loose)

Properties

Breite:	214mm
Frequenzumfang:	45-21000Hz
Funktion:	2 Wege
Funktionsprinzip:	Bassreflex
Gesamtimpedanz:	4 Ohm
Höhe:	350 mm
SPL:	88dB
Tiefe:	310mm

Data according to manufacturer. Errors and changes reserved.
