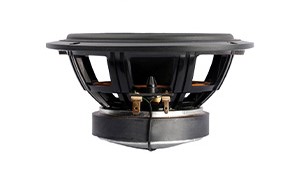

SB Acoustics 5" SB13PFCR25-4-COAX
Skip image gallery
Picture similar to product
Product number:
V11108
Manufacturer:
SB Acoustics
Weight:
1.5 kg
Available stock:
6
Min. order quantity:
1
- Vented reinforced plastic chassis
- Proprietary cone material with natural fibers made in-house
- Soft low damping rubber surround for improved transient response
- Optimized motor system
- Non-resonant long life lead wires
- Compact large surround dome tweeter
Properties

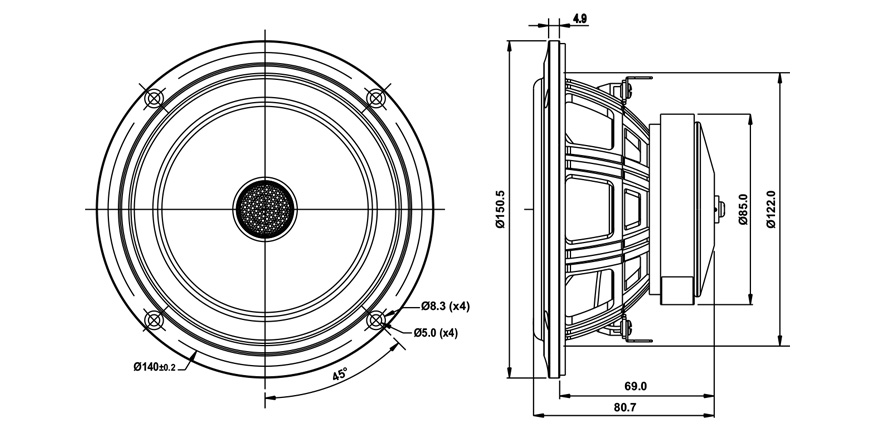

| Außenmaß: | 150,5mm |
|---|---|
| Eff. Membranfläche (Sd): | 82cm² |
| Effektive Bewegte Masse (Mms): | 9,1g |
| Einbautiefe: | 80,7 mm |
| Einbauöffnung: | 122 mm |
| Gesamtgüte (Qts): | 0,27 |
| Gleichstromwiderstand (Re): | 3,2Ω |
| Impedanz (Z): | 4 Ohm |
| Kraftfaktor (BL): | 5,1 N/A |
| Lineare Auslenkung (Xmax): | +/- 4,65mm |
| Nennbelastbarkeit: | 40 W |
| Schwingspulendurchmesser: | 25,4mm |
| Schwingspulenind. (Le): | 0,3 mH |
| Äquivalentvolumen (Vas): | 14,4l |
Data according to manufacturer. Errors and changes reserved.
