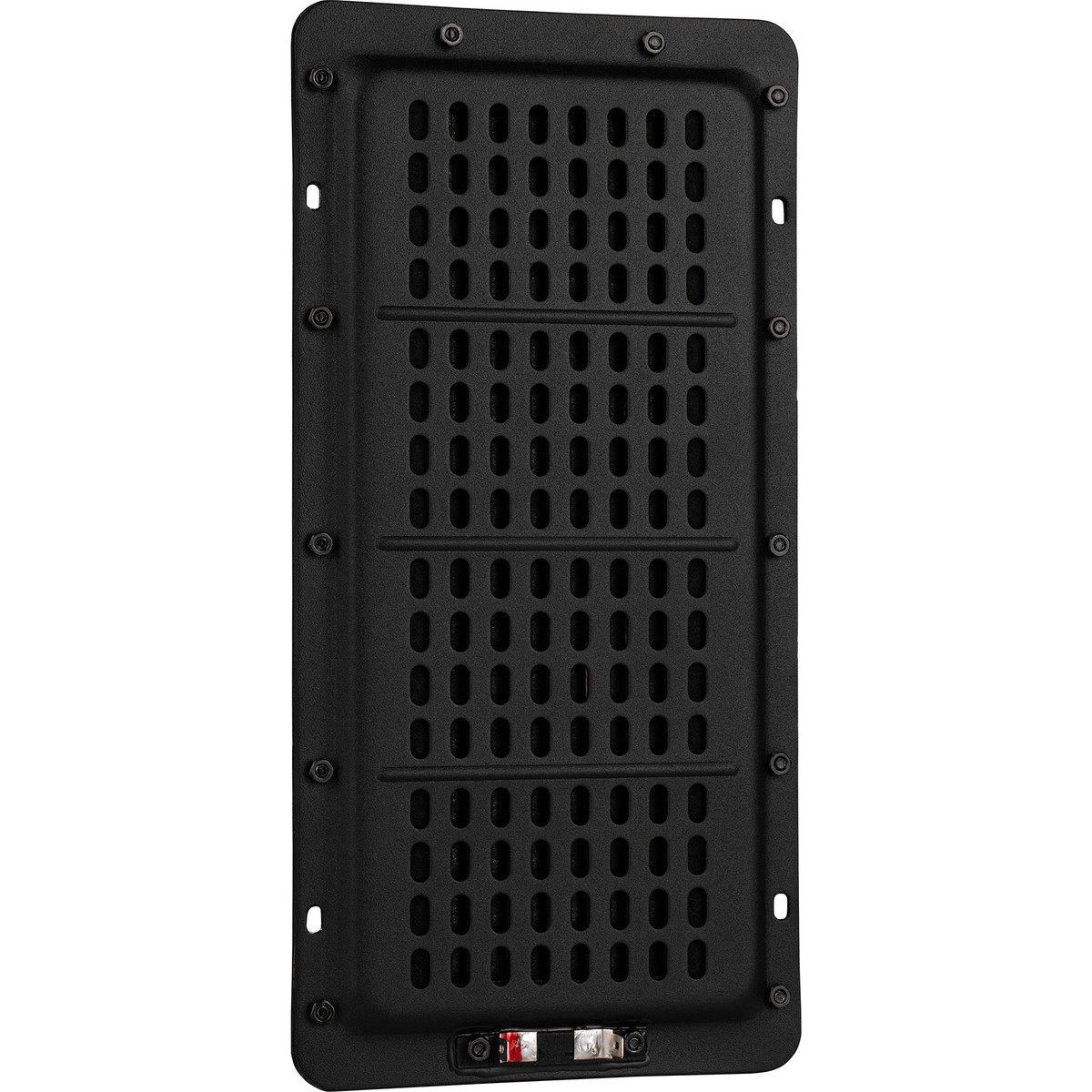

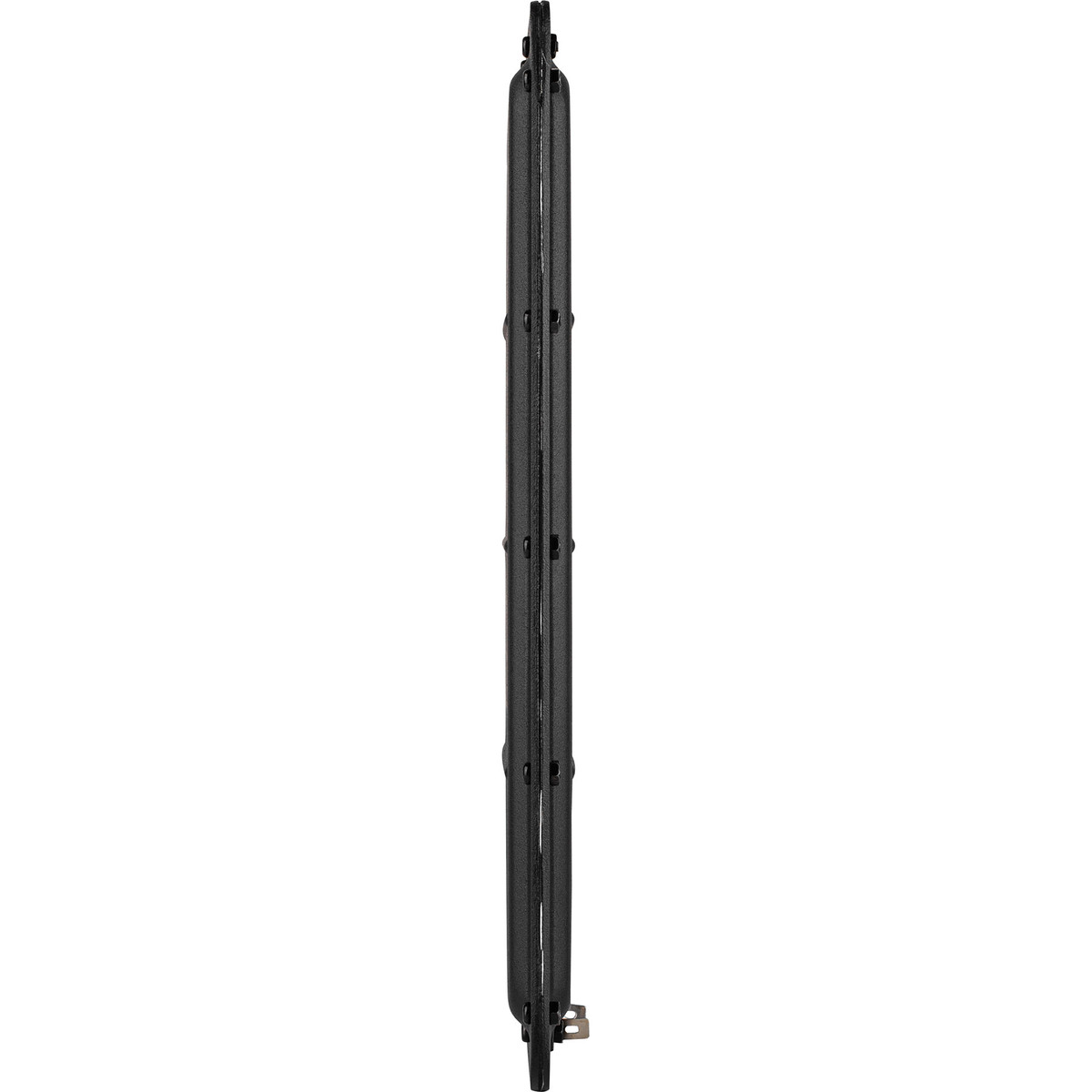

GRS PT5010-8 10" Planar Mid/Tweeter 8 Ohm
€199.95
Available, delivery time: 1-3 days
- Extremely low mass diaphragm provides excellent transient response and accuracy
- Large diaphragm produces high efficiency with incredible dynamics
- Remarkably wide bandwidth for predictable transition to woofer and tweeter drivers
- Open back delivers true dipole radiation for use in open baffle designs
- Linear impedance simplifies crossover design
- Shallow mounting depth for use in low profile designs
With the ability to provide low distortion output from 300-8,000 Hz, the GRS PT5010-8 open back midrange/tweeter is an excellent choice for use in 2-way designs or even as a drop in replacement for many existing systems. Thanks to a lightweight damped Polyethylene Naphthalate film diaphragm driven by 56 powerful neodymium magnets in a push-pull arrangement, this driver is capable of incredible transient response and detail. With a nearly linear 6.8 ohm impedance keeps crossover design simple with predictable final results. In addition, the open back design gives this midrange/tweeter true dipole radiation making it the perfect choice for use in high end open baffle speaker designs.
| Artikel-Nr.: | 272-130 |
|---|---|
| EAN: | 848864061207 |
| Einheit: | Stück |
| Frequenzbereich: | 25 to 1,500Hz |
| Gesamtgüte (Qts): | 1,96 |
| Gewicht: | 2,7 kg |
| Gleichstromwiderstand (Re): | 6,8Ω |
| Impedanz (Z): | 8 Ohm |
| Kennschalldruck: | 94dB 2.83V/1m |
| Marke: | GRS |
| Mechanische Güte (Qms): | 2.14 |
| Model: | PT5010-8 |
| Nennbelastbarkeit: | 70 Watt |
| Schwingspulenind. (Le): | 0.01mH |
Accessory Items
By attaching the GRS PT5010-8 planar tweeter to the PT5010-FP faceplate, you can streamline the mounting process. This faceplate simplifies the complex profile of these tweeters while offering a flush mounting ensuring diffraction effects are mitigated, as well as providing an aesthetically pleasing finish to any project!Key FeaturesAluminum faceplate for the GRS PT5010-8 planar tweeter Simple design for easier flush mounting Instantly improve the looks of any project Does not effect output when installed All mounting hardware included Tweeter not included Hochtöner nicht enthalten
