Dayton Audio UMII8-22 Ultimax II

€149.95*

Prices incl. VAT plus shipping costs

Product number: 295-708

Manufacturer: Dayton Audio

Weight: 7 kg

Available stock: 4

Min. order quantity: 1

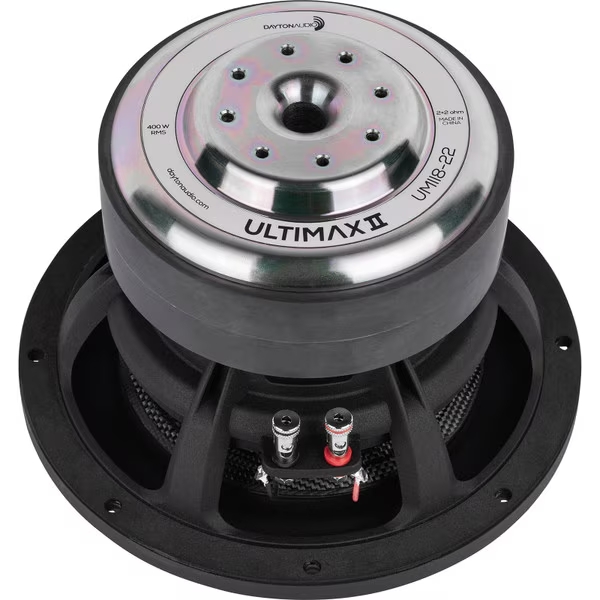

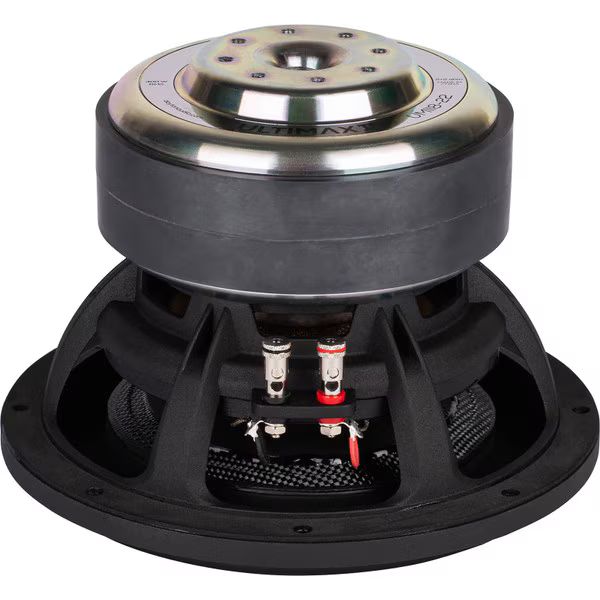

Dayton Audio UMII8-22 Ultimax II

Wir präsentieren den UMII8-22 Ultimax II 8" Carbon Fiber Cone Subwoofer von Dayton Audio. Building on
the success of their predecessor, these subwoofers were carefully developed to meet all expectations of
outperform. With improved excursion capability, lower distortion, higher power handling,
better efficiency and increased performance elevate the new Ultimax II generation subwoofers and your
Audio experience with new low-frequency experiences. Immerse yourself in rich, powerful bass that takes you to the
Mark will be shaken. Dayton Audio continues to define the boundaries of the UMII8-22 subwoofer in the
Excellence new. Main features A large aluminum short-circuit cap helps to linearly

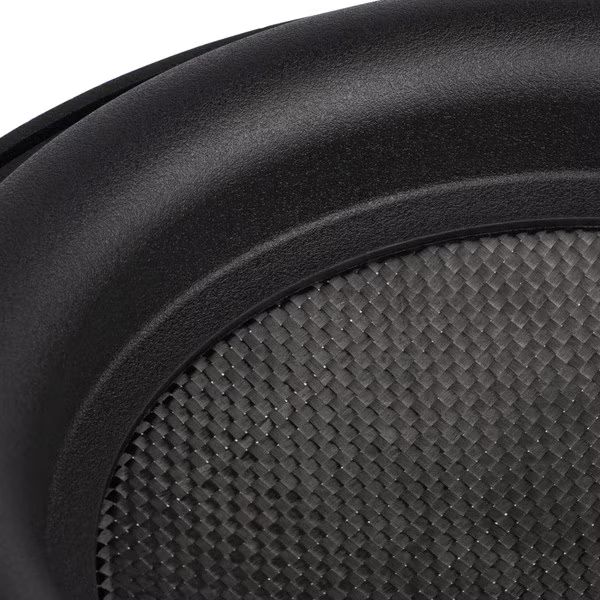

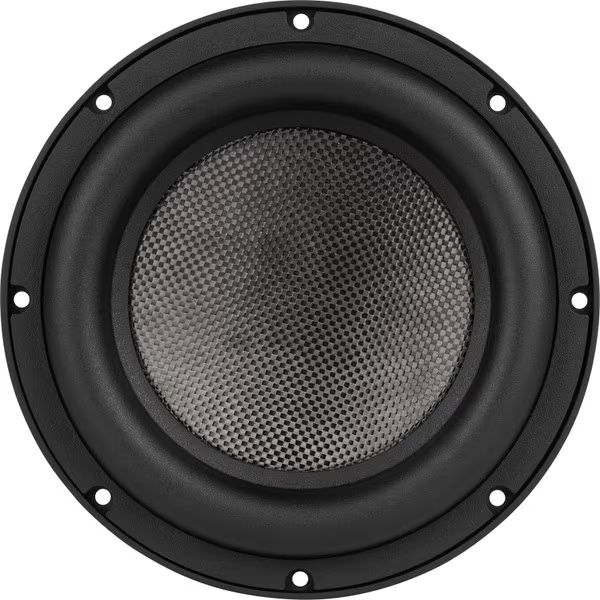

hold to guarantee minimal distortions. The rigid yet lightweight woven carbon fiber
Membrane provides a fast, detailed, and accurate response. With ±18 mm xmax, you can a
powerful and deep bass response that takes your audio experience to the next level.

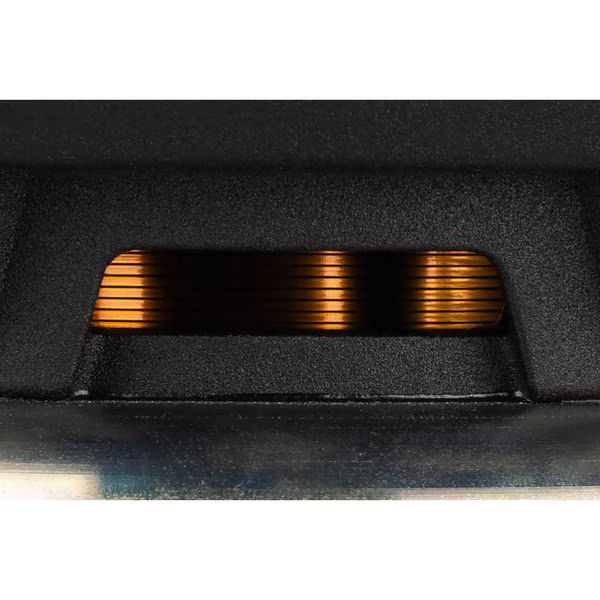

Equipped with a 4-layer 2-1/2" flat wound voice coil, handling up to 400 watts RMS

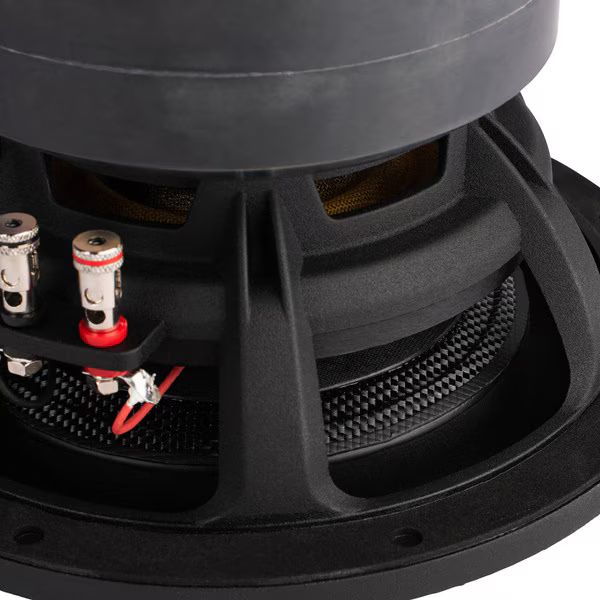

can process. The basket and drive are comprehensively ventilated, allowing for efficient heat dissipation for a
ensures consistent and reliable operation while simultaneously performance compression
minimized. Dual spiders maintain membrane linearity even at extremely high excursion levels
and always provide optimal audio performance. Optimized for compact, closed enclosures, but in
der Lage, in Bassreflex Designs eine außergewöhnliche Niederfrequenzerweiterung zu erzielen – offers
You the freedom to create the perfect audio setup.

Properties

Eff. Membranfläche (Sd):	200cm²
Effektive Bewegte Masse (Mms):	82g
Einbautiefe:	144mm
Einbauöffnung:	185mm
Elektrische Güte (Qes):	0,99
Frequenzbereich:	30-600Hz
Gesamtgüte (Qts):	0,75
Gleichstromwiderstand (Re):	3,9Ω
Impedanz (Z):	2x2 Ohm
Kennschalldruck:	84,1dB
Korbmaterial:	Leichtmetall Druckguss
Kraftfaktor (BL):	9,7 Tm
Lineare Auslenkung (Xmax):	18mm
Membranmaterial:	Gewebte Kohlefaser
Nachgiebigkeit (Cms):	0,148mm/N
Nennbelastbarkeit:	400 Watt
Power Handling (MAX):	800 Watt
Resonanzfrequenz (fs):	46Hz
Schwingspulendraht Material:	4 lagen Kupferdraht
Schwingspulendurchmesser:	2,5"
Schwingspulenind. (Le):	0,75mH
Äquivalentvolumen (Vas):	8,4 l.

Data according to manufacturer. Errors and changes reserved.
