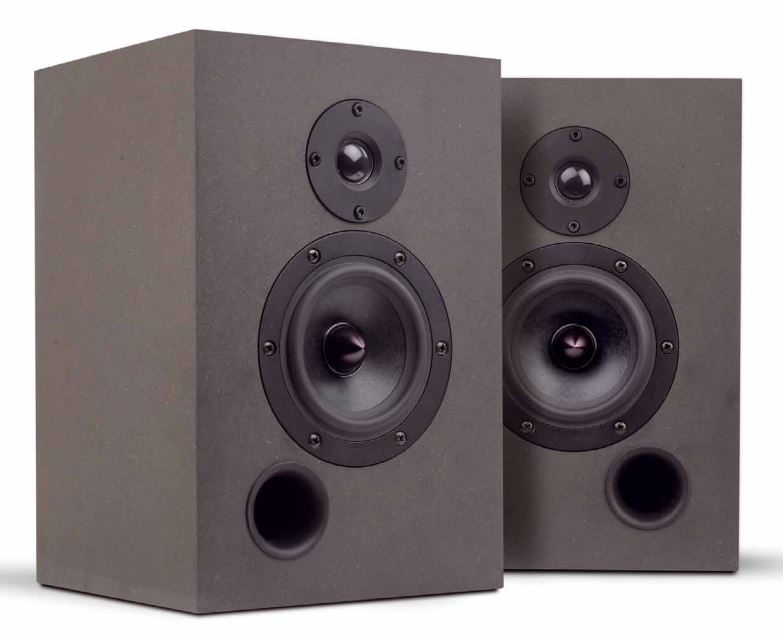

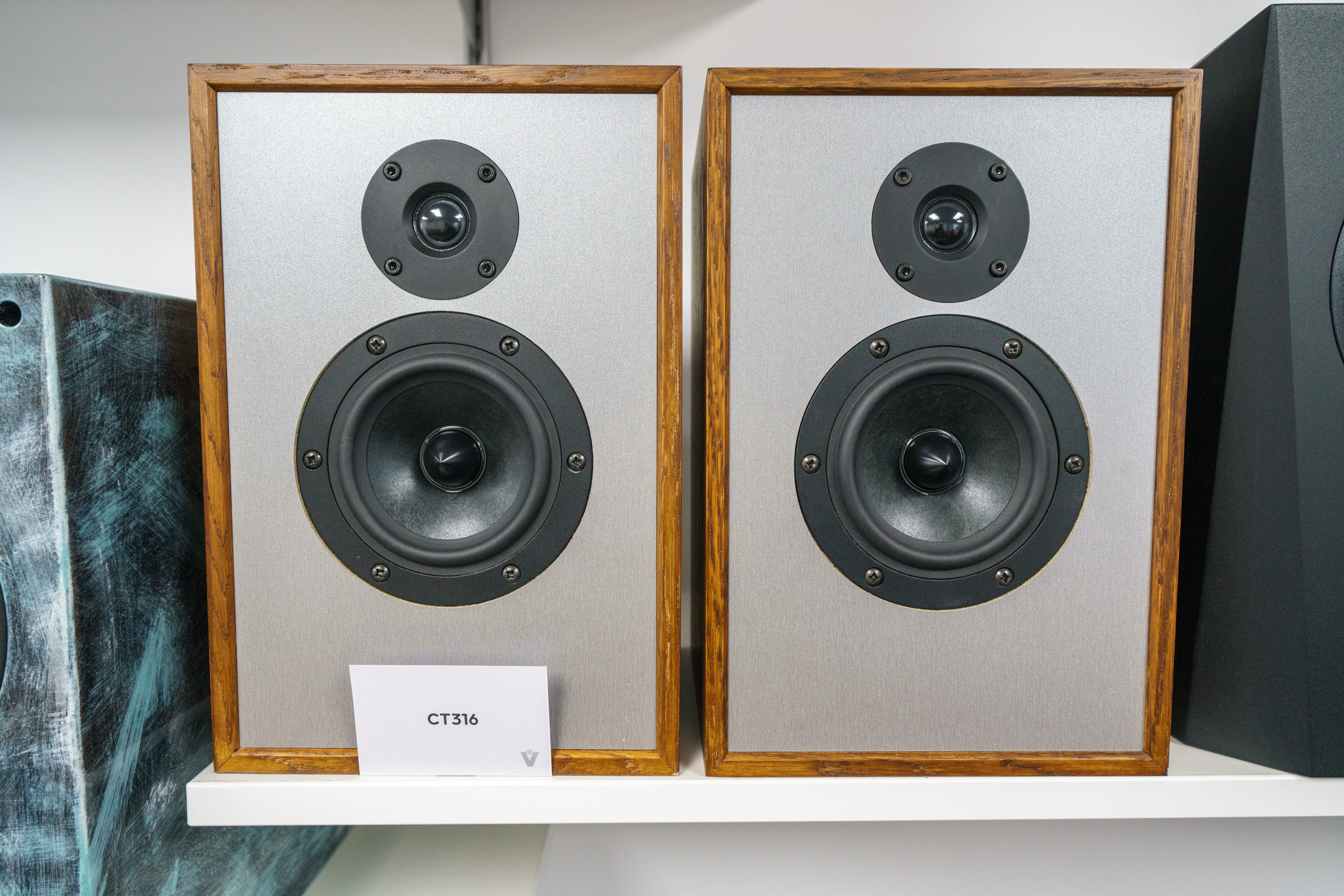

CT316 Lautsprecherbausatz

Dayton Audio RS125P-8 5” Reference Paper Woofer Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with super smooth frequency response due to the use of a proprietary cone blend. Key Features Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers Similar cosmetics and design features as original Reference Series with low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminum phase plug Perfect for use as a woofer, midwoofer, or dedicated midrange driver 4 mm of Xmax and 85.8 dB sensitivity Dayton Audio RS125P-8 5" Reference Paper Woofer 8 Ohm The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.

CT316 Case KitSuitable for speaker kit: CT316 (B3121) Loudspeaker Kit according to Klang+Ton 4/2021. CT stands for Cheap Trick. A speaker kit series since the beginning of K+T About the Case The enclosures are specially designed and manufactured for the speaker kits developed by variant GmbH. Variant also manufactures enclosures according to specifications for the kits of our distribution products and other sources such as trade magazines or private projects.The enclosures and baffles are CNC-manufactured in our large carpentry shop. Rebates and joints milling and, depending on the size of the enclosures, braces ensure superior rigidity without compromising the performance of the speaker. Through the joint and rebate technique, a precise assembly is ensured, as they during gluinga lot of force can be applied to the surfaces using adhesive tape technique, clamps, or tensioning strap techniquewithout the housing parts slipping. All that remains to be done is to finish it to match your decor or to paint it to suit yourto take off. Details can be found in the selection legend next to the product images. Grundlegend sind MDF raw, through-dyed MDF black, and primed foiled MDF, in the thicknesses 10, 12,16, 19, 22 and larger intended for the case kits. Upon request, we also manufacture in other materials such as multiplex, solid wood with glued joints, real wood(if applicable) and similar. External dimensions: 200mm W x 297mm H x 183mm D The housing kit includes only wood. You can find the speaker kit under CT316 (B3121)order. Attention please note and for change requests please in the comment field or by email change requestsaddress: In all our enclosure kits, unless otherwise mentioned, terminal cutouts for our terminalT105 on the back of the case, prefabricated! All housing kits (not glued or painted) are without rounded edges or chamfers! Fasings or roundings are only made on fully assembled housings.

Dayton Audio TD20F-4 3/4” Soft Dome Neodymium Tweeter 4 Ohm The Dayton Audio TD20F-4 uses a 3/4" silk dome to produce smooth response with excellent dispersion. At only 2-1/2" diameter and just over 1/2" deep, this tweeter is ideal for use in any compact design. Key Features 3/4" silk dome provides articulate yet non-fatiguing high frequency reproduction Exceptionally flat and smooth frequency response Ferrofluid for improved power handling and damping Neodymium magnet low-distortion motor system Dayton Audio TD20F-4 3/4" Soft Dome Neodymium Tweeter 4 Ohm Dayton Audio's TD20F-4 3/4" silk dome tweeter incorporates an optimized diaphragm that combines low mass, superb damping, and a carefully calculated dome profile offering an exceptionally flat frequency response. This, along with the low distortion neodymium motor system, ensures that high frequency content is reproduced as transparently as possible.
