miniDSP SHD Studio
miniDSP is proud to introduce the SHD Studio (“Streaming High Definition”) digital audio processor incorporating Dirac Live®, the world’s premier room correction solution. While physically the SHD Studio is the “baby brother” of the full-featured SHD — accomplished by removing the analog I/O connectors and circuitry — internally it packs the same powerful audio processing capabilities. First and foremost, the SHD is a stereo Dirac Live room correction processor. The SHD fits right into any digital processing path, with AES/EBU, SPDIF, optical and USB audio inputs, and four output channels on both SPDIF and AES/EBU. Dirac Live calibration uses our popular UMIK-1 microphone and Dirac’s easy-to-use calibration tool.
We have also included network streaming over Ethernet, using a dedicated quad-core ARM processor. Out of the gate, we are shipping with Volumio, a popular open-source network streamer. Volumio gives you access to music files from sources as diverse as a USB stick, to files stored on your local network, to Internet Radio and Spotify. The SHD Studio includes a suite of our powerful but user-friendly DSP audio tuning software - ten-band parametric EQ per channel, crossovers up to 48 dB/octave, compressor/limiter, and a 2x4 matrix mixer. Applications range from integrating a single subwoofer to a two-way active speaker. Outputs 3 and 4 also drive the headphone jack on the front panel for a uniquely flexible digital processing solution.
Features
- Processor: 32-bit floating-point 450MHz Analog Devices SHARC DSP
- Powered by Dirac Live® 3.x Digital Room Correction
- Quad core ARM processor for network audio streaming - Preloaded with Volumio
- Inputs: Stereo digital channels (USB Audio/AES-EBU/SPDIF/Optical)

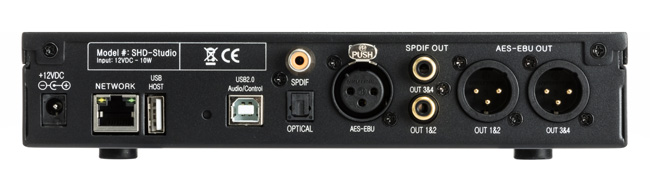

- Outputs: Dual Stereo digital channels (2 x stereo SPDIF RCA outputs and 2 x stereo AES-EBU Balanced XLR) / Headphone amplifier
- USB audio recording feature (4xCH processed output via USB audio to record inputs)
- White/Black OLED front panel controller
What's in the box?
- SHD Studio processor with embedded Dirac Live 2.0 license
- USB Wifi 2.4GHz adaptor
- Dirac Live v3.x license for full range correction (20Hz~20kHz)
- IR remote v2
- External universal power supply
NOTE: The Dirac Live Calibration Tools for miniDSP software is only compatible with the UMIK-1/UMIK-2 microphone for measurement.
