miniDSP Harmony 8x12
miniDSP is proud to introduce the latest addition to its line of innovative car audio processors. The all-digital Harmony DSP 8x12 integrated DSP/amplifier features six-channels digital audio input via USB, stereo digital optical input (TOSLINK), Dirac Live® acoustic correction and 12 output channels.
Hardware features dedicated to the vehicle environment include an on-board isolated power supply, remote trigger input/output, and a wired remote with OLED display for dash or console. Flexible output configurations cater to a wide variety of system configurations: each output can be a 40 Wrms power amplifier or a line-level output for driving external amplifiers. In addition, each pair of outputs can be configured in parallel BTL mode for 80 W output into 2 Ω loads.
In addition to Dirac Live, the Harmony DSP 8x12 includes miniDSP’s powerful, easy-to-use audio processing: parametric EQ, compressors, adjustable time delay, crossovers up to 48 dB/octave, and an advanced matrix mixer with rear/center capability. Four complete processing configurations are stored in flash memory for recall with a wired or infrared remote.
Features
- 400MHz 32bit Sharc Floating point processor
- Dirac Live technology helps tune your cabin environment
- All Digital amplifier
- USB Audio (6ch), Toslink(2ch), A2B (future) digital inputs
- 12 channel flexible amplifier for Mono/Bridged mode and Line OUT(driving external amps)
- Flexible DSP processing blocks, Rear Fill processing (L-R, L+R..) thanks to internal matrix
- Windows/Mac compatible GUI
- Remote control or preset/master & sub volume control
What's in the box?

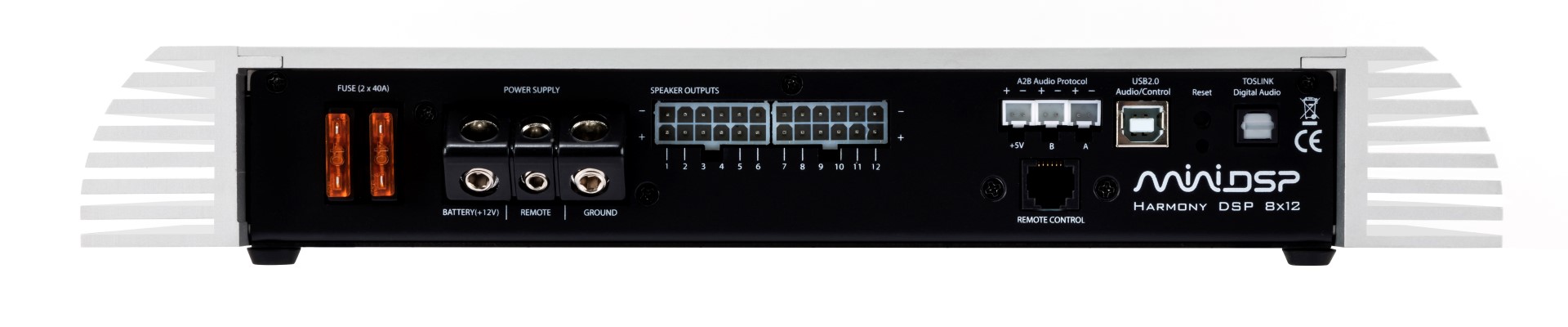

- 1 x Harmony 8x12 Car Amplifier
- 1 x Dirac Live license
- 2 x Speaker wiring harness
- 1 x 1m USB cable
- 1 x Control GUI plugin provided automatically under UserDownloads section on purchase

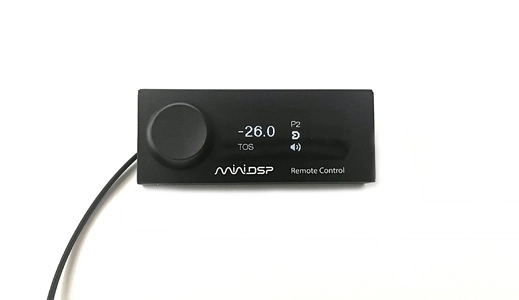

- 1 x 5m remote cable + OLED Remote control module
