miniDSP 2x4HD Boxed
Skip image gallery
Picture similar to product
Product number:
900-225
Manufacturer:
miniDSP
Weight:
0.5 kg
Available stock:
6
Min. order quantity:
1

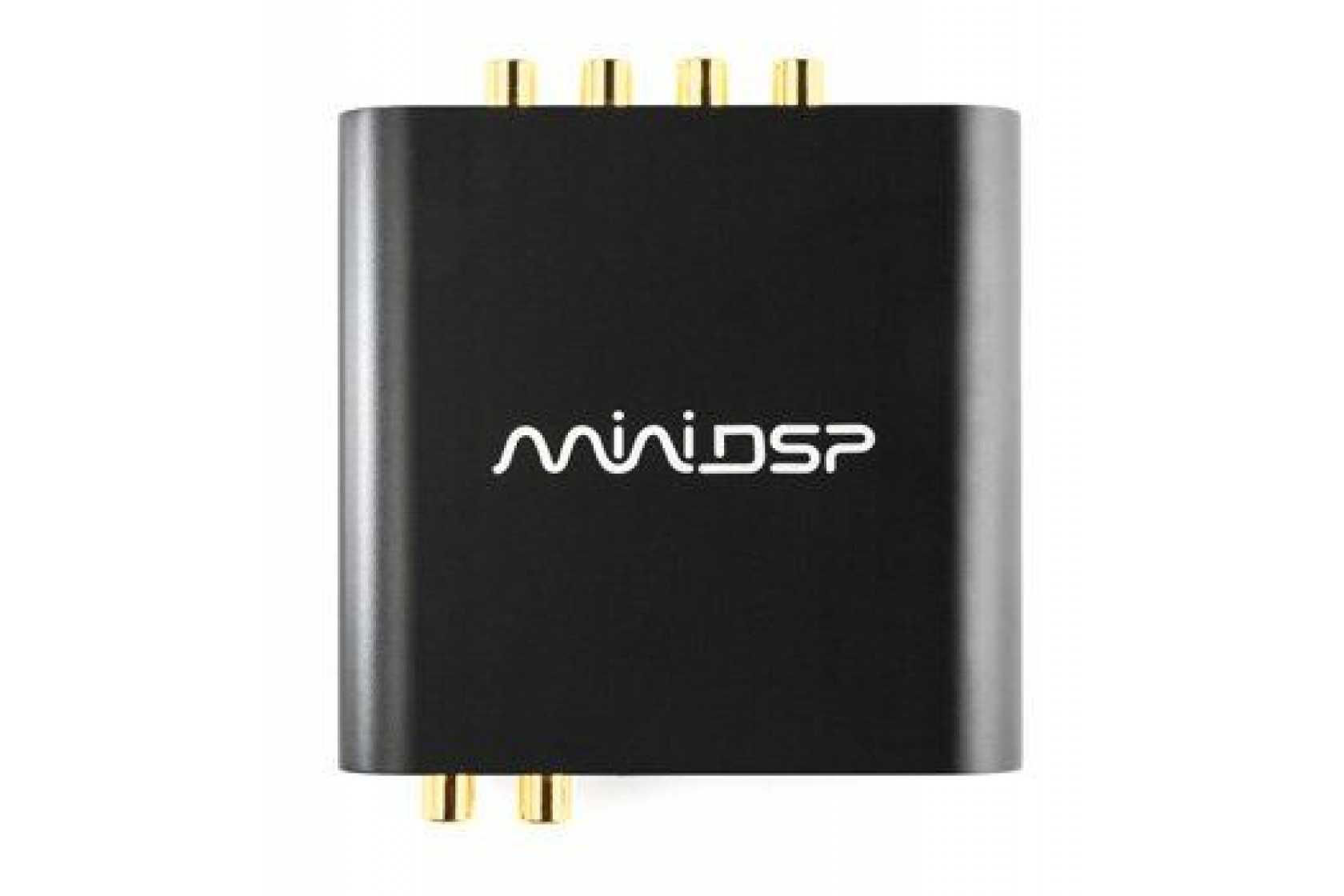

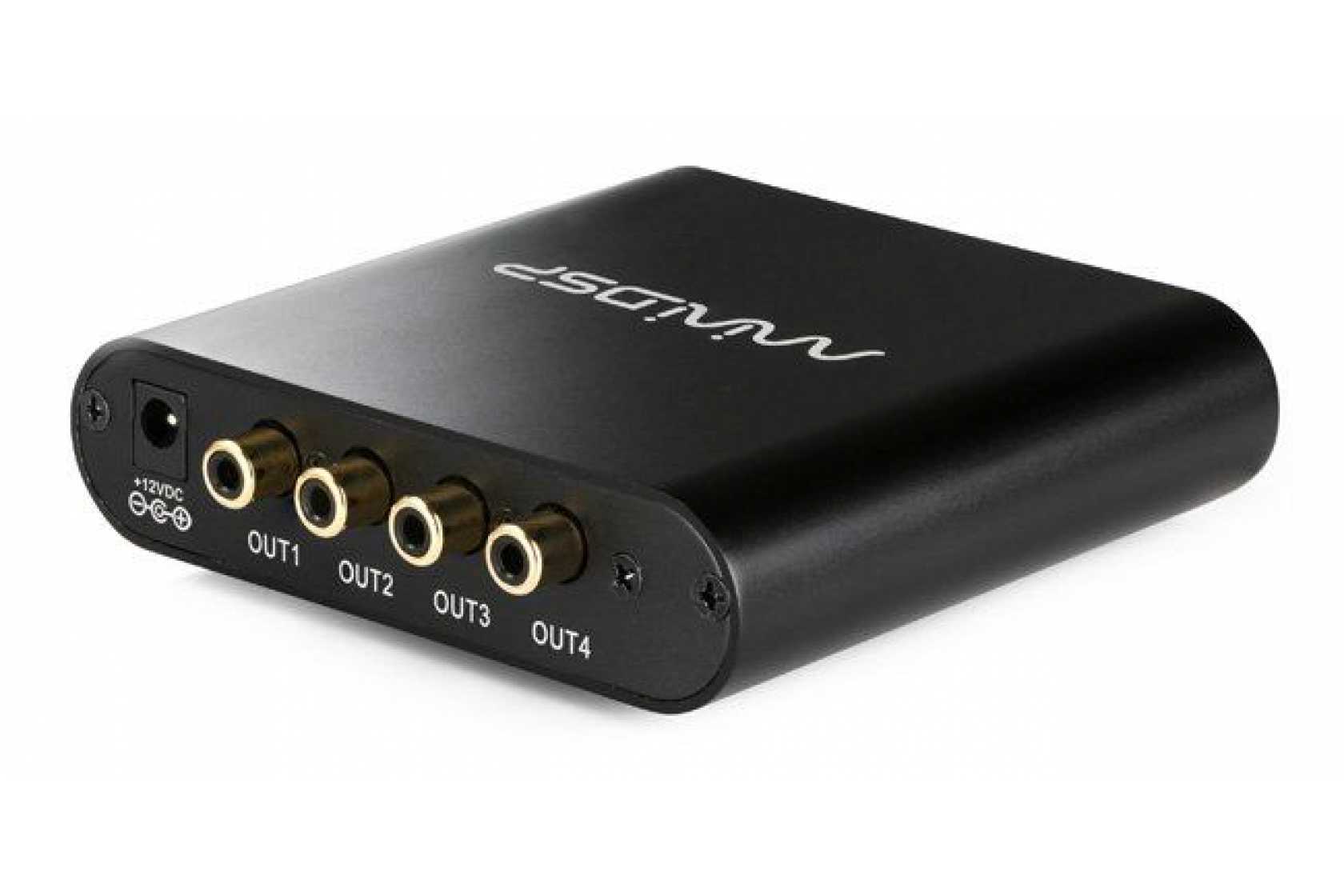

The miniDSP 2x4 in a box is a flexible pocket size DSP processor with 2 x analog IN, 4 x analog OUT. Combined with a plug-in software for programming, one can configure the on board Audio processing filters real time from a PC or Mac environment. Once the board configured, the device operates standalone and doesn't require a computer anymore. For more information on potential applications, please check the application section of our website.
Features
- ADSP21489 400MHz Sharc DSP floating point engine
- XMOS Xcore200 for USB control and bidirectional audio streaming
- 24 bit ADC/DAC resolution
- Unbalanced inputs switchable with a jumper between 4Vrms and 2Vrms
- Toslink digital input
- Unbalanced outputs: Max 2Vrms
- USB Audio Class 2 Bidirectional streaming with ASIO drivers, driverless under MAC OSx
- 4 preset configuration, recallable via IR, Software
- Plug&Play USB driver and real time Software configuration using miniDSP plug-ins
- Device does not required a PC once configured
- External single 12V supply
Skip product gallery
Accessory Items
IR Fernbedienung v2
€5.50*
This IR remote is the newest version and is preprogrammed for miniDSP products without requiring any learning process. It is plug&play configured with the latest firmware.
- miniDSP 2x4HD- SHD Series- DDRC-24/nanoSHARC kit- DDRC88/DDRC22 series/(FW 2.23)- OpenDRC series (all series)- CDSP 8x12/CDSP 8x12DL- miniDSP 2x8/8x8/4x10HD/10x10HD- nanoDIGI 2x8/nanoDIGI 2x8 kit- miniSHARC kit (FW 2.23)
Note that Play/Pause/Next/Previous buttons are only enabled for the SHD series.
