Ultimax 15 Kit + Gehäusebausatz Bundle
€599.95
No longer available
Ultimax 15 Kit + Case Kit Bundle
About the Subwoofer
Die Ultimax series of subwoofers with dual voice coil from Dayton Audio are not for the faint of heart.
Gebaut mit der neuesten Technologie, sind Ultimax-Subwoofer der Gipfel der tiefen Frequenzen-Treiber-
Design. An Ultimax subwoofer tests the strength of your foundations with fast, precise, and
frightening bass.
Dual 2-ohm voice coils enable stereo 2-ohm and mono 1-ohm configurations when connected to high current
Car stereo systems and professional amplifiers to gain maximum performance. For
Home applications make it easy to connect the voice coils in series to achieve a safe 4-ohm load.
for greater amplifier compatibility.
To improve power consumption, increase thermal management, and performance compression
to reduce, Dayton Audio has designed the Ultimax series with large black anodized formers and ventilated
Polstücken, under-spider ventilation, and dual-layer copper voice coils developed.
Over 1-1/2" stroke (3/4" Xmax) remain completely linear through the use of dual spiders, which also
Limit distortions and vibration modes. The "Tall-boy" rubber surround with integrated seals
keeps the driver surface stable during extreme excursion movements. Thick, one-piece Nomex honeycomb
covered membranes coated with woven, robust glass fibers create ultra-stable membranes,
the deformations resist.
A large copper jacket and a copper pole cap in the engine reduce energy storage from
Inductance with the added benefit of reducing distortion for a "faster" response.
Große dual-stacked, high-energy magnets take on the heavy lifting and bring Qts to a
Level at which Ultimax subwoofers are used in vented or sealed enclosures and enclaves
can.
About the Case
The clever enclosure was specifically designed for the Dayton Audio 15" Ultimax subwoofer. Through the CNC-
Fertigungsprozess werden Falze und Fugen präzise in die Rückwand geschnitten. A unique,
zweiteilige Strebe sorgt für überlegene Steifigkeit ohne Beeinträchtigung der Subwoofer-Leistung. The
19mm folded extensions on both side walls and cutouts allow for perfect installation
the double thick baffles. The end result is a resonance-free, closed subwoofer enclosure,
that can be refined or painted to match your own decor.
Specifications: - Plate thickness: 22mm, the front baffle is 38mm - Plate material: Medium density
Fiberboard (MDF) - Finished net cabinet volume (excluding the double thick baffle, the
Bracing and low-frequency volume): 92L - External dimensions: 490" H x 490" W x 510mm D
Scope of delivery:
- Screws
- Chassis
- Terminal
- LS Cable
- Blueprint
- Enclosure as a kit in raw MDF
Similar Items

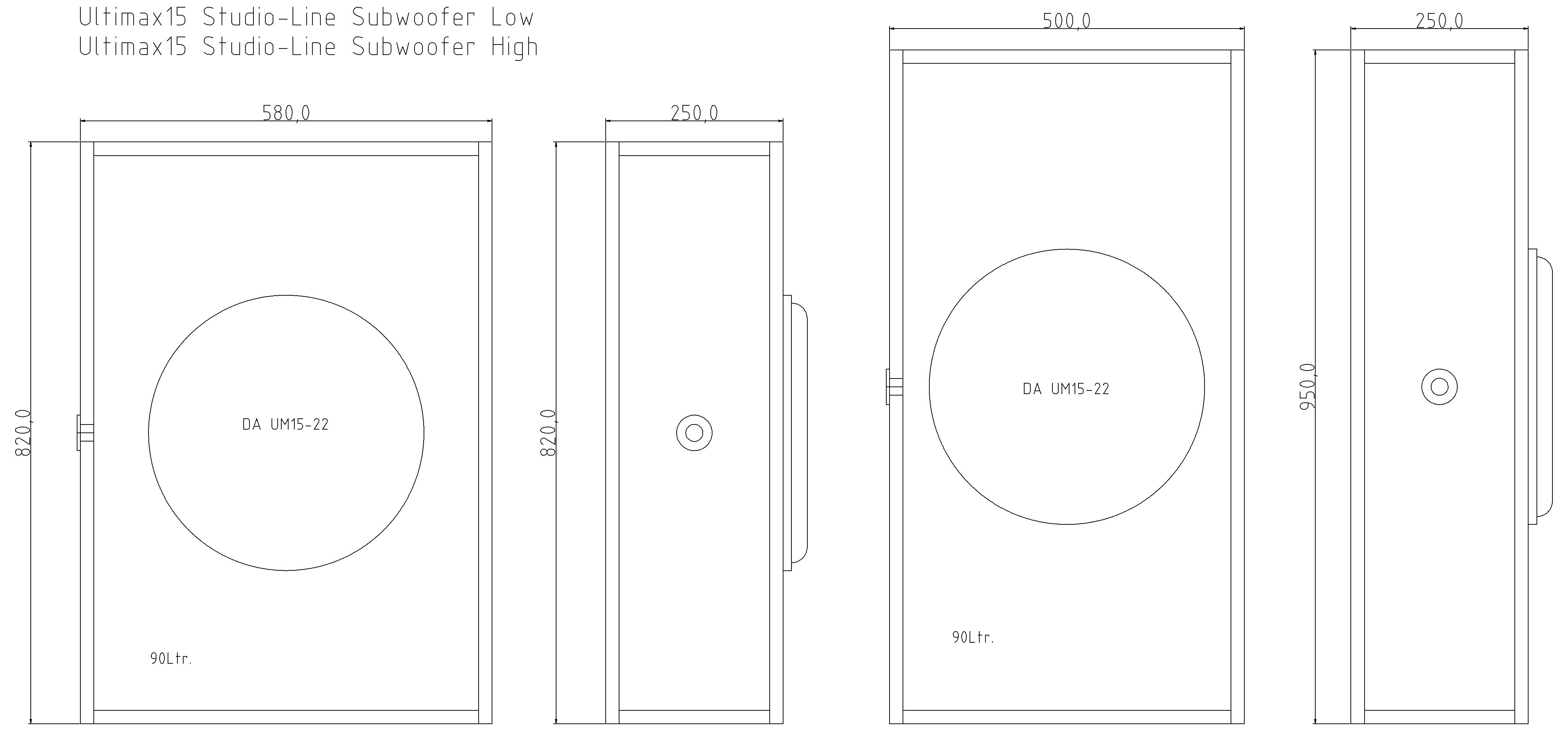

Ultimax15 Studio-Line Subwoofer High Cabinet Kitextra Flat 15" 40cm High-Performance HiFi and Home Theater Subwoofer.Ultimax Studio-Line Subwoofer, Flat HiFi and Home Cinema Subwoofer Kit and Finished Enclosure Bundles forIn-Wall, On-Wall, Baffle-Wall, DBA, SBA.Closed subwoofers for active operation, in the popular sizes 12" (30cm), 15" (40cm), 18" (46cm).Powerful subwoofers with minimal enclosure depth. This way, they only lose minimal room depth.The enclosures are the ideal solution for space-limited applications. Ideal for standard rack works 50 and 60cm.Maximal membrane area and immense lifting power as well as high durability stand for the best subwoofers.the HiFi and home cinema class. Optimally tuned closed enclosures for the chassis parameters.Comprehensive reinforcements ensure a stable housing.Connection terminal Speakon NL4 socket, the professional solution, is positioned centrally on the side, and thusuniversally mountable on the left or right. Other connection solutions are also available upon request.as well as plate amp cutouts.The housings are rabbeted and grooved and precisely manufactured by our professional CNC. This guaranteesan almost flawless assembly. Our experienced carpentry team is a well-coordinated team, in the construction ofSpeaker enclosures. The extra flat subwoofers are also offered as a pre-glued complete package.
