Ultimax 12 Kit + Cabinet Bundle
€499.00
No longer available
Ultimax 12 CB Kit passive
Dayton Audio 12" Ultimax subwoofer without cabinet bundle
Equipment:
Dayton Audio UM12
Features:
Dayton Audio UM12-22 12" subwoofer for e.g. 76L flat pack enclosure.
About the enclosure
This enclosure is designed specifically for the Dayton Audio 12" Ultimax subwoofer.
During the CNC manufacturing process, folds and joints are cut into the back panel to precisely align the panels. A unique two-piece brace provides superior rigidity without compromising the subwoofer's performance. Both side panels feature folded extensions with cutouts to perfectly fit the first piece of the two-piece, double-thickness baffle.
The end result is a resonance-free, sealed subwoofer enclosure specifically designed to get the best performance out of Dayton Audio's 12" Ultimax subwoofer. All that's left to do is finish it to match your decor or paint it to stand out.
Specifications:- Panel thickness: 19mm, baffle 38mm - Panel material: medium-density fiberboard (MDF) - Finished net cabinet volume (minus double-thick baffle, bracing and woofer volume): 76L - Overall dimensions: 490mm H x 410mm W x 510mm D - Weight: 17kg.
About the subwoofer
the UM12-22 Ultimax 12" driver from Dayton Audio offers over 19mm Xmax.
The 12" Nomex honeycomb composite cone features a fiberglass cloth outer skin for ultimate rigidity and resistance, while the "tall-boy" rubber surround with integral gasket supports extreme excursion with linearity and durability. Dual center spiders are mirror-imaged to keep excursion completely linear and eliminate distortion due to compliance asymmetry, and for extremely low mechanical distortion even at the outer limits of movement. And the whole is perfectly aligned by a rigid die-cast aluminum basket, for stability in any mounting position.
Let us convince you and feel free to visit us on site to dive into a world of sound in our listening room.
Technical data:
Frequency response: f-3dB:
SPL:
W/H/D: 410x490x510mm
Total impedance: 4 Ohm ( Nom.) 4 Ohm >2200Hz)
Operating principle: closed
Scope of delivery:
Screws
chassis
Terminal
LS cable
Construction plan
Cabinet in MDF raw as kit
The selected number is a piece, not a pair.
Töne abzutauchen.
Technische Daten:
Frequenzumfang: f-3dB:
SPL:
B/H/T: 410x490x510mm
Gesamtimpedanz: 4 Ohm ((Nom.) 4 Ohm >2200Hz)
Funktionsprinzip: geschlossen
Lieferumfang:
- Schrauben
- Chassis
- Terminal
- LS Kabel
- Bauplan
- Gehäuse in MDF roh als Bausatz
Bei der ausgwewählten Anzahl handelt es sich um Stück, nicht um Paar.
Similar Items

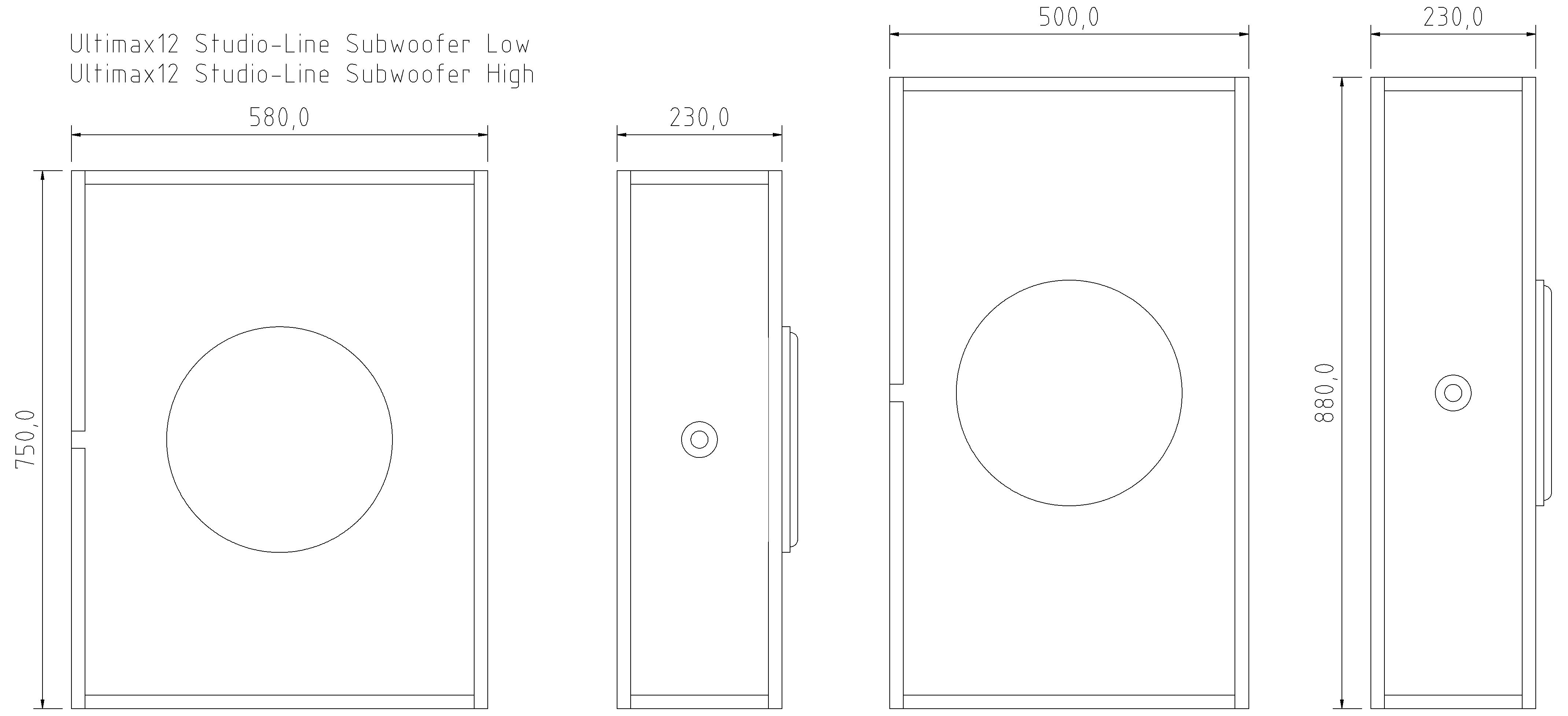

Ultimax12 Studio-Line Subwoofer Low Cabinet Kitextra Flat 12" 30cm High Performance HiFi and Home Theater Subwoofer.Ultimax Studio-Line Subwoofer, Flat HiFi and Home Cinema Subwoofer Kit and Finished Enclosure Bundles forIn-Wall, On-Wall, Baffle-Wall, DBA, SBA.Closed subwoofers for active operation, in the popular sizes 12" (30cm), 15" (40cm), 18" (46cm).Powerful subwoofers with minimal enclosure depth. This way, they lose only the smallest amount of space depth.Die enclosures are the ideal solution for space-limited applications. Ideal for standard rack works 50 and 60cm.Maximal membrane area and immense lifting power as well as high load capacity stand for the best subwoofers.the HiFi and home cinema class. Optimally tuned closed enclosures for the chassis parameters.Comprehensive reinforcements ensure a stable housing.Anschlussterminal Speakon NL4 socket, the Professional Solution, is positioned centrally on the side, and thusuniversally mountable on the left or right. Other connection solutions are also available upon request.as well as plate amp cutouts.The housings are rabbeted and grooved and precisely manufactured by our professional CNC. This guaranteesa nearly flawless assembly. Our experienced carpentry team is a well-coordinated team in the construction ofLoudspeaker enclosures. The extra flat subwoofers are also offered as a ready-glued complete package.
