UMII15 CB Subwoofer Bausatz. Empfohlen für geschlossene Gehäuse

Picture similar to product

€414.95*

Prices incl. VAT plus shipping costs

Product number: B3229

Manufacturer: variant

Weight: 16 kg

Min. order quantity: 1

UMII15 CB Subwoofer Kit. Recommended for sealed enclosures

UMII15 CB Subwoofer Kit. Recommended for closed enclosures

Ultimax UMII15 CB Kit passive

Dayton Audio 15" Ultimax II Subwoofer without Enclosure

Assembly:

Dayton Audio UMII15-22

Properties:

Dayton Audio UMII15-22 8" Subwoofer for e.g. 90-135 Liter Flat Sealed Enclosures

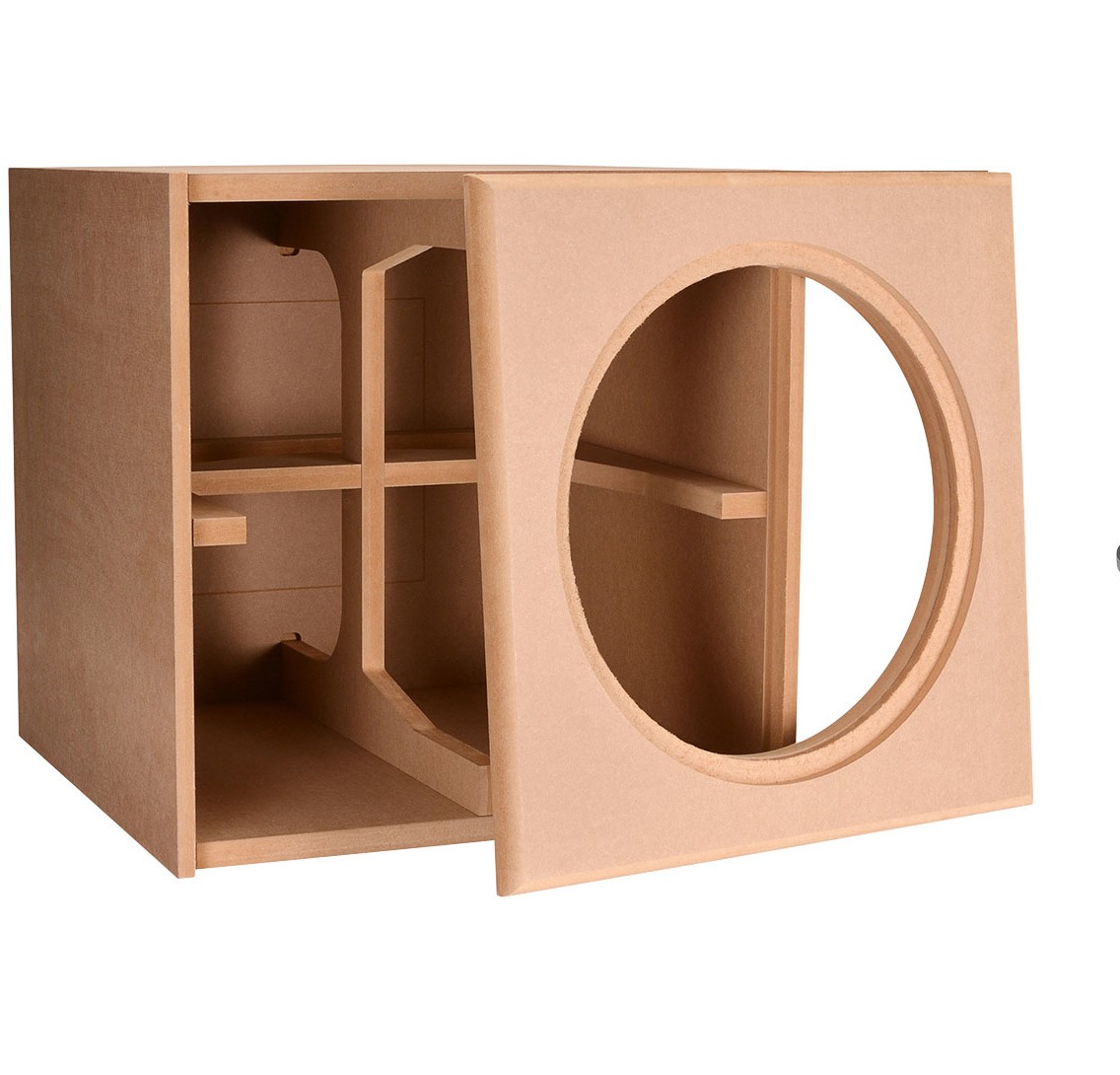

About the Case
This enclosure was specifically designed for the Dayton Audio 15" Ultimax II subwoofer.

During the CNC manufacturing process, grooves and joints are cut into the back panel to accommodate the plates
precisely align. A unique two-part strut provides superior stiffness without
performance of the subwoofer. Both side walls feature folded extensions with
Cutouts to perfectly mount the first piece of the two-part, double-thick baffle.

Das Endergebnis ist ein resonance-free, closed subwoofer enclosure, specifically designed,
to get the best performance out of the 15" Ultimax subwoofer from Dayton Audio. All that remains to
tun bleibt, ist, es passend zu Ihrem Dekor zu veredeln oder es zu lackieren, um sich abzuheben.

Specifications: Plate thickness: 19mm, Baffle 38mm - Plate material: Medium Density Fiberboard (MDF) -
Finished net volume (minus the double thick baffle and bracing: 92L - External dimensions:
B/H/T - Weight: approx. kg

About the Subwoofer

We present the UMII5-22 Ultimax II 15" Carbon Fiber Cone Subwoofer from Dayton Audio. Building on
dem Erfolg ihres Vorgängers wurden diese Subwoofer sorgfältig entwickelt, um alle Erwartungen zu
outperform. With improved excursion capability, lower distortion, higher power handling,
better efficiency and increased performance elevate the new Ultimax II generation subwoofers and your
Audio experience with new low-frequency experiences. Immerse yourself in rich, powerful bass that takes you to the
Mark will be shaken. Dayton Audio continues to define the boundaries of the UMII5-22 subwoofer.
Excellence new. Main features A large aluminum short-circuit cap helps to linearize the inductance
hold to ensure minimal distortion. The rigid yet lightweight woven carbon fiber
Membrane provides a fast, detailed, and accurate response. With ±24 mm xmax, you can a
expect powerful and deep bass response that takes your audio experience to the next level.
Equipped with a 4-layer 3" flat-wound voice coil that can handle up to 900 watts RMS
can. The basket and drive are comprehensively ventilated, allowing for efficient heat dissipation for a
ensures smooth and reliable operation while simultaneously performance compression
minimized. Dual spiders maintain membrane linearity even at extremely high excursion levels
and always provide optimal audio performance. Optimized for compact, closed enclosures, but in
the ability to achieve exceptional low-frequency extension in bass reflex designs – offers
You the freedom to create the perfect audio setup.

Technical Specifications:

Frequency range: f-3dB: 18-120Hz active operation recommended

SPL:

W/H/D

Total impedance: 4 Ohms ((Nom.) 4 Ohms >2200Hz)

Or 2x2 Ohm

Function principle: closed

Scope of delivery:

Screws
Chassis
Terminal
LS Cable
Blueprint

Die Lieferzeit bezieht sich auf den Bausatz ohne Gehäuse.

Bei der ausgewählten Anzahl handelt es sich um pieces,notto couple.
