UMII10 CB Subwoofer Bausatz. Empfohlen für geschlossene Gehäuse

€274.95*

Prices incl. VAT plus shipping costs

Product number: B3227

Manufacturer: variant

Weight: 12 kg

Min. order quantity: 1

UMII10 CB Subwoofer Kit. Recommended for closed enclosures

UMII10 CB Subwoofer Kit. Recommended for closed enclosures

Ultimax UMII10 CB Kit passive

Dayton Audio 10" Ultimax II Subwoofer without Enclosure

Assembly:

Dayton Audio UMII10-22

Properties:

Dayton Audio UMII10-22 8" Subwoofer for e.g. 35-45L sealed enclosures

About the Case
This enclosure was specifically designed for the Dayton Audio 10" Ultimax II subwoofer.

During the CNC manufacturing process, folds and joints are cut into the back panel to allow the plates
precisely align. A unique two-part strut provides superior stiffness without
performance of the subwoofer. Both side walls have folded extensions with
Cutouts to perfectly mount the first piece of the two-part, double-thick baffle.

The end result is a resonance-free, closed subwoofer enclosure that has been specially developed,
to get the best performance out of the 10" Ultimax subwoofer from Dayton Audio. All that remains to
tun bleibt, ist, es passend zu Ihrem Dekor zu veredeln oder es zu lackieren, um sich abzuheben.

Specifications: Plate thickness: 19mm, Baffle 38mm - Plate material: Medium Density Fiberboard (MDF) -
Finished net volume (minus the double thick baffle and bracing: 41L - External dimensions:
B/H/T - Weight: approx. kg

Über the subwoofer

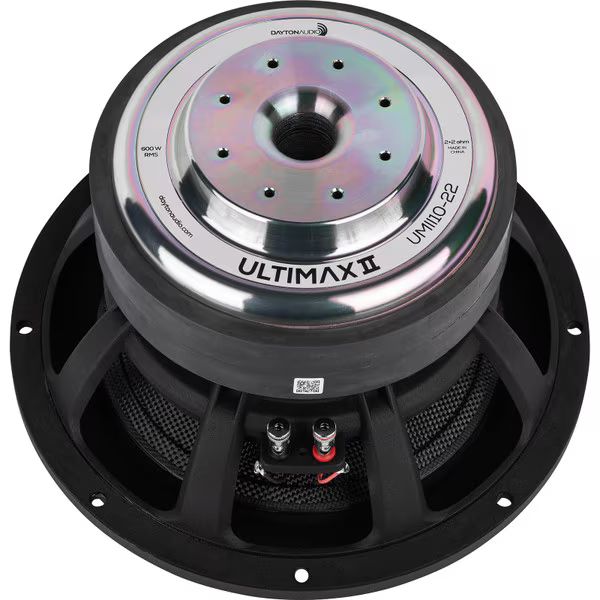

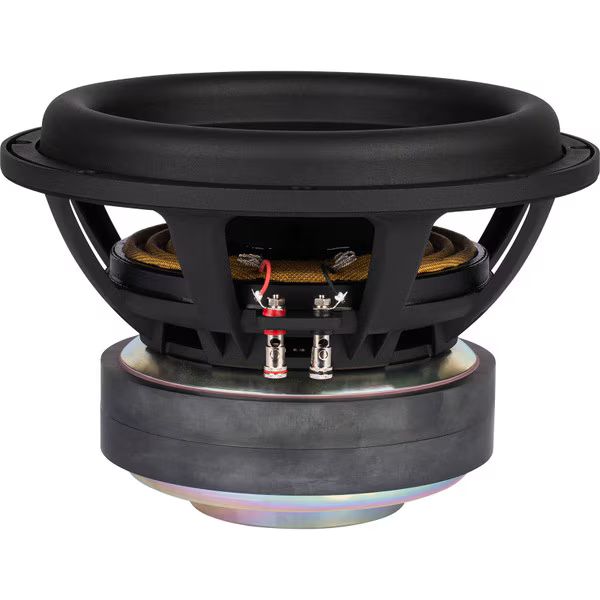

We present the UMII0-22 Ultimax II 10" Carbon Fiber Cone Subwoofer from Dayton Audio. Building on
the success of their predecessor, these subwoofers have been carefully developed to meet all expectations of
exceed. With improved excursion capability, lower distortion, higher power handling,
better efficiency and increased performance elevate the new Ultimax II generation subwoofers and your
Audio experience with new low-frequency experiences. Immerse yourself in rich, powerful bass that takes you to the
Mark will be shaken. Dayton Audio continues to define the boundaries of the UMII0-22 subwoofer.
Excellence new. Main features A large aluminum short-circuit cap helps to linearly

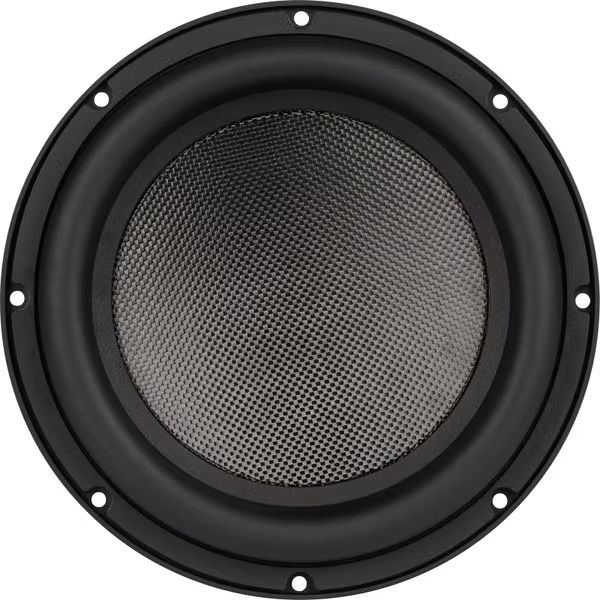

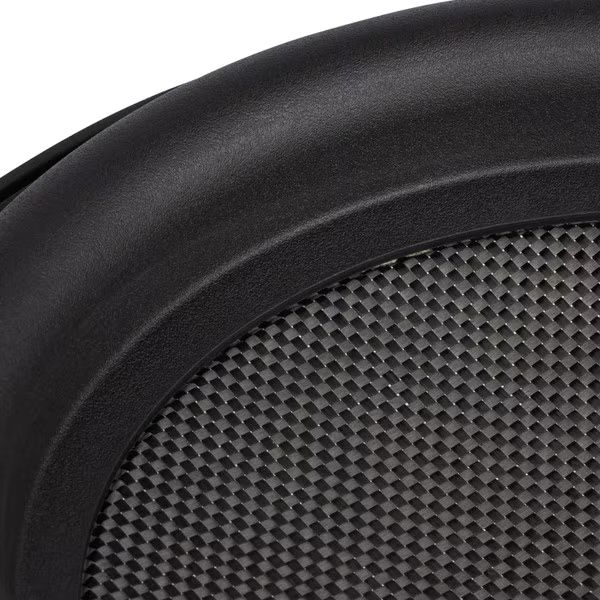

hold to ensure minimal distortion. The rigid yet lightweight woven carbon fiber
Membrane provides a fast, detailed, and accurate response. With ±20 mm xmax, you can a
expect powerful and deep bass response that takes your audio experience to the next level.

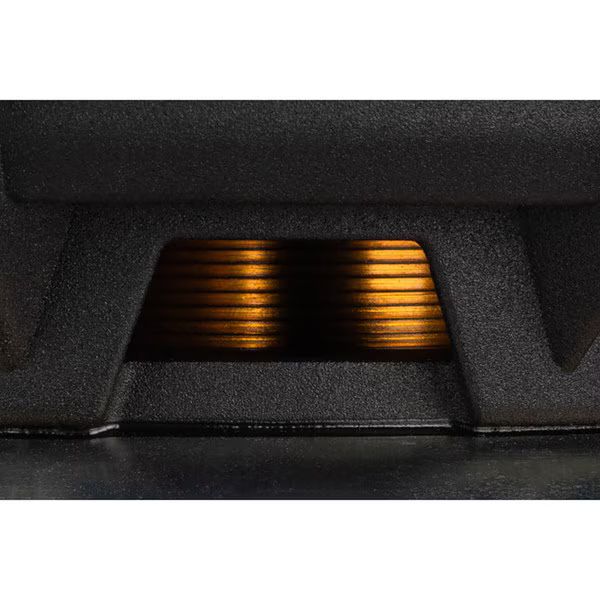

Ausgestattet mit a 4-layer 2-1/2" flat wound voice coil, handling up to 600 Watts RMS

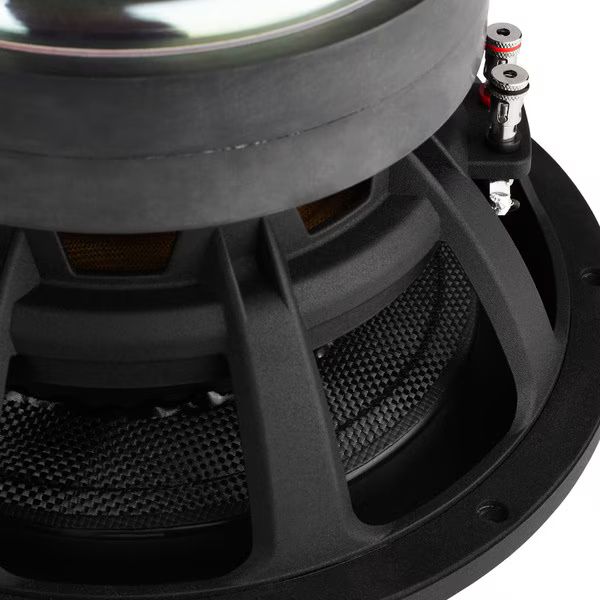

process. The basket and drive are comprehensively ventilated, allowing for efficient heat dissipation for a
consistent and reliable operation ensured while simultaneously performance compression
minimized. Double spiders maintain membrane linearity even at extremely high deflection levels
and always provide optimal audio performance. Optimized for compact, closed enclosures, but in
the ability to achieve exceptional low-frequency extension in bass reflex designs – offers
You the freedom to create the perfect audio setup.

Technical Specifications:

Frequency range: f-3dB: 25-120Hz

Gesamtimpedanz: 4 Ohm ((Nom.) 4 Ohm >2200Hz) or 2x2 Ohm

Funktionsprinzip: closed

Scope of delivery:

Screws
Chassis
Terminal
LS Cable
Blueprint

The delivery time refers to the kit without a case.

For the selected number, it is pieces,nota couple.

Properties

Breite:	390mm
Funktion:	Subwoofer
Funktionsprinzip:	Geschlossen
Gesamtimpedanz:	4 Ohm
Höhe:	390 mm
Tiefe:	390mm

Data according to manufacturer. Errors and changes reserved.
