Tectonic TEBM36S12-8A
Skip image gallery
Picture similar to product
Product number:
297-2168
Manufacturer:
Tectonic
Weight:
0.15 kg
Available stock:
4
Min. order quantity:
1

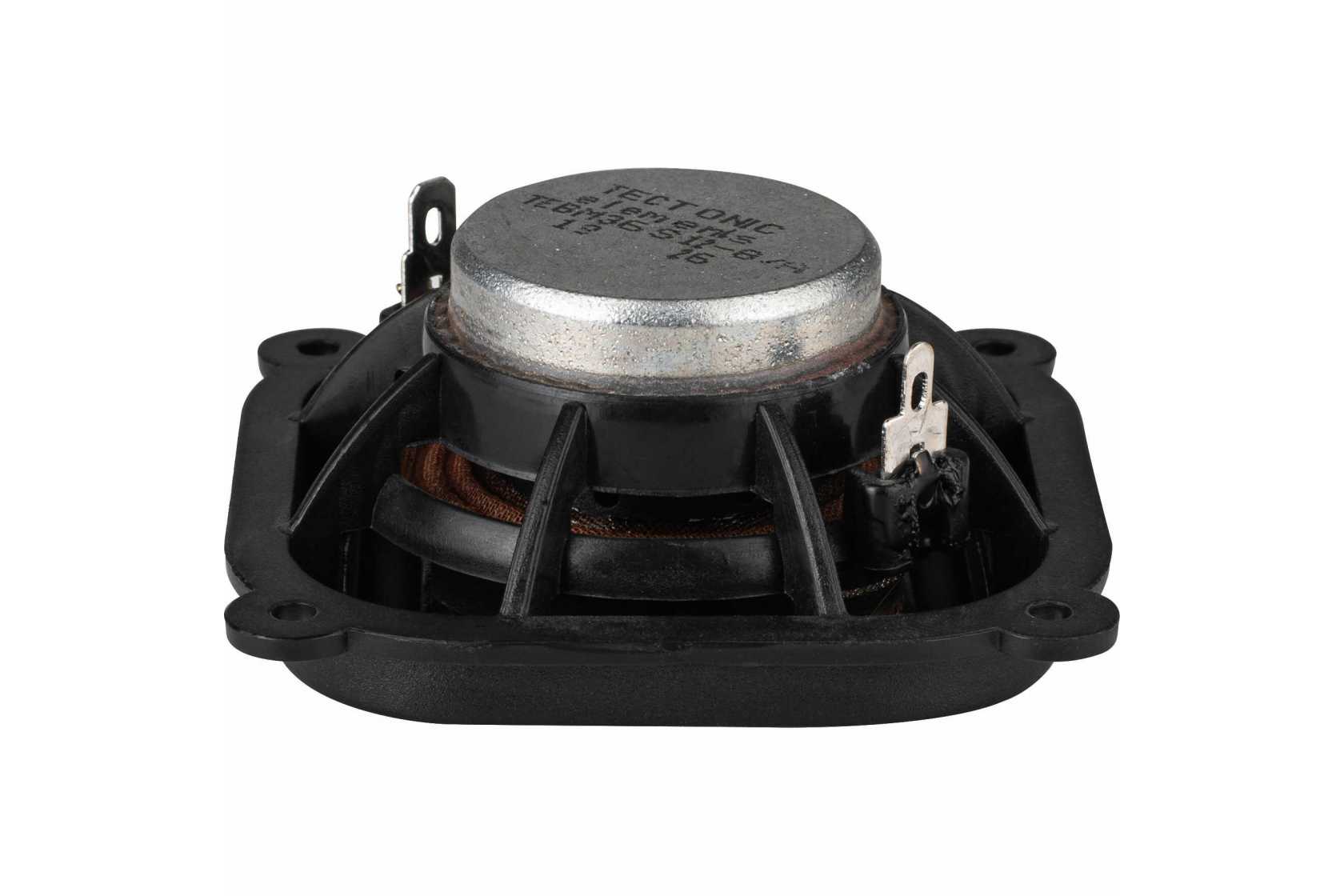

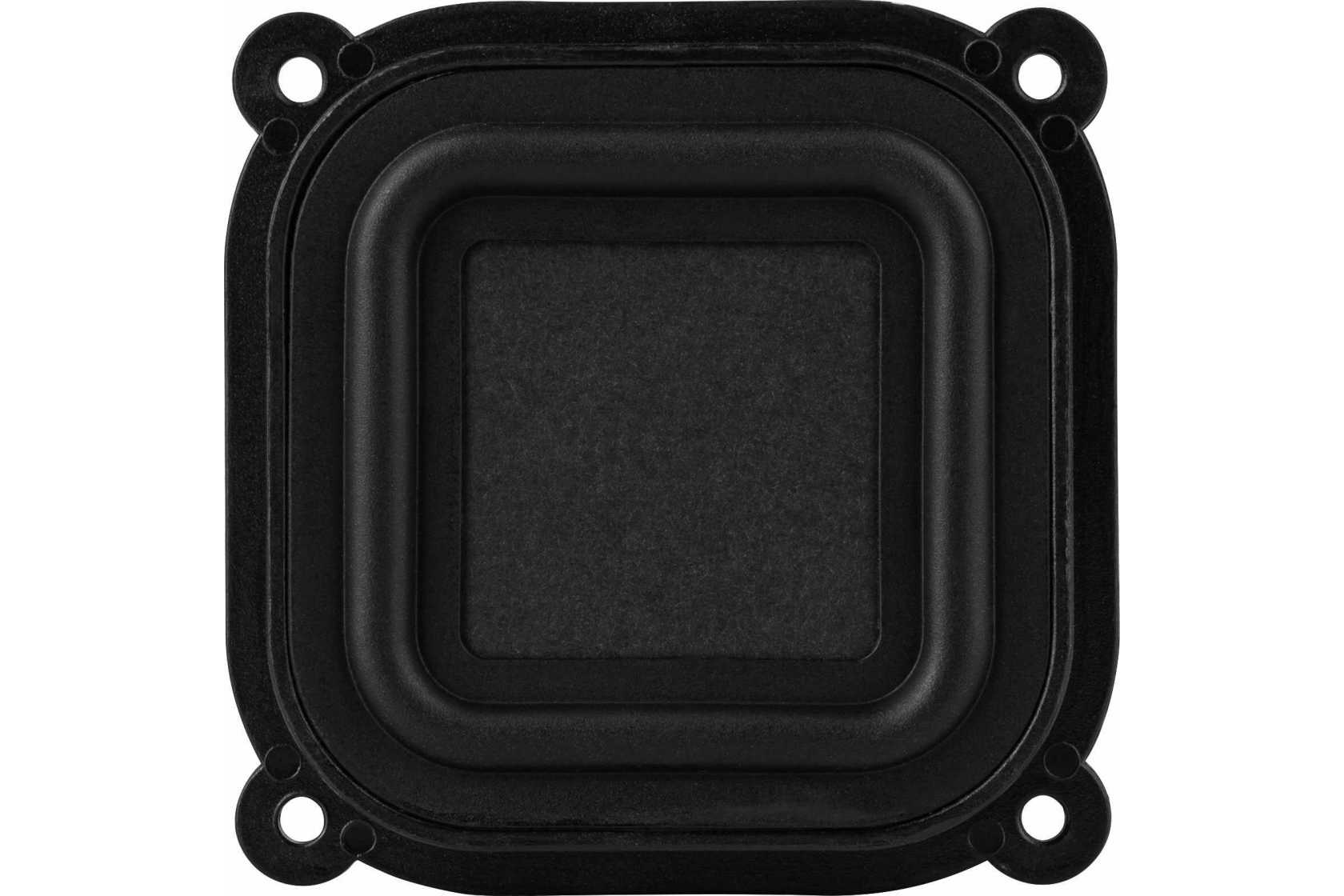

Tectonic TEBM36S12-8A 1-1/2" square BMR full range driver 8 Ohm
The TEBM36S12-8/A Balanced-Mode Radiator (BMR) is a driver with an extended frequency response and wide directivity compared to a conventional driver. It combines the advantages of tectonic bending wave technology and pistonic mode. It is ideal for compact audio applications that require a comprehensive, high-performance, long-range acoustic solution.
This second generation drive unit has the same audio characteristics as its predecessor, with improved response smoothness and linearity at high excursion.
Properties
| Artikel-Nr.: | 297-2168 |
|---|---|
| Außenmaß: | 6,5 cm |
| EAN: | 848864058092 |
| Eff. Membranfläche (Sd): | 17.2cm² |
| Effektive Bewegte Masse (Mms): | 1.68 |
| Einbautiefe: | 29,7 mm |
| Einbauöffnung: | 57,9 mm |
| Einheit: | Stück |
| Elektrische Güte (Qes): | 0,83 |
| Frequenzbereich: | 80 bis 20.000Hz |
| Gesamtgüte (Qts): | 0,66 |
| Gewicht: | 0,2 kg |
| Gleichstromwiderstand (Re): | 7,9Ω |
| Impedanz (Z): | 8 Ohm |
| Kennschalldruck: | 84.8dB 2.83V/1m |
| Kraftfaktor (BL): | 3.87T·m |
| Marke: | Tectonic |
| Mechanische Güte (Qms): | 3.18 |
| Model: | TEBM36S12-8/A |
| Nachgiebigkeit (Cms): | 0.7mm/N |
| Nennbelastbarkeit: | 12 Watt |
| Power Handling (MAX): | 24 Watt |
| Resonanzfrequenz (fs): | 148Hz |
| Schwingspulenind. (Le): | 0.14mH |
Data according to manufacturer. Errors and changes reserved.
