Tectonic TEBM36S12-4A
Skip image gallery

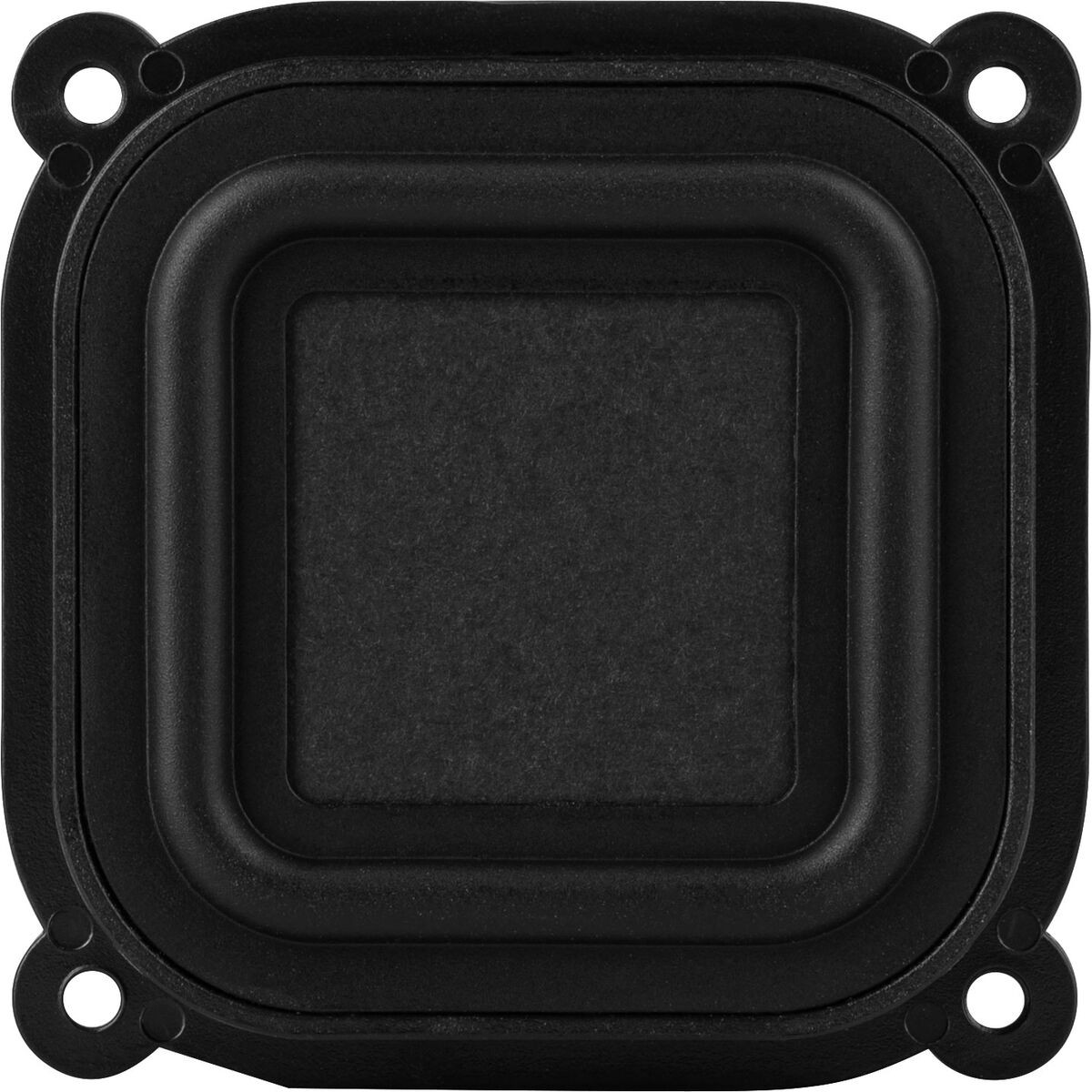

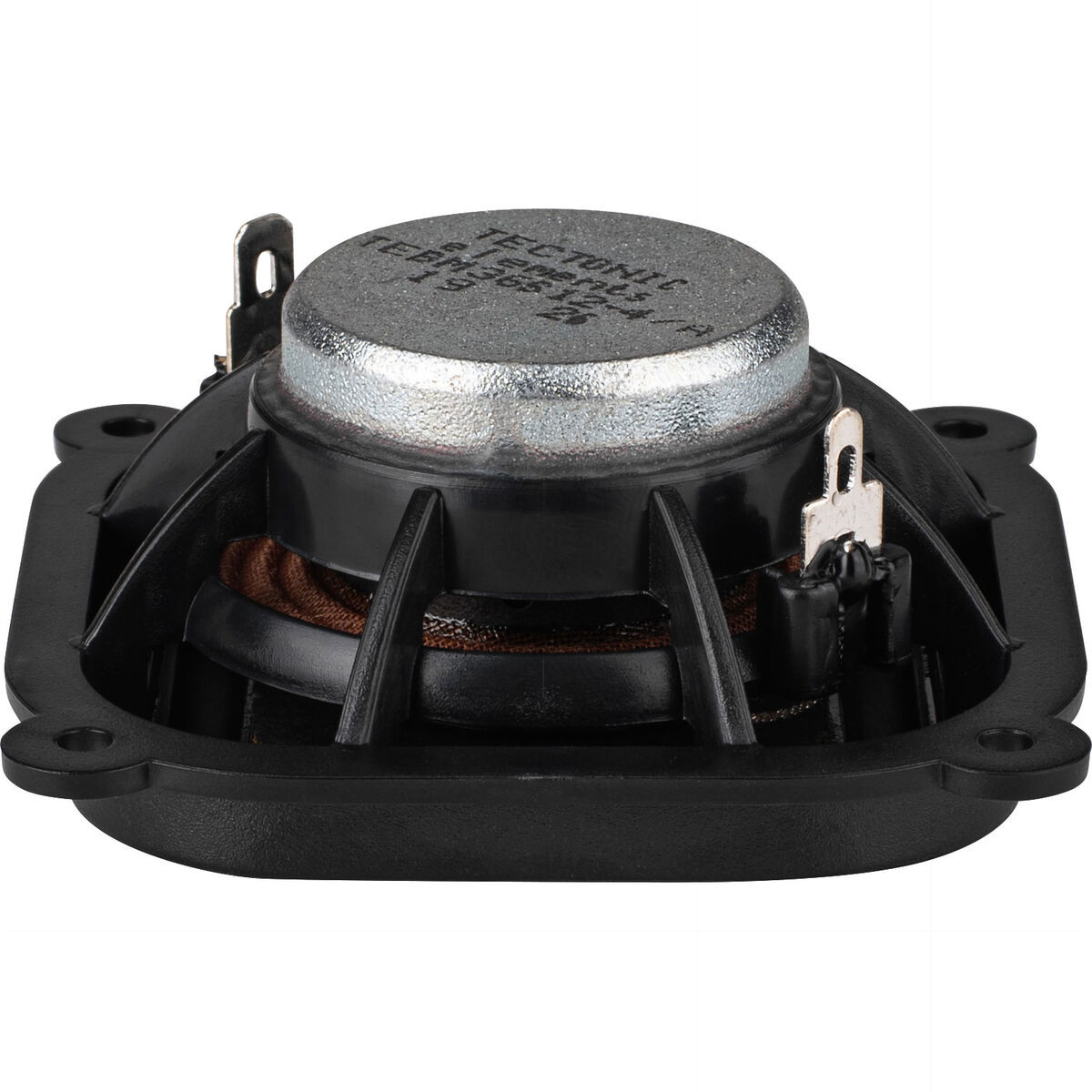

Picture similar to product
Product number:
297-2170
Manufacturer:
Tectonic
Weight:
0.15 kg
Available stock:
2
Min. order quantity:
1
Max. order quantity:
1
The The TEBM36S12-4/A Balanced-Mode Radiator (BMR) is a driver with an extended frequency response and wide directivity compared with a conventional driver. It combines the benefits of Tectonic bending-wave technology and pistonic modes of operation. It is ideally suited for compact audio applications that require a full-range, high performance acoustic solution including; boom boxes, smart speakers, computer speakers, and bookshelf speakers.
Key Features
- Wide sound dispersion delivers room filling sound
- Ultra compact design minimizes visual impact -- only 2.56" square x 1.17" deep
- Drive unit design simplifies integration into a product
- Improved smooth frequency response and extended bandwidth
The TEBM36S12-4/A Balanced-Mode Radiator (BMR) is a driver with an extended frequency response and wide directivity compared with a conventional driver. It combines the benefits of Tectonic bending-wave technology and pistonic modes of operation. It is ideally suited for compact audio applications that require a full-range, high performance acoustic solution.
This second generation drive unit has the same audio characteristics as its predecessor, with improved response smoothness and linearity at high excursion.
Properties
| Effektive Bewegte Masse (Mms): | 1,7 |
|---|---|
| Elektrische Güte (Qes): | 0,78 |
| Frequenzbereich: | 80 bis 20.000Hz |
| Gesamtgüte (Qts): | 0,63 |
| Gleichstromwiderstand (Re): | 4,4Ω |
| Impedanz (Z): | 4 Ohm |
| Kennschalldruck: | 83dB 2.,83V/1m |
| Kraftfaktor (BL): | 3,15T*m |
| Lineare Auslenkung (Xmax): | 2mm |
| Mechanische Güte (Qms): | 3,4 |
| Nachgiebigkeit (Cms): | 0,6mm/N |
| Nennbelastbarkeit: | 12 Watt |
| Power Handling (MAX): | 24 Watt |
| Resonanzfrequenz (fs): | 165Hz |
Data according to manufacturer. Errors and changes reserved.
