T.A.C. 34 "Dream" Röhrenvollverstärker
T.A.C. 34 "Dream" Tube Integrated Amplifier
Product Information

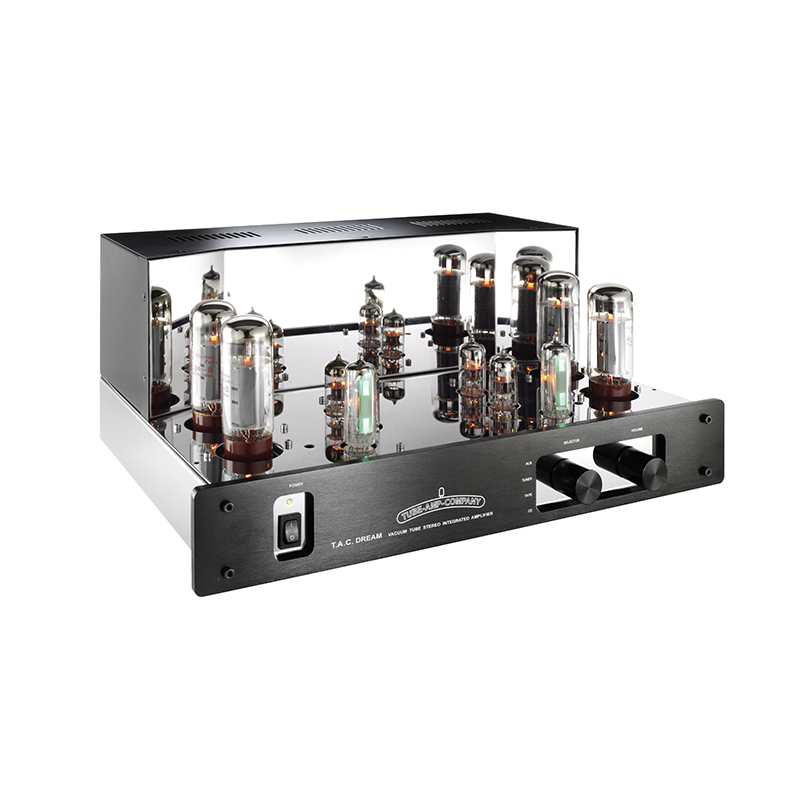

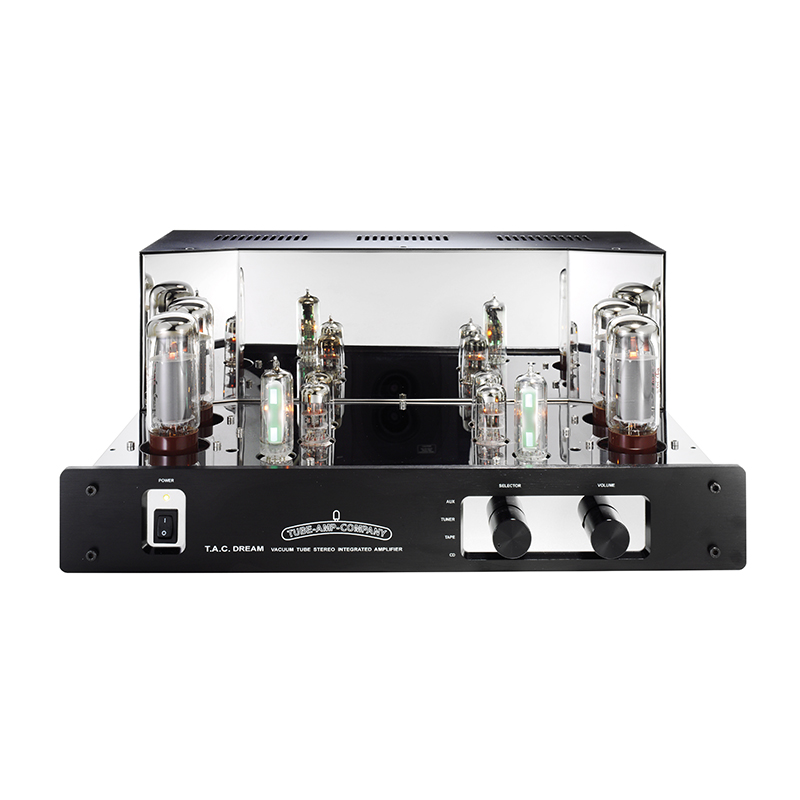

EL34 tube amplifier in chrome and with magic eye. A double triode in the input stage takes over
the phase splitting for the push-pull control of the selected output tubes EL34 in the output stage. The
Musical signal (on a completely symmetrical signal path) is first in the specially wound
Output transformer summarized again. 8 and 4 Ohm speaker terminals thus allow the
Connection optimization of various boxes. The TAC Dream is in its equipment and construction only
committed to the best possible sound. Two additional tubes of type 6E2 function as magic
Eye. A treat for the eyes and ears!
Technical Data
|
Type: |
34 Tube Amplifiers |
|
Frequency range: |
20 Hz - 60 kHz (+/- 3 dB) |
|
Performance: |
2x 40 Watt (4-8 Ohm) |
|
Distortion factor: |
< 1% |
|
Signal-to-noise ratio: |
> 95 dB |
|
Input impedance: |
50 kOhm |
|

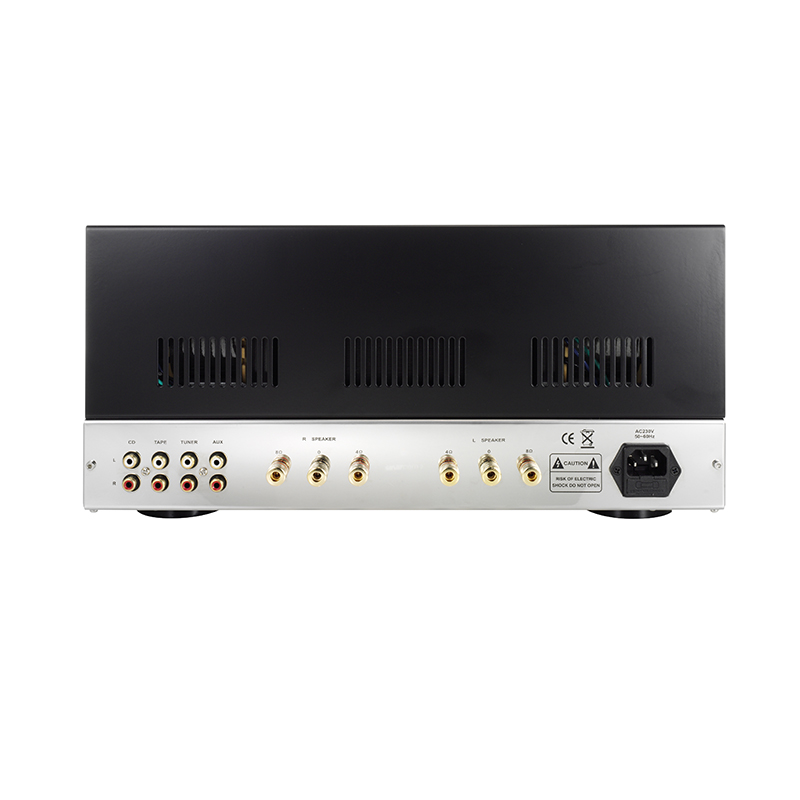

Entrances: |
4 x Stereo RCA |
|
Outputs: |
2 x Speakers |
|
Tubes: |
4 x EL34 |
|
Color: |
Chrome |
|
Measurements: |
(B x H x D) 420 x 210 x 270 mm |
|
Weight: |
19 kg |
