Dayton Audio ND25FW-4
Dayton Audio ND25FW-4 1” Soft Dome Neodynium Tweeter with Waveguide 4 Ohm Dayton Audio has added a waveguide faceplate to the popular ND25 soft dome to create the ND25FW-4 tweeter. The waveguide faceplate controls dispersion to minimize ceiling and wall reflections, which in turn leads to an increase in efficiency across most of the passband. Key Features Waveguide loaded 1" treated silk dome Waveguide provides controlled directivity and higher efficiency Low Fs of 1,350 Hz can accommodate crossovers as low as 2,500 Hz Includes foam gasket to ensure a good seal to your enclosure High-strength neodymium motor with heatsink and ferrofluid cooling Standard 104 mm diameter faceplate for easy integration into many existing systems Dayton Audio ND25FW-4 1" Soft Dome Neodymium Tweeter with Waveguide 4 Ohm The Dayton Audio ND25FW-4 tweeter features a unique integrated round waveguide faceplate that provides a controlled directivity transition at high frequencies, reducing the effect of room reflections on the speaker's tonal balance. Unlike conventional flat-faceplate dome tweeters whose directivity does not match the midwoofer driver near the crossover frequency, the ND25FW-4's waveguide is curved to maintain consistent directivity at the transition. The waveguide also acts as a low-compression horn, lowering distortion. Waveguide-loaded dome tweeters are embraced within the industry for providing directivity control and mild horn loading without the negative effects of compression loading such as impulse smear and throat distortion where high levels are not needed. The waveguide profile used in the ND25FW-4 provides a minimum dispersion angle of about 90 degrees, and maintains directivity control to about 2,000 Hz, but the round waveguide will install easily into the same 104 mm standard tweeter cutout used commonly by dome tweeters with larger ferrite motors. Specifications: • Power handling: 20 watts RMS/40 watts max • VCdia: 1" • Le: 0.04 mH • Impedance: 4 ohms • Re: 3.2 ohms • Frequency response: 2,500-20,000 Hz • Fs: 1350 Hz • SPL: 91 dB 1W/1m • Dimensions: Overall diameter: 4.09", Cutout diameter: 2.875", Depth: 1.57".
Dayton Audio ND65-4
Dayton Audio ND65-4 2-1/2” Aluminum Cone Full-Range Neo Driver 4 Ohm Dayton Audio's compact ND65-4 aluminum cone full-range driver demonstrates the latest advances in high-excursion design processes. When teamed up with the matching ND series passive radiators this driver can produce incredible full sound from compact enclosures. Key Features Rubber-edged aluminum alloy cone Large excursion capability Self-shielded Neo-Balanced motor structure 4-layer underhung voice coil with polyimide former High power handling Dayton Audio ND65-4 2-1/2" Aluminum Cone Full-Range Neo Driver 4 Ohm Dayton Audio's compact ND65-4 aluminum cone driver demonstrates the latest advances in high-excursion design processes. An efficient, low-distortion Neo-Balanced motor is combined with a rigid yet lightweight aluminum diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source speaker applications, or combined in multiples and line arrays.
Dayton Audio ND91-4
Dayton Audio ND91-4 3-1/2” Aluminum Cone Full-Range Neo Driver 4 Ohm The low distortion and high excursion capabilities of the Dayton Audio ND91-4 3-1/2" full-range driver make it an ideal candidate for miniature point-source monitors, surround speakers, and line arrays. When teamed up with the matching ND series passive radiators this driver can produce incredible full sound from compact enclosures. Key Features Low distortion, full-range 65 Hz to 17 kHz performance Rubber-edged black anodized aluminum alloy cone Large excursion capability—4.6 mm Xmax, 25 mm peak Self-shielded Neo-Balanced motor structure with copper alloy shorting ring 1" 4-layer underhung voice coil with polyimide former 30 watts RMS power handling Great for line arrays and micro monitors Dayton Audio ND91-4 3-1/2" Aluminum Cone Full-Range Neo Driver 4 Ohm Dayton Audio's ND91 aluminum cone full-range drivers are the latest addition to the acclaimed ND Series high output/low distortion neodymium transducers. By increasing the original ND90's voice coil diameter from 3/4" to 1" and adding a copper alloy shorting ring, the ND91-4 features even lower distortion and delivers better bass impact and dynamic range—with peak Xmax up to 25 mm! This high-BL version further exploits the low distortion characteristics of the Neo-Balanced motor's optimized magnetic field, making the ND91 drivers an excellent choice for full-range point-source speaker enclosures, as well as extremely accurate, high resolution line arrays.
Dayton Audio ND25FA-4
Dayton Audio ND25FA-4 1” Soft Dome Neodynium Tweeter Dayton Audio's compact, ultra-smooth ND25FA-4 soft dome tweeter features excellent detail and high power handling. The small faceplate and neodymium motor make it easy to keep center-to-center distance to a minimum for improved off-axis response, and the exceptionally flat response above 3 kHz. Key Features Exceptionally flat treble response with low distortion Compact round faceplate design is simple to install High-strength neodymium motor with heatsink and ferrofluid cooling Perfect for placement in car A-pillars 1" diameter voice coil for good off-axis dispersion and excellent power handling Clean, modern styling and appearance Dayton Audio ND25FA-4 1" Soft Dome Neodymium Tweeter This tweeter is smooth! The Dayton Audio ND25FA-4 1" soft-dome tweeter combines an exceptionally flat response above 3 kHz with a compact round faceplate for a clean, modern appearance that integrates easily into any design. The tiny yet powerful neodymium motor structure features an aluminum heatsink and ferrofluid cooling for low power compression and improved long-term power handling. A copper pole cap within the motor further reduces distortion and inductance effects. Choose the ND25FA-4 when you need detail that won't become fatiguing or shrill at high volumes, for a highly refined presentation. The compact faceplate allows close center-to-center spacing of drivers, making these tweeters perfect for line array use or D'Appolito (MTM) configurations with wide dispersion.

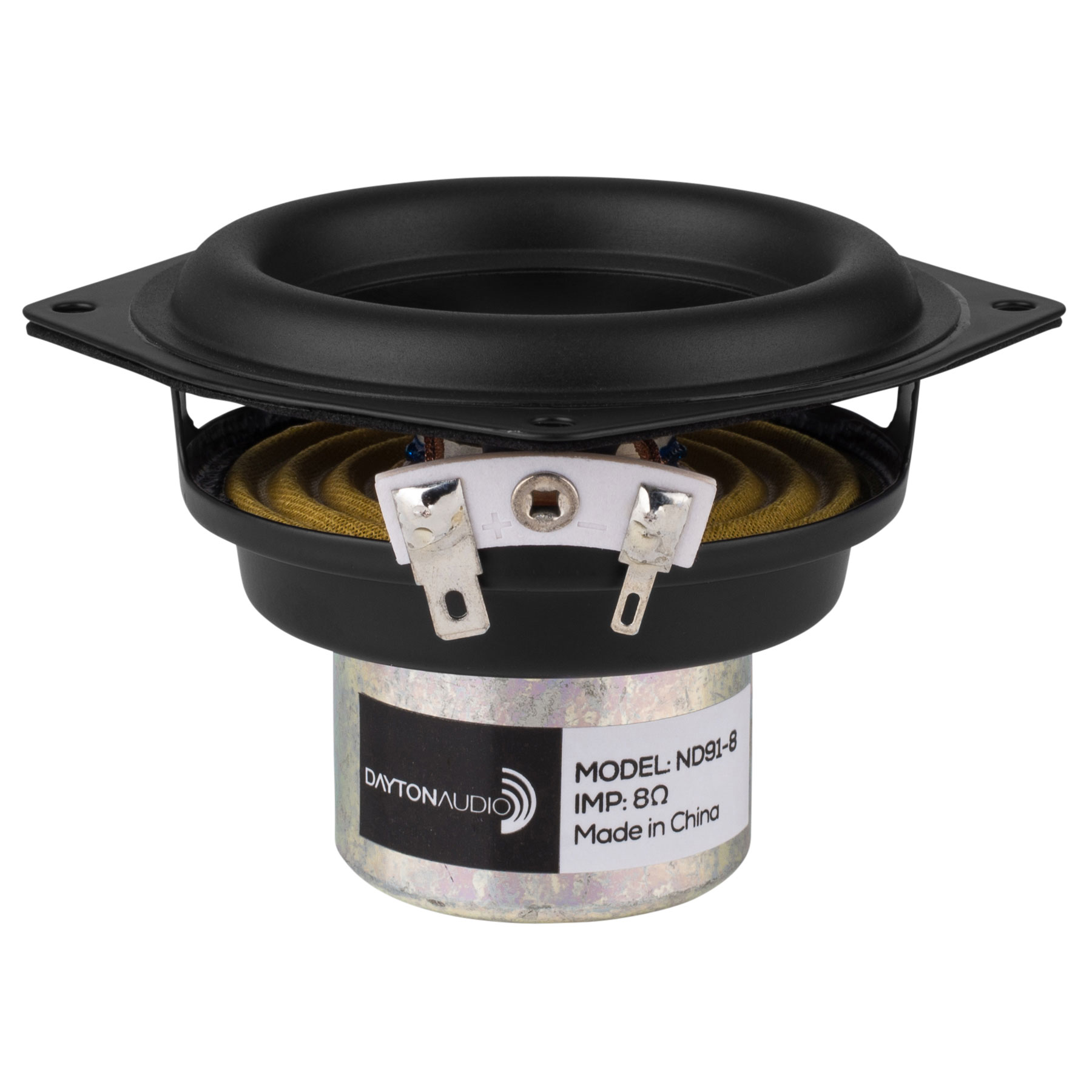

Dayton Audio ND91-8
Dayton Audio ND91-8 3-1/2” Aluminum Cone Full-Range Neo Driver 8 Ohm The low distortion and high excursion capabilities of the Dayton Audio ND91-8 3-1/2" full-range driver make it an ideal candidate for miniature point-source monitors, surround speakers, and line arrays. When teamed up with the matching ND series passive radiators this driver can produce incredible full sound from compact enclosures. Key Features Low distortion, full-range 65 Hz to 17 kHz performance Rubber-edged black anodized aluminum alloy cone Large excursion capability—4.6 mm Xmax, 25 mm peak Self-shielded Neo-Balanced motor structure with copper alloy shorting ring 1" 4-layer underhung voice coil with polyimide former 30 watts RMS power handling Great for line arrays and micro monitors Dayton Audio ND91-8 3-1/2" Aluminum Cone Full-Range Neo Driver 8 Ohm Dayton Audio's ND91 aluminum cone full-range drivers are the latest addition to the acclaimed ND Series high output/low distortion neodymium transducers. By increasing the original ND90's voice coil diameter from 3/4" to 1" and adding a copper alloy shorting ring, the ND91-8 features even lower distortion and delivers better bass impact and dynamic range—with peak Xmax up to 25 mm! This high-BL version further exploits the low distortion characteristics of the Neo-Balanced motor's optimized magnetic field, making the ND91 drivers an excellent choice for full-range point-source speaker enclosures, as well as extremely accurate, high resolution line arrays.
Dayton Audio ND90-PR
Dayton Audio ND90-PR 3-1/2” Aluminum Cone Passive Radiator The Dayton Audio ND90-PR 3-1/2" passive radiator makes it easy to tune small enclosures lower without increasing overall enclosure size. With a one-piece aluminum cone, rubber surround, high excursion capability, and easily adjustable mass, this passive radiator is perfect for building extremely compact speaker systems capable of incredible low frequency output. Key Features Rigid black anodized aluminum alloy cone High excursion capability: 18 mm peak to peak Same "family look" as ND Series woofers Adjustable mass for a vast range of tuning frequencies Dayton Audio ND90-PR 3-1/2" Aluminum Cone Passive Radiator Tune small enclosures with Dayton Audio's ND90-PR 3-1/2" passive radiator in speaker designs where a conventional port is not a viable option. This compact passive radiator includes all of the features you expect with larger radiators including high excursion capability, aluminum cone, rubber surround, and adjustable mass. Visually identical to Dayton Audio's popular ND series drivers, the ND90-PR can be used with any small speaker. The threaded rod and included wing nut on the back of the cone makes it easy to add mass to tune the radiator as needed for your projects. Whether you are building a multi-driver array, sound bar, or portable Bluetooth speaker, the Dayton Audio ND90-PR introduces a new range of possibilities. The ND90-PR 3-1/2" passive radiator includes: (1) Passive radiator (2) 7.3 gram disk weights (1) Wing nut Specifications: • Fs: 53.8 Hz • Vas: 0.05 cu. ft. (1.5 liters) • Qms: 6.15 • Cms: 1.09 mm/N • Mms: 8.1g • Rms: 0.44 kg/s • Sd: 31.2 sq. cm. • Xmech: 9 mm • Dimensions: Overall diameter: 4.07", Cutout diameter: 3.35", Depth: 2.39". Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system. To calculate Vd: Sd x Xmax = Vd

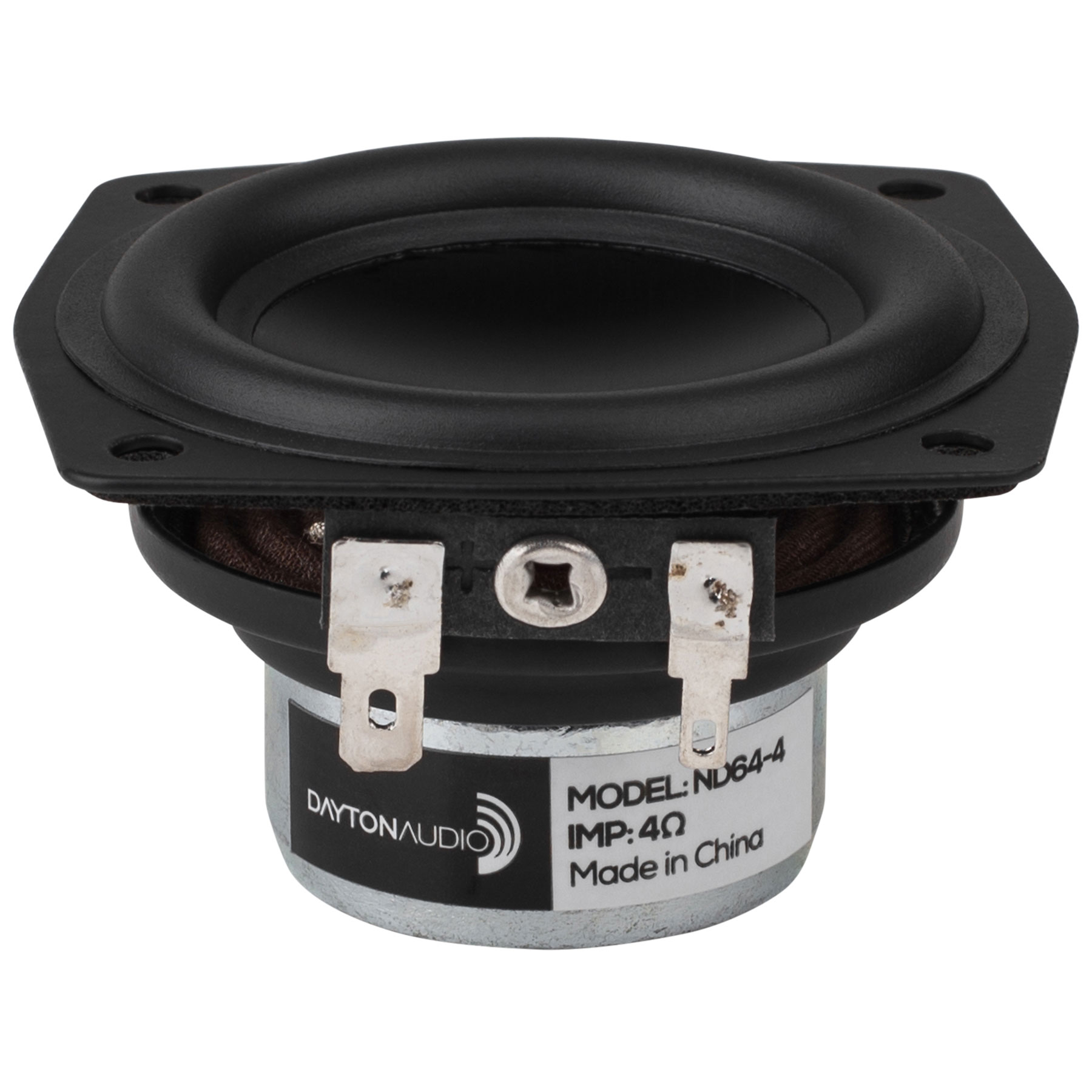

Dayton Audio ND64-4
Dayton Audio ND64-4 2-1/2” Aluminum Cone Full-Range Neo Driver 4 Ohm Dayton Audio’s ND64-4 is truly a full-range, low distortion driver and capable of over 6 mm of peak-to-peak excursion. When teamed up with the matching ND series passive radiators this driver can produce incredible full sound from compact enclosures. Key Features Rubber-edged aluminum magnesium alloy cone Dual neodymium motor structure 4-layer voice coil with polyimide former Copper sleeve to minimize distortion High power handling Dayton Audio ND64-4 2-1/2" Aluminum Magnesium Cone Full-Range Neo Driver 4 Ohm Dayton Audio’s ND64-4 is truly a full-range driver and capable of over 6 mm of peak-to-peak excursion. It features a dual neodymium magnet structure, a 3/4" CCAW voice coil, and a copper sleeve to minimize distortion. An efficient, low-distortion neodymium motor is combined with a rigid yet lightweight aluminum magnesium diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source speaker applications, or combined in multiples in line array designs.
Dayton Audio ND105-PR
Dayton Audio ND105-4 4” Aluminum Cone Passive Radiator The Dayton Audio ND105-PR 4" passive radiator makes it easy to tune small enclosures lower without increasing overall enclosure size. With a one-piece aluminum cone, rubber surround, high excursion capability, and easily adjustable mass, this passive radiator is perfect for building extremely compact speaker systems capable of incredible low frequency output. Key Features Rigid black anodized aluminum alloy cone High excursion capability: 12 mm peak to peak Same "family look" as ND Series woofers Adjustable mass for a vast range of tuning frequencies Dayton Audio ND105-PR 4" Aluminum Cone Passive Radiator Tune small enclosures with Dayton Audio's ND105-PR 4" passive radiator in speaker designs where a conventional port is not a viable option. This compact passive radiator includes all of the features you expect with larger radiators including high excursion capability, aluminum cone, rubber surround, and adjustable mass. Visually identical to Dayton Audio's popular ND series drivers, the ND105-PR can be used with any small speaker. The threaded rod and included wing nut on the back of the cone makes it easy to add mass to tune the radiator as needed for your projects. Whether you are building a multi-driver array, sound bar, or portable Bluetooth speaker, the Dayton Audio ND105-PR introduces a new range of possibilities. The ND105-PR 4" passive radiator includes: (1) Passive radiator (1) 21.8 gram disk weights (1) Wing nut Specifications: • Fs: 51.5 Hz • Vas: 0.09 cu. ft. (2.6 liters) • Qms: 5.93 • Cms: 0.68 mm/N • Mms: 13.9g • Rms: 0.76 kg/s • Sd: 51.5 sq. cm. • Xmech: 6 mm • Dimensions: Overall diameter: 4.13", Cutout diameter: 3.66", Depth: 2.64". Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system. To calculate Vd: Sd x Xmax = Vd
Dayton Audio ND140-PR
Dayton Audio ND140-PR 4” Aluminum Cone Passive Radiator The Dayton Audio ND140-PR 5-1/4" passive radiator makes it easy to tune small enclosures lower without increasing overall enclosure size. With a one-piece aluminum cone, rubber surround, high excursion capability, and easily adjustable mass, this passive radiator is perfect for building extremely compact speaker systems capable of incredible low frequency output. Key Features Rigid black anodized aluminum alloy cone High excursion capability: 18 mm peak to peak Same "family look" as ND Series woofers Adjustable mass for a vast range of tuning frequencies Dayton Audio ND140-PR 5-1/4" Aluminum Cone Passive Radiator Tune small enclosures with Dayton Audio's ND140-PR 5-1/4" passive radiator in speaker designs where a conventional port is not a viable option. This compact passive radiator includes all of the features you expect with larger radiators including high excursion capability, aluminum cone, rubber surround, and adjustable mass. Visually identical to Dayton Audio's popular ND series drivers, the ND140-PR can be used with any small speaker. The threaded rod and included wing nut on the back of the cone makes it easy to add mass to tune the radiator as needed for your projects. Whether you are building a multi-driver array, sound bar, or portable Bluetooth speaker, the Dayton Audio ND140-PR introduces a new range of possibilities. The ND140-PR 5-1/4" passive radiator includes: (1) Passive radiator (2) 18.5 gram disk weights (1) Wing nut Specifications: • Fs: 44.2 Hz • Vas: 0.30 cu. ft. (8.4 liters) • Qms: 4.02 • Cms: 0.79 mm/N • Mms: 16.4g • Rms: 1.13 kg/s • Sd: 86.6 sq. cm. • Xmech: 9 mm • Dimensions: Overall diameter: 5.5", Cutout diameter: 4.75", Depth: 2.5". Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system. To calculate Vd: Sd x Xmax = Vd

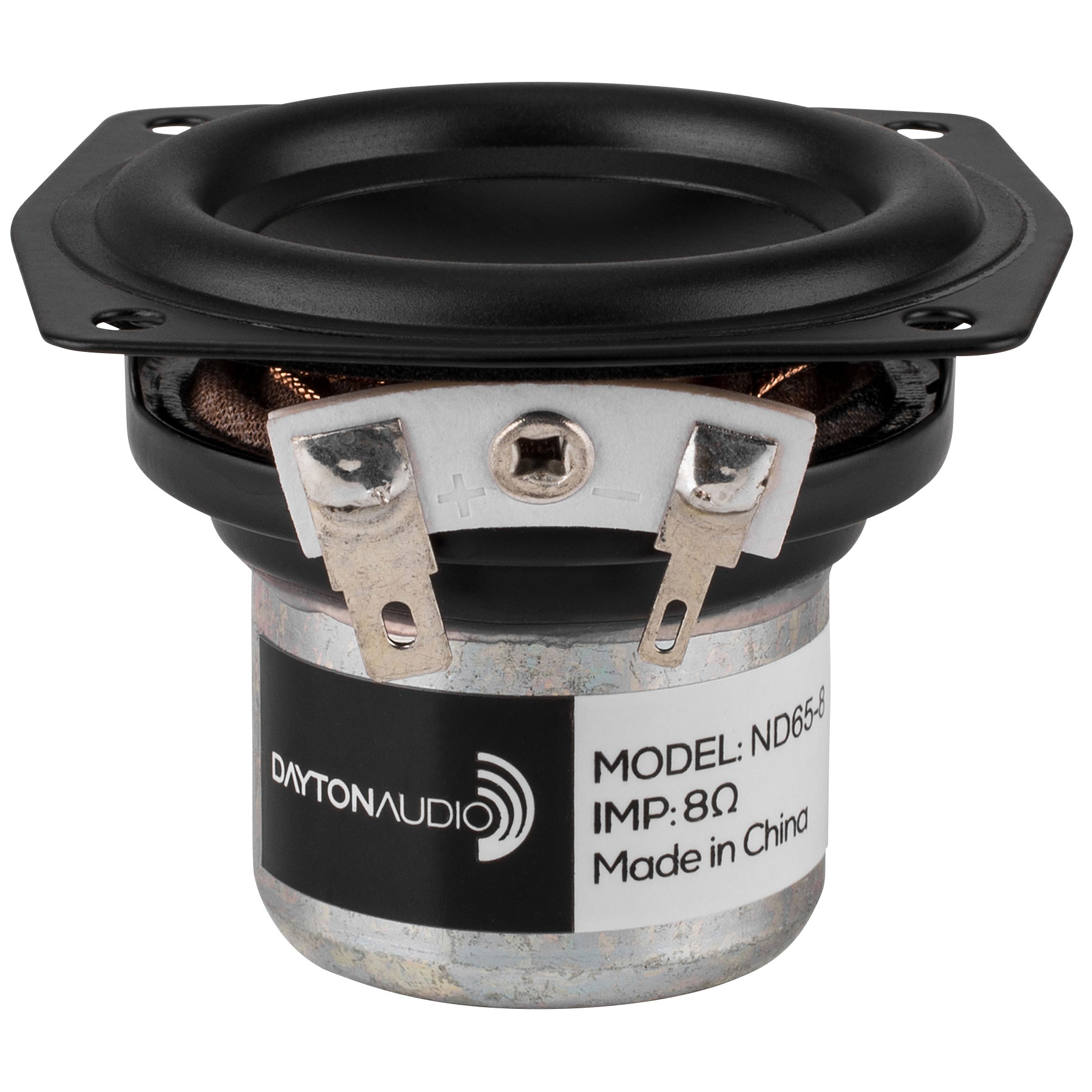

Dayton Audio ND65-8
Dayton Audio ND65-8 2-1/2” Aluminum Cone Full-Range Neo Driver 8 Ohm Dayton Audio's compact ND65-8 aluminum cone full-range driver demonstrates the latest advances in high-excursion design processes. When teamed up with the matching ND series passive radiators this driver can produce incredible full sound from compact enclosures. Key Features Rubber-edged aluminum alloy cone Large excursion capability Self-shielded Neo-Balanced motor structure 4-layer underhung voice coil with polyimide former High power handling Dayton Audio ND65-8 2-1/2" Aluminum Cone Full-Range Neo Driver 8 Ohm Dayton Audio's compact ND65-8 aluminum cone driver demonstrates the latest advances in high-excursion design processes. An efficient, low-distortion Neo-Balanced motor is combined with a rigid yet lightweight aluminum diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source speaker applications, or combined in multiples and line arrays.

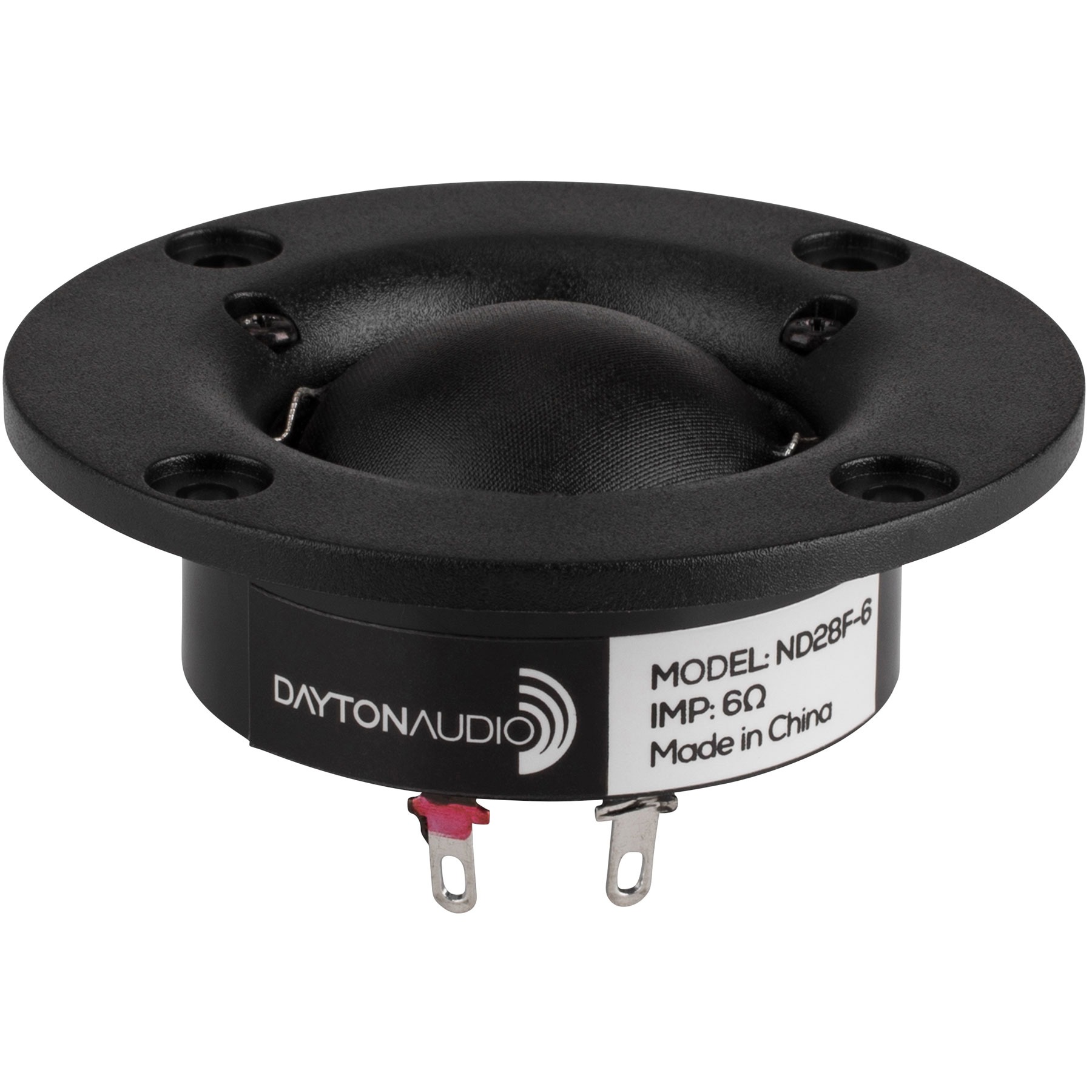

Dayton Audio ND28F-6
Dayton Audio ND28F-6 1-1/8” Soft Dome Neodynium Tweeter This compact 1-1/8" soft dome tweeter offers the best of both worlds. A low free air resonance together with a compact faceplate. Key Features Front-mount design Center-to-center spacing as low as 2-1/2" Great top-end air and sparkle Self shielding neodymium motors Dayton Audio ND28F-6 1-1/8" Soft Dome Neodymium Tweeter This compact 1-1/8" soft dome tweeter offers the best of both worlds. A low free air resonance together with a compact faceplate. Great for MTM or line array designs.

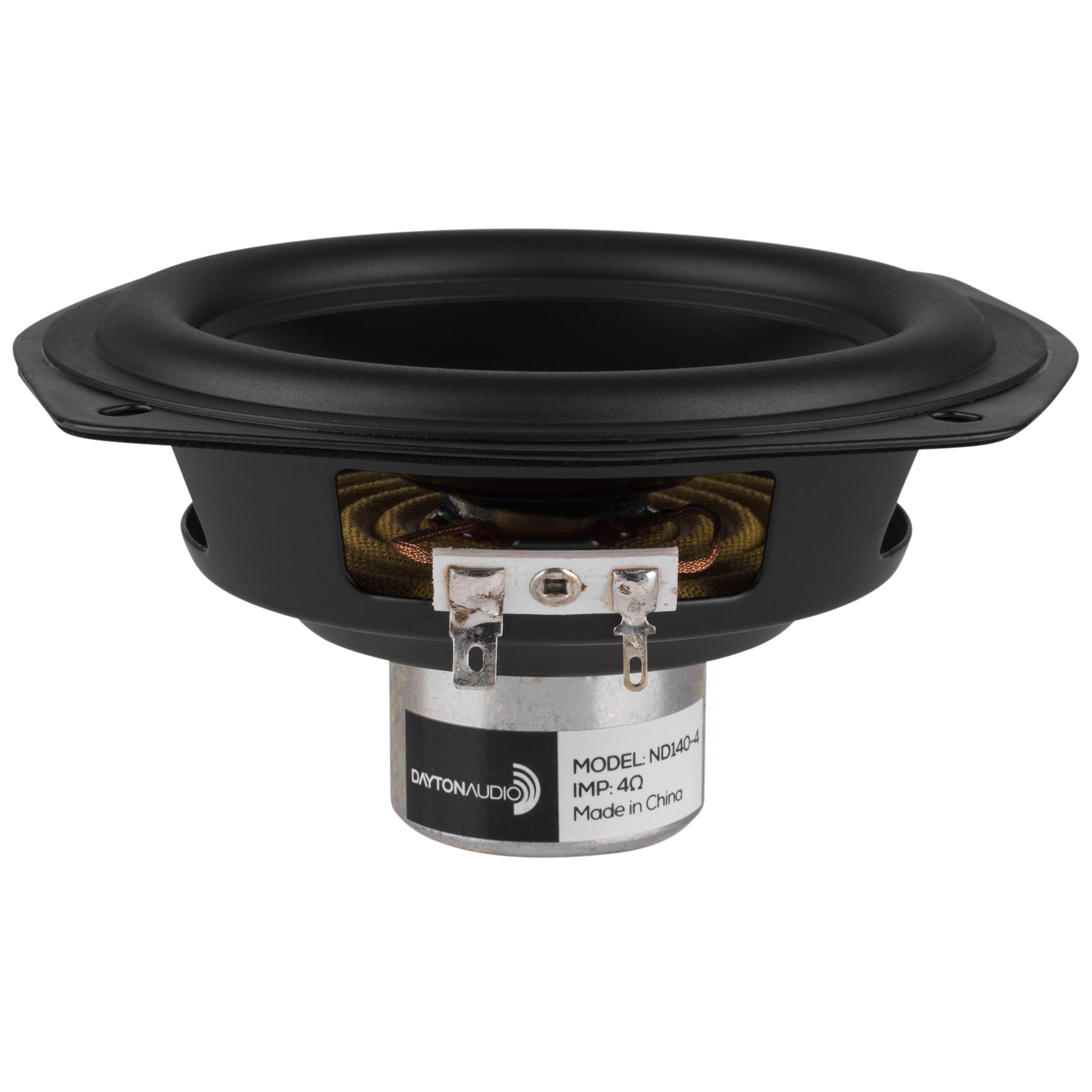

Dayton Audio ND140-4
Dayton Audio ND140-4 4” Aluminum Cone Midbass Neo Driver 4 Ohm Dayton Audio's ND140-4 compact aluminum cone driver demonstrates the latest advances in high-excursion design processes. When teamed up with the matching ND series passive radiators this driver can produce incredible full sound from compact enclosures. Key Features Extended-range 54 Hz to 8 kHz performance Rubber-edged aluminum alloy cone Large excursion capability—4 mm Xmax, 20 mm peak Self-shielded Neo-Balanced motor structure 1" 4-layer underhung voice coil with polyimide former 40 watts RMS power handling Dayton Audio ND140-4 5-1/4" Aluminum Cone Midbass Neo Driver 4 Ohm Dayton Audio's compact aluminum cone drivers demonstrate the latest advances in high-excursion design processes. An efficient, low-distortion Neo-Balanced motor is combined with a rigid yet lightweight aluminum diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source applications, or combined in multiples and line arrays.
Dayton Audio ND20FB-4 Rear-Mount
Dayton Audio ND20FB-6 Rear Mount 3/4” Soft Dome Neodynium Tweeter This versatile tweeter is a huge step above the average "budget" tweeter. It has the sensitivity, smoothness, and power handling to individually do a two-way with most small woofers. Key Features Compact neodymium motors have low stray field Ferrofluid enhances power handling and helps damp resonance Front-mount pressfit design Perfect for placement in car A-pillars Center-to-center spacing as low as 1-1/2" Extremely flat and extended response Dayton Audio ND20FB-6 Rear Mount 3/4" Soft Dome Neodymium Tweeter Don't let the low price fool you! This versatile tweeter is a huge step above the average "budget" tweeter. Conceived with line array thoughts in mind, it is finally possible to achieve the inter-driver spacing needed to minimize comb filtering out to nearly 20 kHz. But their uses don't stop at line arrays-- they have the sensitivity, smoothness, and power handling to individually do a two-way with most small woofers. Give them a try for your next budget or micro speaker-- you will be pleasantly surprised!
Dayton Audio ND65-PR
Dayton Audio ND65-4 2-1/2” Aluminum Cone Passive Radiator The Dayton Audio ND65-PR 2-1/2" passive radiator makes it easy to tune small enclosures lower without increasing overall enclosure size. With a one-piece aluminum cone, rubber surround, high excursion capability, and easily adjustable mass, this passive radiator is perfect for building extremely compact speaker systems capable of incredible low frequency output. Key Features Rigid black anodized aluminum alloy cone High excursion capability: 10 mm peak to peak Same "family look" as ND Series woofers Mass adjustable for a vast range of tuning frequencies Dayton Audio ND65-PR 2-1/2" Aluminum Cone Passive Radiator Tune small enclosures with Dayton Audio's ND65-PR 2-1/2" passive radiator in speaker designs where a conventional port is not a viable option. This compact passive radiator includes all of the features you expect with larger radiators including high excursion capability, aluminum cone, rubber surround, and adjustable mass. Visually identical to Dayton Audio's popular ND series drivers, the ND65-PR can be used with any small speaker. The threaded rod and included wing nut on the back of the cone makes it easy to add mass to tune the radiator as needed for your projects. Whether you are building a multi-driver array, sound bar, or portable Bluetooth speaker, the Dayton Audio ND65-PR introduces a new range of possibilities. The ND65-PR 2-1/2" passive radiator includes: (1) Passive radiator (1) 4.3 gram disk weight (1) Wing nut Specifications: • Fs: 73.0 Hz • Vas: 0.02 cu. ft. (0.5 liters) • Qms: 2.69 • Cms: 1.45 mm/N • Mms: 3.2g • Rms: 0.56 kg/s • Sd: 15.6 sq. cm. • Xmech: 5 mm • Dimensions: Overall diameter: 2.52", Cutout diameter: 2.05", Depth: 1.89". Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system. To calculate Vd: Sd x Xmax = Vd
Dayton Audio ND20FA-6
Dayton Audio ND20FA-6 3/4” Soft Dome Neodynium Tweeter This versatile tweeter is a huge step above the average "budget" tweeter. It has the sensitivity, smoothness, and power handling to individually do a two-way with most small woofers. Key Features Compact neodymium motors have low stray field Ferrofluid enhances power handling and helps damp resonance Front-mount pressfit design Perfect for placement in car A-pillars Center-to-center spacing as low as 1-3/4" Extremely flat and extended response Dayton Audio ND20FA-6 3/4" Soft Dome Neodymium Tweeter Don't let the low price fool you! This versatile tweeter is a huge step above the average "budget" tweeter. Conceived with line array thoughts in mind, it is finally possible to achieve the inter-driver spacing needed to minimize comb filtering out to nearly 20 kHz. But their uses don't stop at line arrays-- they have the sensitivity, smoothness, and power handling to individually do a two-way with most small woofers. Give them a try for your next budget or micro speaker-- you will be pleasantly surprised!
Dayton Audio ND25TA-4
Dayton Audio ND25TA-4 1” Titanium Dome Neodynium Tweeter Dayton Audio's ND25TA-4 compact titanium dome tweeter features high output and smooth response to beyond 22 kHz, for maximum dynamic impact and excellent transient response. The high-strength neodymium motor is equipped with an aluminum heatsink for cool operation and reduced power compression. Key Features 1" titanium dome diaphragm with damped fabric surround Compact round faceplate and protective metal grill High-strength neodymium motor with heatsink and ferrofluid cooling Smooth and detailed treble response to 22 kHz and beyond Clean, modern styling and appearance Dayton Audio ND25TA-4 1" Titanium Dome Neodymium Tweeter The Dayton Audio ND25TA-4 is a versatile 1" titanium-dome tweeter that offers the performance of more expensive tweeters in a compact and stylish package. It features a Dayton Audio exclusive round faceplate design with integral perforated steel grille, and a small yet powerful neodymium motor with attached aluminum heatsink and ferrofluid-filled magnetic gap for reduced power compression and improved long-term power handling. The carefully-designed titanium diaphragm provides clean, crisp treble response to beyond 22 kHz, and delivers superb sonic detail and dynamics with low distortion. A copper pole cap further reduces distortion and inductance effects. Choose the ND25TA-4 when you need maximum dynamic impact and powerfully-rendered sonic detail to keep up with a high-output midrange or woofer. The compact round faceplate design integrates easily into your baffle design without claiming a large amount of real estate, and the integrated grill protects the titanium dome from damage.
Dayton Audio ND16FA-4
Dayton Audio ND16FA-4 5/8” Soft Dome Neodynium Tweeter 4 Ohm Dayton Audio's ND16FA-4 5/8" soft dome tweeter is perfect for use in compact 2-way systems such as desktop, surround, or portable speaker systems. With smooth response from 4,000 to 20,000 Hz this tweeter is ideal for adding more top end to many full-range drivers. Key Features Ferrofluid enhances power handling and helps damp resonance Powerful neodymium motor keeps tweeter small with impressive efficiency Compact faceplate is perfect for minimal center-to-center distances Easy installation, front mount pressfit design Perfect for placement in car A-pillars Dayton Audio ND16FA-4 5/8" Soft Dome Neodymium Tweeter 4 Ohm The versatile ND16FA-4 5/8" soft dome tweeter from Dayton Audio has the sensitivity, smoothness, and power handling for use in a 2-way design with most small woofers. The compact faceplate allows minimal center-to-center distances making these a great choice for use in 2-way designs with high crossover points. With 4-ohm impedance, this tweeter is suitable for use in both home and automotive applications. Thanks to the Ferrofluid cooled voice coil, the ND16FA-4 can handle an impressive amount of power and has excellent damping for extremely accurate response.
Dayton Audio ND25FN-4
Dayton Audio ND25FN-4 1” Soft Dome Neodynium Tweeter Element 4 Ohm Dayton Audio's ND25FN-4 compact soft dome tweeter element features high output and smooth, low-distortion sound. The high-strength neodymium motor features an aluminum heat sink for cool operation and reduced power compression. Key Features 1" treated silk dome diaphragm Faceplate-free design enables versatile custom mounting High-strength neodymium motor with heatsink and ferrofluid cooling Extremely smooth and extended treble response beyond 22 kHz Perfect for use with a waveguide or custom mounting plate Great replacement for car door tweeters Dayton Audio ND25FN-4 1" Silk Dome Neodymium Tweeter Element 4 Ohm Dayton Audio’s ND25FN-4 is a versatile 1" tweeter element for use in highly customized applications requiring smooth, clean treble output. The treated silk dome diaphragm delivers excellent detail and smoothness, while the high-strength neodymium magnet enables high output from an extremely compact size. The rear-mounted heatsink and ferrofluid-filled magnetic gap provide improved heat dissipation from the compact motor structure, for reduced power compression at high levels. A copper pole cap further reduces distortion and inductance effects. This element is identical to the round-faceplate ND25FA-4 model, but with no faceplate installed. It’s perfect for installation into a waveguide or a custom mounting plate, or in limited clearance applications such as automotive A-pillars. Simply bond the unit in place from behind, and prepare to be surprised at the clean, detailed output!

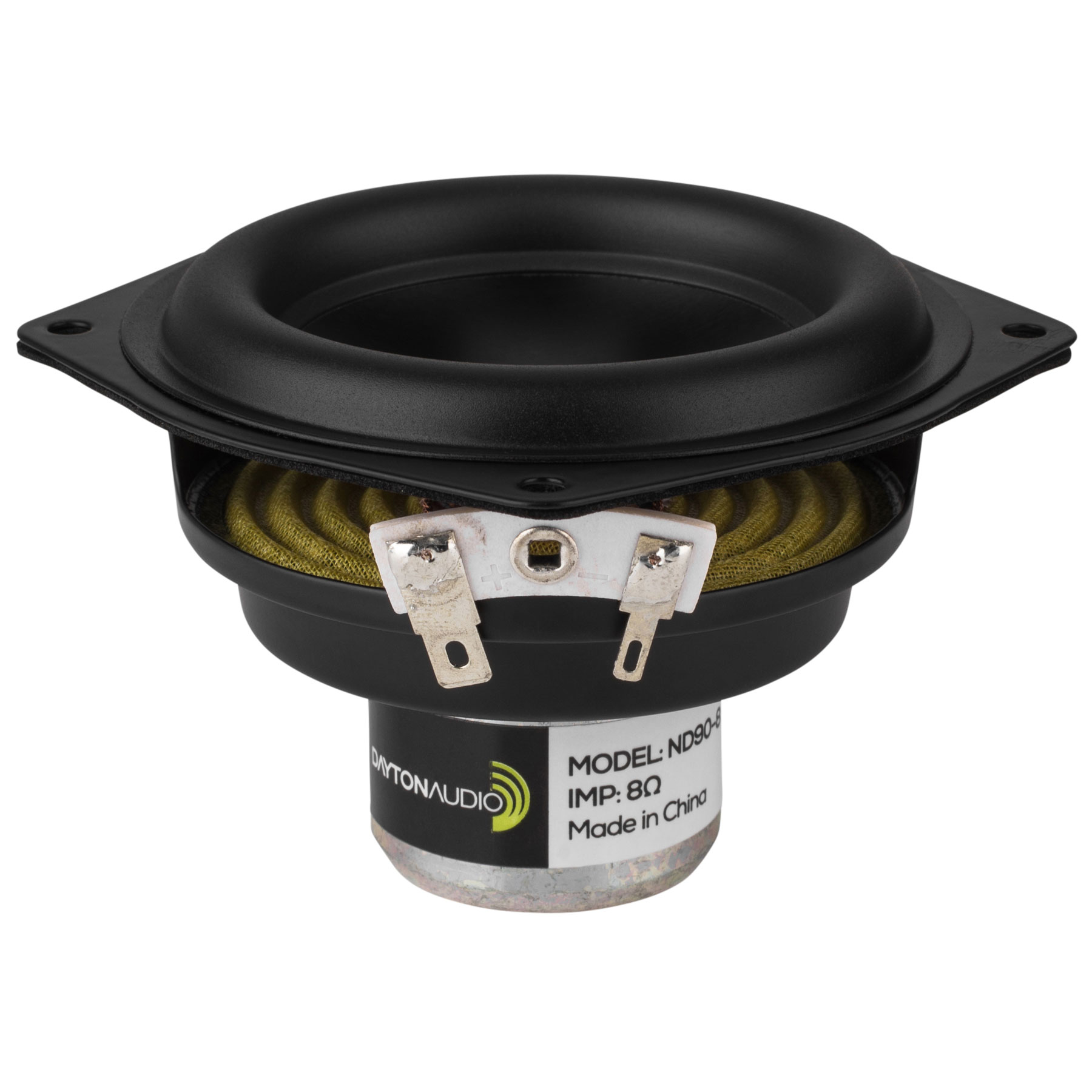

Dayton Audio ND90-8
Dayton Audio ND90-8 3-1/2” Aluminum Cone Full-Range Neo Driver 8 Ohm Looking for a small driver that punches above its weight class? The ND90-8 radical high performance full-range transducer exudes an aura of superiority. When teamed up with the matching ND series passive radiators this driver can produce incredible full sound from compact enclosures. Key Features Direct replacement for Aura NS3 Rubber-edged anodized aluminum alloy cone Large excursion capability—4 mm Xmax, 20 mm peak Self-shielded Neo-Balanced motor structure Full-range 80 Hz to 15 kHz performance 3/4" 4-layer underhung voice coil with polyimide former 20 watts RMS power handling Dayton Audio ND90-8 3-1/2" Aluminum Cone Full-Range Neo Driver 8 Ohm Dayton Audio's compact aluminum cone drivers demonstrate the latest advances in high-excursion design processes. An efficient, low-distortion Neo-Balanced motor is combined with a rigid yet lightweight aluminum diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source applications, or combined in multiples and line arrays.

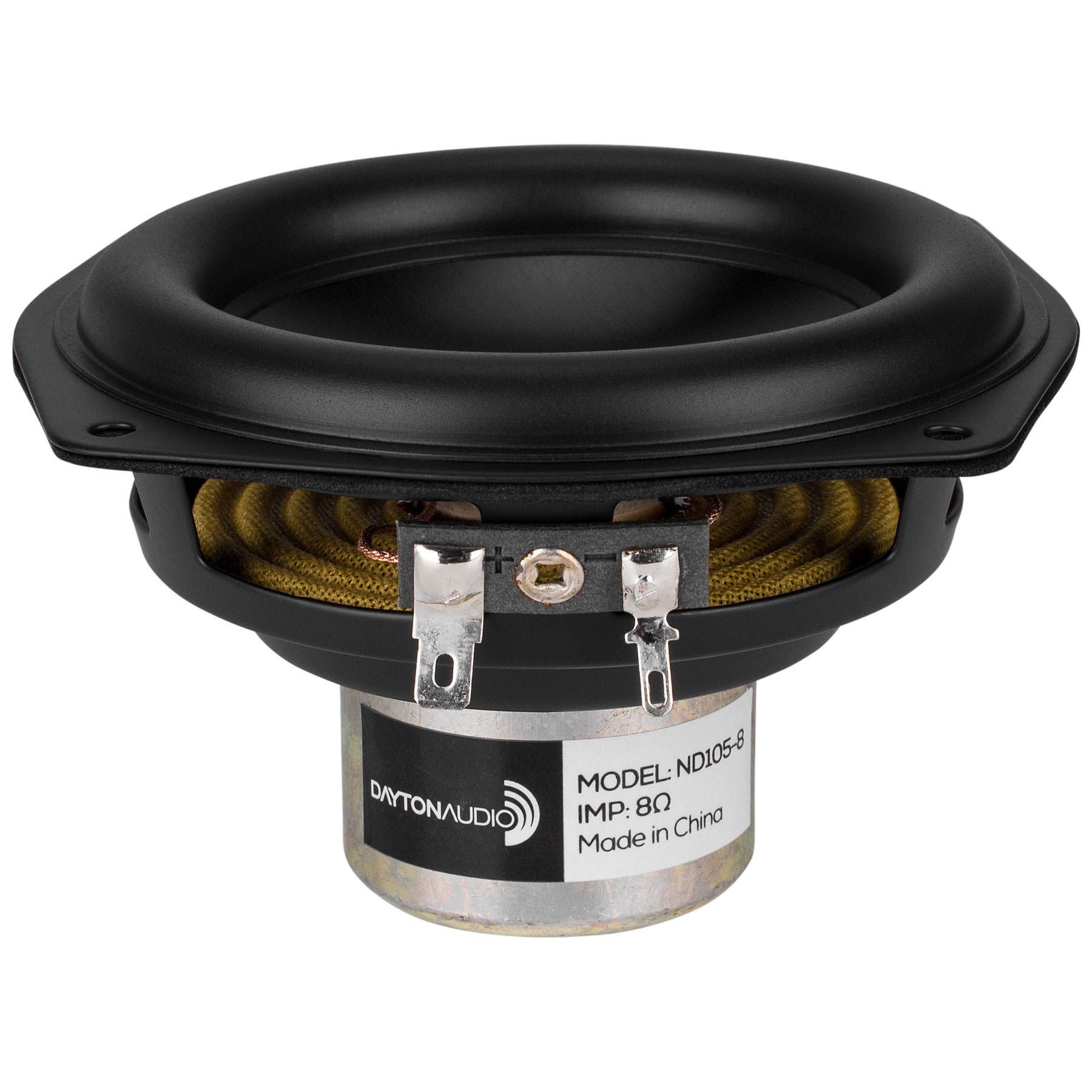

Dayton Audio ND105-8
Dayton Audio ND105-8 4” Aluminum Cone Midbass Neo Driver 8 Ohm Dayton Audio's ND105-8 compact aluminum cone midbass produces high-impact audio demonstrating the latest advances in high-excursion design processes. When teamed up with the matching ND series passive radiators this driver can produce incredible full sound from compact enclosures. Key Features Extended-range 60 Hz to 10 kHz performance Rubber-edged aluminum alloy cone Large excursion capability—4 mm Xmax, 20 mm peak Self-shielded Neo-Balanced motor structure 1" 4-layer underhung voice coil with polyimide former 30 watts RMS power handling Dayton Audio ND105-8 4" Aluminum Cone Midbass Neo Driver 8 Ohm Dayton Audio's compact aluminum cone drivers demonstrate the latest advances in high-excursion design processes. An efficient, low-distortion Neo-Balanced motor is combined with a rigid yet lightweight aluminum diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source applications, or combined in multiples and line arrays.

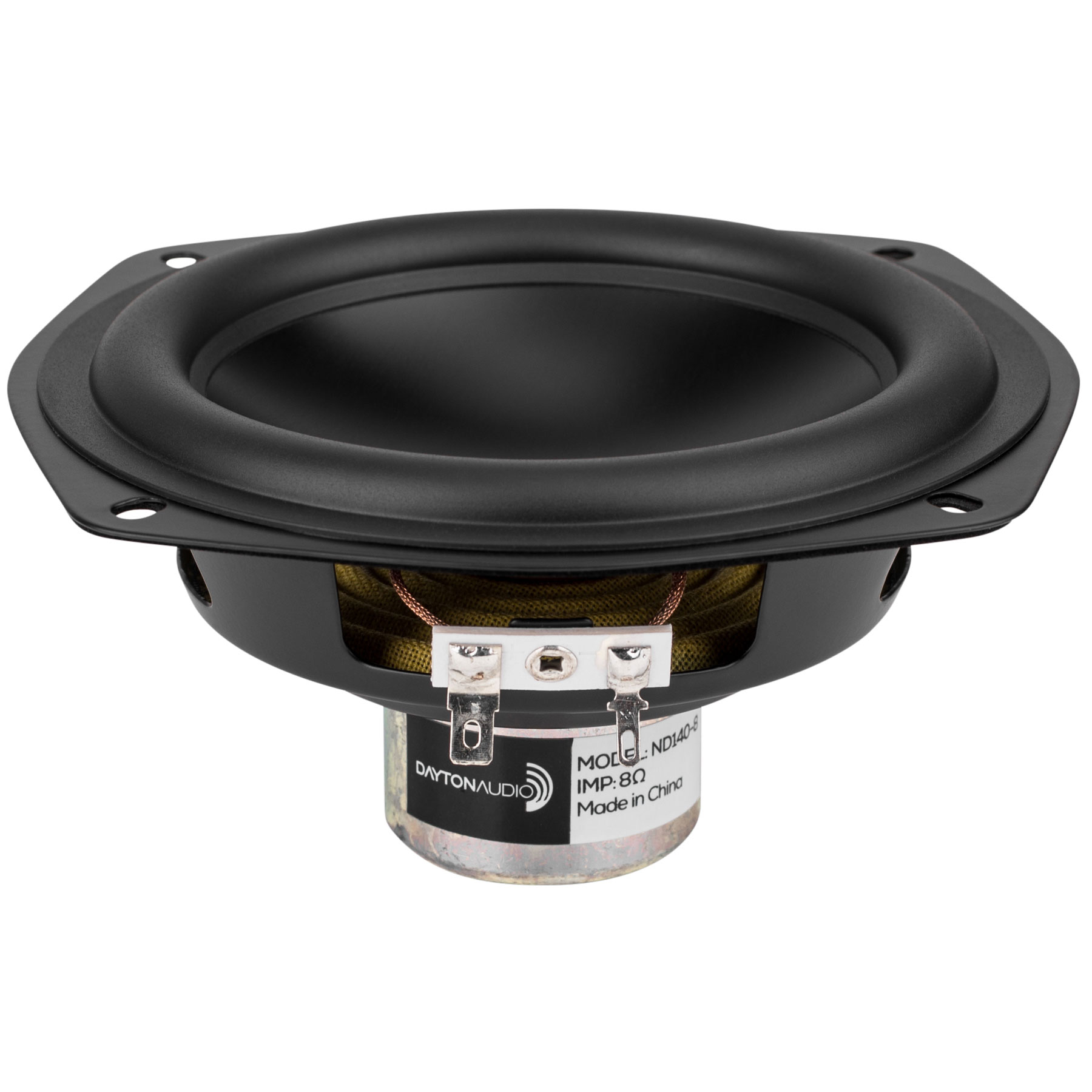

Dayton Audio ND140-8
Dayton Audio ND140-8 5-1/4” Aluminum Cone Midbass Neo Driver 8 Ohm Dayton Audio's ND140-8's compact aluminum cone demonstrates the latest advances in high-excursion design processes. Its compact size and high output make it perfect for your next point-source or line array speaker project. When teamed up with the matching ND series passive radiators this driver can produce incredible full sound from compact enclosures. Key Features Extended-range 54 Hz to 8 kHz performance Rubber-edged aluminum alloy cone Large excursion capability—4 mm Xmax, 20 mm peak Self-shielded Neo-Balanced motor structure 1" 4-layer underhung voice coil with polyimide former 40 watts RMS power handling Dayton Audio ND140-8 5-1/4" Aluminum Cone Midbass Neo Driver 8 Ohm Dayton Audio's ND140-8 midbass driver features an efficient, low-distortion Neo-Balanced motor that is combined with a rigid yet lightweight aluminum diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source applications, or combined in multiples and line arrays.
Dayton Audio ND13FA-4
Dayton Audio ND13FA-4 1/2” Soft Dome Neodynium Tweeter Dayton Audio's tiny ND13FA-4 1/2" soft dome tweeter is perfect for use in compact 2-way systems such as desktop, surround, or portable speaker systems. With smooth response from 4,500 to 20,000 Hz this tweeter is ideal for adding more top end to many full-range drivers. Key Features Compact faceplate is perfect for minimal center-to-center distances Easy installation, front mount pressfit design Ferrofluid enhances power handling and helps damp resonance Powerful neodymium motor keeps tweeter small with impressive efficiency Dayton Audio ND13FA-4 1/2" Soft Dome Neodymium Tweeter 4 Ohm The versatile ND13FA-4 1/2" soft dome tweeter from Dayton Audio has the sensitivity, smoothness, and power handling for use in a 2-way design with most small woofers. The small faceplate allows minimal center-to-center distances making these a great choice for use in 2-way designs with high crossover points. With 4-ohm impedance, this tweeter is suitable for use in both home and automotive applications. Thanks to the Ferrofluid cooled voice coil, the ND13FA-4 can handle an impressive amount of power and has excellent damping for extremely accurate response.

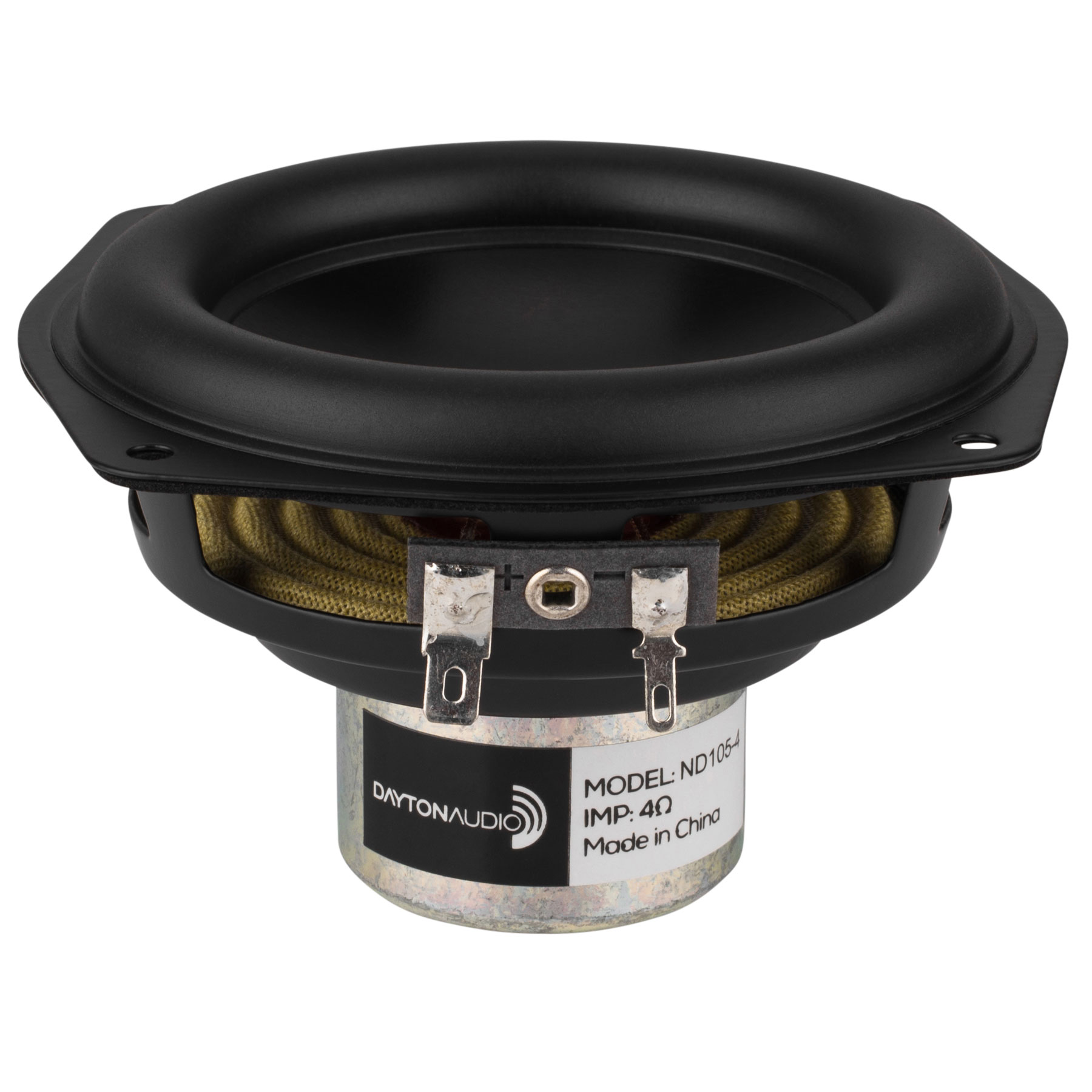

Dayton Audio ND105-4
Dayton Audio ND105-4 4” Aluminum Cone Full-Range Neo Driver 4 Ohm Dayton Audio's ND105-4 compact aluminum cone midbass produces high-impact audio demonstrating the latest advances in high-excursion design processes. When teamed up with the matching ND series passive radiators this driver can produce incredible full sound from compact enclosures. Key Features Extended-range 60 Hz to 10 kHz performance Rubber-edged aluminum alloy cone Large excursion capability—4 mm Xmax, 20 mm peak Self-shielded Neo-Balanced motor structure 1" 4-layer underhung voice coil with polyimide former 30 watts RMS power handling Dayton Audio ND105-4 4" Aluminum Cone Midbass Neo Driver 4 Ohm Dayton Audio's compact aluminum cone drivers demonstrate the latest advances in high-excursion design processes. An efficient, low-distortion Neo-Balanced motor is combined with a rigid yet lightweight aluminum diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source applications, or combined in multiples and line arrays.
Dayton Audio ND16FA-6
Dayton Audio ND16FA-6 5/8” Soft Dome Neodynium Tweeter Don't let the low price fool you! This versatile tweeter is a huge step above the average "budget" tweeter. Key Features Unique front pressfit, flush-mount design Center-to-center spacing as low as 1-3/8" Extended response with superior off-axis dispersion Compact neodymium motor is effectively self-shielded Ferrofluid enhances power handling and helps damp resonance Great replacement for car door tweeters Dayton Audio ND16FA-6 5/8" Soft Dome Neodymium Tweeter Don't let the low price fool you! This versatile tweeter is a huge step above the average "budget" tweeter. Conceived with line array thoughts in mind, it is finally possible to achieve the inter-driver spacing needed to minimize comb filtering out to nearly 20 kHz. But their uses don't stop at line arrays-- they have the sensitivity, smoothness, and power handling to individually do a two-way with most small woofers. Give them a try for your next budget or micro speaker-- you will be pleasantly surprised!

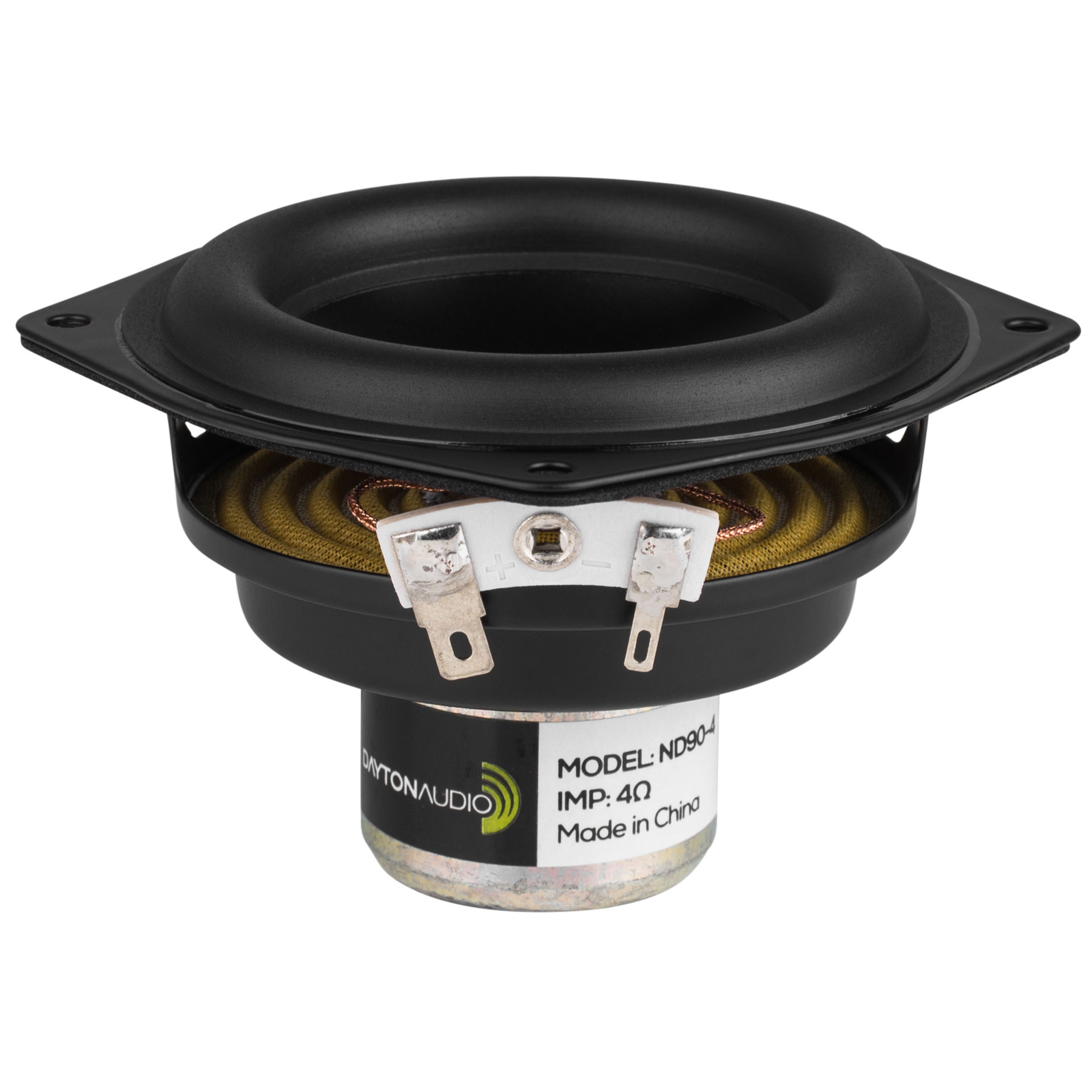

Dayton Audio ND90-4
Dayton Audio ND90-4 3-1/2” Aluminum Cone Full-Range Neo Driver 4 Ohm Dayton Audio's ND90-4 compact aluminum cone driver demonstrates the latest advances in high-excursion design processes. When teamed up with the matching ND series passive radiators this driver can produce incredible full sound from compact enclosures. Key Features Full-range 80 Hz to 15 kHz performance Rubber-edged aluminum alloy cone Large excursion capability—4 mm Xmax, 20 mm peak Self-shielded Neo-Balanced motor structure 3/4" 4-layer underhung voice coil with polyimide former 20 watts RMS power handling Dayton Audio ND90-4 3-1/2" Aluminum Cone Full-Range Neo Driver 4 Ohm Dayton Audio's compact aluminum cone drivers demonstrate the latest advances in high-excursion design processes. An efficient, low-distortion Neo-Balanced motor is combined with a rigid yet lightweight aluminum diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source applications, or combined in multiples and line arrays.

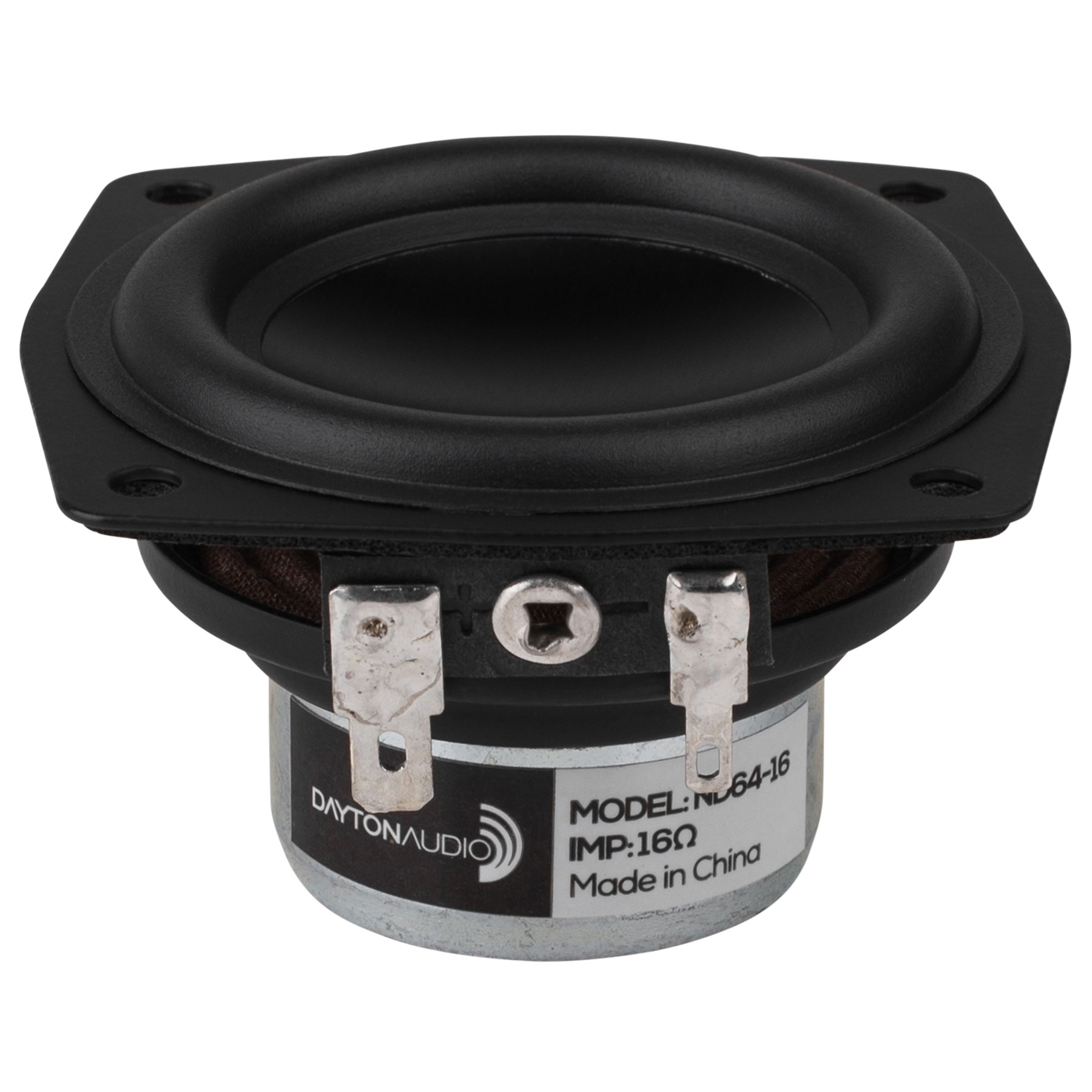

Dayton Audio ND64-16
Dayton Audio ND64-16 2-1/2” Aluminum Cone Full-Range Neo Driver 16 Ohm Dayton Audio’s ND64-16 is truly a full-range, low distortion driver and capable of over 6 mm of peak-to-peak excursion. When teamed up with the matching ND series passive radiators this driver can produce incredible full sound from compact enclosures. Key Features Rubber-edged aluminum magnesium alloy cone Dual neodymium motor structure 4-layer voice coil with polyimide former Copper sleeve to minimize distortion High power handling Dayton Audio ND64-16 2-1/2" Aluminum Magnesium Cone Full-Range Neo Driver 16 Ohm Dayton Audio’s ND64-16 is truly a full-range driver and capable of over 6 mm of peak-to-peak excursion. It features a dual neodymium magnet structure, a 3/4" CCAW voice coil, and a copper sleeve to minimize distortion. An efficient, low-distortion neodymium motor is combined with a rigid yet lightweight aluminum magnesium diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source speaker applications, or combined in multiples for line array designs.
