Dayton Audio ND16FA-6
Skip image gallery
Picture similar to product
Product number:
275-025
Manufacturer:
Dayton Audio
Length:
0.26 mm
Width:
0.1 mm
Height:
8.26 mm
Weight:
0.04 kg
Available stock:
8
Min. order quantity:
1
Dayton Audio ND16FA-6 5/8” Soft Dome Neodynium Tweeter
Don't let the low price fool you! This versatile tweeter is a huge step above the average "budget" tweeter.
Key Features
- Unique front pressfit, flush-mount design
- Center-to-center spacing as low as 1-3/8"
- Extended response with superior off-axis dispersion
- Compact neodymium motor is effectively self-shielded
- Ferrofluid enhances power handling and helps damp resonance
- Great replacement for car door tweeters
Dayton Audio ND16FA-6 5/8" Soft Dome Neodymium Tweeter
Don't let the low price fool you! This versatile tweeter is a huge step above the average "budget" tweeter. Conceived with line array thoughts in mind, it is finally possible to achieve the inter-driver spacing needed to minimize comb filtering out to nearly 20 kHz. But their uses don't stop at line arrays-- they have the sensitivity, smoothness, and power handling to individually do a two-way with most small woofers. Give them a try for your next budget or micro speaker-- you will be pleasantly surprised!
Properties
| Artikel-Nr.: | 275-025 |
|---|---|

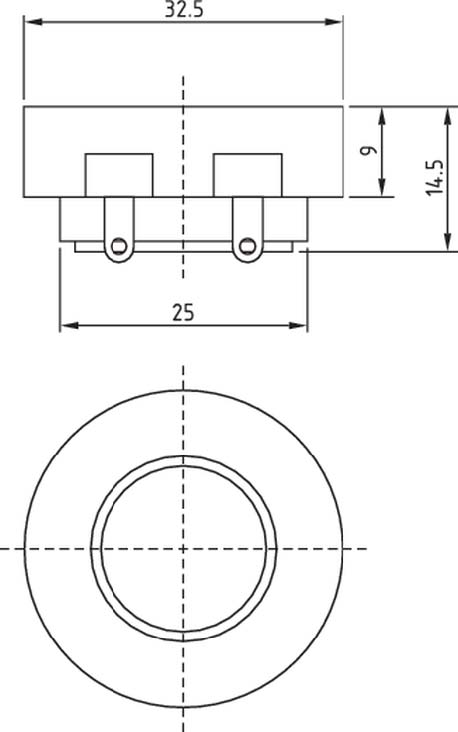

| Außenmaß: | 32,5mm |

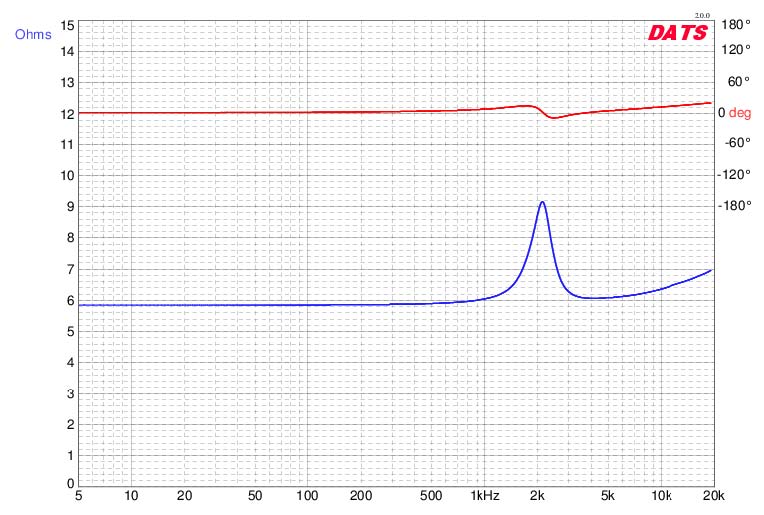

| DC Resistance (Re): | 5,8 Ohm |
| EAN: | 844632056499 |
| Einbautiefe: | 14,5 mm |
| Einheit: | Stück |
| Elektrische Güte (Qes): | 609 |

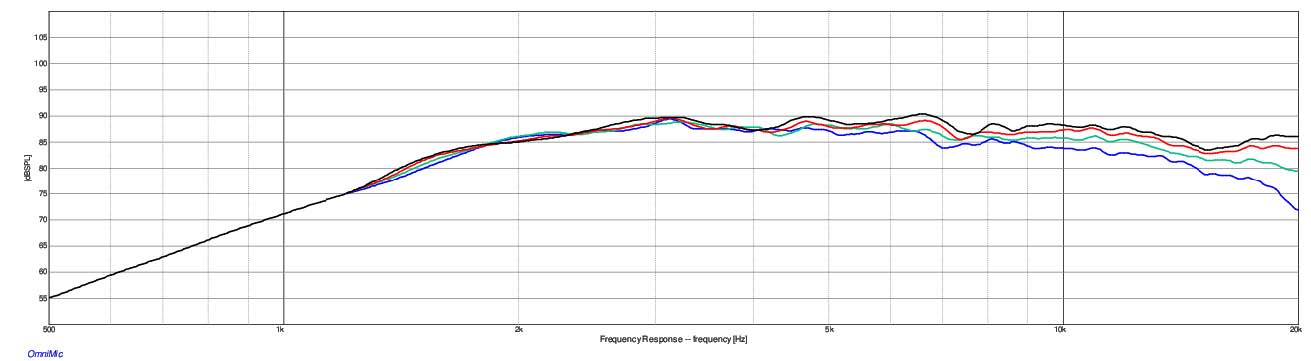

| Frequenzbereich: | 3,500 bis 27,000Hz |
| Gesamtgüte (Qts): | 22 |
| Hochtöner Typ: | Kalotte |
| Impedanz (Z): | 6 Ohm |
| Marke: | Dayton Audio |
| Mechanische Güte (Qms): | 345 |
| Modell: | ND16FA-6 |
| Nennbelastbarkeit: | 10 Watt |
| Resonanzfrequenz (fs): | 2125Hz |
| Schwingspulenind. (Le): | 0,04mH |
| Sensitivität: | 88dB 2,83V/1m |
Data according to manufacturer. Errors and changes reserved.
