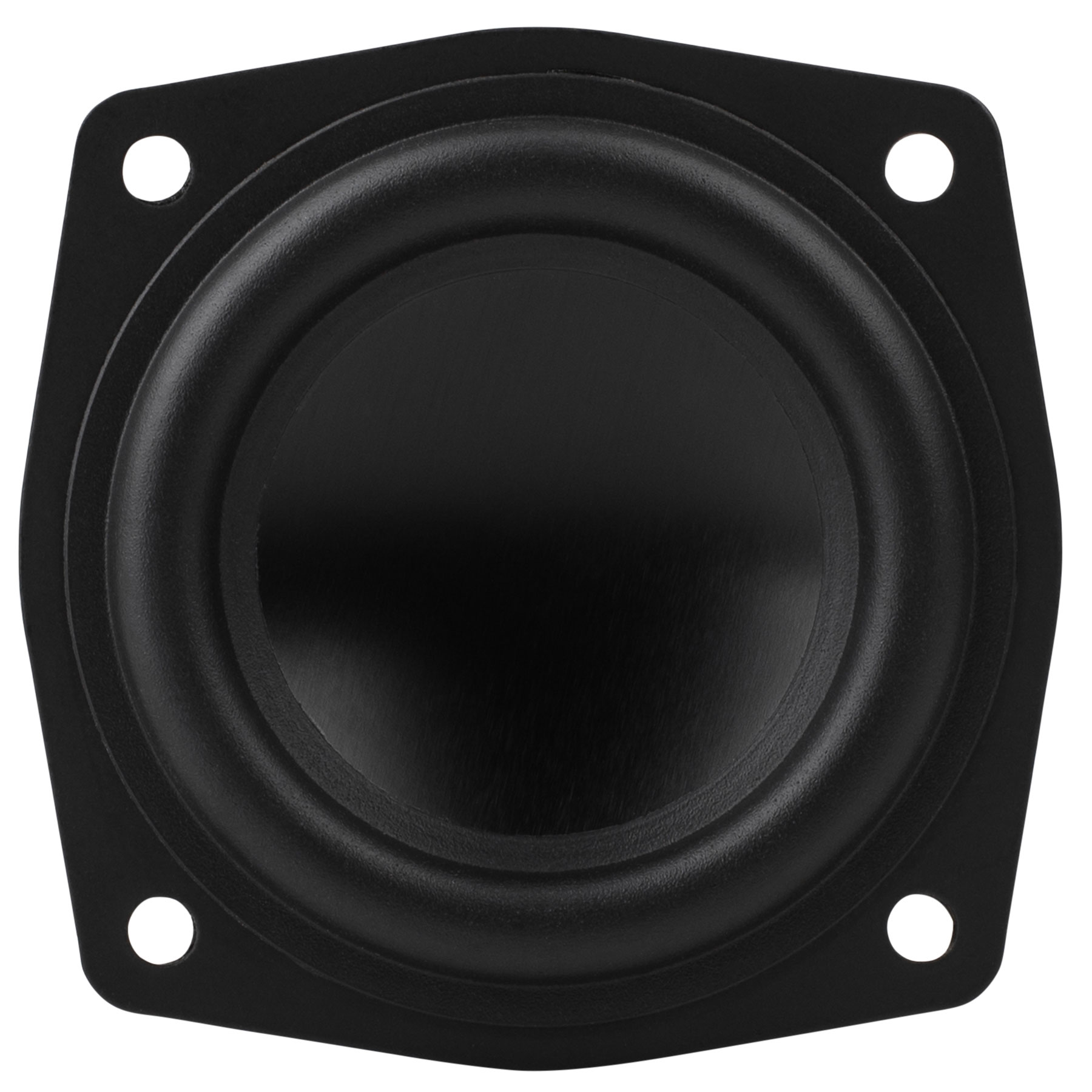

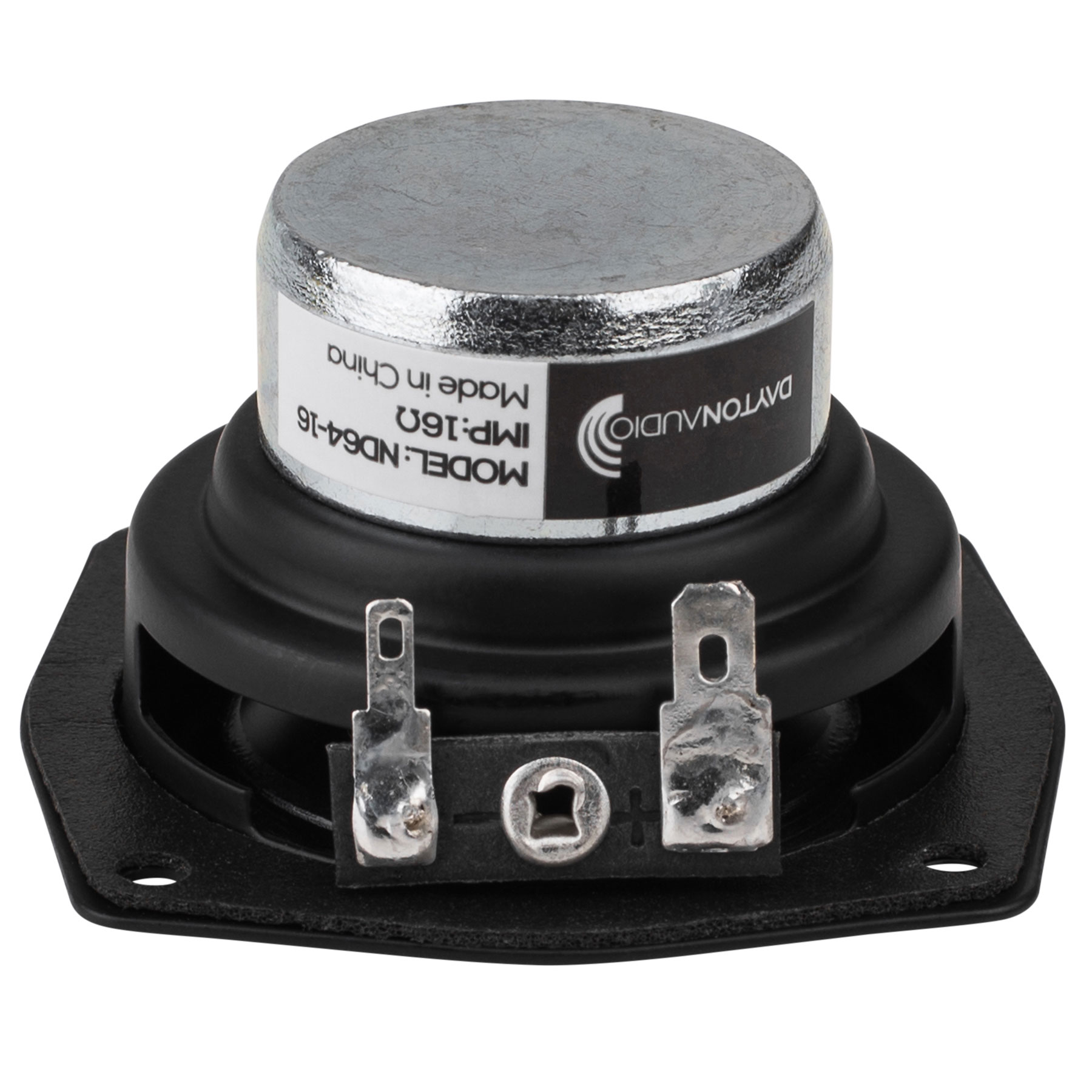

Dayton Audio ND64-16
Dayton Audio ND64-16 2-1/2” Aluminum Cone Full-Range Neo Driver 16 Ohm
Dayton Audio’s ND64-16 is truly a full-range, low distortion driver and capable of over 6 mm of peak-to-peak excursion. When teamed up with the matching ND series passive radiators this driver can produce incredible full sound from compact enclosures.
Key Features
- Rubber-edged aluminum magnesium alloy cone
- Dual neodymium motor structure
- 4-layer voice coil with polyimide former
- Copper sleeve to minimize distortion
- High power handling
Dayton Audio ND64-16 2-1/2" Aluminum Magnesium Cone Full-Range Neo Driver 16 Ohm
Dayton Audio’s ND64-16 is truly a full-range driver and capable of over 6 mm of peak-to-peak excursion. It features a dual neodymium magnet structure, a 3/4" CCAW voice coil, and a copper sleeve to minimize distortion. An efficient, low-distortion neodymium motor is combined with a rigid yet lightweight aluminum magnesium diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source speaker applications, or combined in multiples for line array designs.
| Artikel-Nr.: | 295-519 |
|---|---|

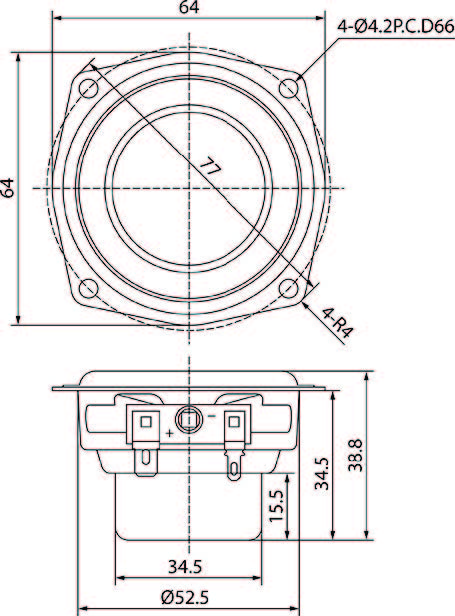

| Außenmaß: | 64mm |
| Bohrlochanzahl: | 4 |
| DC Resistance (Re): | 14,5 Ohm |
| EAN: | 848791002793 |
| Eff. Membranfläche (Sd): | 15,6cm² |
| Effektive Bewegte Masse (Mms): | 211 |
| Einbautiefe: | 39,1 mm |
| Einbauöffnung: | 53,1 mm |
| Einheit: | Stück |
| Elektrische Güte (Qes): | 45 |

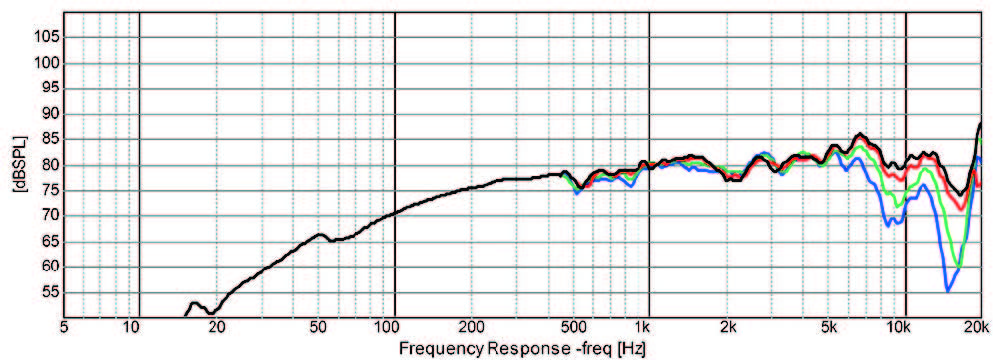

| Frequenzbereich: | 100 bis 20,000Hz |
| Gesamtgüte (Qts): | 41 |
| Impedanz (Z): | 16 Ohm |
| Korbmaterial: | Stahl |
| Kraftfaktor (BL): | 6,54T·m |
| Lineare Auslenkung (Xmax): | 1,9mm |
| Magnet: | Neodym |
| Marke: | Dayton Audio |
| Mechanische Güte (Qms): | 41 |
| Membranmaterial: | Aluminium / Magnesium |
| Modell: | ND64-16 |
| Nachgiebigkeit (Cms): | 1,65mm/N |
| Nennbelastbarkeit: | 15 Watt |
| Resonanzfrequenz (fs): | 100,9Hz |
| Schwingspulendurchmesser: | 19,1 mm |
| Schwingspulenind. (Le): | 1,21mH |
| Schwingspulenkörper: | Kapton / Polyimide |
| Schwingspulenmaterial: | CCA |
| Sensitivität: | 80,2dB 2,83V/1m |
| Sickenmaterial: | Gummi |
| Äquivalentvolumen (Vas): | 0,51 l |
