Dayton Audio ND90-8
Skip image gallery
Picture similar to product
Product number:
290-210
Manufacturer:
Dayton Audio
Length:
1.77 mm
Width:
0.7 mm
Height:
1.91 mm
Weight:
0.28 kg
Available stock:
68
Min. order quantity:
1
Max. order quantity:
10

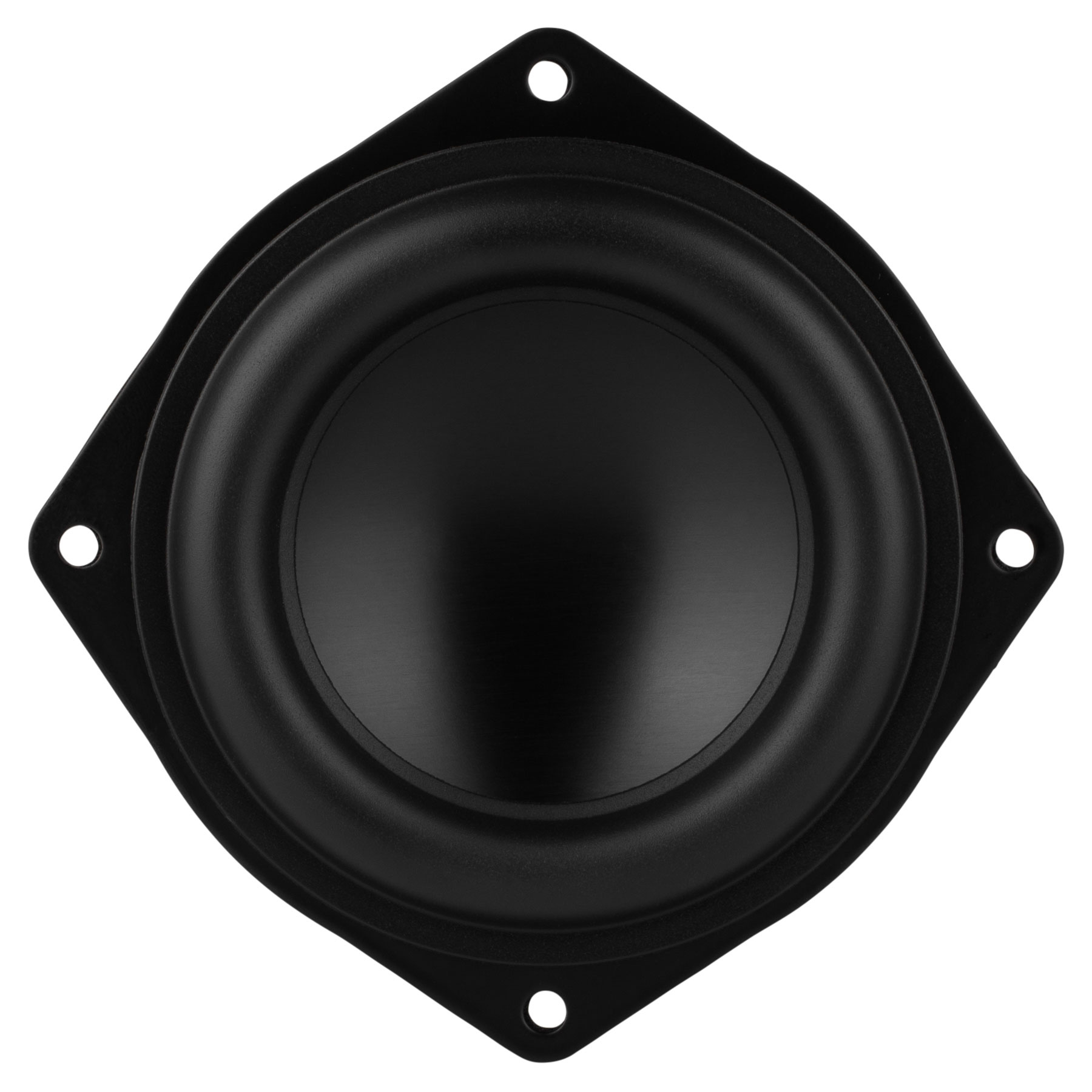

Dayton Audio ND90-8 3-1/2” Aluminum Cone Full-Range Neo Driver 8 Ohm
Looking for a small driver that punches above its weight class? The ND90-8 radical high performance full-range transducer exudes an aura of superiority. When teamed up with the matching ND series passive radiators this driver can produce incredible full sound from compact enclosures.
Key Features
- Direct replacement for Aura NS3
- Rubber-edged anodized aluminum alloy cone
- Large excursion capability—4 mm Xmax, 20 mm peak

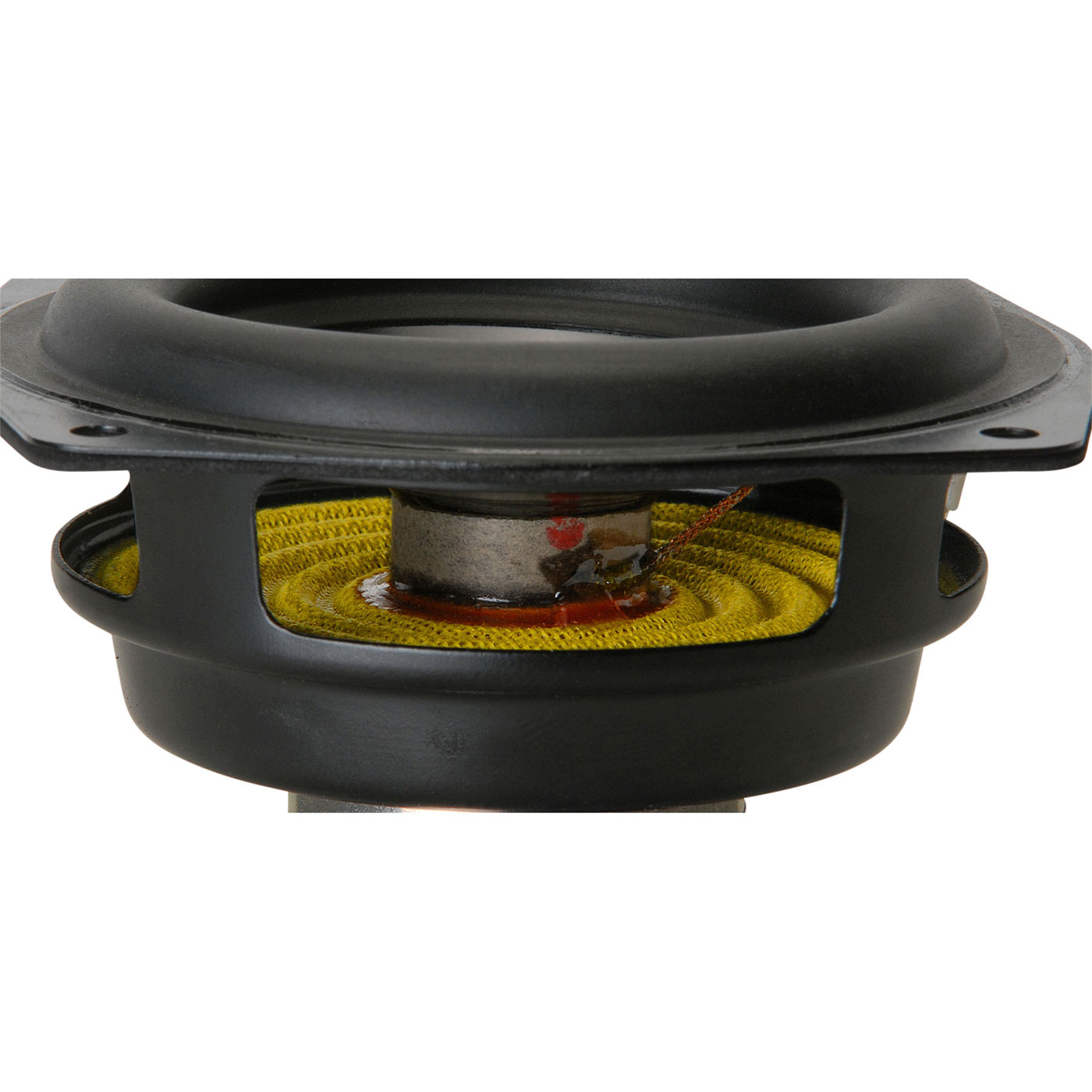

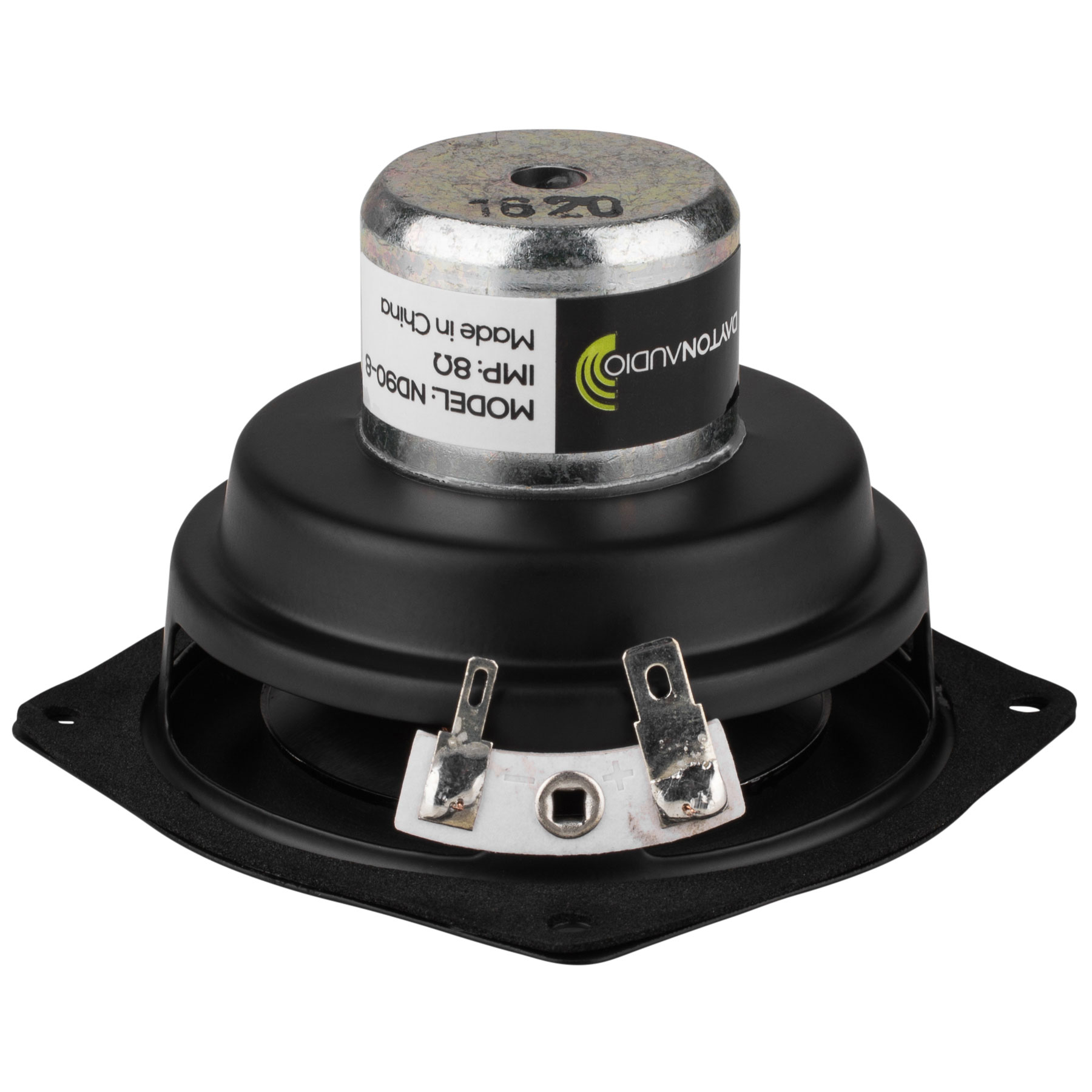

- Self-shielded Neo-Balanced motor structure
- Full-range 80 Hz to 15 kHz performance
- 3/4" 4-layer underhung voice coil with polyimide former
- 20 watts RMS power handling
Dayton Audio ND90-8 3-1/2" Aluminum Cone Full-Range Neo Driver 8 Ohm
Dayton Audio's compact aluminum cone drivers demonstrate the latest advances in high-excursion design processes. An efficient, low-distortion Neo-Balanced motor is combined with a rigid yet lightweight aluminum diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source applications, or combined in multiples and line arrays.
Properties
| Artikel-Nr.: | 290-210 |
|---|---|
| Außenmaß: | 103,4mm |
| Bohrlochanzahl: | 4 |
| DC Resistance (Re): | 7,5 Ohm |
| EAN: | 844632077449 |
| Eff. Membranfläche (Sd): | 31,2cm² |
| Effektive Bewegte Masse (Mms): | 42 |
| Einbautiefe: | 60,7 mm |
| Einbauöffnung: | 85,1 mm |
| Einheit: | Stück |
| Elektrische Güte (Qes): | 75 |

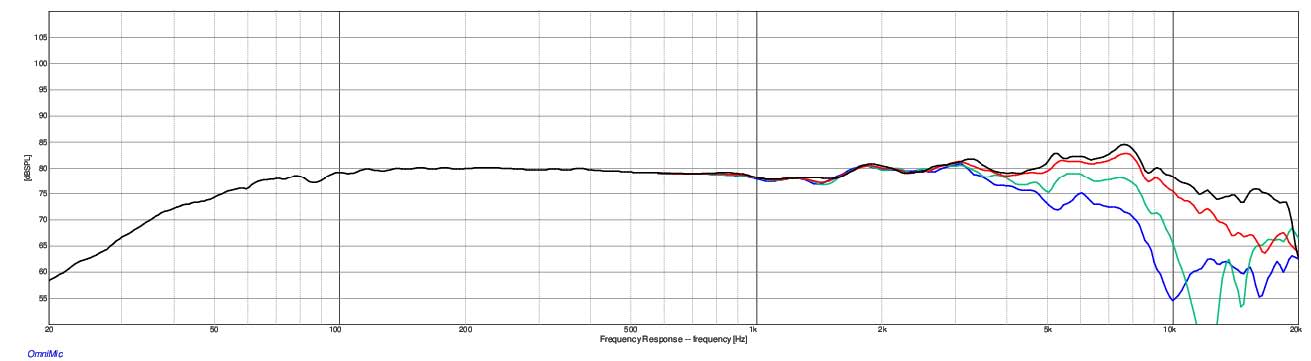

| Frequenzbereich: | 80 bis 15,000Hz |
| Gesamtgüte (Qts): | 65 |
| Impedanz (Z): | 8 Ohm |
| Korbmaterial: | Stahl |
| Kraftfaktor (BL): | 4,3T·m |
| Lineare Auslenkung (Xmax): | 4mm |
| Magnet: | Neodym |
| Marke: | Dayton Audio |
| Mechanische Güte (Qms): | 471 |
| Membranmaterial: | Aluminium |
| Modell: | ND90-8 |
| Nachgiebigkeit (Cms): | 1,22mm/N |
| Nennbelastbarkeit: | 20 Watt |
| Resonanzfrequenz (fs): | 70,7Hz |
| Schwingspulendurchmesser: | 19,1 mm |
| Schwingspulenind. (Le): | 1,08mH |
| Schwingspulenkörper: | Kapton / Polyimide |
| Schwingspulenmaterial: | Kupfer |
| Sensitivität: | 81,4dB 2,83V/1m |
| Sickenmaterial: | Gummi |
| Äquivalentvolumen (Vas): | 1,756 l |
Data according to manufacturer. Errors and changes reserved.
