Dayton Audio ND105-8
Skip image gallery
Picture similar to product
Product number:
290-214
Manufacturer:
Dayton Audio
Length:
2.58 mm
Width:
1.02 mm
Height:
3.18 mm
Weight:
0.4 kg
Available stock:
8
Min. order quantity:
1
Dayton Audio ND105-8 4” Aluminum Cone Midbass Neo Driver 8 Ohm
Dayton Audio's ND105-8 compact aluminum cone midbass produces high-impact audio demonstrating the latest advances in high-excursion design processes. When teamed up with the matching ND series passive radiators this driver can produce incredible full sound from compact enclosures.
Key Features
- Extended-range 60 Hz to 10 kHz performance
- Rubber-edged aluminum alloy cone
- Large excursion capability—4 mm Xmax, 20 mm peak
- Self-shielded Neo-Balanced motor structure
- 1" 4-layer underhung voice coil with polyimide former
- 30 watts RMS power handling
Dayton Audio ND105-8 4" Aluminum Cone Midbass Neo Driver 8 Ohm
Dayton Audio's compact aluminum cone drivers demonstrate the latest advances in high-excursion design processes. An efficient, low-distortion Neo-Balanced motor is combined with a rigid yet lightweight aluminum diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source applications, or combined in multiples and line arrays.
Properties
| Artikel-Nr.: | 290-214 |
|---|---|

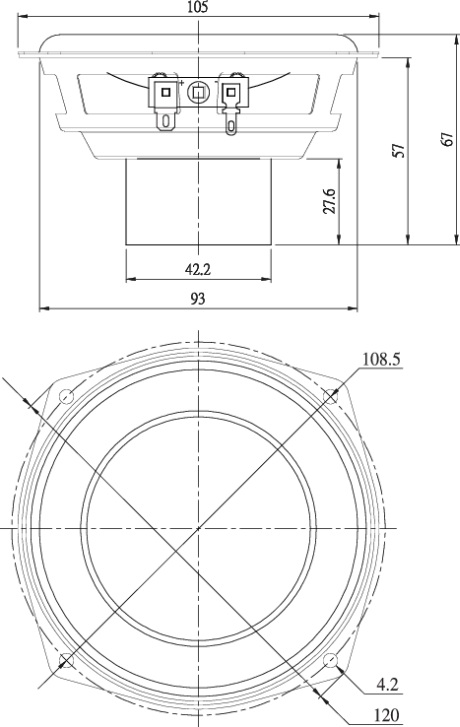

| Außenmaß: | 104,9mm |
| Bohrlochanzahl: | 4 |
| DC Resistance (Re): | 7,7 Ohm |
| EAN: | 844632081088 |
| Eff. Membranfläche (Sd): | 51,5cm² |
| Effektive Bewegte Masse (Mms): | 680 |
| Einbautiefe: | 67,1 mm |
| Einbauöffnung: | 93mm |
| Einheit: | Stück |
| Elektrische Güte (Qes): | 74 |

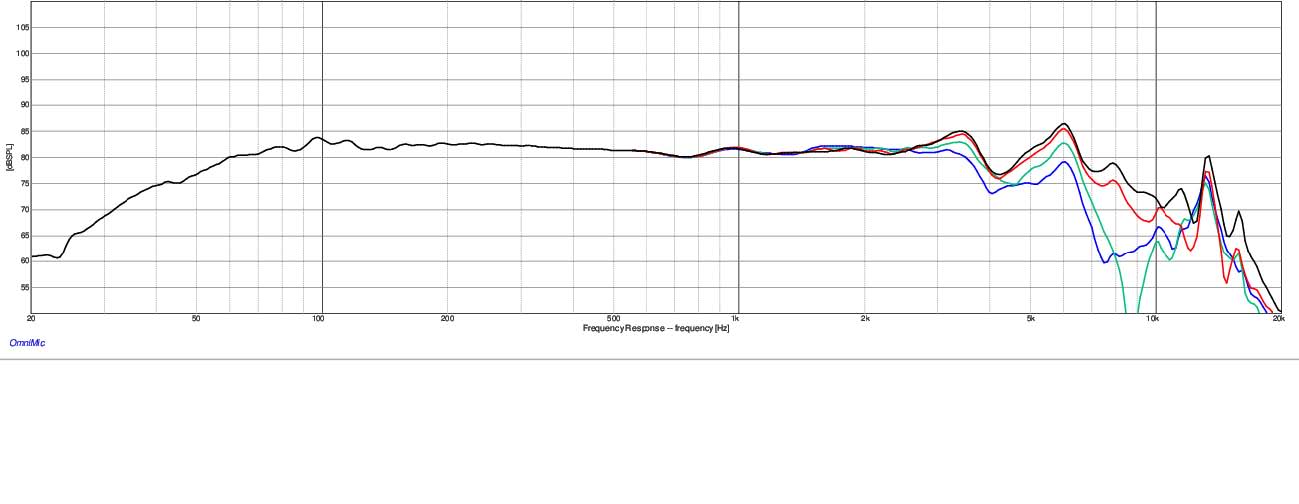

| Frequenzbereich: | 60 bis 10,000Hz |
| Gesamtgüte (Qts): | 66 |
| Größe: | 4 " |

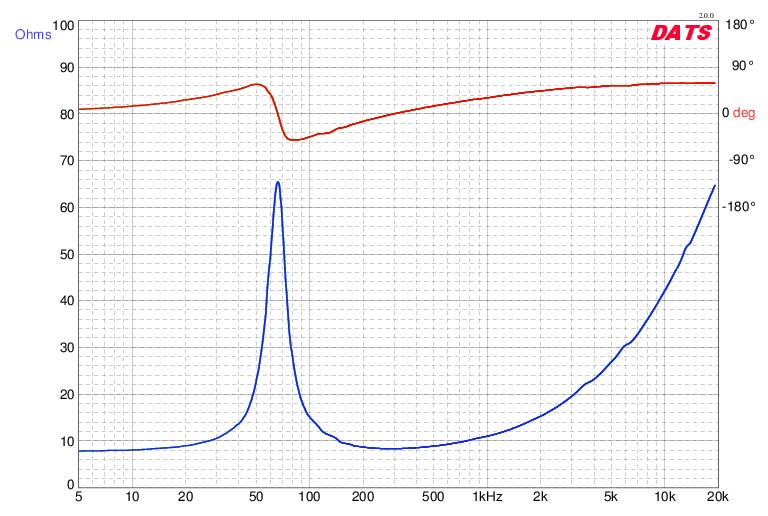

| Impedanz (Z): | 8 Ohm |
| Korbmaterial: | Stahl |
| Kraftfaktor (BL): | 5,44T·m |
| Lineare Auslenkung (Xmax): | 4mm |
| Magnet: | Neodym |
| Marke: | Dayton Audio |
| Mechanische Güte (Qms): | 557 |
| Membranmaterial: | Aluminium |
| Modell: | ND105-8 |
| Nachgiebigkeit (Cms): | 0,84mm/N |
| Nennbelastbarkeit: | 30 Watt |
| Resonanzfrequenz (fs): | 66,6Hz |
| Schwingspulendurchmesser: | 25,4 mm |
| Schwingspulenind. (Le): | 1,25mH |
| Schwingspulenkörper: | Kapton / Polyimide |
| Schwingspulenmaterial: | Kupfer |
| Sensitivität: | 82,7dB 2,83V/1m |
| Sickenmaterial: | Gummi |
| Äquivalentvolumen (Vas): | 2,945 l |
Data according to manufacturer. Errors and changes reserved.
