Dayton Audio ND105-4
Skip image gallery
Picture similar to product
Product number:
290-212
Manufacturer:
Dayton Audio
Length:
2.58 mm
Width:
1.02 mm
Height:
2.54 mm
Weight:
0.4 kg
Available stock:
6
Min. order quantity:
1

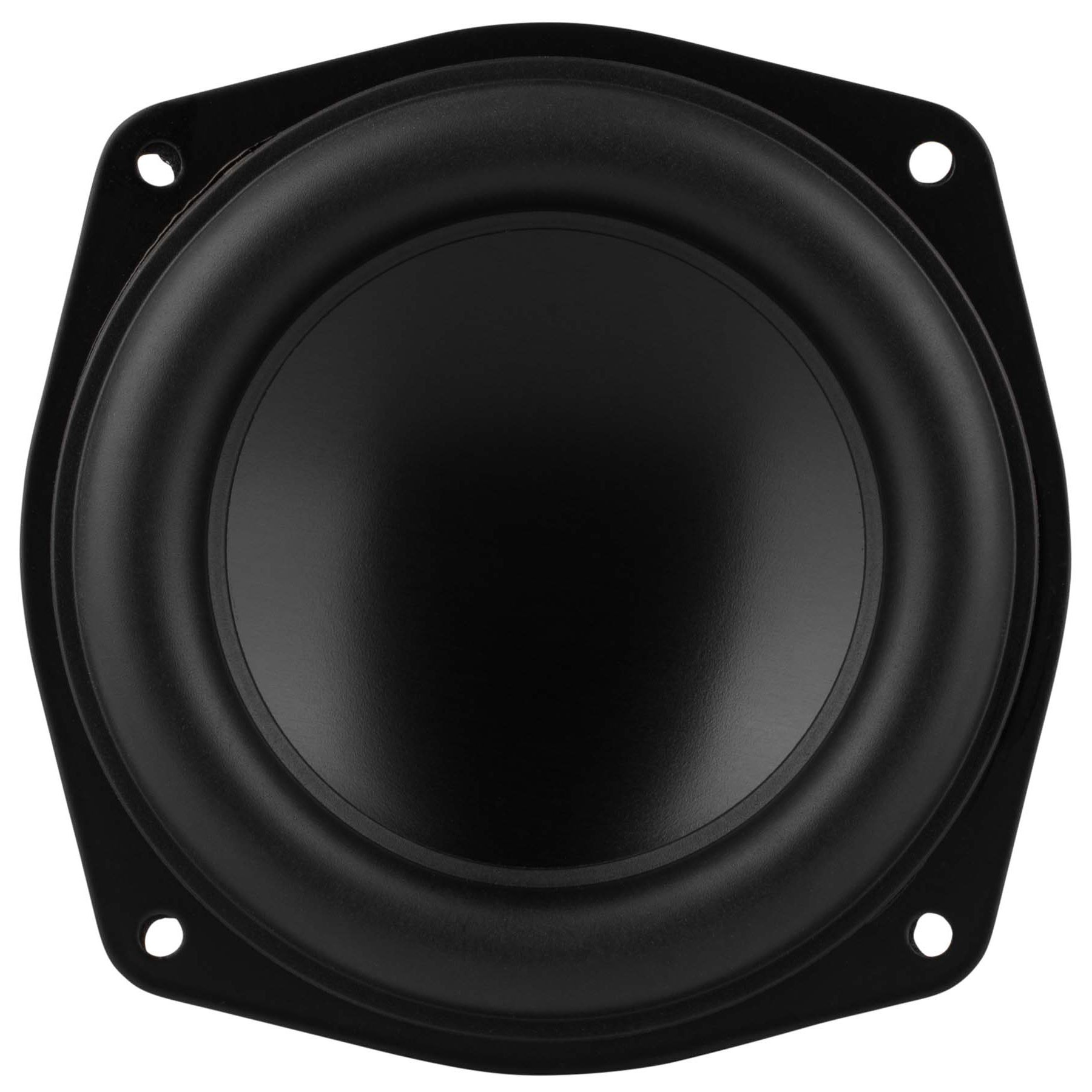

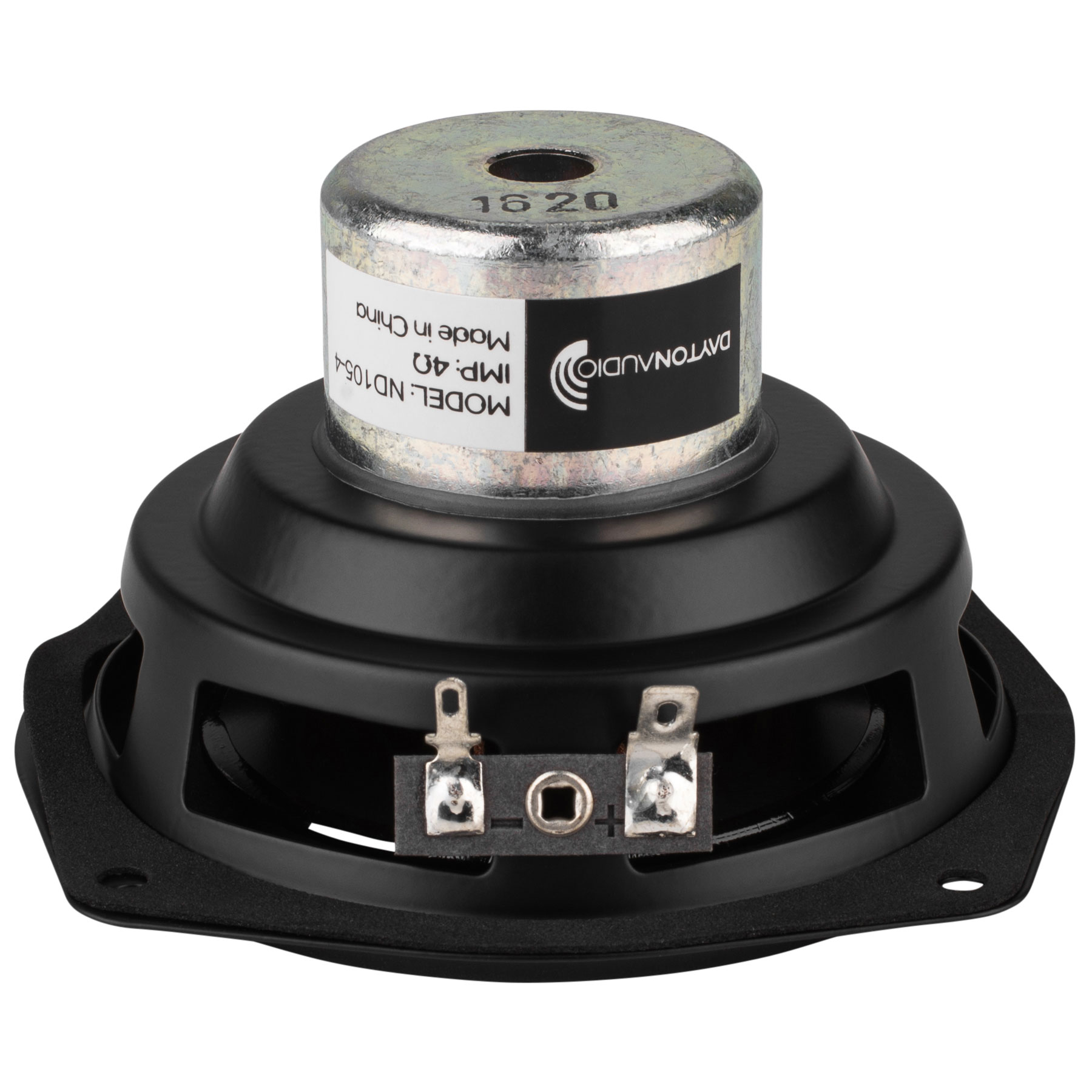

Dayton Audio ND105-4 4” Aluminum Cone Full-Range Neo Driver 4 Ohm
Dayton Audio's ND105-4 compact aluminum cone midbass produces high-impact audio demonstrating the latest advances in high-excursion design processes. When teamed up with the matching ND series passive radiators this driver can produce incredible full sound from compact enclosures.
Key Features

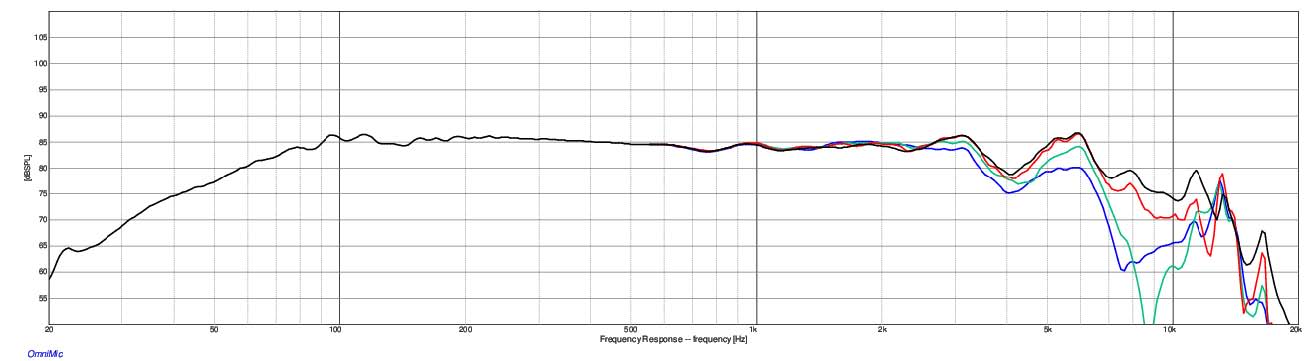

- Extended-range 60 Hz to 10 kHz performance
- Rubber-edged aluminum alloy cone
- Large excursion capability—4 mm Xmax, 20 mm peak
- Self-shielded Neo-Balanced motor structure
- 1" 4-layer underhung voice coil with polyimide former
- 30 watts RMS power handling
Dayton Audio ND105-4 4" Aluminum Cone Midbass Neo Driver 4 Ohm
Dayton Audio's compact aluminum cone drivers demonstrate the latest advances in high-excursion design processes. An efficient, low-distortion Neo-Balanced motor is combined with a rigid yet lightweight aluminum diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source applications, or combined in multiples and line arrays.
Properties
| Artikel-Nr.: | 290-212 |
|---|---|

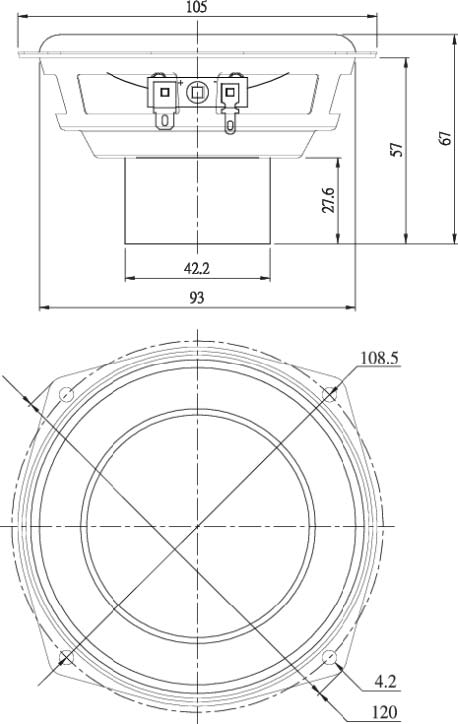

| Außenmaß: | 104,9mm |
| Bohrlochanzahl: | 4 |
| DC Resistance (Re): | 3,7 Ohm |
| EAN: | 844632081071 |
| Eff. Membranfläche (Sd): | 51,5cm² |
| Effektive Bewegte Masse (Mms): | 74 |
| Einbautiefe: | 67,1 mm |
| Einbauöffnung: | 93mm |
| Einheit: | Stück |
| Elektrische Güte (Qes): | 66 |
| Frequenzbereich: | 60 bis 10,000Hz |
| Gesamtgüte (Qts): | 61 |
| Größe: | 4 " |

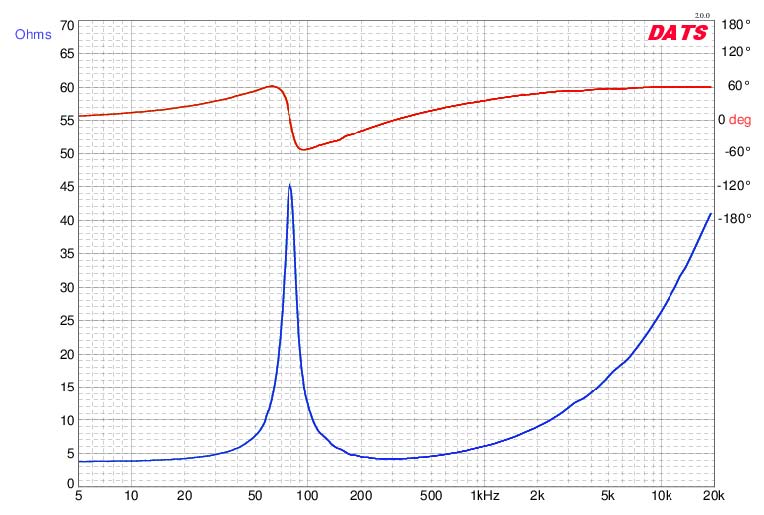

| Impedanz (Z): | 4 Ohm |
| Korbmaterial: | Stahl |
| Kraftfaktor (BL): | 4,52T·m |
| Lineare Auslenkung (Xmax): | 4mm |
| Magnet: | Neodym |
| Marke: | Dayton Audio |
| Mechanische Güte (Qms): | 742 |
| Membranmaterial: | Aluminium |
| Modell: | ND105-4 |
| Nachgiebigkeit (Cms): | 0,55mm/N |
| Nennbelastbarkeit: | 30 Watt |
| Resonanzfrequenz (fs): | 78,7Hz |
| Schwingspulendurchmesser: | 25,4 mm |
| Schwingspulenind. (Le): | 0,76mH |
| Schwingspulenkörper: | Kapton / Polyimide |
| Schwingspulenmaterial: | Kupfer |
| Sensitivität: | 86,8dB 2,83V/1m |
| Sickenmaterial: | Gummi |
| Äquivalentvolumen (Vas): | 1,954 l |
Data according to manufacturer. Errors and changes reserved.
