Dayton Audio ND13FA-4
Dayton Audio ND13FA-4 1/2” Soft Dome Neodynium Tweeter
Dayton Audio's tiny ND13FA-4 1/2" soft dome tweeter is perfect for use in compact 2-way systems such as desktop, surround, or portable speaker systems. With smooth response from 4,500 to 20,000 Hz this tweeter is ideal for adding more top end to many full-range drivers.
Key Features
- Compact faceplate is perfect for minimal center-to-center distances
- Easy installation, front mount pressfit design
- Ferrofluid enhances power handling and helps damp resonance
- Powerful neodymium motor keeps tweeter small with impressive efficiency
Dayton Audio ND13FA-4 1/2" Soft Dome Neodymium Tweeter 4 Ohm
The versatile ND13FA-4 1/2" soft dome tweeter from Dayton Audio has the sensitivity, smoothness, and power handling for use in a 2-way design with most small woofers. The small faceplate allows minimal center-to-center distances making these a great choice for use in 2-way designs with high crossover points. With 4-ohm impedance, this tweeter is suitable for use in both home and automotive applications. Thanks to the Ferrofluid cooled voice coil, the ND13FA-4 can handle an impressive amount of power and has excellent damping for extremely accurate response.
| Artikel-Nr.: | 275-104 |
|---|---|

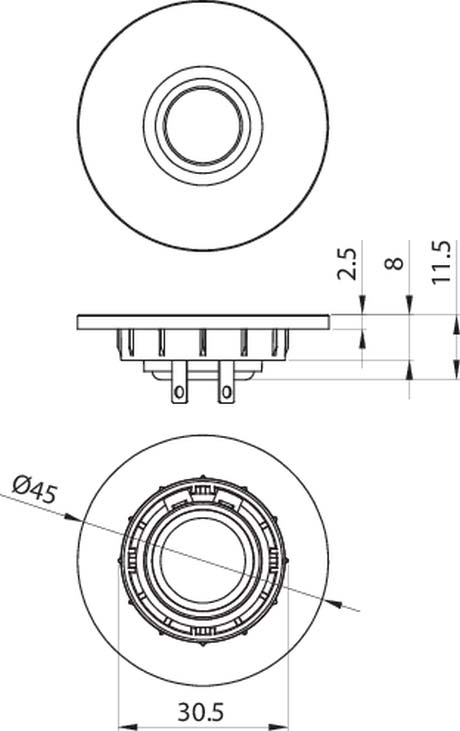

| Außenmaß: | 45mm |
| DC Resistance (Re): | 3,07 Ohm |
| EAN: | 848791004735 |
| Einbautiefe: | 11,4 mm |
| Einheit: | Stück |
| Elektrische Güte (Qes): | 844 |

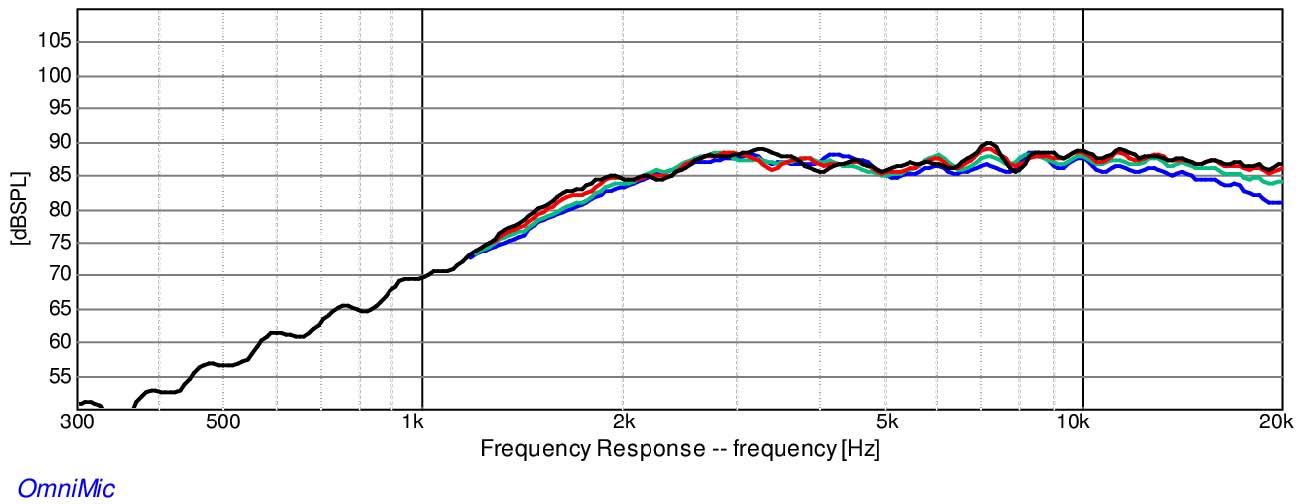

| Frequenzbereich: | 4,500 bis 20,000Hz |
| Gesamtgüte (Qts): | 84 |
| Hochtöner Typ: | Kalotte |

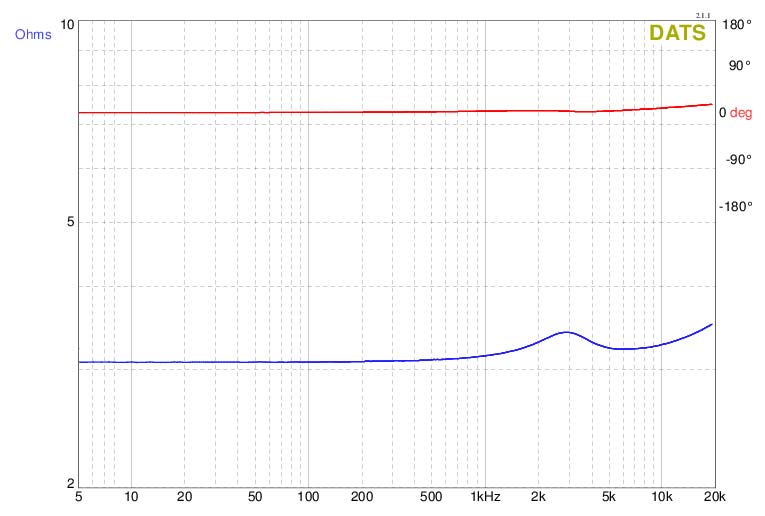

| Impedanz (Z): | 4 Ohm |
| Marke: | Dayton Audio |
| Mechanische Güte (Qms): | 93 |
| Modell: | ND13FA-4 |
| Nennbelastbarkeit: | 20 Watt |
| Resonanzfrequenz (fs): | 2832Hz |
| Schwingspulenind. (Le): | 0,02mH |
| Sensitivität: | 88,5dB 2,83V/1m |
