Smokey Lautsprecherbausatz
€159.95
Available in 14 days, delivery time 1-3 days

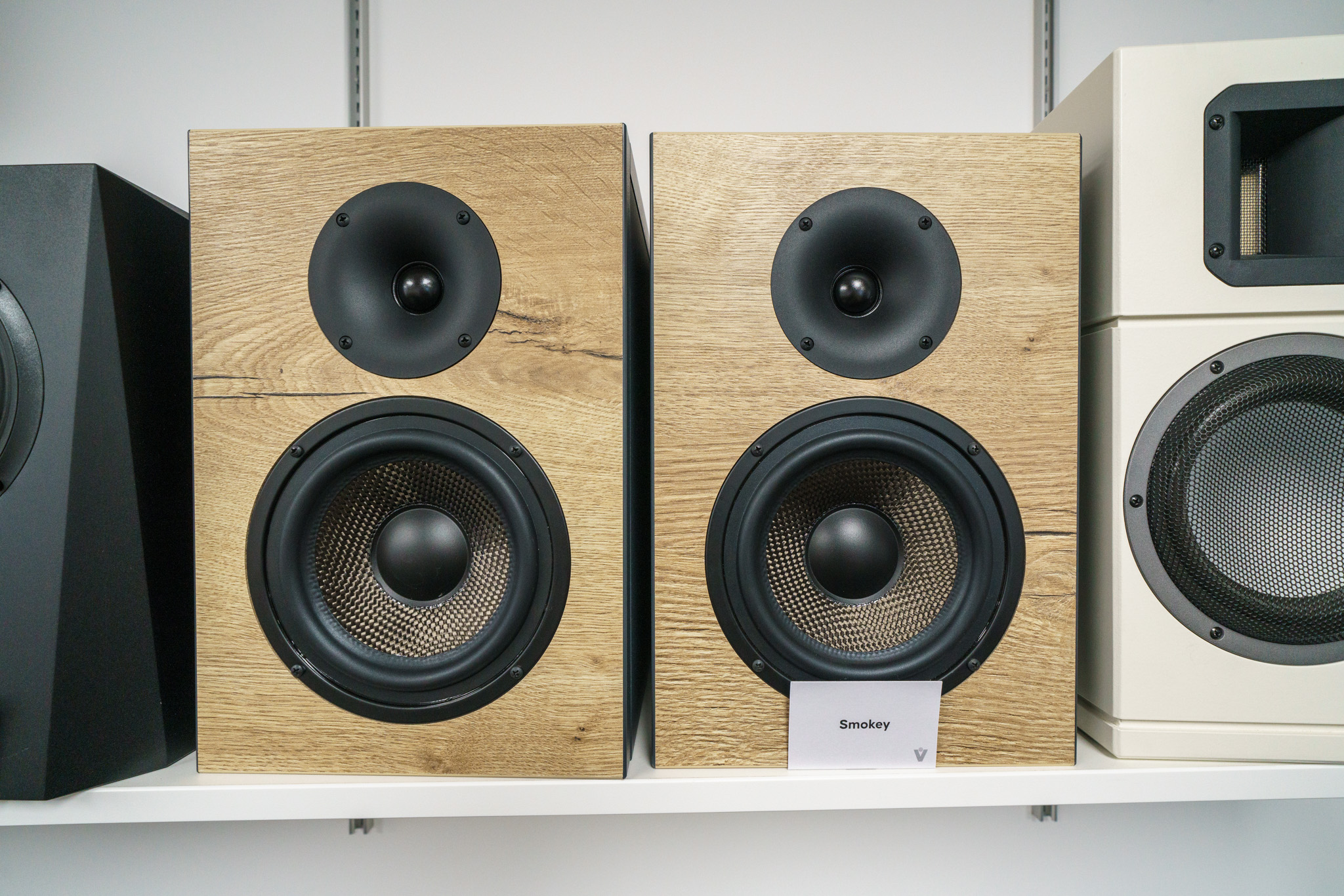

Smokey Speaker Kit
Affordable components, elegant finish at a low price, and a captivating sound – simply good.
hifitest.de
Smokey Kit
2-Way Main and Bookshelf Speakers
Assembly:
6" mid-woofer, 25mm fabric tweeter with wave-guide (short horn), frequency crossover components Mundorf Hi-
Quality:
Properties:
Ears pampered and the wallet spared. Who doesn't want that?
Die Smokey was created following an idea: affordable and good, with simple means and if possible without
Tools (except soldering iron and screwdriver) to create a speaker kit that also
optically suitable for the living room. How is this possible without painting or veneering and without tools? Well,
variant also has the access and experience of a furniture joinery. We gave the colleagues free
Run to transform ideas and concepts into solutions. The result was a concept in which the independent
entwickelte Bausatz Smokey can be perfectly integrated. The Smokey houses the brand new
Mid-woofer from Dayton Audio with the carbon fiber cone. As a tweeter, we provided it with
the most popular tweeter from Dayton Audio, ND25FW-4. With its short horn or waveguide, it is
the perfect companion. Together, they create a soundscape that, given the small size of this box
nothing to be desired. The optional selectable housing completes this kit, which not only
for the DIY professionals, but especially for those who want to try or start. Caution,
successful DIY can be addictive.
Scope of delivery:
- Smokey, almost finished speaker kit ?
Variation:
In the variation…
Bei der ausgewählten Anzahl handelt es sich um Stück,nota couple.
| Breite: | 237mm |
|---|---|
| Frequenzumfang: | f-3dB, f-3dB: 40-20000Hz |
| Funktionsprinzip: | Bassreflex |
| Gesamtimpedanz: | 4 Ohm |
| Höhe: | 350 mm |
| SPL: | 84dB |
| Tiefe: | 280mm |
Accessory Items
Gehäusebausatz SmokeyKit Smokey Attention please note and for change requests please in the comment field or by email change requestsaddress: In all our enclosure kits, unless otherwise mentioned, terminal cutouts for our terminalT105 on the back of the case, prefabricated! All housing kits (not glued or painted) are without rounded edges or chamfers! Fasings or roundings are only made on fully assembled housings.
Dayton Audio GF180-4 6-1/2" Glass Fiber Cone Woofer 4 Ohm Dayton Audio’s GF180-4 6-1/2” glass fiber cone woofer is built to produce powerful bass with smooth midrange response. The woven fiberglass cone and rubber surround damps cone resonances allowing an easy transition to tweeters when crossed over at 2,000 Hz. This affordable woofer is a great choice for 2-way bookshelf speaker designs. Key Features Woven fiberglass cone lowers resonances for smooth response and natural sound 4-layer voice coil on an aluminum former provides excellent heat dissipation Rubber surround helps damp the outside edge of the cone improving high frequency response Vented pole piece releases air trapped under the dustcap for quiet operation Low-profile frame minimizes diffraction making these drivers suitable for surface mount applications Dayton Audio GF180-4 6-1/2" Glass Fiber Cone Woofer 4 Ohm With flat response to 4,000 Hz and excellent low frequency extension, the GF180-4 6-1/2” glass fiber cone woofer from Dayton Audio is ideal for use in low cost 2-ways speaker designs. The naturally damped woven fiberglass cone is driven by a 4-layer voice coil wound on an aluminum former. This driver is a great choice for your next bookshelf speaker, multiple driver tower, or even portable sound systems
Dayton Audio ND25FW-4 1” Soft Dome Neodynium Tweeter with Waveguide 4 Ohm Dayton Audio has added a waveguide faceplate to the popular ND25 soft dome to create the ND25FW-4 tweeter. The waveguide faceplate controls dispersion to minimize ceiling and wall reflections, which in turn leads to an increase in efficiency across most of the passband. Key Features Waveguide loaded 1" treated silk dome Waveguide provides controlled directivity and higher efficiency Low Fs of 1,350 Hz can accommodate crossovers as low as 2,500 Hz Includes foam gasket to ensure a good seal to your enclosure High-strength neodymium motor with heatsink and ferrofluid cooling Standard 104 mm diameter faceplate for easy integration into many existing systems Dayton Audio ND25FW-4 1" Soft Dome Neodymium Tweeter with Waveguide 4 Ohm The Dayton Audio ND25FW-4 tweeter features a unique integrated round waveguide faceplate that provides a controlled directivity transition at high frequencies, reducing the effect of room reflections on the speaker's tonal balance. Unlike conventional flat-faceplate dome tweeters whose directivity does not match the midwoofer driver near the crossover frequency, the ND25FW-4's waveguide is curved to maintain consistent directivity at the transition. The waveguide also acts as a low-compression horn, lowering distortion. Waveguide-loaded dome tweeters are embraced within the industry for providing directivity control and mild horn loading without the negative effects of compression loading such as impulse smear and throat distortion where high levels are not needed. The waveguide profile used in the ND25FW-4 provides a minimum dispersion angle of about 90 degrees, and maintains directivity control to about 2,000 Hz, but the round waveguide will install easily into the same 104 mm standard tweeter cutout used commonly by dome tweeters with larger ferrite motors. Specifications: • Power handling: 20 watts RMS/40 watts max • VCdia: 1" • Le: 0.04 mH • Impedance: 4 ohms • Re: 3.2 ohms • Frequency response: 2,500-20,000 Hz • Fs: 1350 Hz • SPL: 91 dB 1W/1m • Dimensions: Overall diameter: 4.09", Cutout diameter: 2.875", Depth: 1.57".
