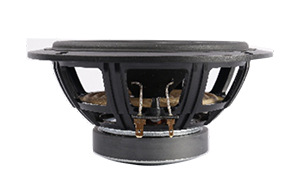

SB Acoustics 6" SB16PFCR25-8

Skip image gallery
Picture similar to product

€32.95*

Prices incl. VAT plus shipping costs

Product number: V11366
Manufacturer: SB Acoustics
Min. order quantity: 1

SB Acoustics 6" SB16PFCR25-8

  • Vented reinforced plastic chassis
  • Proprietary cone material with natural fibers made in-house
  • Soft low damping rubber surround for improved transient response
  • Optimized motor system
  • Vented coil former for low compression
  • Nicht-resonante, langlebige Anschlussdrähte

Specifications

  • Nominal Impedance 8 Ω
  • DC resistance, Re 5.6 Ω
  • Voice coil inductance, Le 0.77 mH
  • Effective piston area, Sd 124 cm2
  • Voice coil diameter 25.4 mm
  • Voice coil height 14 mm
  • Air gap height 5 mm
  • Linear coil travel (p-p) 9 mm
  • Magnetic flux density 1.07 T
  • Magnet weight 0.36 kg
  • Net weight 0.94 kg
  • Free air resonance, Fs 38 Hz
  • Sensitivity (2.83 V / 1 m) 87 dB
  • Mechanical Q-factor, Qms 2.5
  • Electrical Q-factor, Qes 0.48
  • Total Q-factor, Qts 0.40
  • Moving mass incl. air, Mms 13.8 g
  • Force factor, Bl 6.2 Tm
  • Equivalent volume, VAS 27 liters
  • Compliance, Cms 1.25 mm/N
  • Mechanical loss, Rms 1.4 kg/s
  • Rated power handling* 40 W

* IEC 268-5, T/S parameters measured on drive units that are broken in.
